Waveform 8

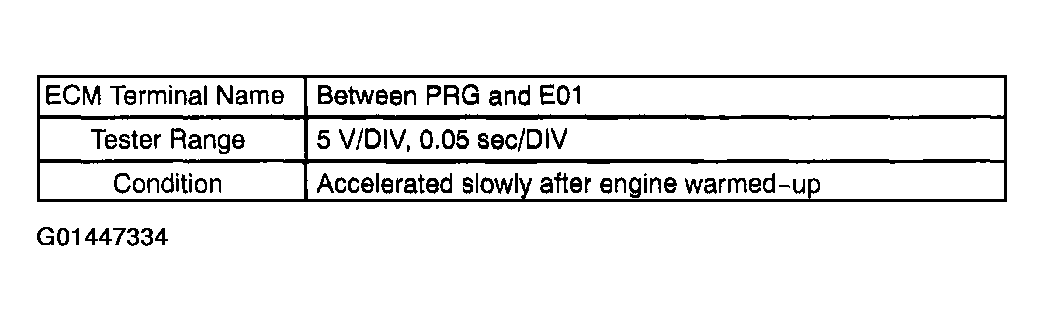

Fig 1: Throttle Actuator Waveform Representation Table 8

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

EVAP VSV

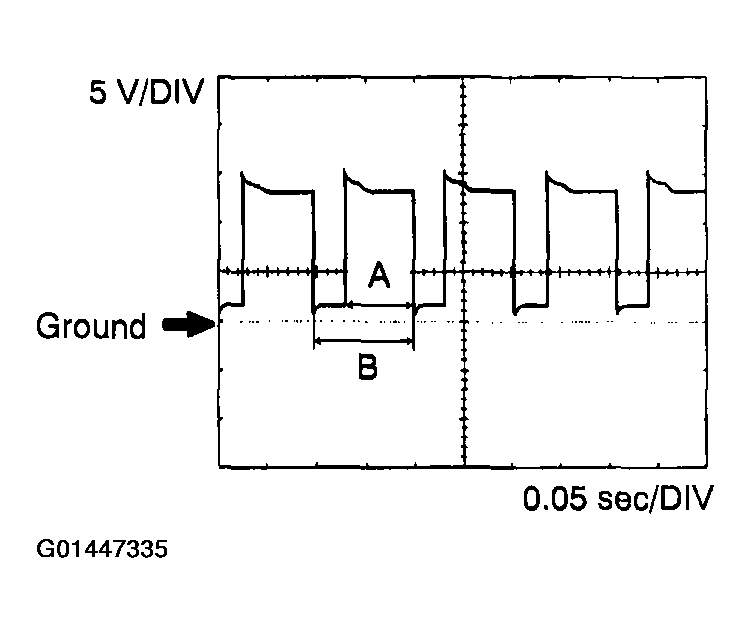

Fig 2: Throttle Actuator Waveform Representation (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

In cases where the EVAP VSV is usable to purge emissions, the waveform will not be displayed as shown on the left.

Duty ratio for EVAP VSV (%) = A/B x 100
