Waveform 9

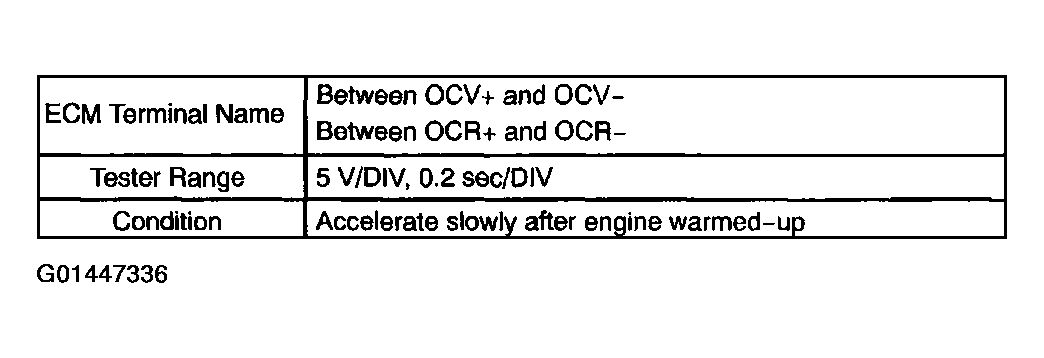

Fig 1: Throttle Actuator Waveform Representation Table 9

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VVT oil control valve (OCV)

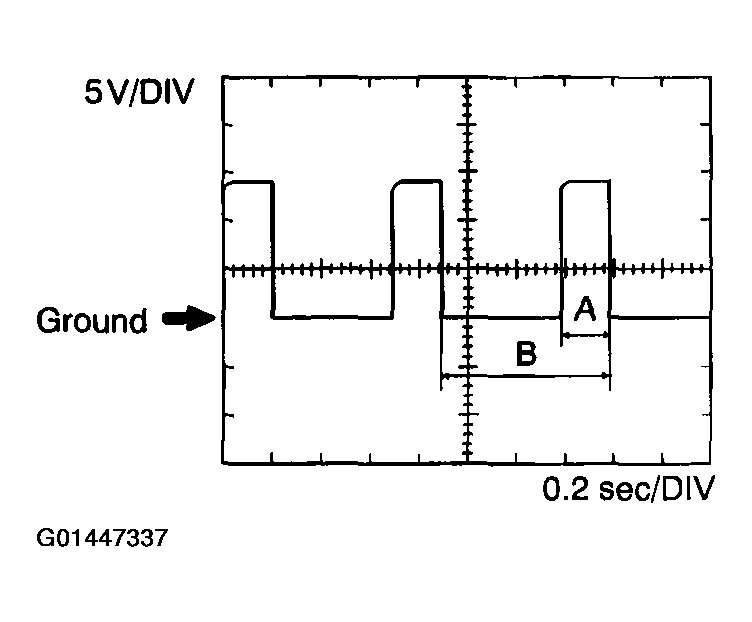

Fig 2: Throttle Actuator Waveform Representation (9 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Duty ratio for VVT OCV (%) = A/B x 100
