Section 355 (Instrument Panel): Removal

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. w/ CD Changer Built In The Audio System:

    SHIP MODE SETTING

    1. Take out all CDs.
      NOTE: If they cannot be taken out, do not attempt to take out forcibly. Send the unit for repair.
    2. Turn the ignition switch to ACC as pressing the "SEEK UP" and "DISC" switches at the same time.

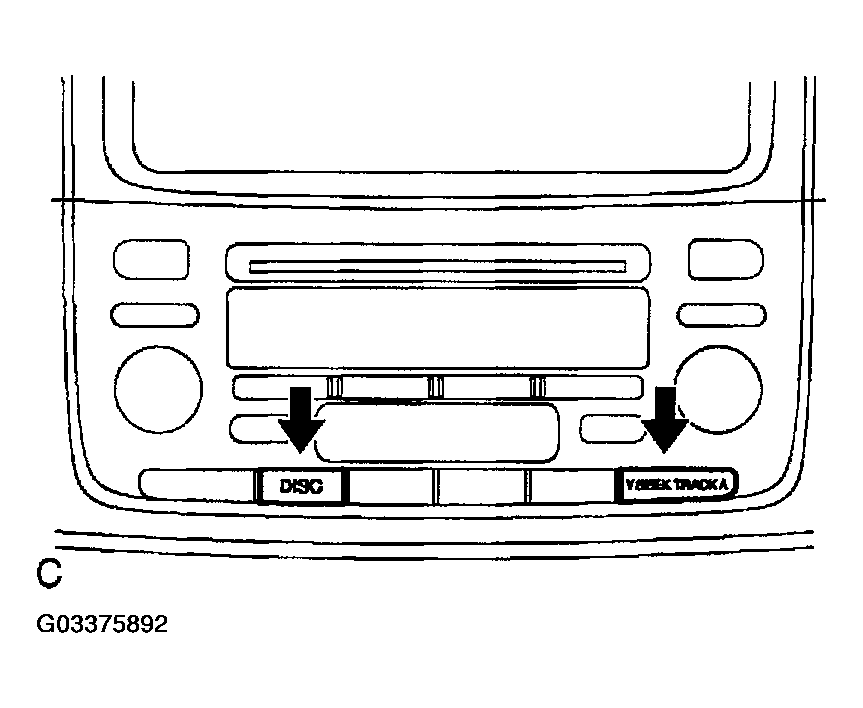

      Fig 1: Turning Ignition Switch To ACC As Pressing "SEEK UP" & "DISC" Switches At Same Time
      G03375892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      When the ship mode is set, "SHIP" must be displayed.

    3. Turn the ignition switch to OFF, and disconnect the battery negative cable.
    NOTE: Connecting the battery negative cable automatically finishes the ship mode.

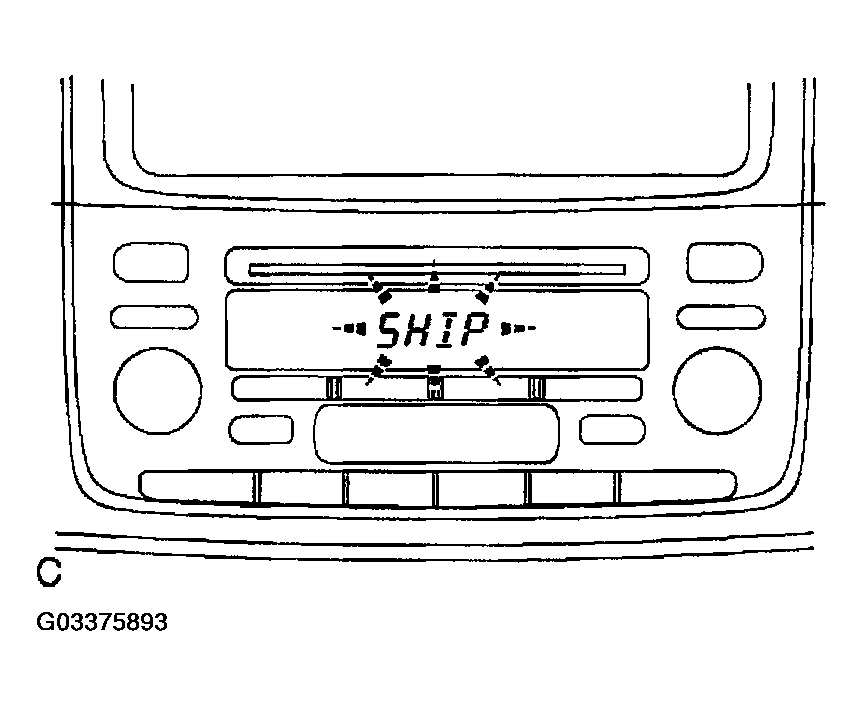

    Fig 2: Identifying "SHIP" Screen Display
    G03375893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL
    1. Using a moulding remover, remove the instrument cluster finish panel.
    2. Disconnect the connector.

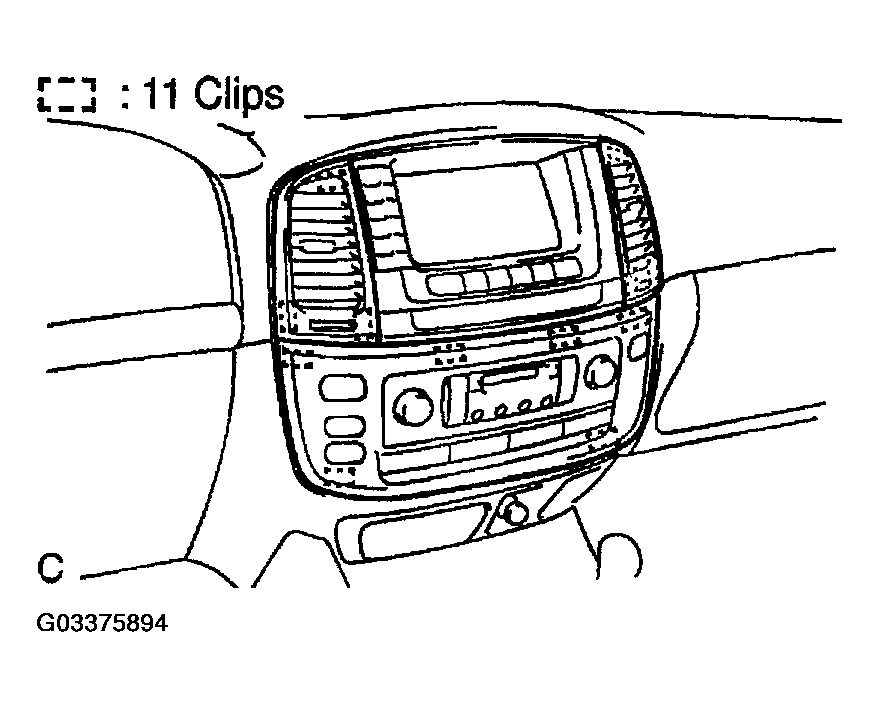

    Fig 3: Removing Instrument Cluster Finish Panel
    G03375894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CENTER RESISTER

    Using a moulding remover, remove the center resister.

    Fig 4: Removing Radio With A/C Control Assembly
    G03375895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

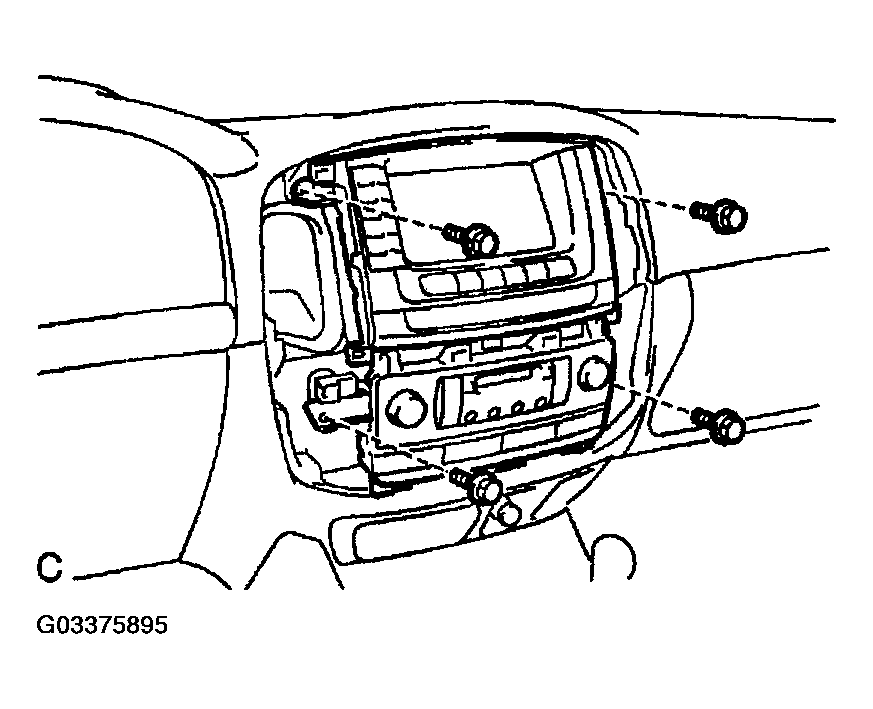

  4. REMOVE RADIO WITH A/C CONTROL ASSEMBLY
    1. Remove the 4 bolts.
    2. Disconnect the radio with A/C control assembly cable, and remove the radio with A/C control assembly and the connector.
  5. w/CD Changer Built In The Audio System:

    SHIP MODE CONFIRMATION

    Check that a metal can be seen from a hole marked" SHIP" on the back of the radio with A/C control assembly.

    NOTE: If metal part cannot be seen from a hole on the back of the air conditioner control assembly, repeat "SHIP MODE".
  6. REMOVE FRONT DOOR SCUFF PLATES
  7. REMOVE COWL SIDE TRIMS
  8. REMOVE FRONT DOOR OPENING TRIMS
  9. REMOVE FRONT PILLAR GARNISH
    1. Using a screwdriver, remove the 2 assist grip plugs, then remove the 2 screws and the assist grip.

      HINT:

      Tape up the screwdriver tip before use.

    2. Use the same manner described above to the other side.

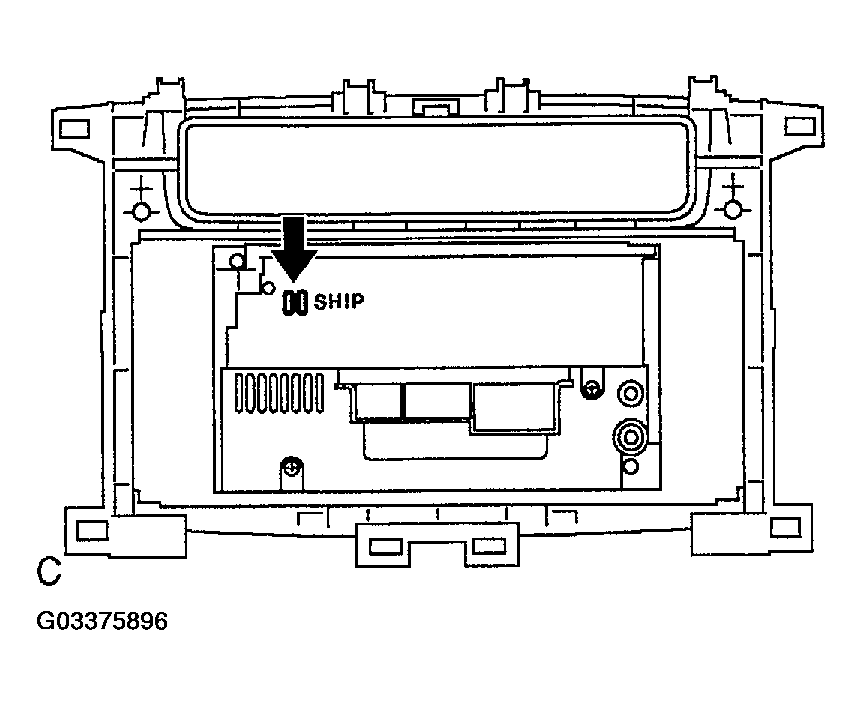

      Fig 5: Identifying SHIP Mode Confirmation
      G03375896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, remove the front pillar garnish.

      HINT:

      Tape up the screwdriver tip before use.

    4. Use the same manner described above to the other side.
  10. REMOVE STEERING WHEEL PAD (See  STEERING WHEEL  )
  11. REMOVE STEERING WHEEL (See  STEERING WHEEL  )

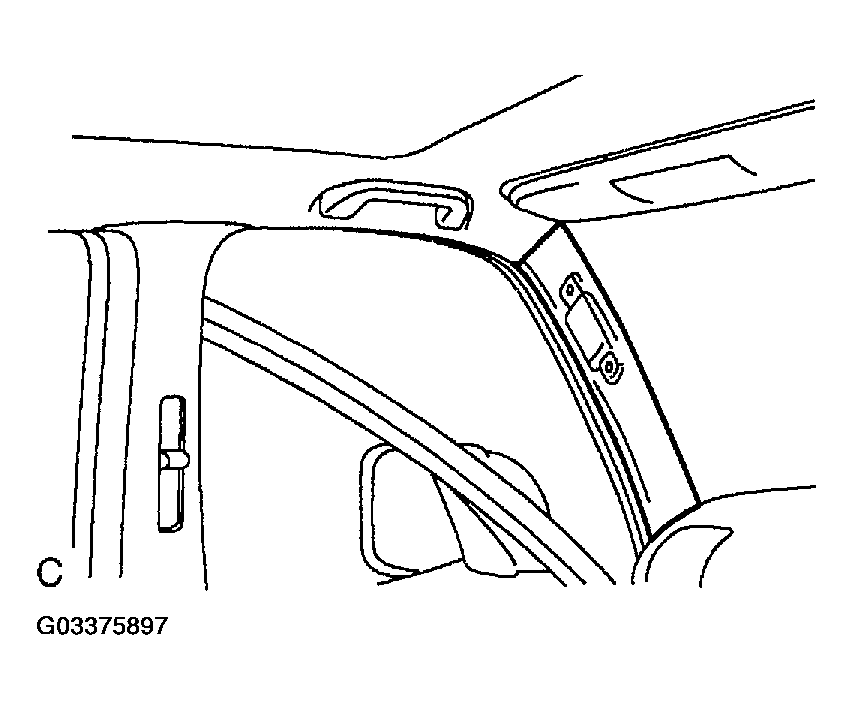

    Fig 6: Removing Front Pillar Garnish
    G03375897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

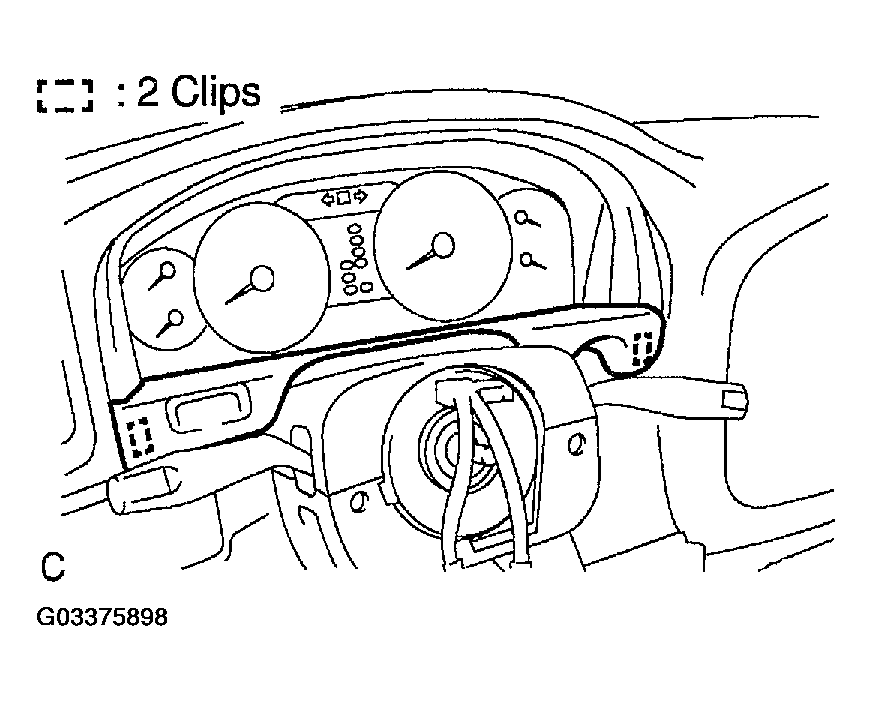

  12. REMOVE CLUSTER FINISH PANEL

    Using a screwdriver, remove the cluster finish panel, and disconnect the connector.

    HINT:

    Tape up the screwdriver tip before use.

  13. REMOVE HOOD LOCK AND FUEL LID CONTROL CABLE LEVER
    1. Remove the 2 screws and the hood lock control cable.
    2. Remove the 2 screws and the fuel lid control cable lever.
    Fig 7: Removing Cluster Finish Panel
    G03375898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE LOWER NO. 1 PANEL
    1. Remove the screw.
    2. Using a screwdriver, remove the lower No. 1 panel, then disconnect the connectors.

    HINT:

    Tape up the screwdriver tip before use.

  15. REMOVE LH LOWER PANEL

    Remove the 3 bolts and the LH lower panel.

  16. REMOVE COLUMN COVER

    Remove the 3 screws and the column cover.

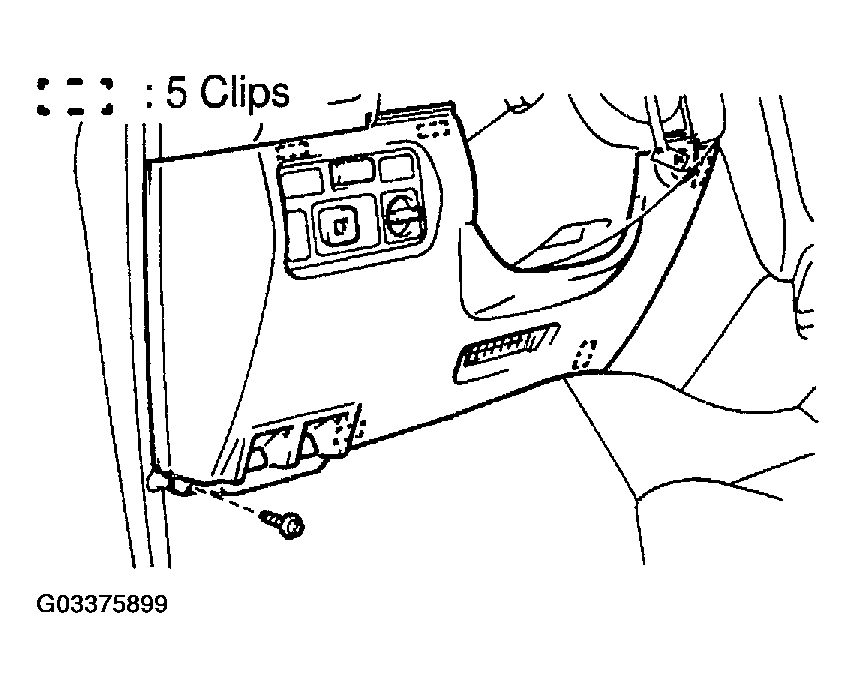

    Fig 8: Removing Lower No. 1 Panel
    G03375899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE COMBINATION SWITCH
    1. Disconnect the connectors.
    2. Remove the clamp.
    3. Remove the 4 screws and the combination switch.

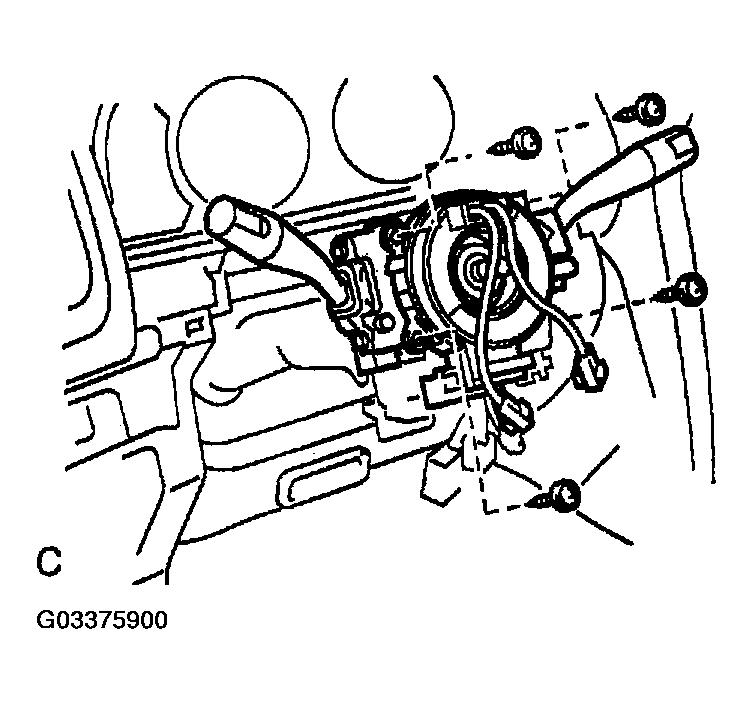

    Fig 9: Removing 4 Screws & Combination Switch
    G03375900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Disconnect the connector the, screw and the transceiver finish plate No. 1 assembly.
    2. Remove the screw and the No. 2 heater to register duct.

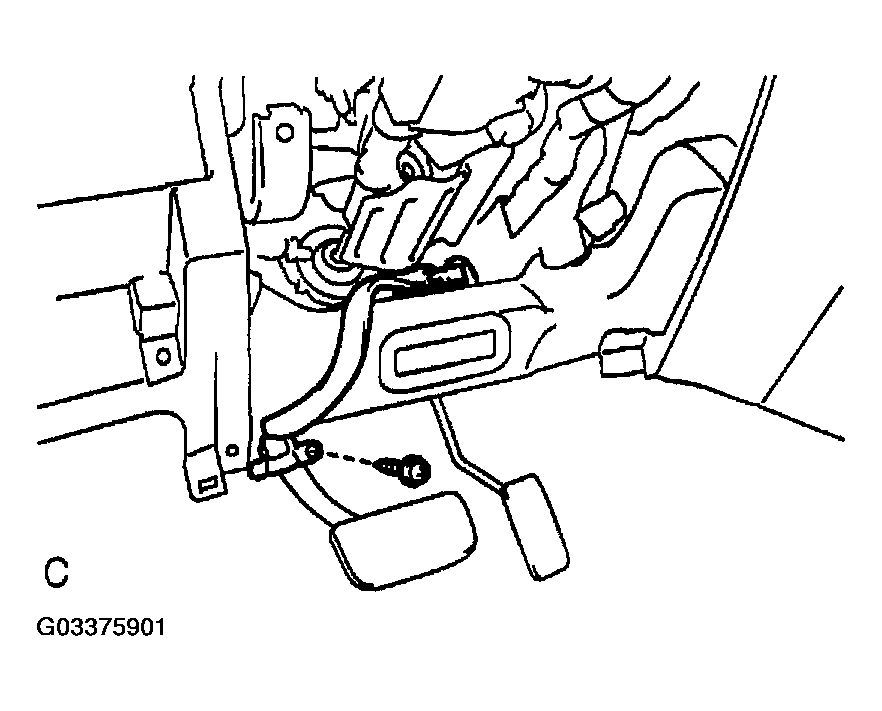

    Fig 10: Removing Screw & No. 2 Heater To Register Duct
    G03375901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

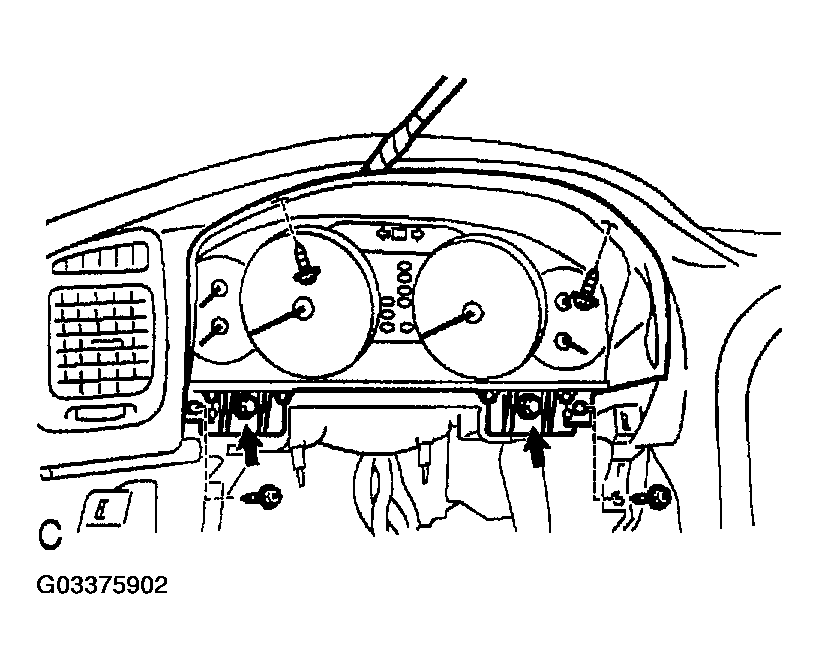

  19. REMOVE COMBINATION METER
    1. Disconnect the connectors.

      HINT:

      The connectors can be disconnected by loosening the bolts.

    2. Remove the 4 screws.
    3. Using a screwdriver, remove the combination meter.

    HINT:

    Tape up the screwdriver tip before use.

    Fig 11: Removing Combination Meter
    G03375902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE GLOVE COMPARTMENT DOOR
    1. Remove the 2 screws.
    2. Remove the glove compartment door, then disconnect the glove compartment door damper clip.

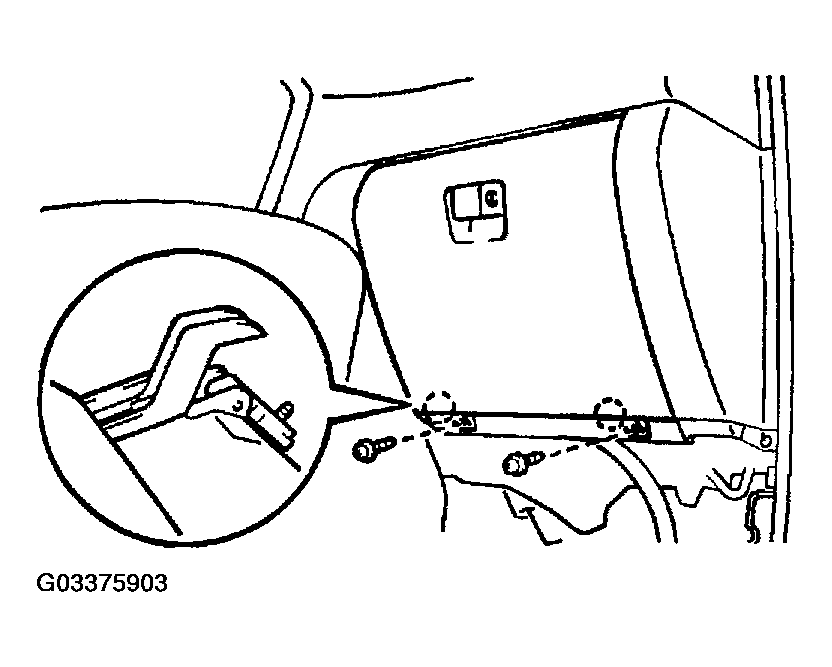

    Fig 12: Removing Glove Compartment Door
    G03375903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

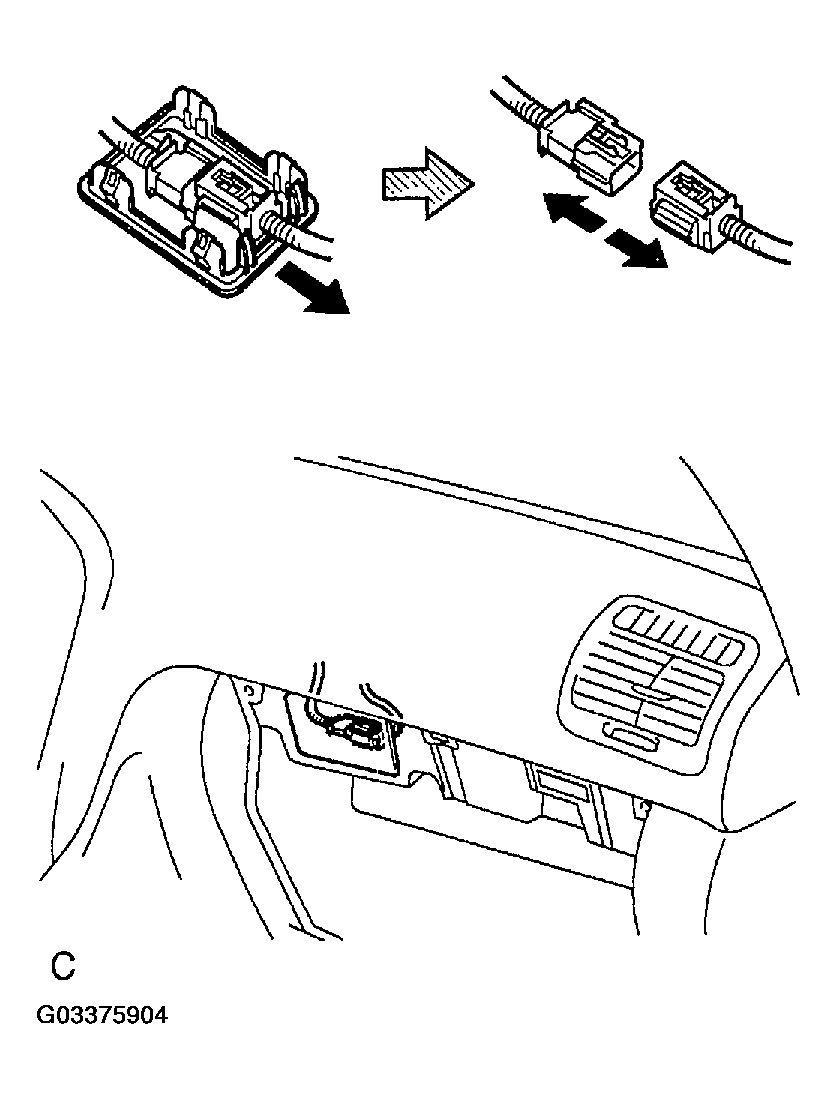

  21. DISCONNECT AIRBAG CONNECTOR (See  AIR BAG RESTRAINT SYSTEMS  )
    1. Using a screwdriver, remove the No. 1 under cover.

      HINT:

      Tape up the screwdriver tip before use.

    2. Slide the airbag connector to pull out from the No. 1 under cover.
    3. Disconnect the airbag connector.
    NOTE: When handling the airbag connector, take care not to damage the airbag ware harness.
  22. REMOVE LOWER NO. 2

    PANEL Remove the 3 screws and the lower No. 2 panel.

    Fig 13: Disconnecting Airbag Connector
    G03375904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE REAR CONSOLE PANEL
    1. Remove the transfer shift lever knob.
    2. Using a screwdriver, remove the upper console panel.

    HINT:

    Tape up the screwdriver tip before use.

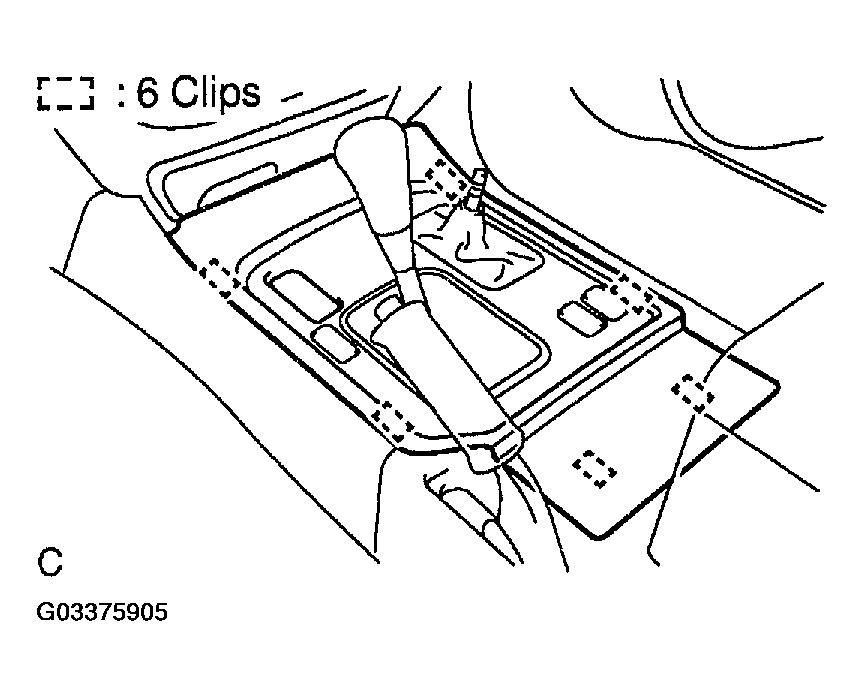

    Fig 14: Removing Rear Console Panel
    G03375905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE CONSOLE REAR END PANEL
    1. Remove the rear console cup holder box.
    2. Remove the 2 screws.
    3. Using a screwdriver, remove the console rear end panel.

    HINT:

    Tape up the screwdriver tip before use.

  25. REMOVE REAR RADIO CONTROL PANEL
    1. Disconnect the connector.
    2. Remove the 3 screws and the rear radio control panel.

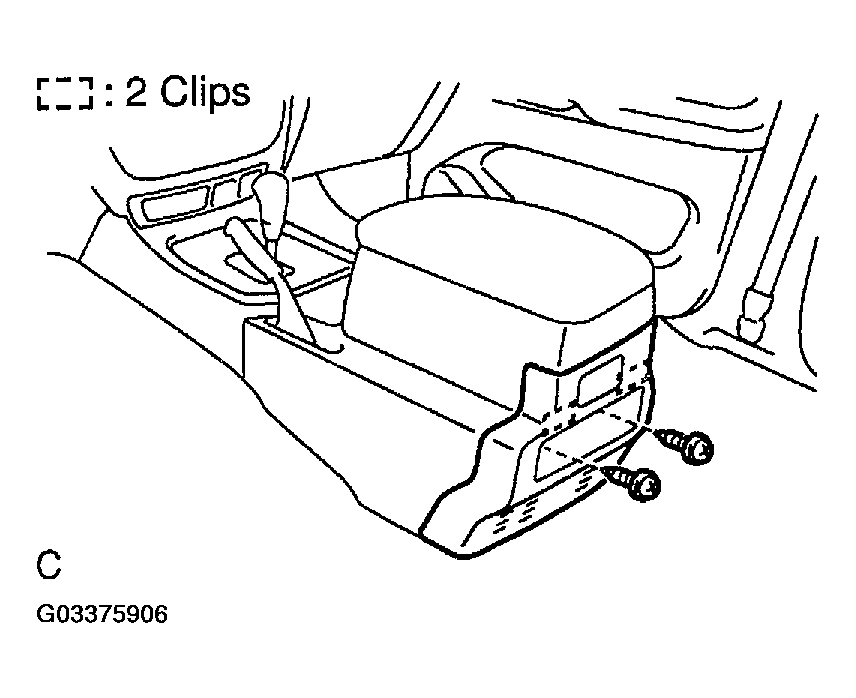

    Fig 15: Removing Console Rear End Panel
    G03375906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

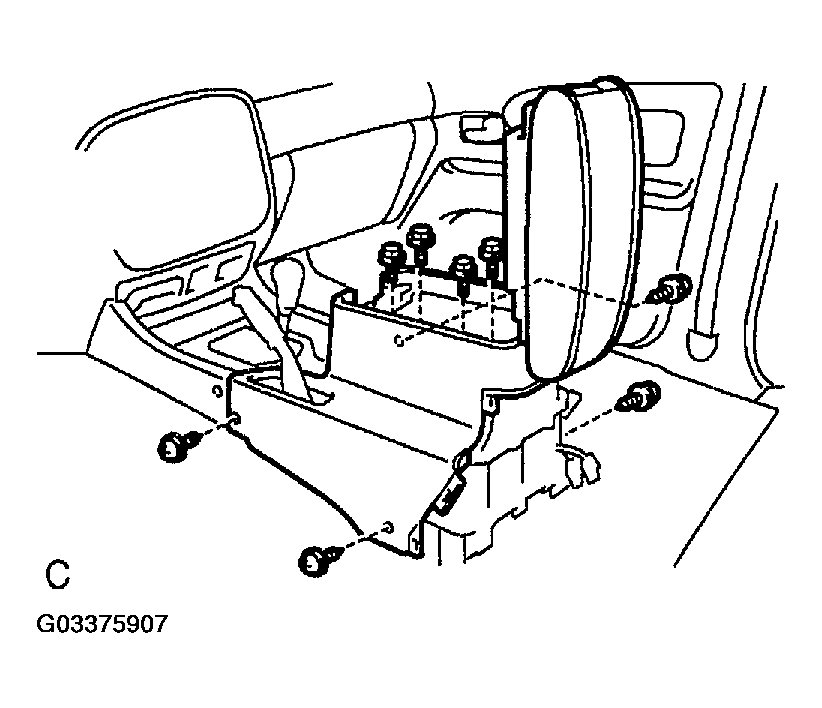

  26. w/o Disc Player Changer, LEXUS Link System:

    REMOVE REAR CONSOLE BOX

    Remove the 4 bolts, the 4 screws and the rear console box.

    Fig 16: Removing Rear Console Box - W/O Disc Player Changer, Lexus Link System
    G03375907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. w/Disc Player Changer:

    REMOVE REAR CONSOLE BOX

    Remove the 2 bolts, the 6 screws and the rear console box.

    Fig 17: Removing Rear Console Box - W/Disc Player Changer
    G03375908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. w/LEXUS Link System:

    REMOVE REAR CONSOLE BOX

    Remove the 2 nuts, the 6 screws and the rear console box.

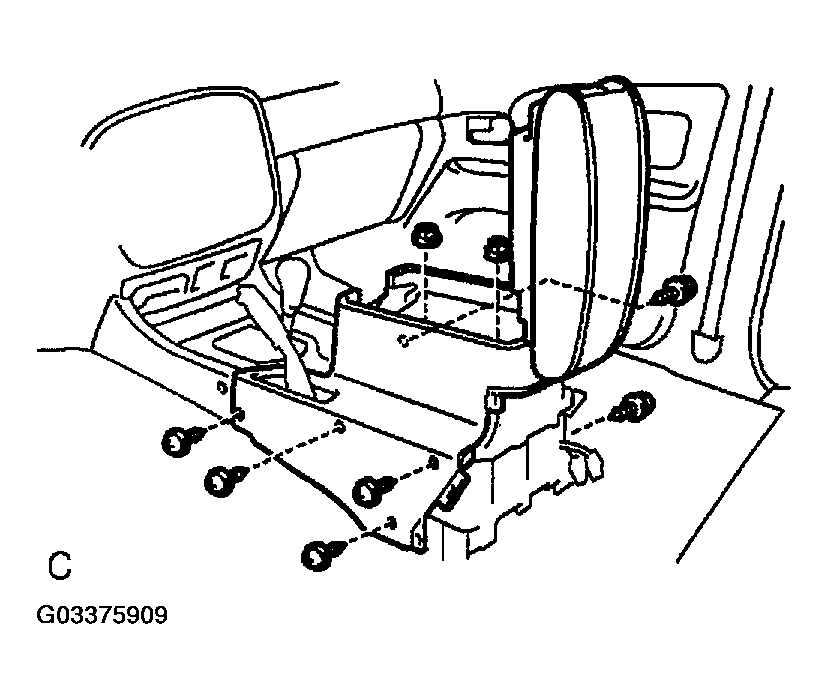

    Fig 18: Removing Rear Console Box - W/Lexus Link System
    G03375909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

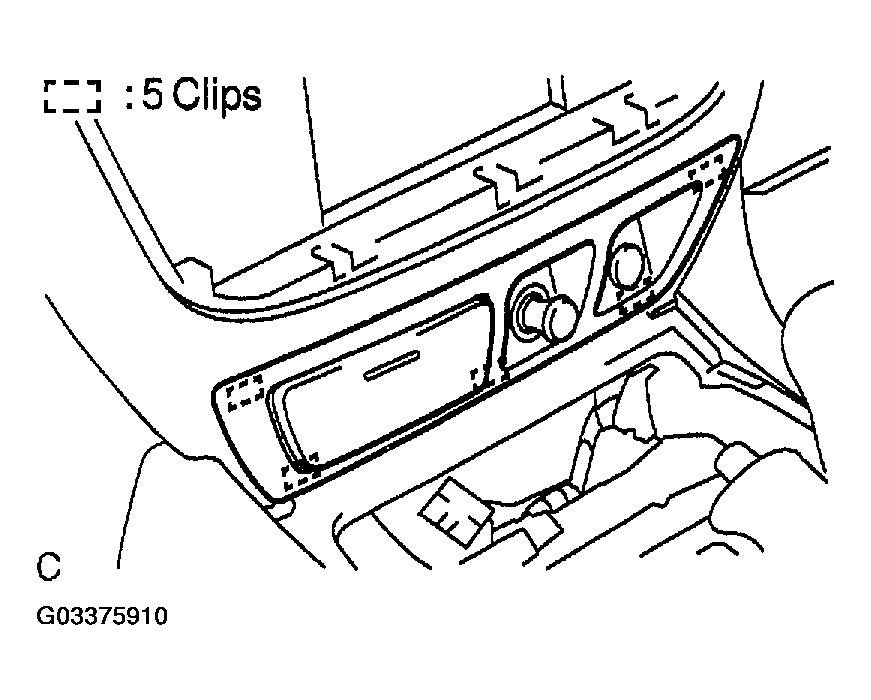

  29. REMOVE CENTER LOWER CLUSTER FINISH PANEL

    Using a screwdriver, remove the center lower cluster finish panel, then disconnect the connectors.

    HINT:

    Tape up the screwdriver tip before use.

  30. REMOVE FRONT ASH RECEPTACLE RETAINER
    1. Remove the front ash receptacle box.
    2. Remove the 2 screws and front ash receptacle panel.
    Fig 19: Removing Center Lower Cluster Finish Panel
    G03375910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

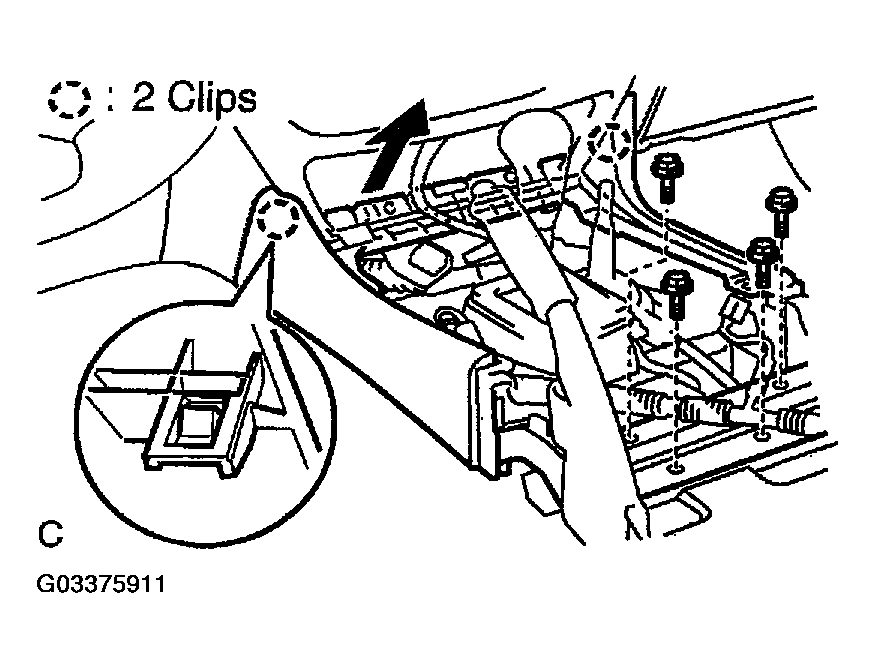

  31. REMOVE FRONT CONSOLE BOX AND CONSOLE BOX MOUNTING BRACKET NO. 4

    Remove the 4 bolts, front console box and the console box mounting bracket No. 4.

    Fig 20: Removing Front Console Box & Console Box Mounting Bracket No. 4
    G03375911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

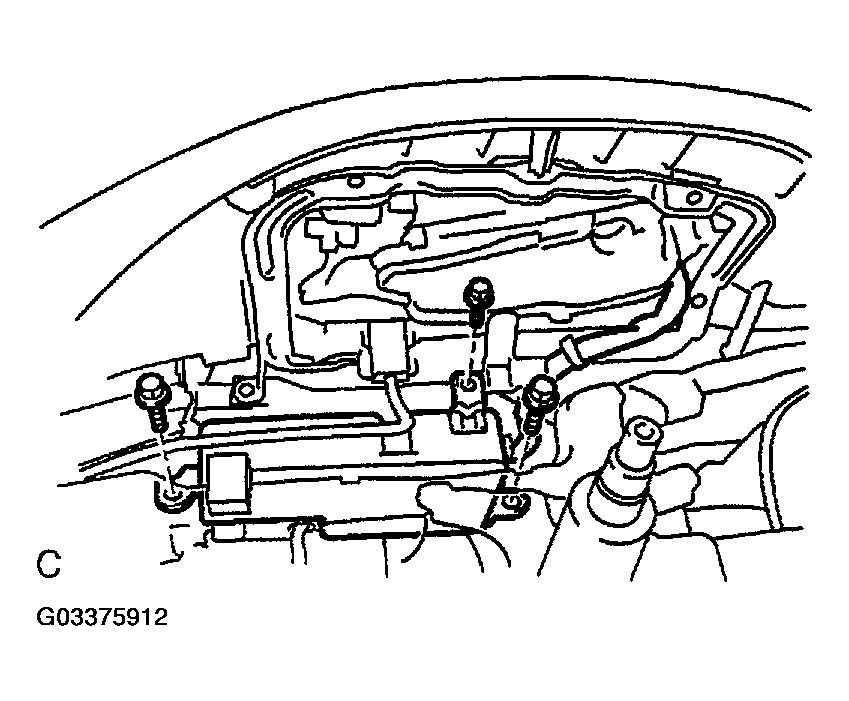

  32. w/ Night View:

    REMOVE NIGHT VIEW ECU

    1. Remove the 3 bolts.
    2. Disconnect the connectors.
    3. Remove the night view ECU.
    Fig 21: Removing Night View ECU - W/Night View
    G03375912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. w/Night View:

    REMOVE NIGHT VIEW DISPLAY

    1. Remove the 4 screws.
    2. Remove the night view display.
  34. REMOVE INSTRUMENT PANEL
    1. Disconnect the junction connectors.

      HINT:

      The connectors can be disconnected by loosening the bolts.

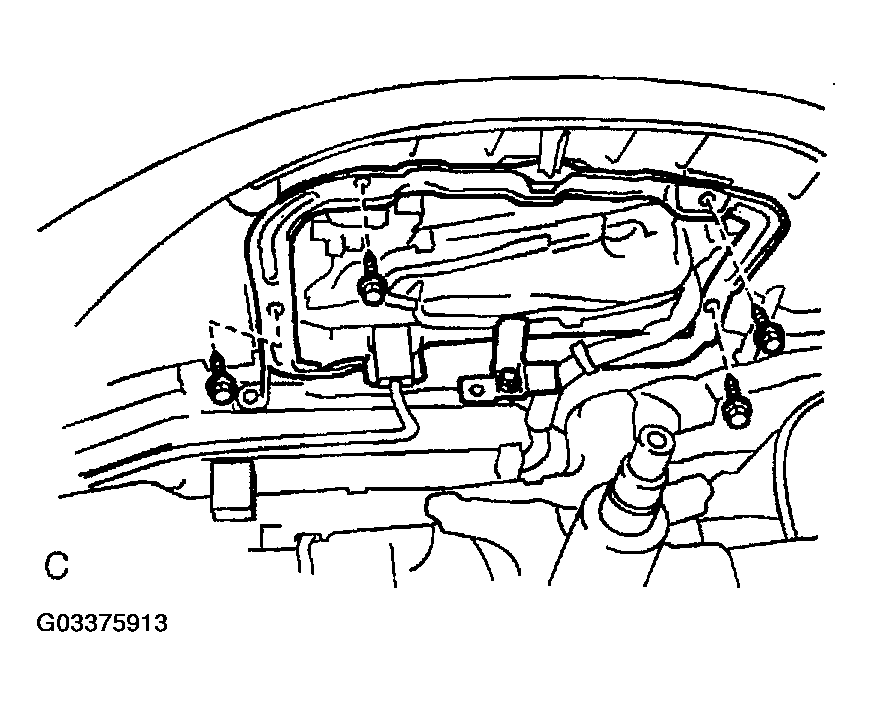

      Fig 22: Removing Night View Display - W/Night View
      G03375913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors, then remove the 8 bolts, the 2 nuts and the instrument panel.
    3. Remove the screw and the transceiver finish plate No. 2 assembly.
  35. REMOVE ECM (See  ENGINE CONTROL MODULE (ECM)  )
  36. REMOVE NO. 3 HEATER TO REGISTER DUCT
  37. REMOVE NO. 4 HEATER TO REGISTER DUCT
  38. REMOVE GLOVE COMPARTMENT DOOR DAMPER
  39. REMOVE FLOOR BRACE
  40. REMOVE NO. 1 BRACE
  41. w/Night View:

    REMOVE NIGHT VIEW BATTERY ECU Remove the 2 screws and the night view battery ECU.

  42. REMOVE REINFORCEMENT

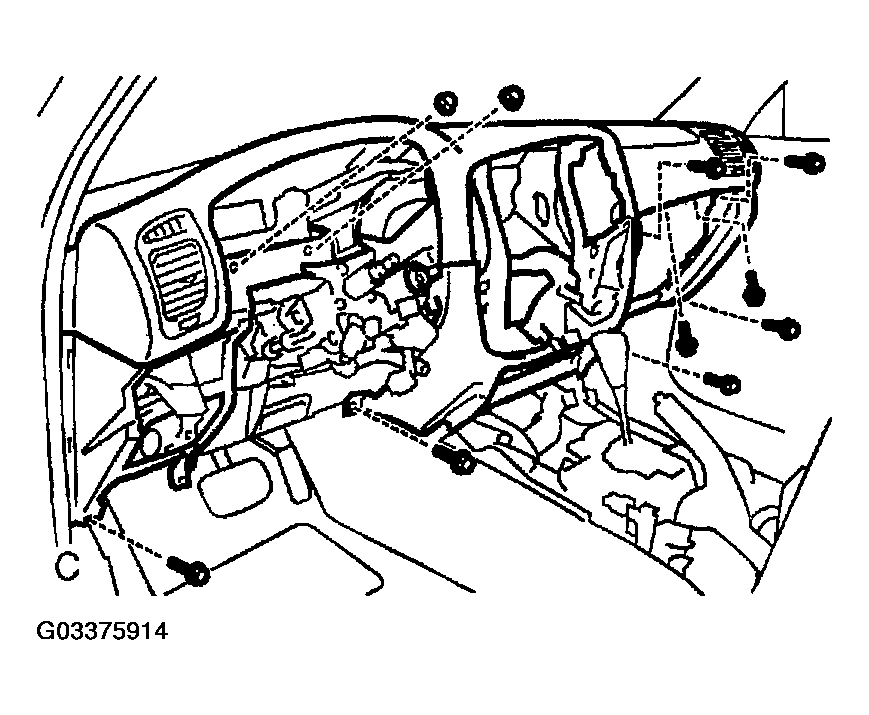

    Fig 23: Removing Instrument Panel
    G03375914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
