Section 420 (Instrument Panel): Disassembly

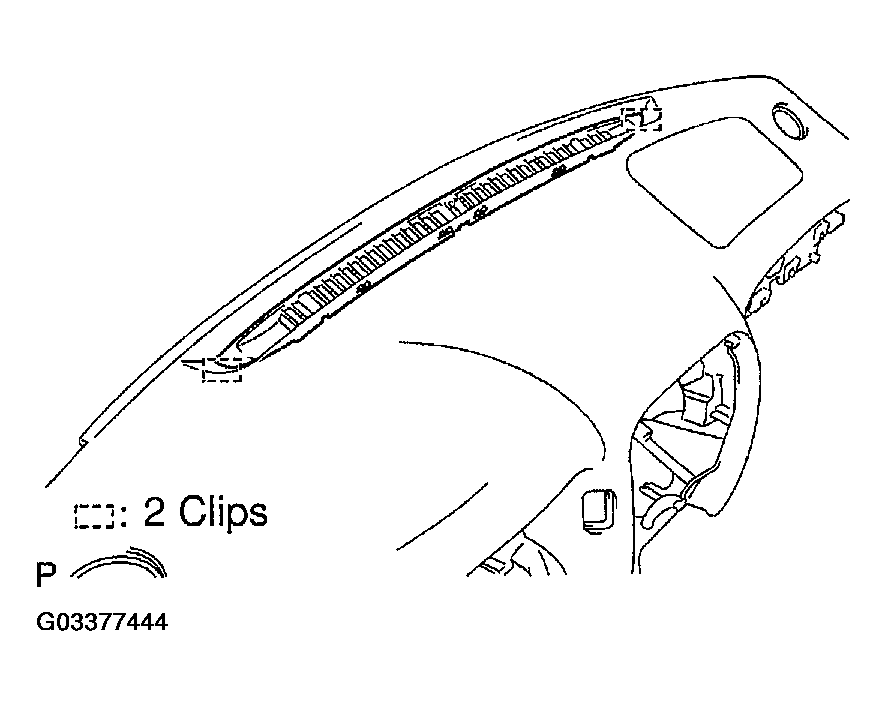

Using a screwdriver, remove the No. 1 defroster nozzle garnish.

HINT:

Tape the screwdriver tip before use.

Fig 1: Removing No. 1 Defroster Nozzle Garnish

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

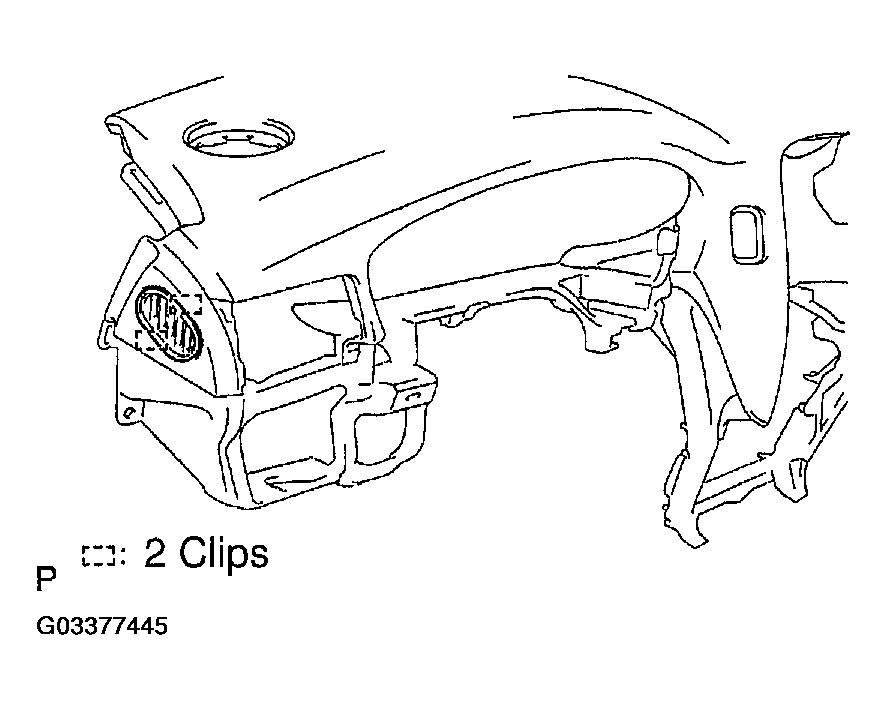

1. Using a screwdriver, remove the No. 1 side defroster nozzle.

   HINT:

   Tape the screwdriver tip before use.

2. Employ the same manner described above to the No. 2 side defroster nozzle.
   Fig 2: Removing No. 1 And No. 2 Side Defroster Nozzle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

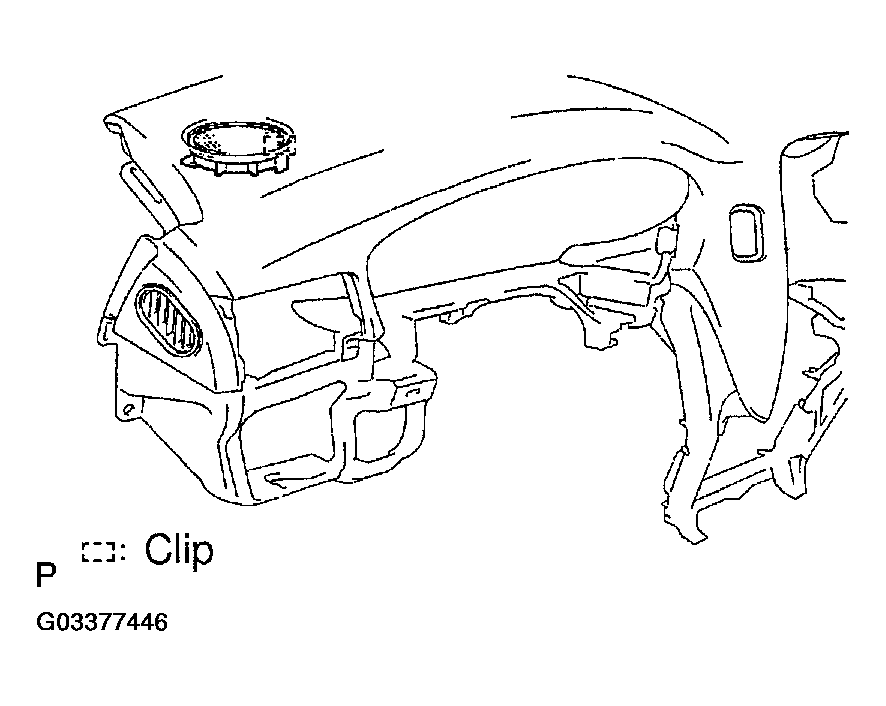

1. Using a screwdriver, remove the No. 1 speaker panel.

   HINT:

   Tape the screwdriver tip before use.

2. Employ the same manner described above to the No. 2 speaker panel.

Fig 3: Removing No. 1 And No. 2 Speaker Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

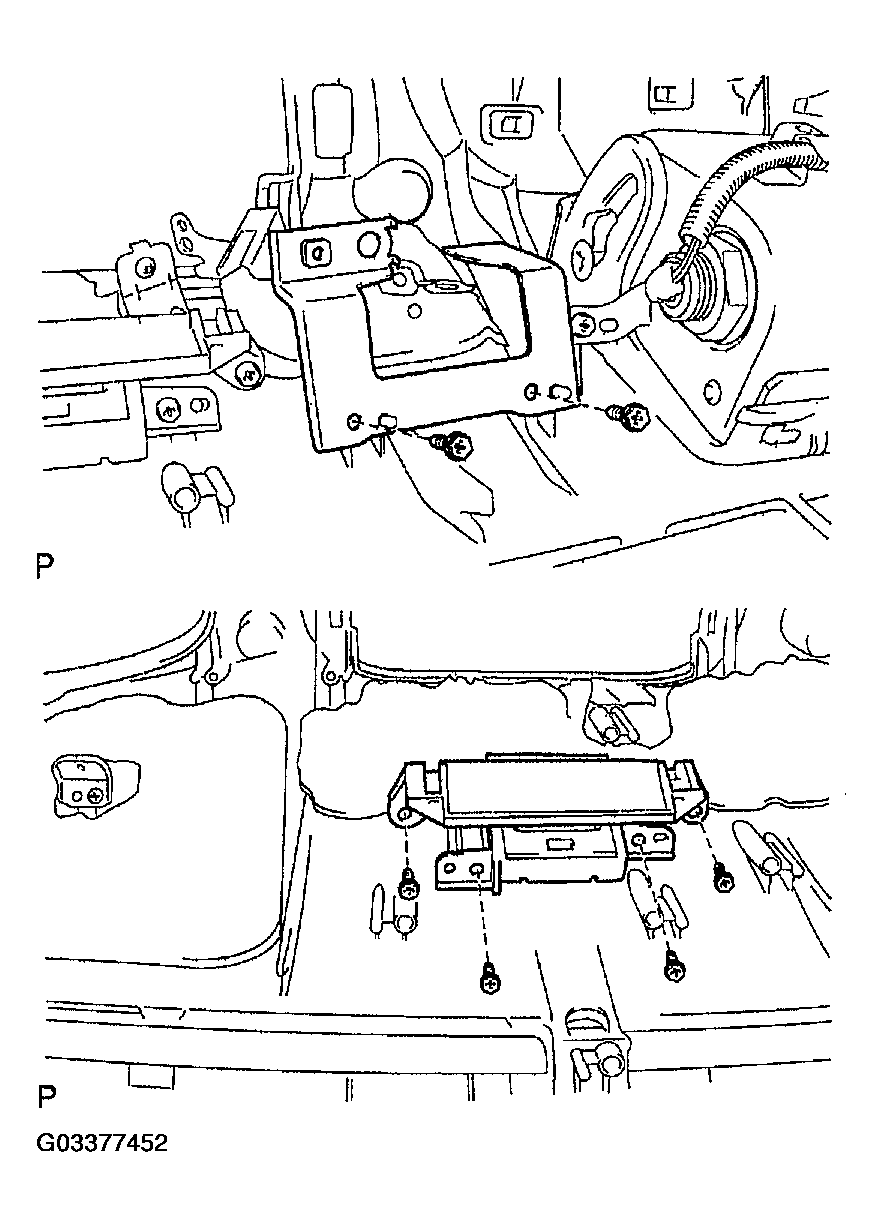

1. Remove the 2 screws and gateway ECU.
2. Disconnect the connector.

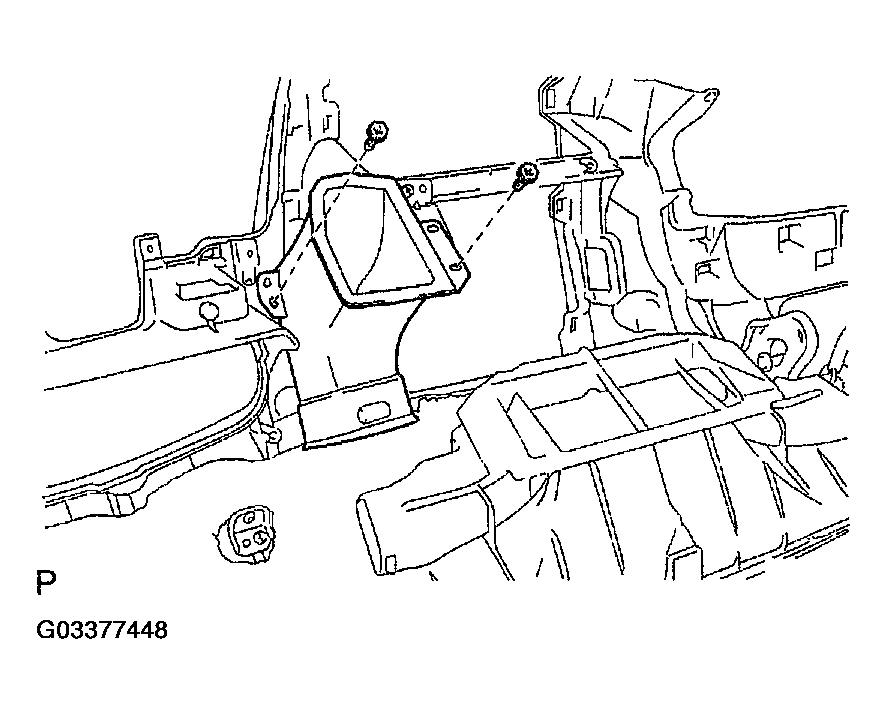

Remove the 2 screws and heater to register duct.

Fig 4: Removing Heater To Register Duct

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

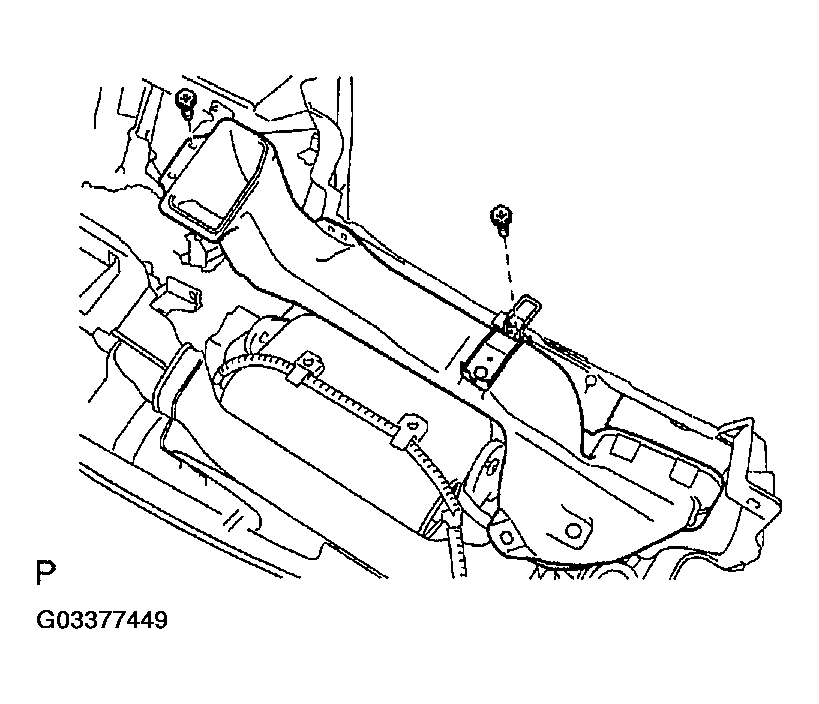

Remove the 2 screws and No. 2 heater to register duct.

Fig 5: Removing No. 2 Heater To Register Duct

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

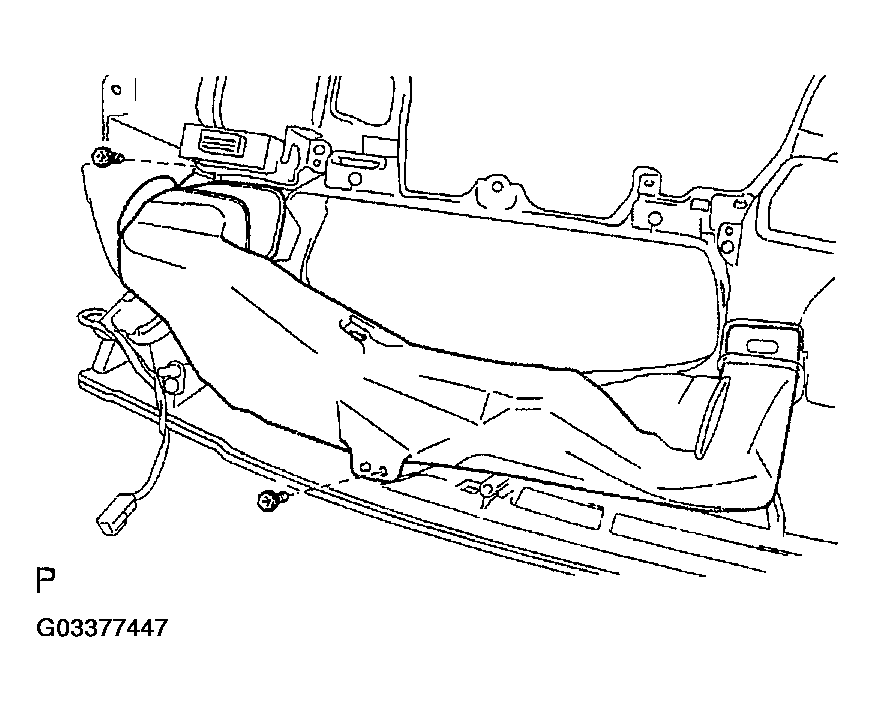

Remove the nut, 2 screws and No. 4 heater to register duct.

1. w/ LEXUS navigation system: Remove the 2 screws and No. 3 heater to register duct.
2. :w/o LEXUS navigation system: Remove the 3 screws and No. 3 heater to register duct.
   Fig 6: Removing No. 4 Heater To Register Duct

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

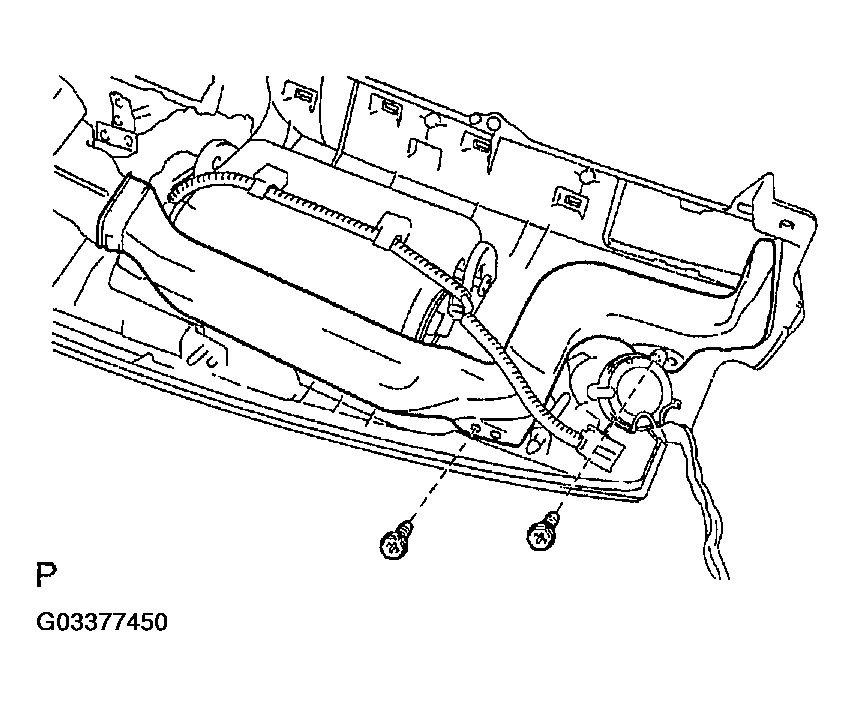

Remove the 2 screws and No. 2 side defroster nozzle duct.

Fig 7: Removing No. 2 Side Defroster Nozzle Duct

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

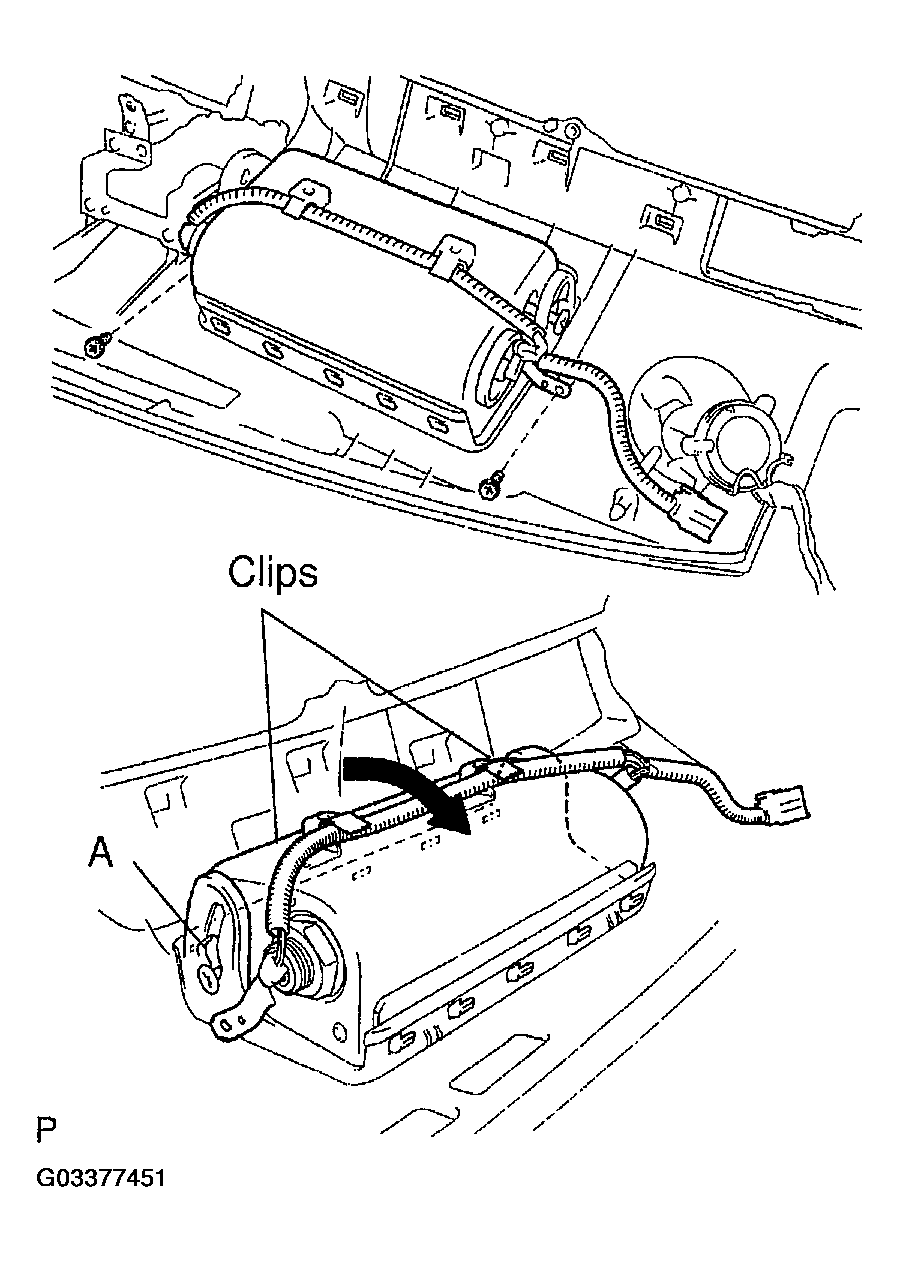

1. Remove the 2 screws that are connecting the front passenger airbag assembly to the instrument panel and take out the 2 clips installed to the rear part of the airbag door.
2. Bend the rear part of the airbag door to remove the door bracket of the front passenger airbag assembly.
3. Rotate the front passenger airbag assembly around the connected part of the door and the front side door bracket.
4. When the front passenger airbag assembly cones to part A, bend the side faces to release it from the stand nuts.
5. Thoroughly rotate the front passenger airbag assembly to remove it completely.
6. Separate the door bracket of the front passenger airbag assembly from the front part of the airbag door and take out the front passenger airbag assembly.
   Fig 8: Removing Front Passenger Airbag Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: At the time of reassembly, please refer to the following items.

   • When installing the front passenger airbag assembly, take care that the wiring does not interfere with other parts and is not pinched between other parts.
   • If the front passenger airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front passenger airbag assembly with a new one.

1. Remove the 2 screws and tweeter speaker.
2. Employ the same manner described above to the other side.

Remove the 6 screws and brackets.

Fig 9: Removing Brackets

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

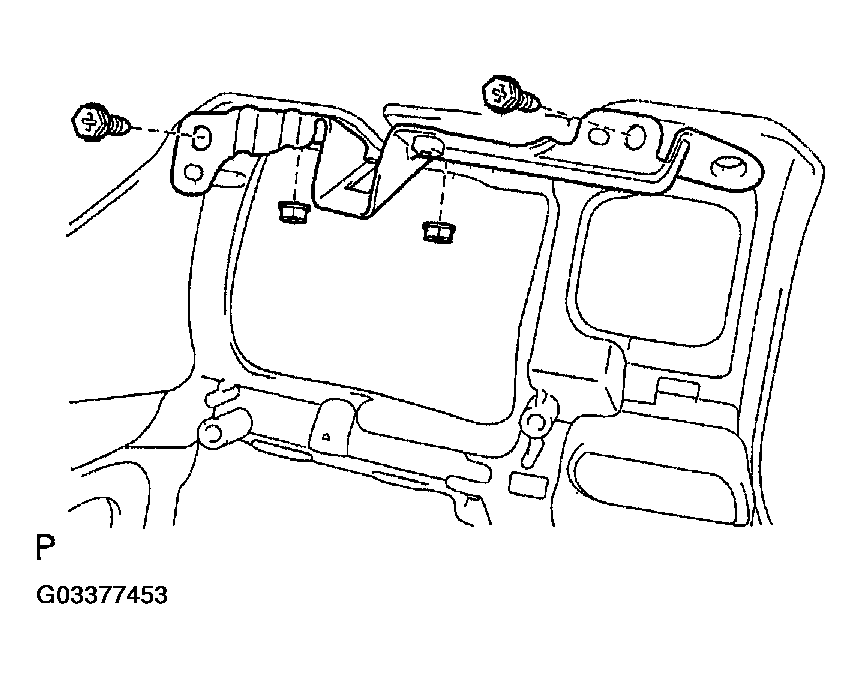

Remove the 2 screws and No. 4 finish panel mounting bracket.

Remove the screw and mounting bracket.

Fig 10: Removing No. 4 Finish Panel Mounting Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

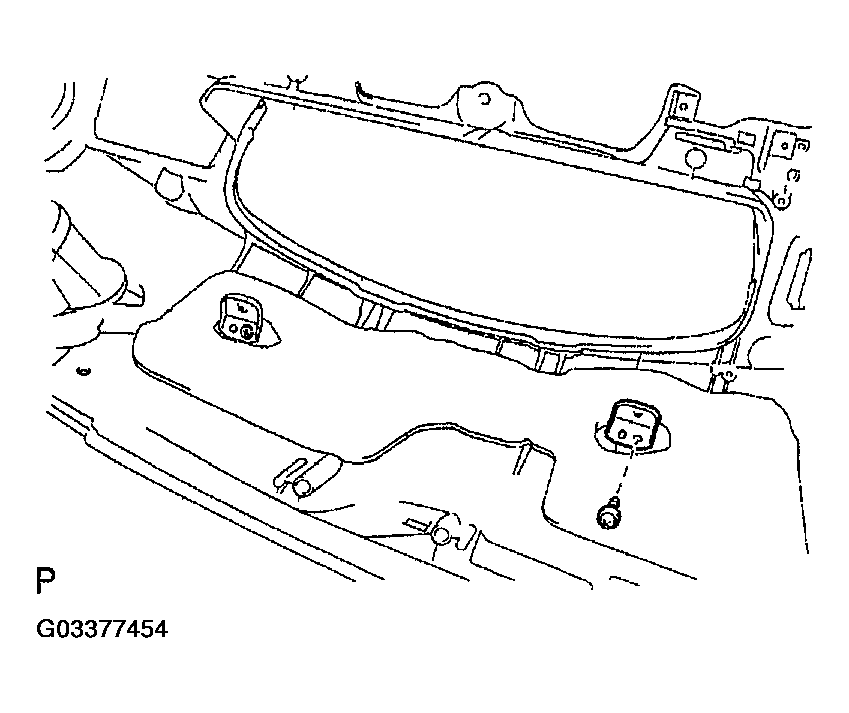

Remove the screw and No. 1 meter hood retainer.

Fig 11: Removing No. 1 Meter Hood Retainer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
