Section 441 (Headlamp Protector Retainer): Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• To minimize damage to the headlamp unit in case of a collision, the stays for the headlamp unit have been constructed to break off. The stays are available as supply parts for low-cost repair.

1. REMOVE ENGINE UNDER COVER NO. 1 (SEE  ON-VEHICLE INSPECTION  )
2. REMOVE FRONT FENDER LINER LB (SEE  ON-VEHICLE INSPECTION  )
3. REMOVE FRONT FENDER LINER RH (SEE  ON-VEHICLE INSPECTION  )
4. REMOVE FRONT BUMPER COVER (SEE  ON-VEHICLE INSPECTION  )
5. REMOVE LH HEADLAMP ASSY (SEE  ADJUSTMENT  )
6. INSTALL HEADLAMP LH BRACKET
   1. Cut off the part shaded in the illustration and sand smooth with sandpaper.
      NOTE: After cutting off the part, place the headlamp LH bracket against the bosses and gradually file away until installation is possible.

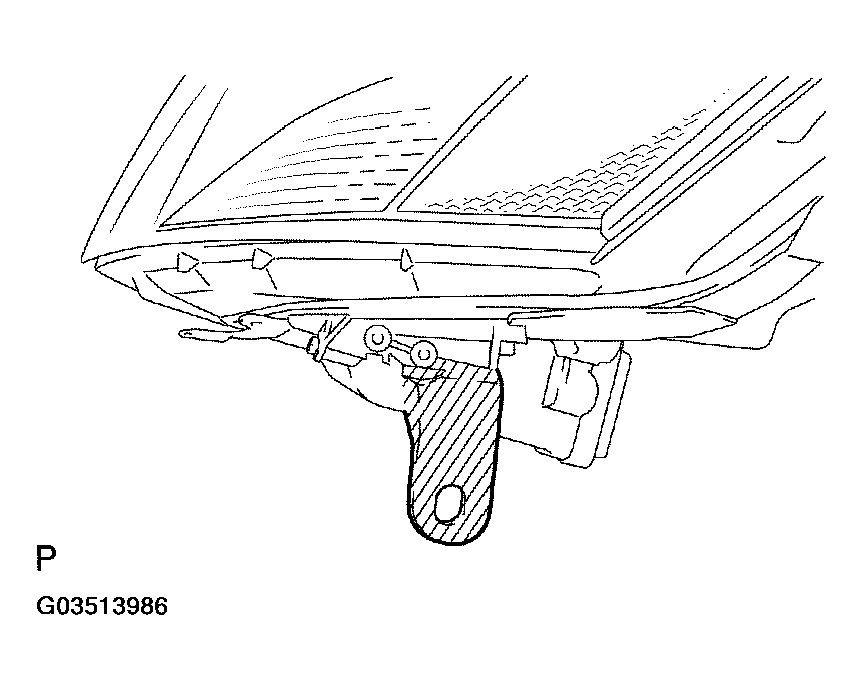

      Fig 1: Identifying Parts Cutting Shade

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the headlamp LH bracket with the 2 screws.

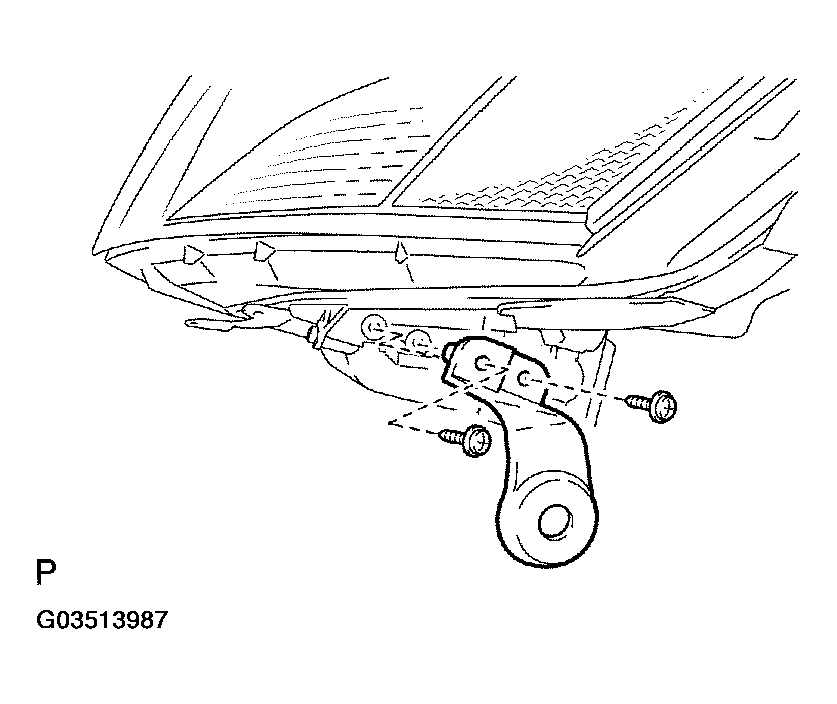

      Fig 2: Installing Headlamp LH Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL HEADLAMP RH BRACKET
   1. Cut off the part shaded in the illustration and sand smooth with sandpaper.
      NOTE: After cutting off the part, place the headlamp RH bracket against the bosses and gradually file away until installation is possible.

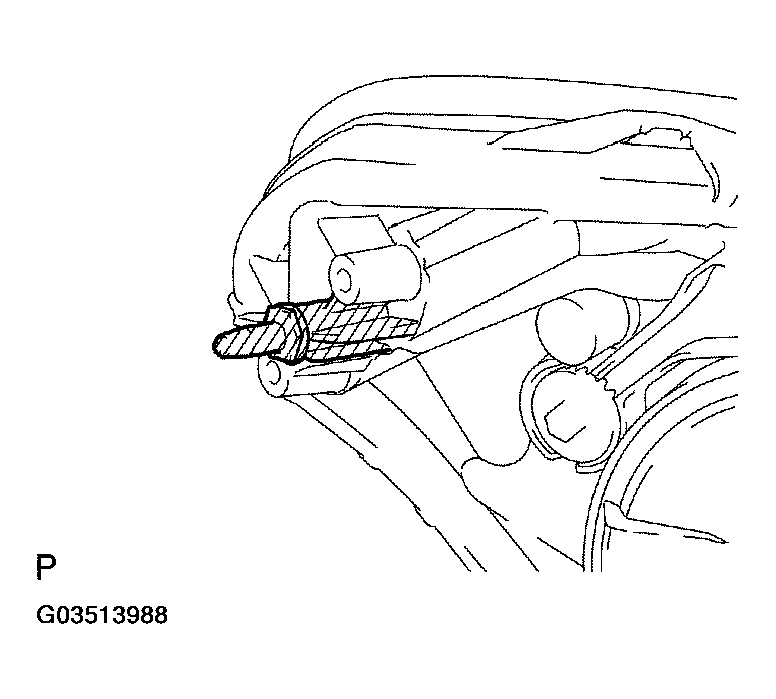

      Fig 3: Identifying Parts Cutting Shade (RH Bracket)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the headlamp RH bracket with the 2 screws.

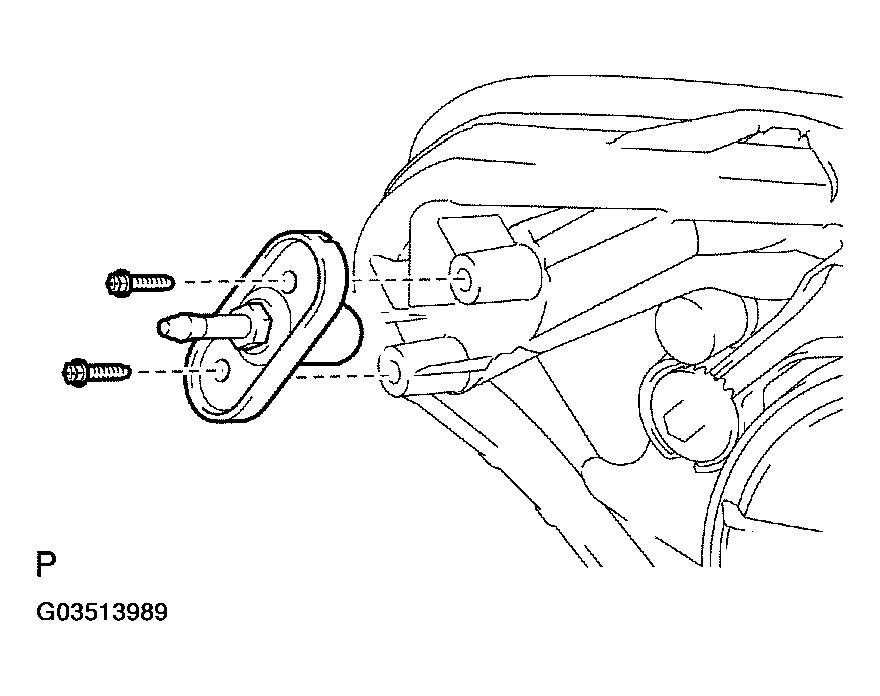

      Fig 4: Installing Headlamp RH Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL HEADLAMP PROTECTOR RETAINER UPPER LH
   1. Cut off the part shaded in the illustration and sand smooth with sandpaper.
      NOTE: After cutting off the part, place the headlamp protector retainer UPPER LH against the bosses and gradually file away until installation is possible.

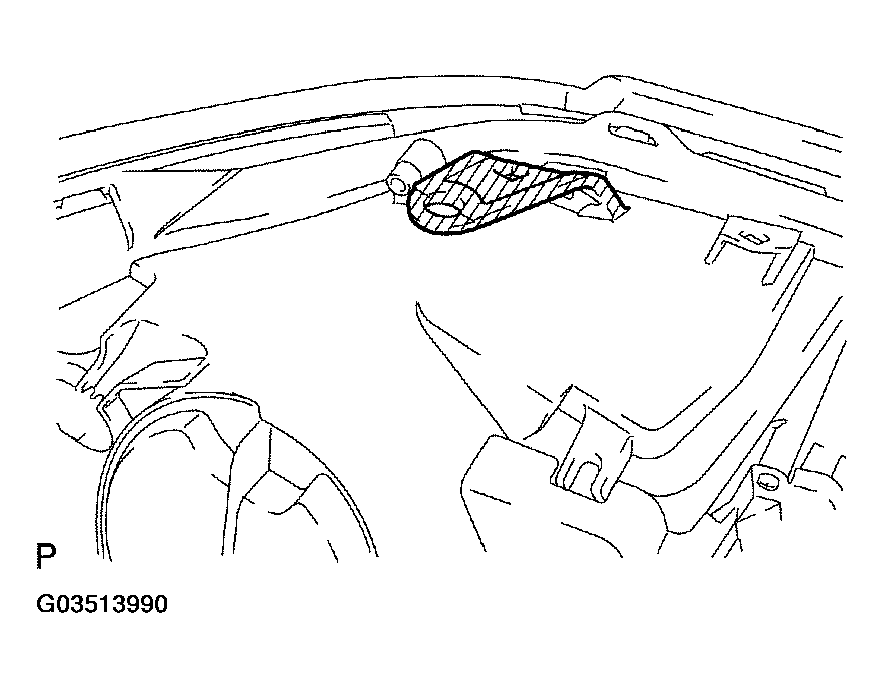

      Fig 5: Identifying Parts Cutting Shade (Upper LH)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the headlamp protector retainer UPPER LH with the 2 screws.

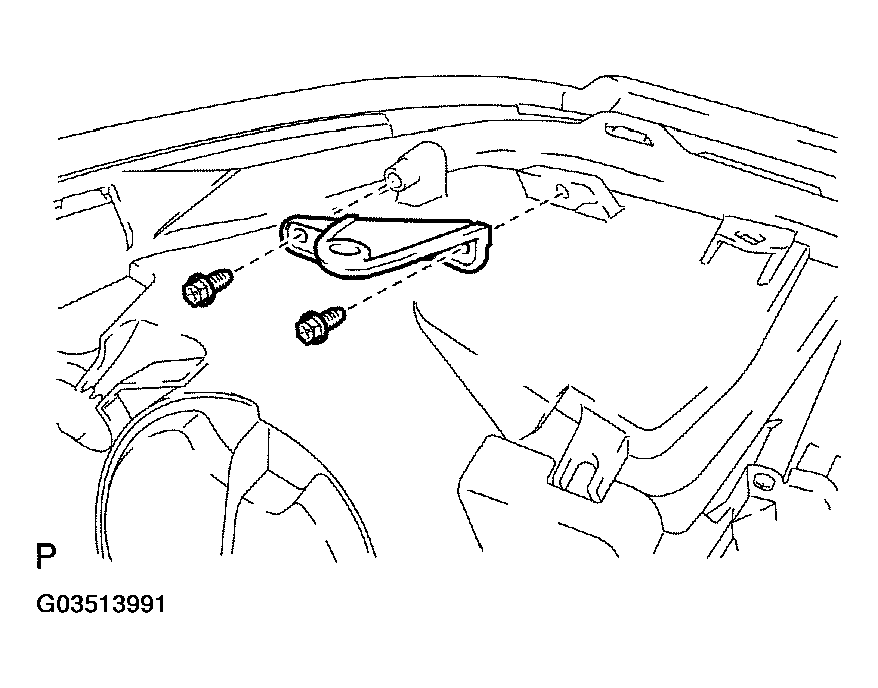

      Fig 6: Installing Headlamp Protector Retainer (Upper LH)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL HEADLAMP PROTECTOR RETAINER LWR LH
   1. Cut off the part shaded in the illustration and sand smooth with sandpaper.
      NOTE: After cutting off the part, place the headlamp protector retainer LWR LH against the bosses and gradually file away until installation is possible.

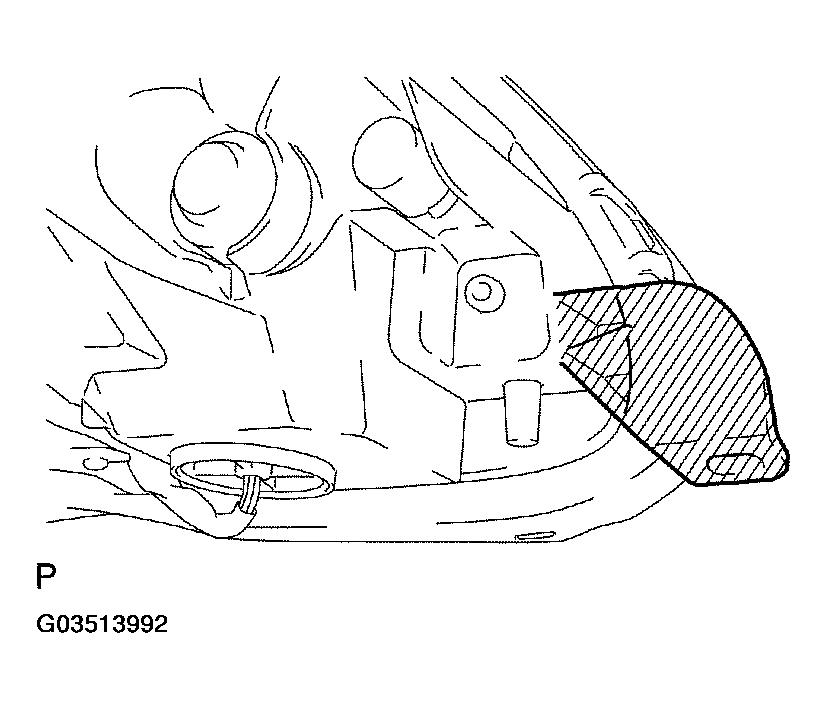

      Fig 7: Identifying Parts Cutting Shade (Lower LH)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the headlamp protector retainer LWR LH with the 2 screws.

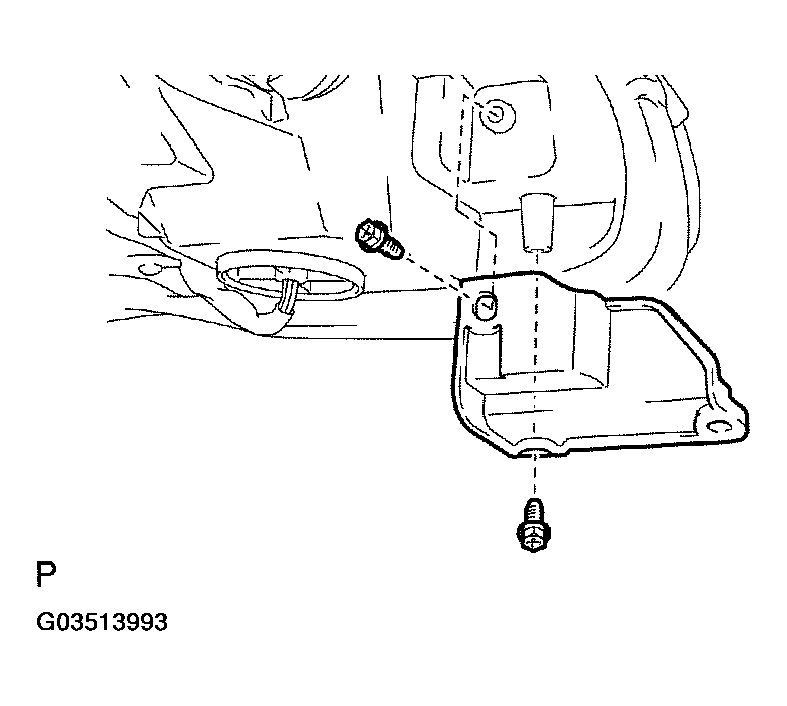

      Fig 8: Installing Headlamp Protector Retainer (Lower LH)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. HEADLIGHT AIM ONLY (SEE  ADJUSTMENT  )
11. ADJUST FOG LIGHT AIM (SEE  ADJUSTMENT  )
