Cigarette Lighter ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

SEE: COMPONENTS .
Installation is in the reverse order of removal.

REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT )
REMOVE CIGARETTE LIGHTER ASSY
1. Rotate the socket cap counterclockwise to remove it.
2. Remove the cigarette lighter assy from the cigar-lighter hole bezel.

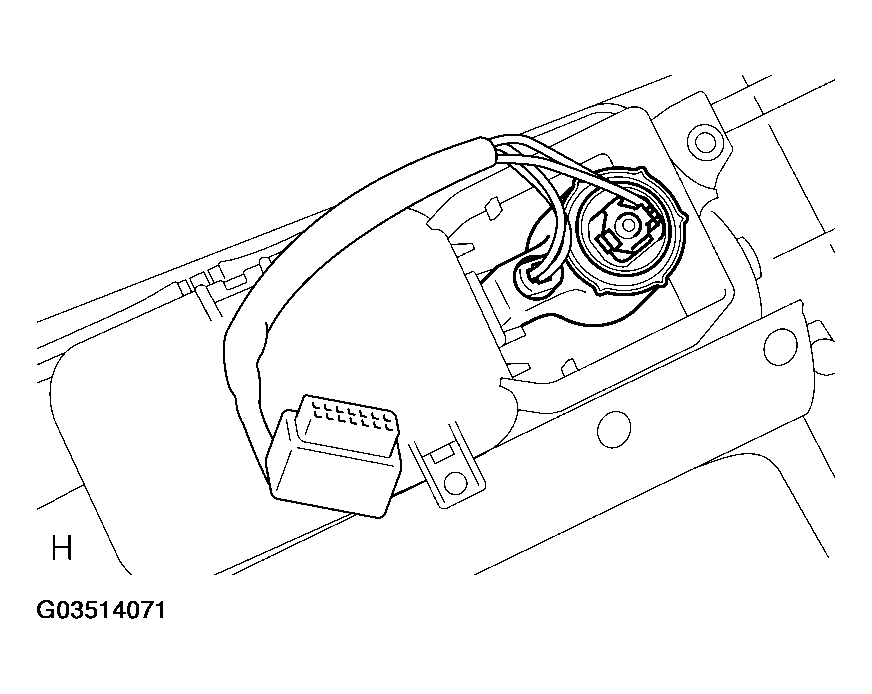

  Fig 1: Removing Cigarette Lighter Assy From Cigar-Lighter Hole Bezel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CIGARETTE LIGHTER ASSY
1. Properly position the socket and ring at the cutout of the cigar-lighter hole bezel and insert them.
2. Rotate the socket cap clockwise from the backside.
