Mayday ASSY: Replacement

HINT:

• SEE: COMPONENTS (LUGGAGE COMPARTMENT DOOR) , COMPONENTS (REAR SEAT FIXED TYPE) , COMPONENTS (REAR SEAT POWER ADJUSTER TYPE) and COMPONENTS (WINDSHIELD)
• SEE: LOCATION .
• Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (SEE  REPLACEMENT  )
2. REMOVE DECK TRIM SIDE BOARD RH (SEE  REPLACEMENT  )
3. REMOVE DECK TRIM SIDE BOARD LH (SEE  REPLACEMENT  )
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (SEE  REPLACEMENT  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (SEE  REPLACEMENT  )
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY LH (SEE  REPLACEMENT  )

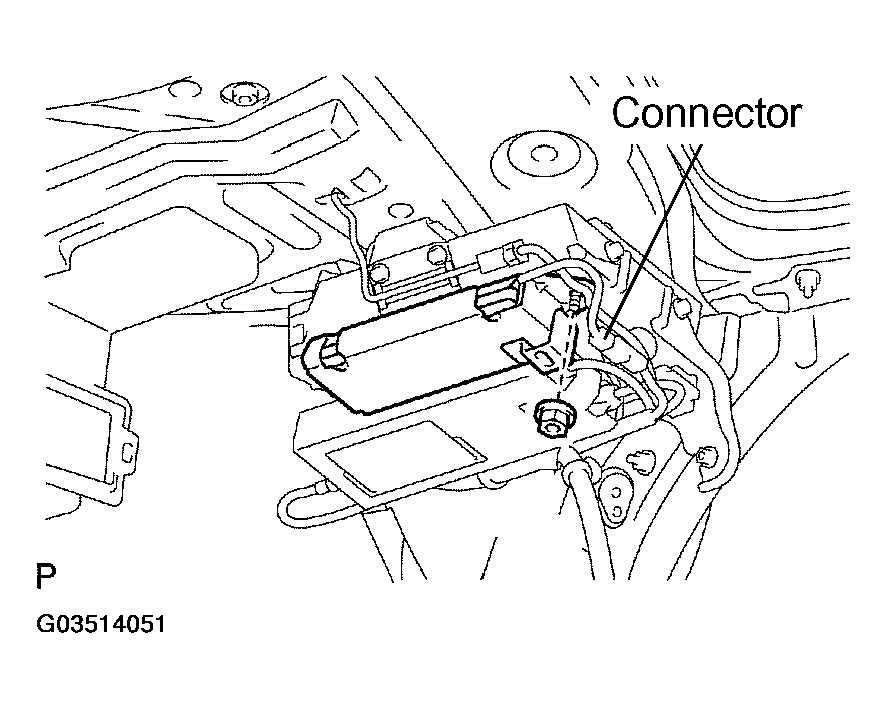

   Fig 1: Removing Portable Phone-L Battery

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

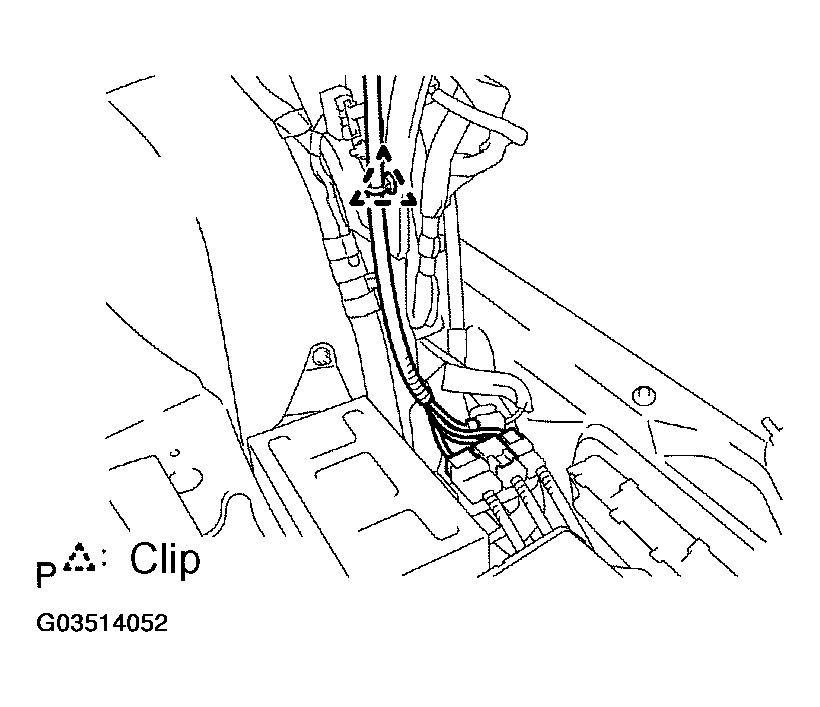

   Fig 2: Disengaging Clip Removing Mayday Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

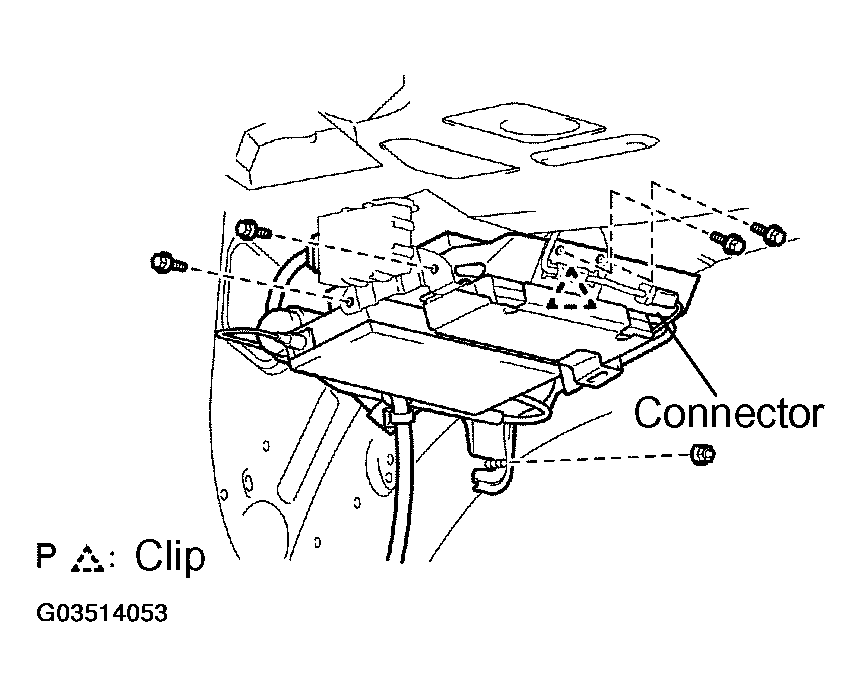

   Fig 3: Removing Bolts, Nut And Mayday Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE PORTABLE PHONE-L BATTERY
   1. Disconnect the connector.
   2. Remove the nut and portable phone-l battery.
   3. Remove the mobile phone bracket No.2.
8. REMOVE MAYDAY ASSY
   1. Disconnect the 4 connectors.
   2. Disengage the clip.
   3. Disconnect the connector.
   4. Disengage the clip from the Mayday assy.
   5. Remove the 4 bolts, nut and Mayday assy.
9. REMOVE REAR SEAT CUSHION ASSY RH (SEE  OVERHAUL (FIXED TYPE)  and  OVERHAUL (POWER ADJUSTER TYPE)  )
10. REMOVE REAR SEAT CUSHION ASSY LH (SEE  OVERHAUL (FIXED TYPE)  and  OVERHAUL (POWER ADJUSTER TYPE)  )
11. REMOVE REAR SEAT BACK ASSY RH (SEE  OVERHAUL (FIXED TYPE)  and  OVERHAUL (POWER ADJUSTER TYPE)  )
12. REMOVE REAR SEAT BACK ASSY LH (SEE  OVERHAUL (FIXED TYPE)  and  OVERHAUL (POWER ADJUSTER TYPE)  )
13. REMOVE REAR DOOR SCUFF PLATE RH (SEE  OVERHAUL  )
14. REMOVE REAR DOOR SCUFF PLATE LH (SEE  OVERHAUL  )
15. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (SEE  OVERHAUL  )
16. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (SEE  OVERHAUL  )
17. REMOVE REAR SEAT SIDE COVER RH (SEE  OVERHAUL  )
18. REMOVE REAR SEAT SIDE COVER LH (SEE  OVERHAUL  )
19. REMOVE ROOF SIDE GARNISH INNER RH (SEE  OVERHAUL  )
20. REMOVE ROOF SIDE GARNISH INNER LH (SEE  OVERHAUL  )
21. REMOVE CENTER STOP LAMP ASSY (SEE  OVERHAUL  )
22. REMOVE REAR SPEAKER GRILLE SUB-ASSY (SEE  OVERHAUL  )
23. REMOVE PACKAGE TRAY TRIM PANEL ASSY (SEE  OVERHAUL  )

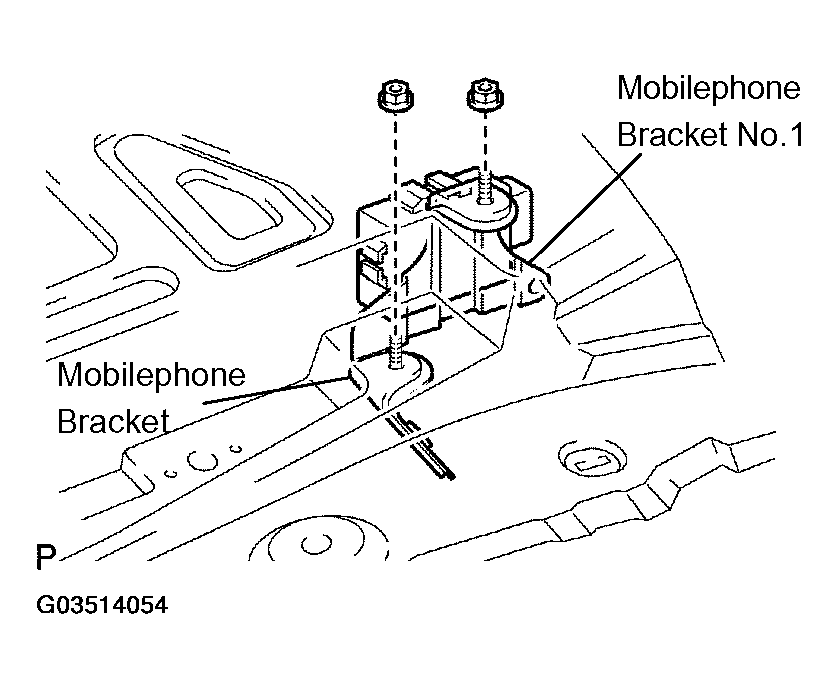

    Fig 4: Removing Nut And Mobile Phone Bracket No.1

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. REMOVE MOBILE PHONE BRACKET
    1. Remove the nut and mobile phone bracket.
25. REMOVE MOBILE PHONE BRACKET NO.1
    1. Remove the nut and mobile phone bracket No.1.
    2. Remove the bus buffer ECU from the bracket.
