Microphone ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

SEE: LOCATION .
Installation is in the reverse order of removal.

REMOVE MAP LAMP ASSY (SEE REPLACEMENT )

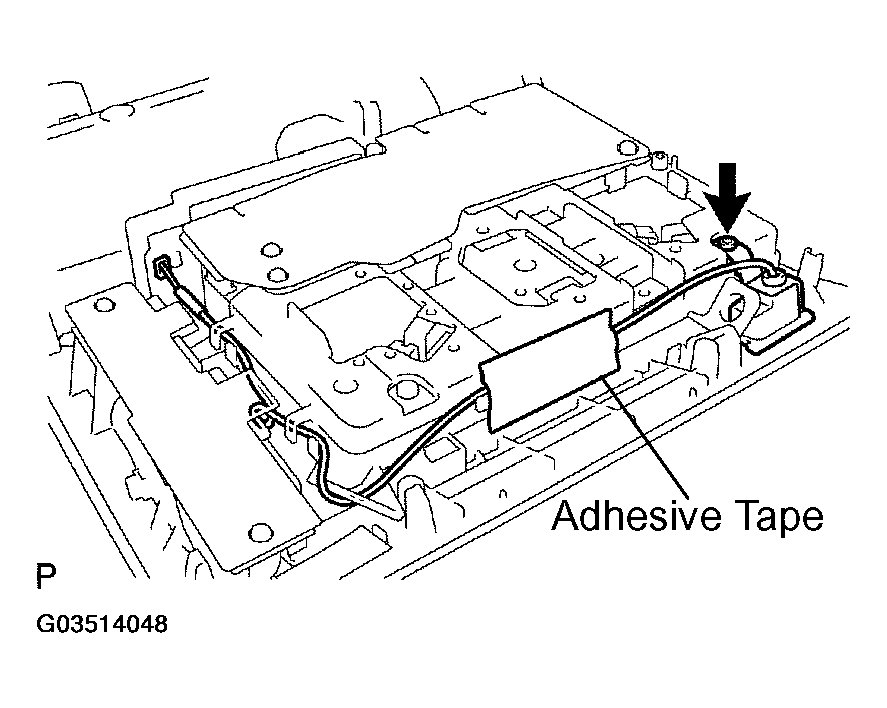

Fig 1: Removing Screw Microphone Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MICROPHONE ASSY
1. Disconnect the connector.
2. Remove the screw.
3. Peel the adhesive tape and remove the microphone assy.
