Navigation Antenna ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

SEE: COMPONENTS .
SEE: LOCATION .
Installation is in the reverse order of removal.

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (SEE REPLACEMENT )
REMOVE NAVIGATION ANTENNA ASSY
1. Remove the 2 screws and navigation antenna assy from the instrument panel safety pad.

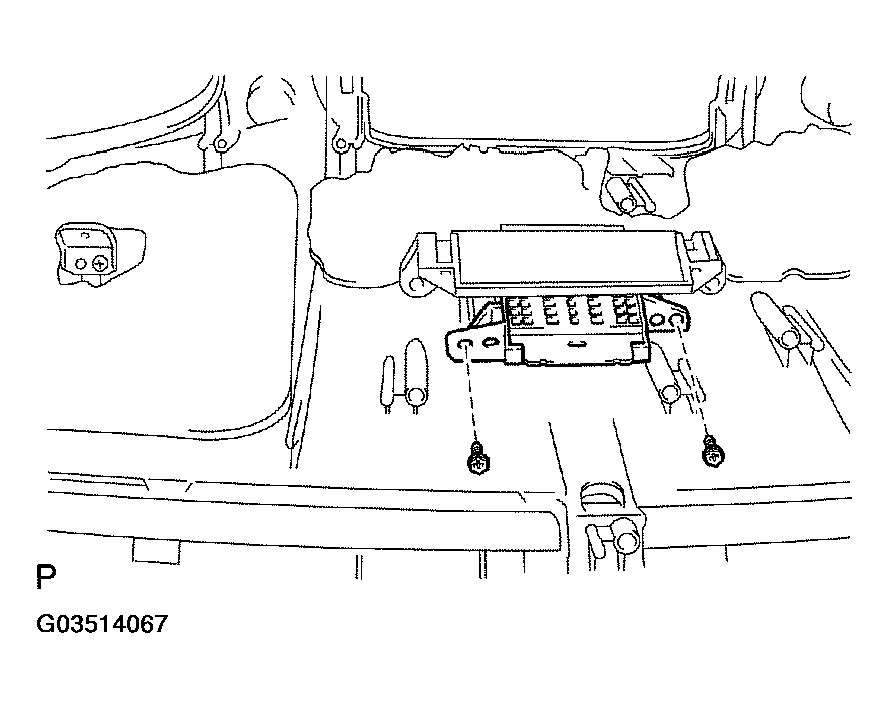

  Fig 1: Removing Screws And Navigation Antenna Assy From Instrument Panel Safety Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
