Radio Receiver ASSY: Replacement

HINT:

• SEE: COMPONENTS .
• SEE: LOCATION .
• Installation is in the reverse order of removal.
• Set to "SHIP" mode to prevent mechanical damage due to any impacts when the radio is transported.

  Attach the label shown below to the top of the product case so as not to skip any procedure and to follow the procedure correctly.

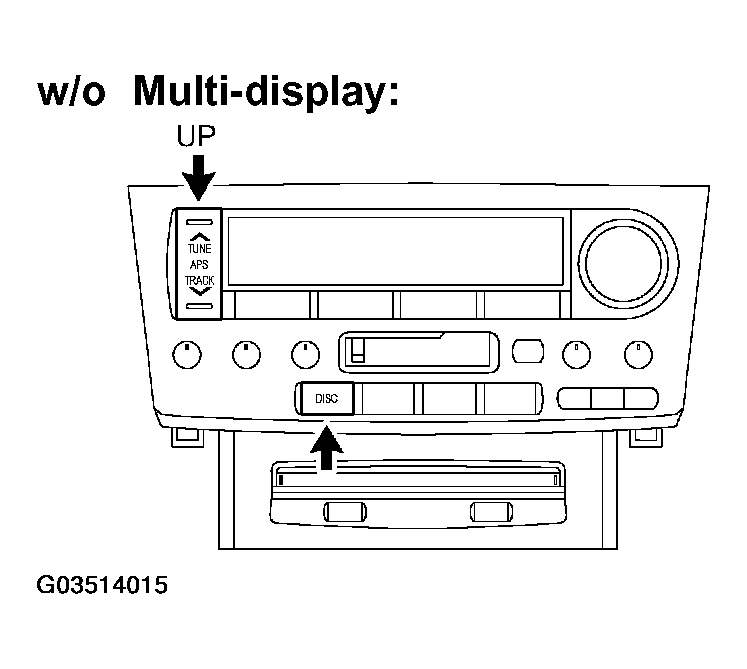

  Fig 1: Holding UP And DISC Switches (W/O Display)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

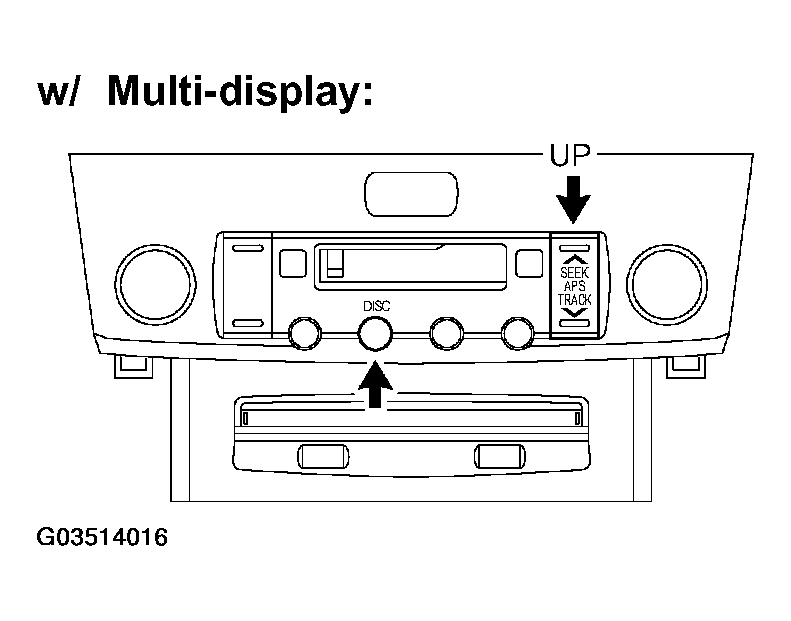

  Fig 2: Holding UP And DISC Switches (W/ Display)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  Fig 3: Turning Ignition Switch To OFF Position

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. SHIP MODE SETTING
   1. Take out all CDs.
      NOTE: If the CDs cannot be taken out, do not attempt to take out forcibly. Send the unit for repair.
2. Turn the ignition switch to the OFF position.
3. While holding the "UP" and "DISC" switches, turn the ignition switch to the ACC position.

   HINT:

   • The CD indicator light blinks during the mode setting and remains lit after the setting is completed.
   • w/o Multi-display:When the mode setting is completed, "SHIP" appears on the display.
   • Turn the ignition switch to the OFF position and disconnect the battery negative terminal.
     NOTE: Connecting the battery negative terminal automatically ends the ship mode.
4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE  REPLACEMENT  )
5. REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (SEE  REPLACEMENT  )

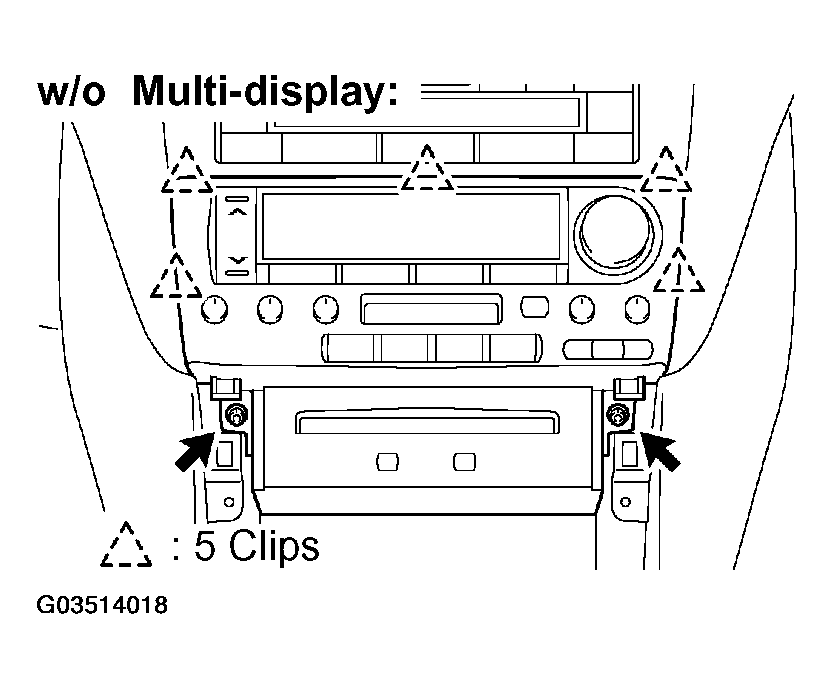

   Fig 4: Removing Bolts And Disengage Clips (W/O Display)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

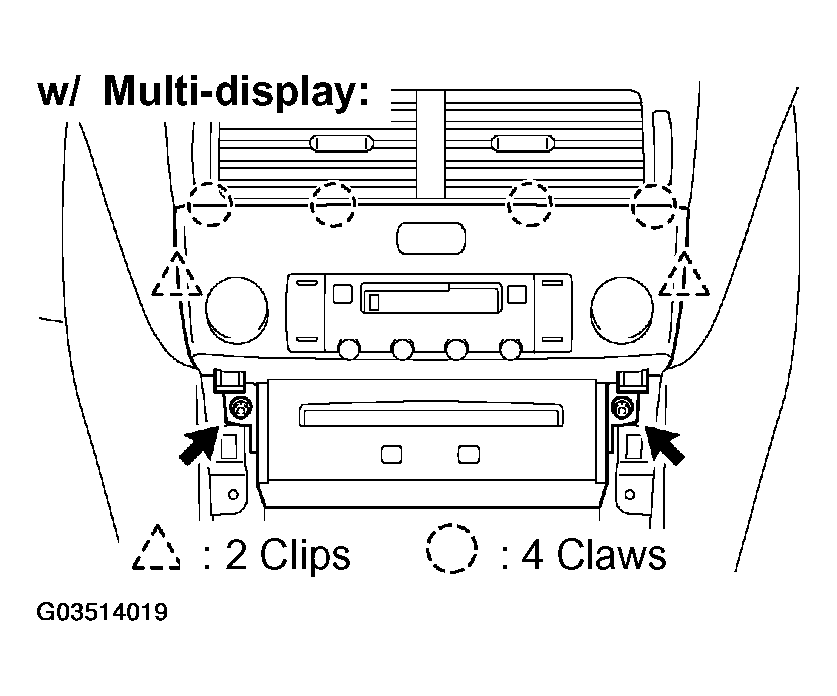

   Fig 5: Removing Bolts And Disengage Clips (W/ Display)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

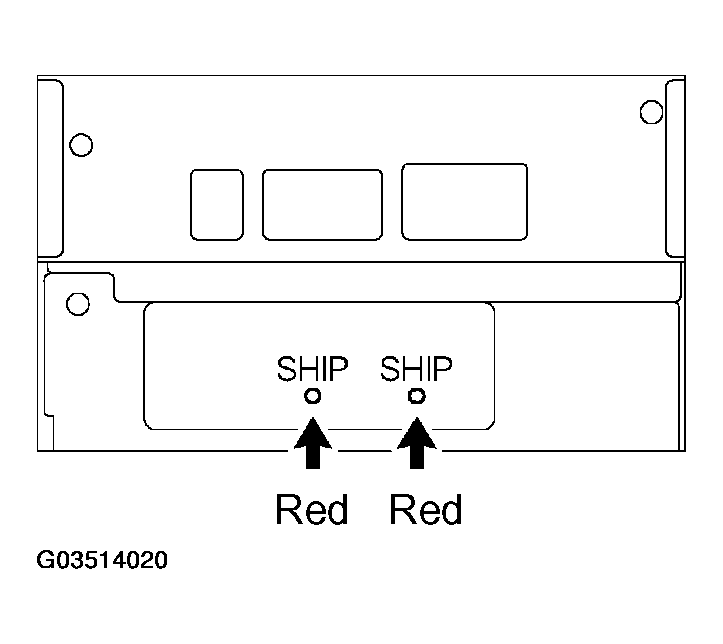

   Fig 6: Checking Window Provided For Mode Checking Is Red

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

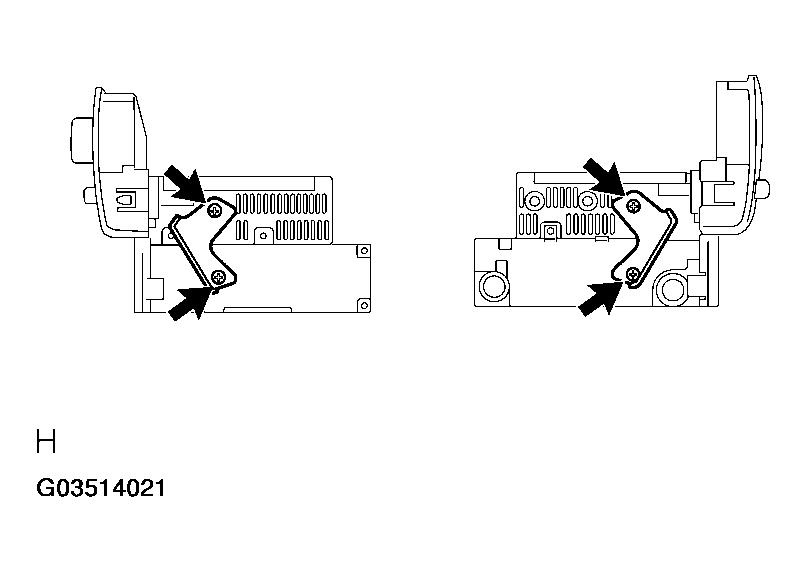

   Fig 7: Removing Screws And Brackets From Radio Receiver Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
   1. w/o Multi-display:

      Remove the 2 bolts and disengage the 5 clips.

   2. w/ Multi-display:

      Remove the 2 bolts.

   3. w/ Multi-display:

      Disengage the 2 clips and 4 claws.

   4. Disconnect the connector and remove the radio receiver assembly with bracket.
7. SHIP MODE CONFIRMATION
   1. See the back side of the radio receiver assy and check that the window provided for mode checking is red.
      NOTE: If the window is not red, perform the ship mode setting again.
8. REMOVE RADIO RECEIVER ASSY
   1. Remove the 4 screws and 2 brackets from the radio receiver assembly.
9. INSTALL RADIO RECEIVER ASSEMBLY W/BRACKET
   1. Make sure that the battery negative terminal is disconnected.
      NOTE:

      • Radio receiver with CD changer: If the connector is installed with the battery connected, the system will start initialization.
      • Vibration during initialization may cause problems in the radio receiver assy.
   2. Connect the connector.
   3. Install the radio receiver assembly with the 2 bolts.
