Radio Switch And Volume ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE RR SEAT CTR ARMREST PANEL
1. Remove the 2 rear seat back covers.
2. Remove the 2 screws and disconnect the rear seat armrest board.

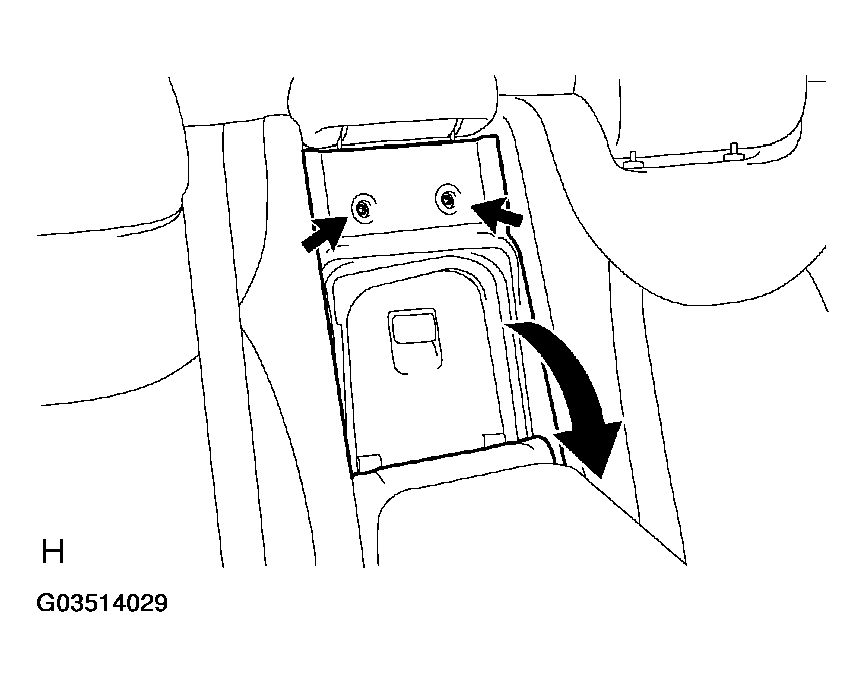

  Fig 1: Removing Screws And Disconnecting Rear Seat Armrest Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 screws.
4. Disengage the 12 claws and remove the rear seat center armrest panel.

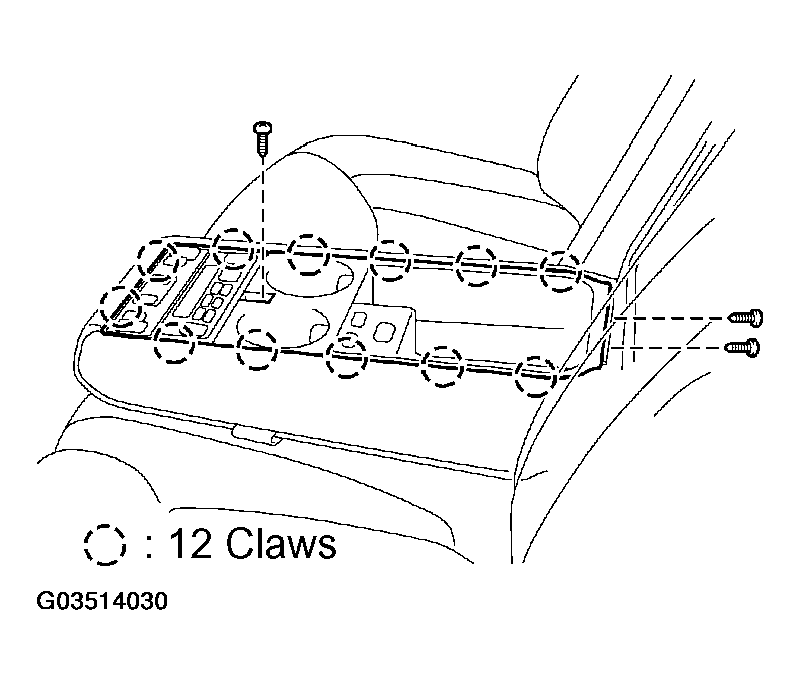

  Fig 2: Disengaging Claws And Removing Rear Seat Center Armrest Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO SWITCH AND VOLUME ASSY
1. Disconnect the connector.
2. Remove the 6 screws and radio switch and volume assy.

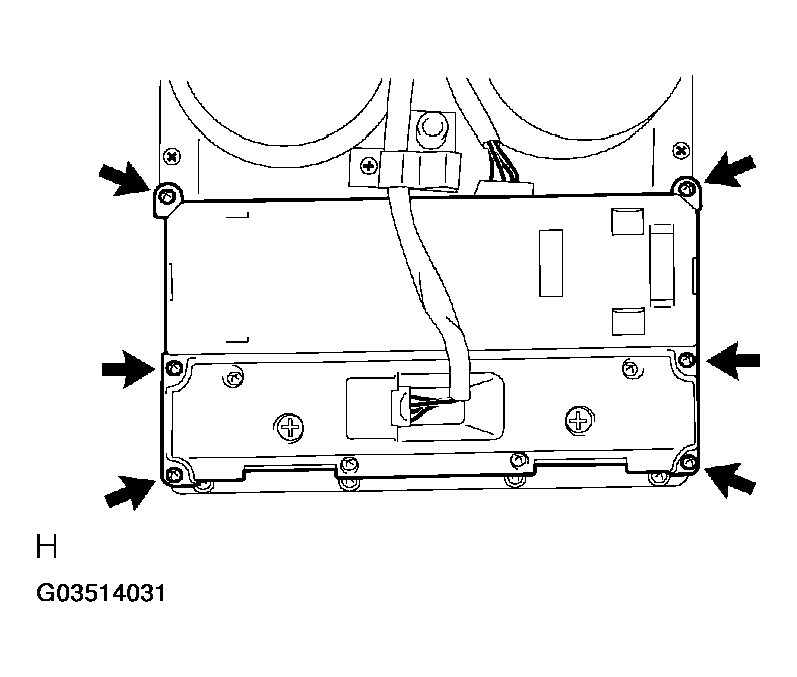

  Fig 3: Removing Screws And Radio Switch And Volume Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
