Ultrasonic Sensor No.2: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

SEE: COMPONENTS (FRONT BUMPER) and COMPONENTS (REAR BUMPER) .
SEE: LOCATION .
Installation is in the reverse order of removal.

REMOVE FRONT BUMPER COVER (SEE REPLACEMENT )
REMOVE REAR BUMPER COVER (SEE REPLACEMENT )
REMOVE ULTRASONIC SENSOR RETAINER NO.2
1. Disconnect the connector.
2. Remove the ultrasonic sensor retainer No.2 as shown in the illustration.

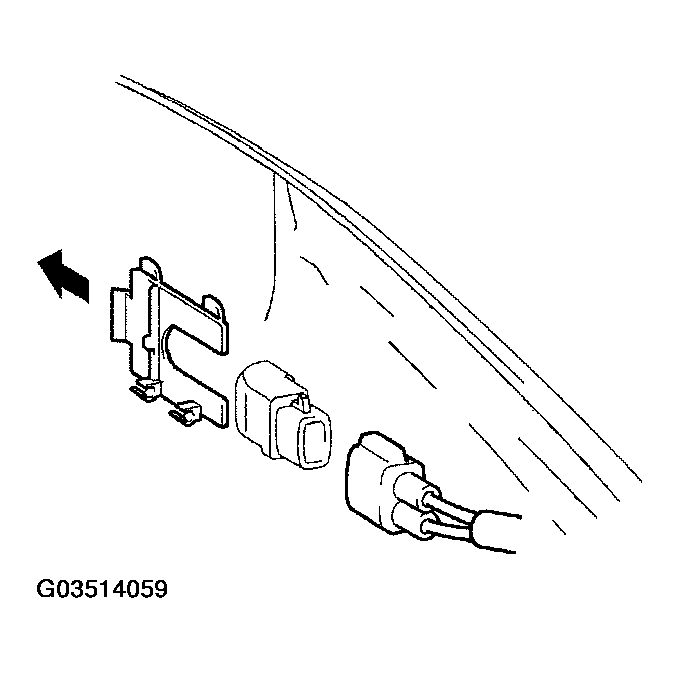

  Fig 1: Removing Ultrasonic Sensor Retainer No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ULTRASONIC SENSOR NO.2
1. Remove the ultrasonic sensor No.2.

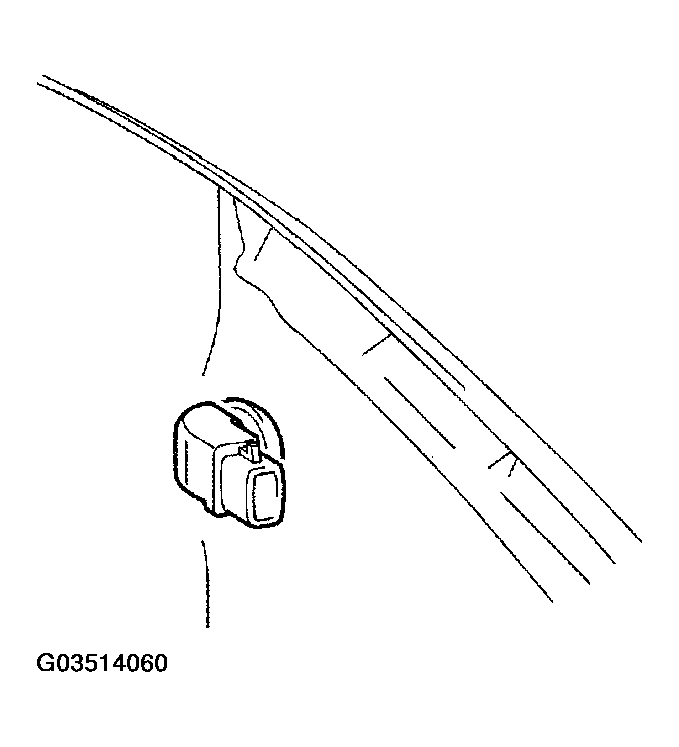

  Fig 2: Removing Ultrasonic Sensor No.2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
