Component Locations
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

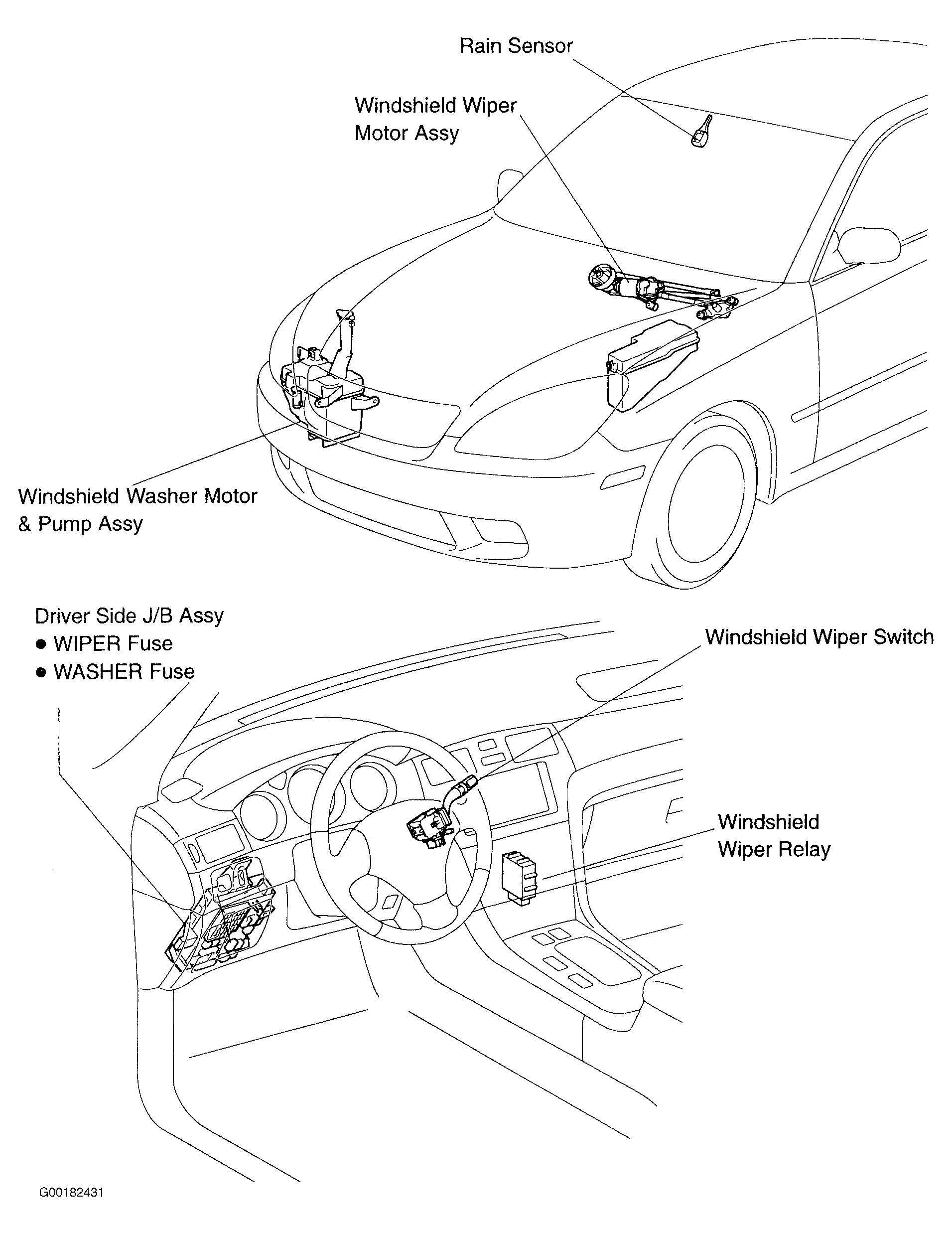

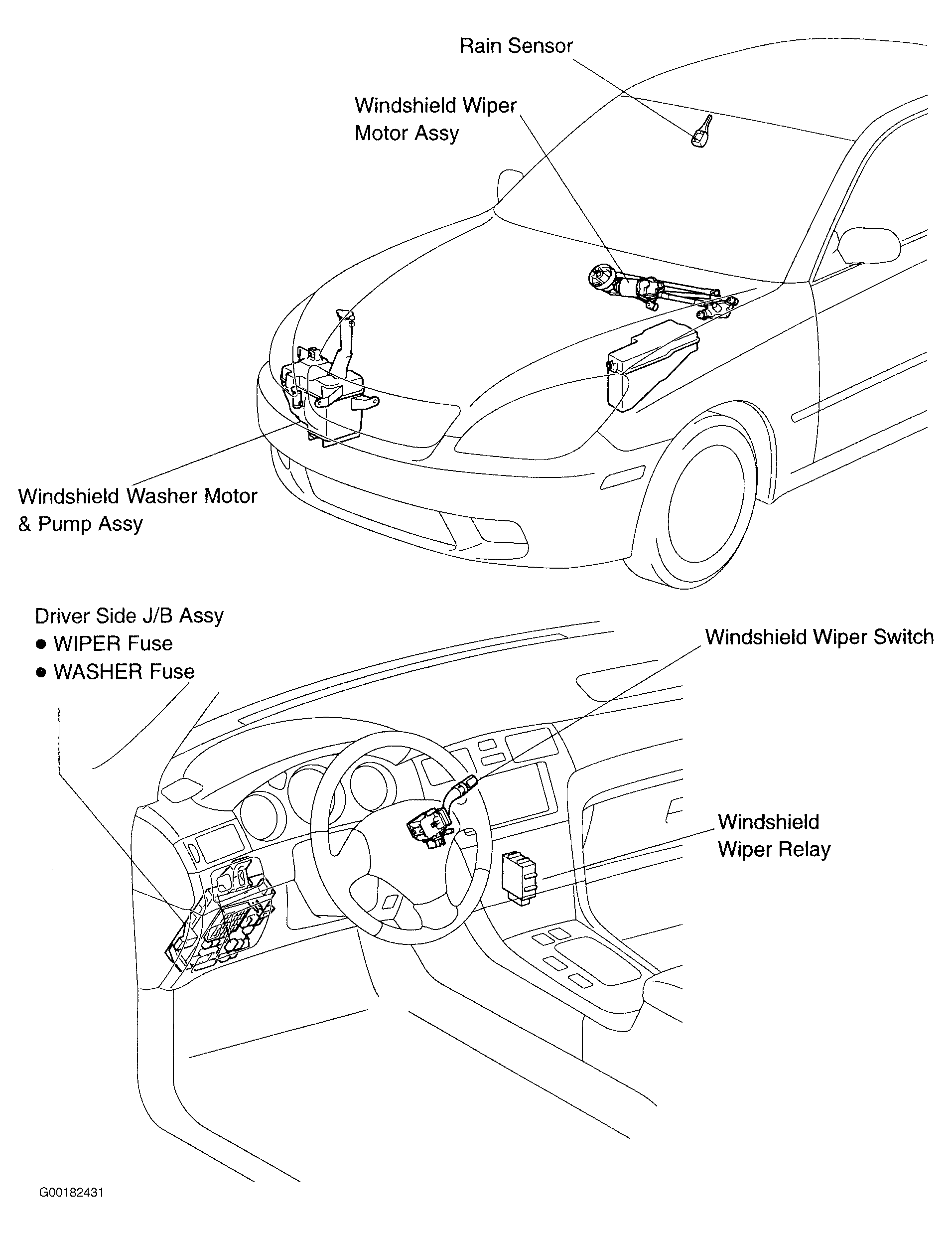

COMPONENT LOCATIONS
| Component | Location | ||||
|---|---|---|---|---|---|
| IG1 Relay | (2) | ||||
| Rain Sensor | (1) | ||||
| WIPER Fuse & WASHER Fuse | (1)(2) | ||||
| Windshield Washer Motor & Pump | (1) | ||||
| Windshield Wiper Motor | (1) | ||||
| Windshield Wiper Relay | (1) | ||||
| Windshield Wiper Switch | (1) | ||||
|
|||||
