Washer Motor
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
- Pour the washer fluid into the washer jar with the washer motor and the pump installed to the washer jar assembly.

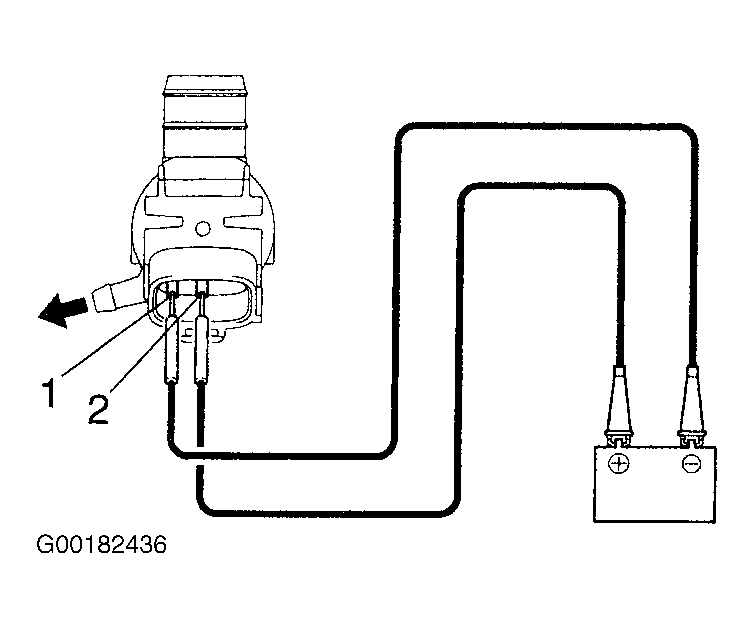

- Connect the battery positive (+) to terminal No. 2 of the washer motor and the pump, the battery negative (-) to terminal No. 1 of the washer motor and the pump. See Fig 1. Check that the water comes out from the washer jar. Replace washer motor as necessary.
