Automatic Transmission/Transaxle: Components

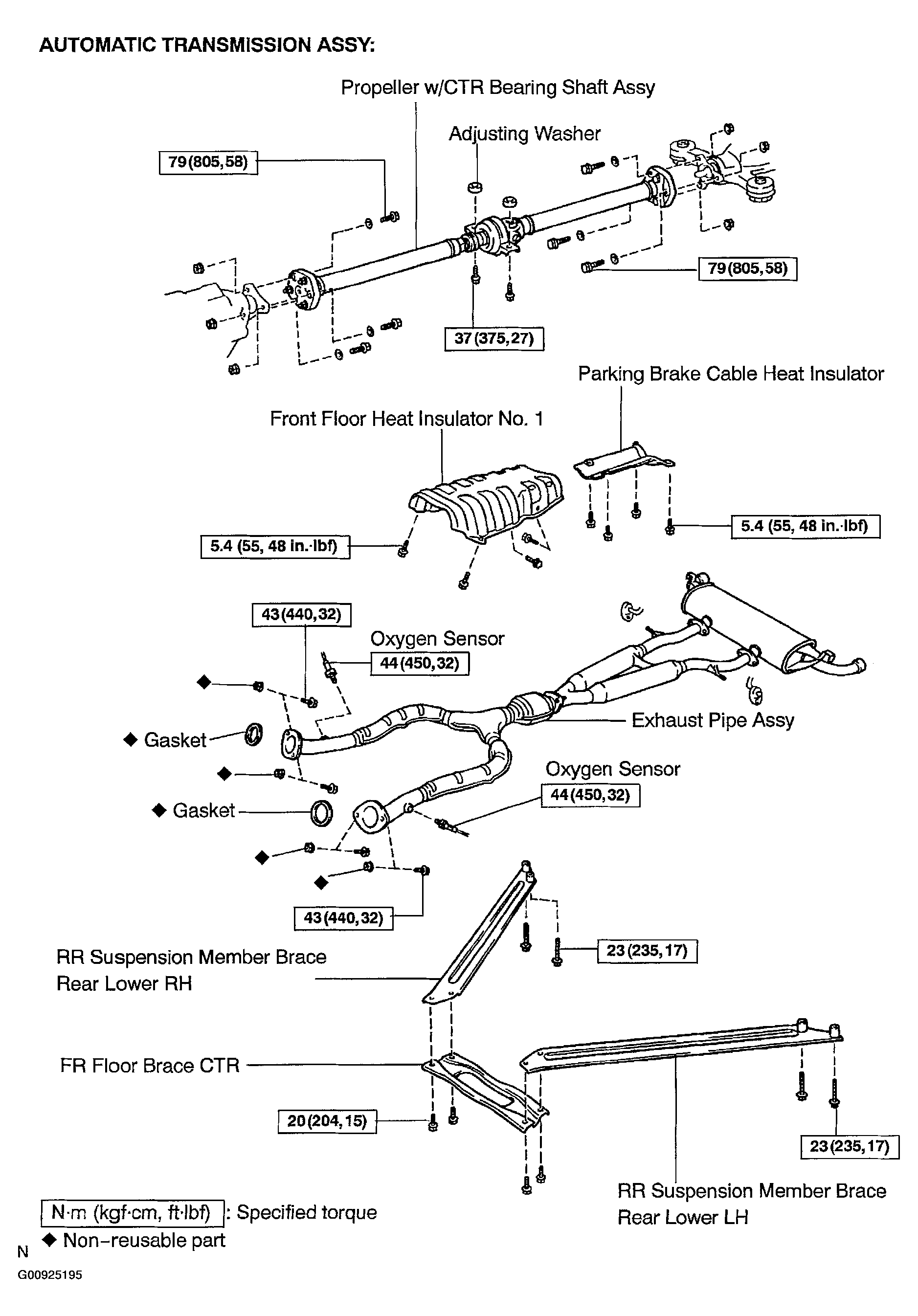

Fig 1: Identifying Exhaust System And Propeller Shaft Components - Except Floor Shift

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

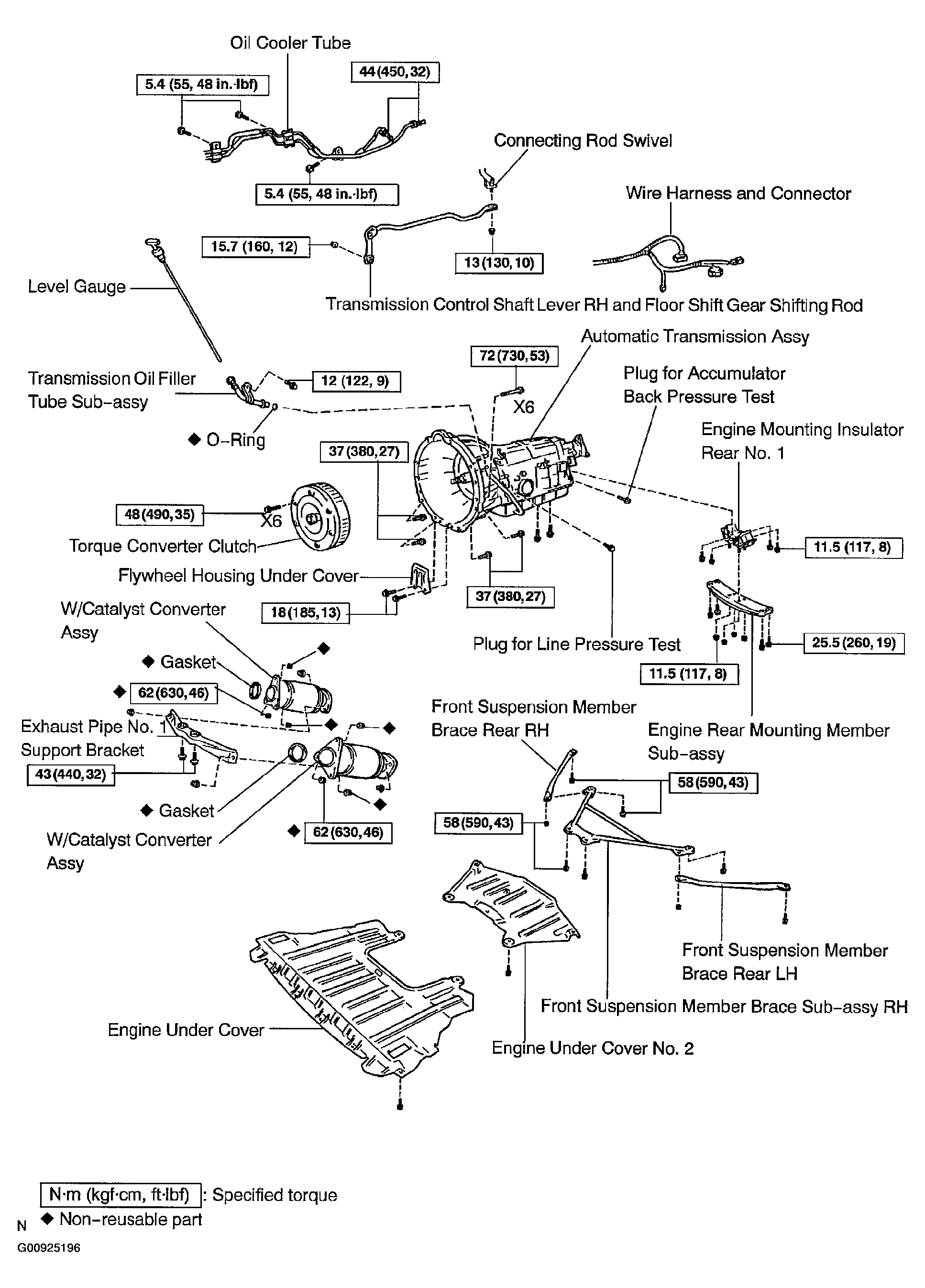

Fig 2: Identifying Automatic Transmission And External Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

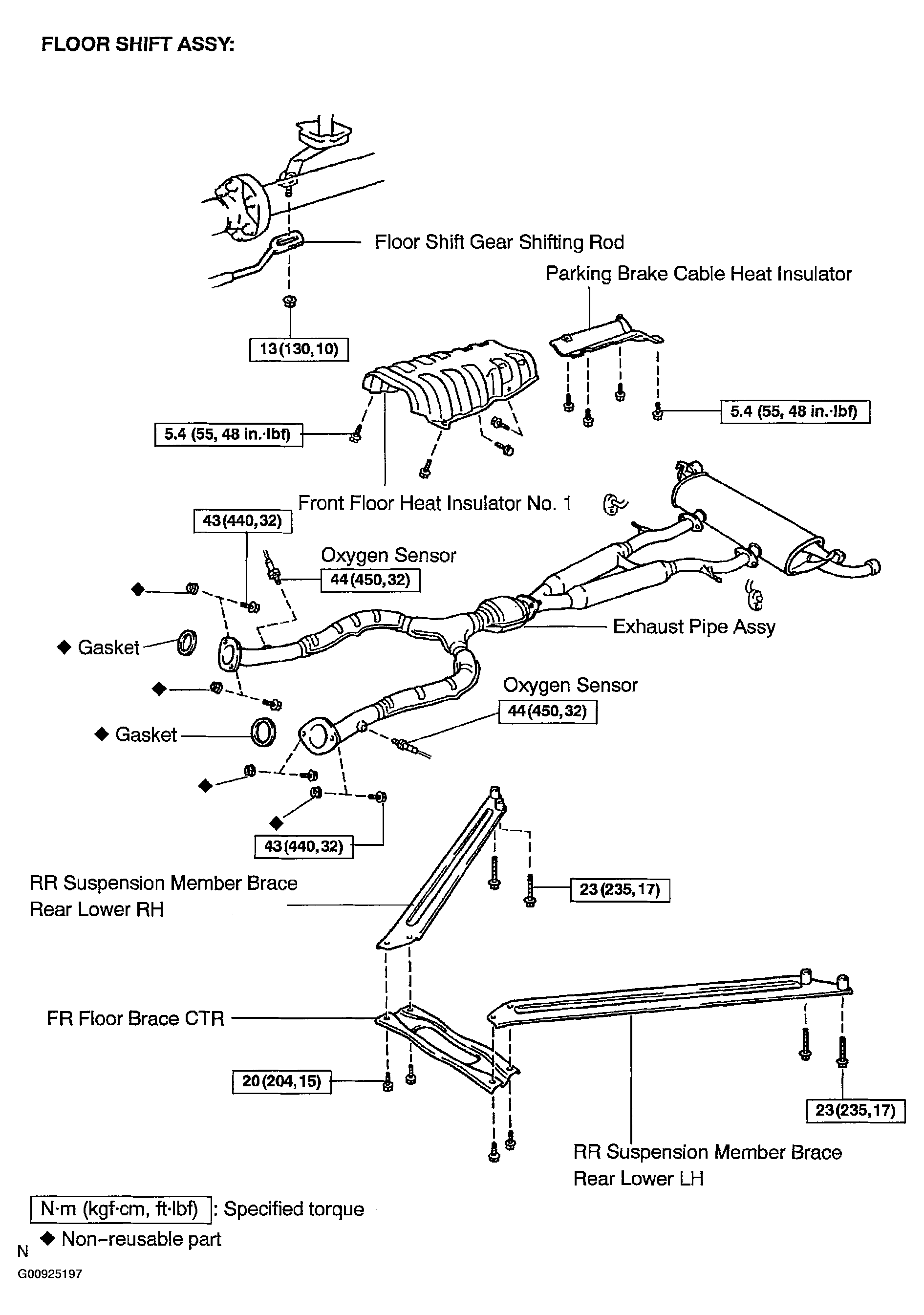

Fig 3: Identifying Exhaust System And Propeller Shaft Components - Floor Shift

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

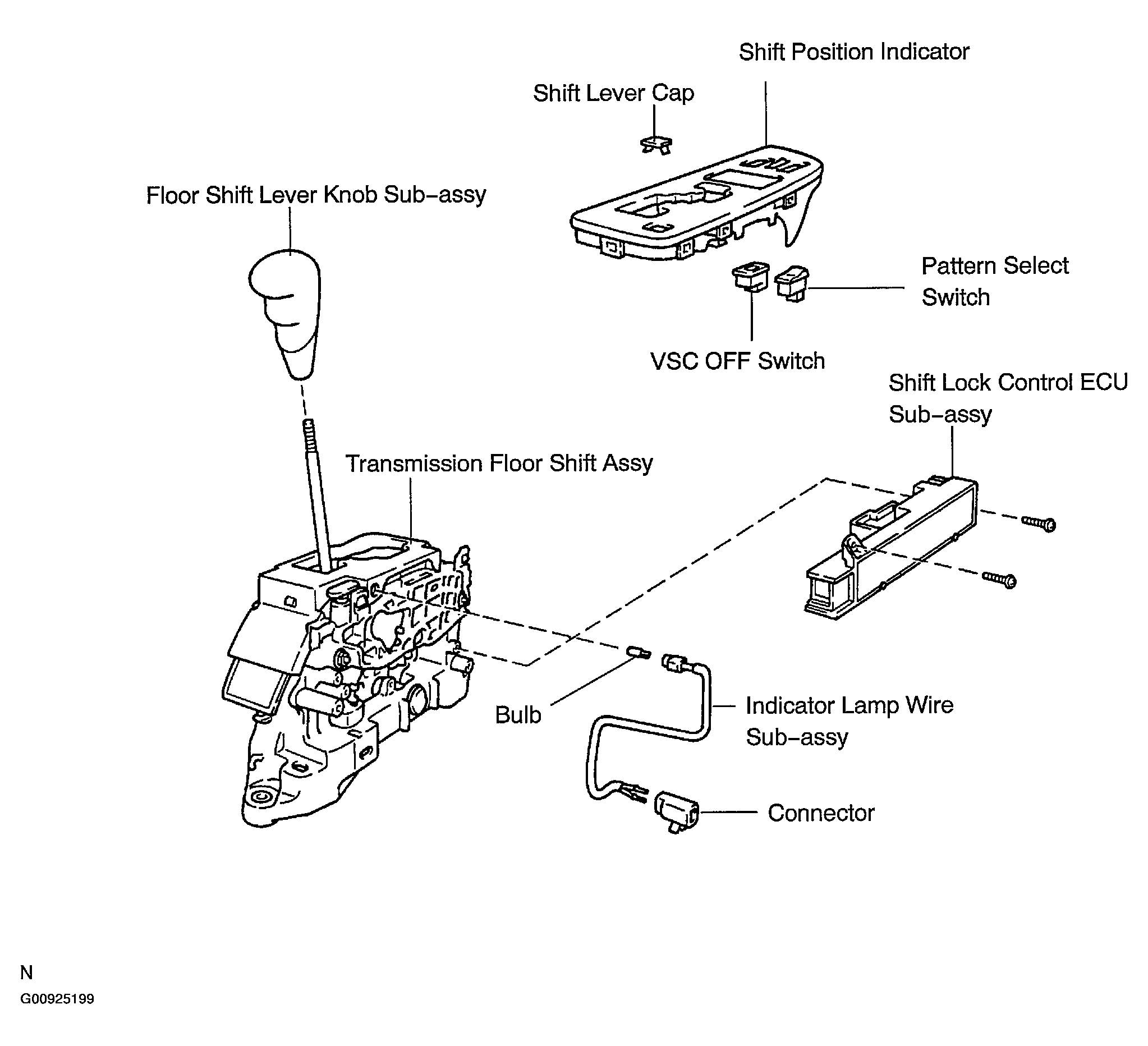

Fig 4: Identifying Floor Shift Assembly Components (1 Of 2)

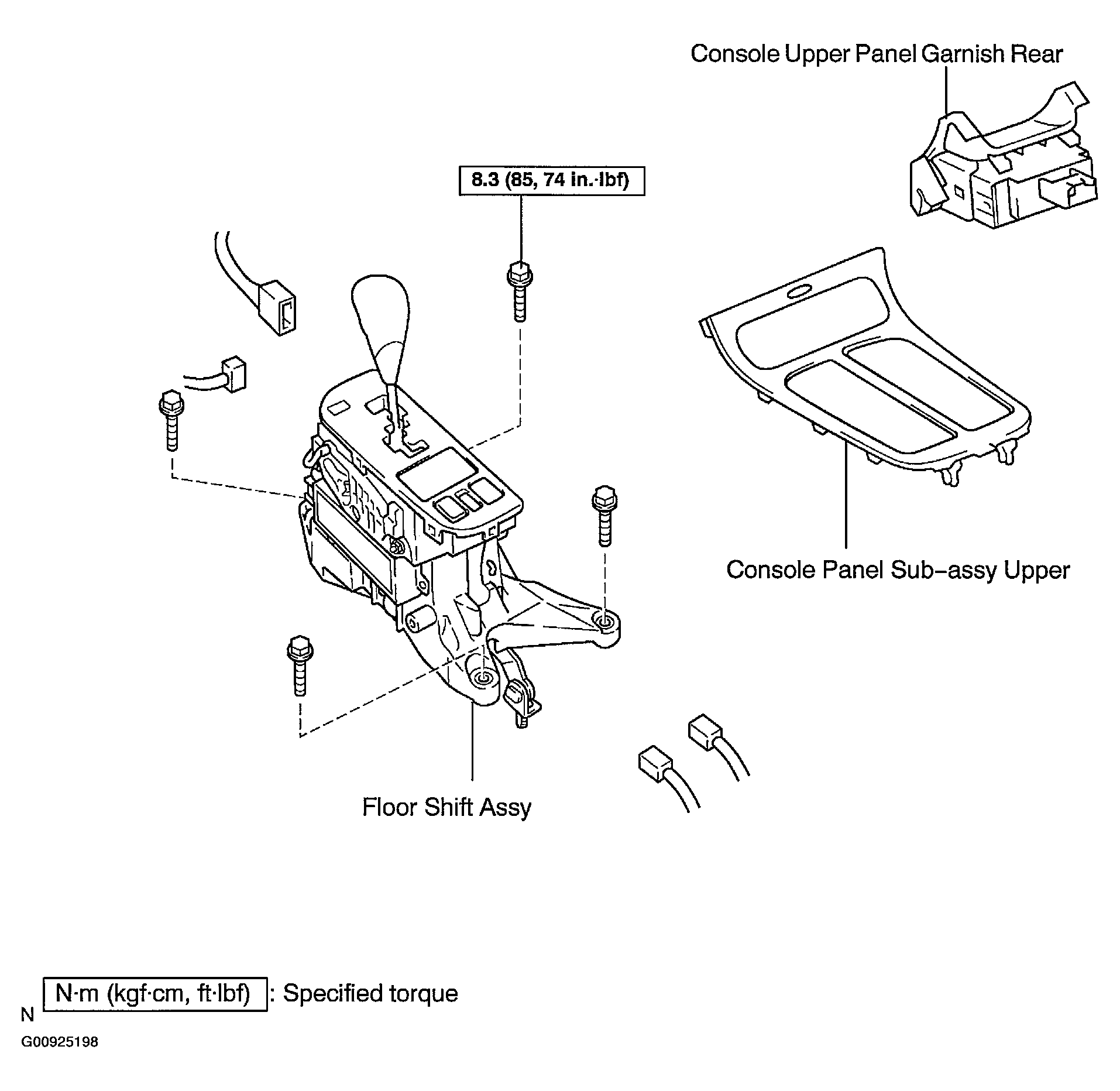

Fig 5: Identifying Floor Shift Assembly Components (2 Of 2)
