Park/Neutral Position Switch ASSY: Replacement

  1. REMOVE FRONT FLOOR BRACE CENTER (See  OVERHAUL  )
  2. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER LH (See  OVERHAUL  )
  3. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER RH (See  OVERHAUL  )
  4. SEPARATE OXYGEN SENSOR (See  OVERHAUL  )
  5. REMOVE EXHAUST PIPE (See  OVERHAUL  )
  6. REMOVE FRONT FLOOR HEAT INSULATOR NO.1 (See  OVERHAUL  )
  7. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
    1. Set the shift lever to N position.
    2. Remove the nut and disconnect the rod.

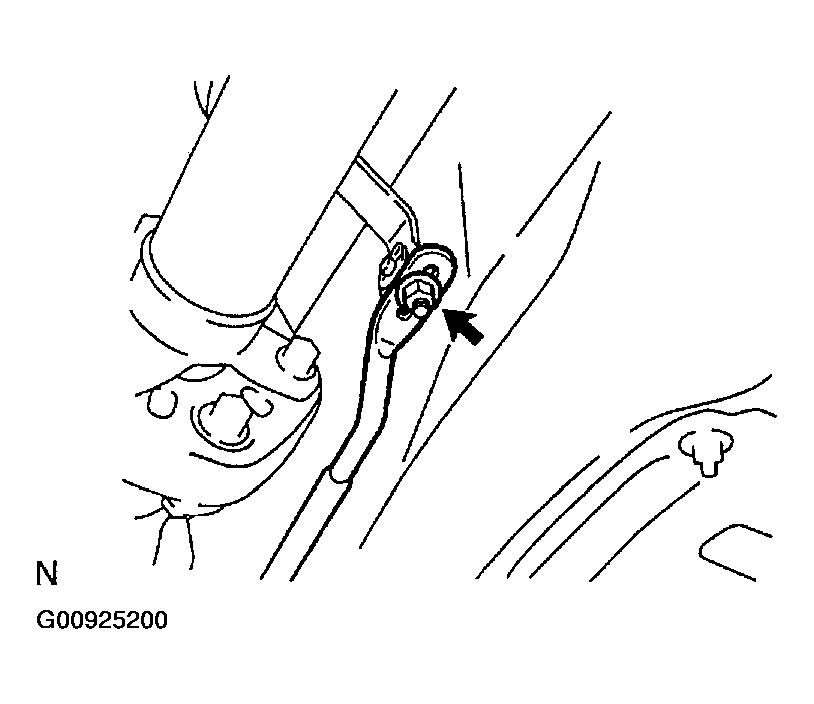

      Fig 1: Removing Nut & Disconnecting Rod
      G00925200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE TRANSMISSION CONTROL SHAFT LEVER RH
    1. Disconnect the park/neutral position switch connector.
    2. Remove the nut and control shaft lever with the rod.

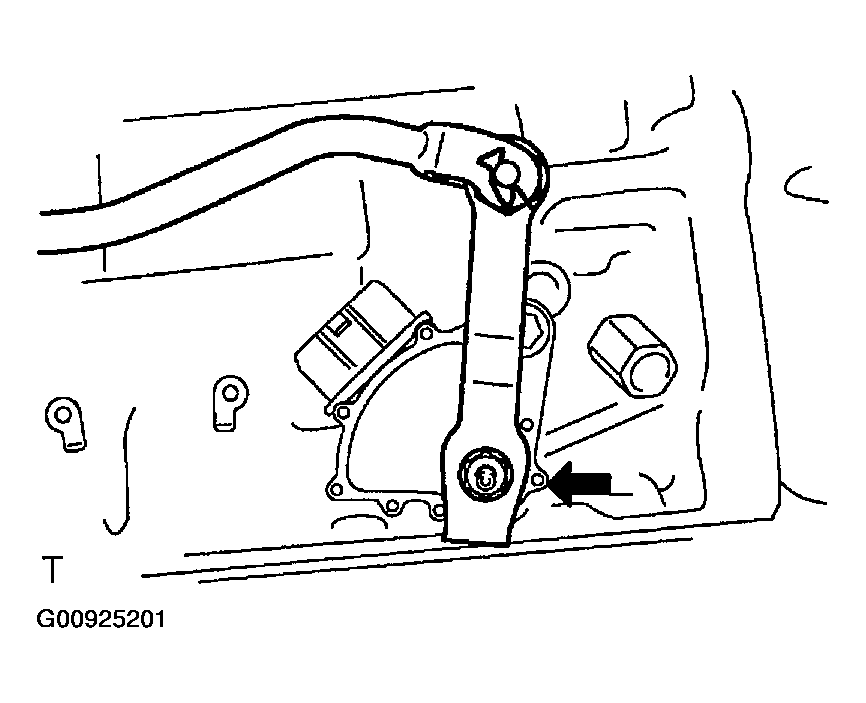

      Fig 2: Removing Nut Control Shaft Lever
      G00925201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE PARK/NEUTRAL POSITION SWITCH ASSY
    1. Pry out the lock plate and remove the nut.
    2. Remove the bolt and pull out the park/neutral position switch.

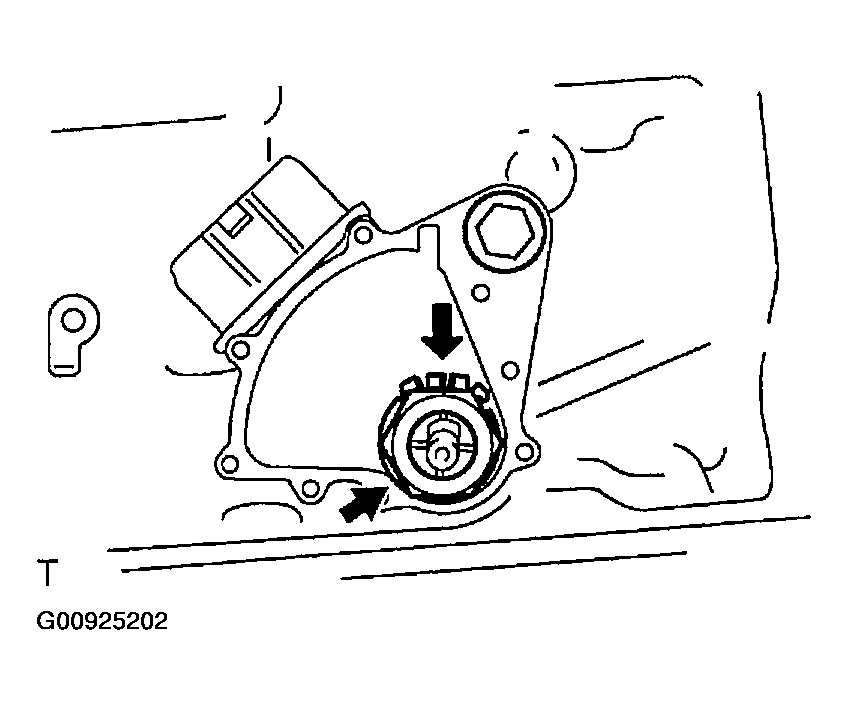

      Fig 3: Removing Bolt Park/Neutral Position Switch
      G00925202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL PARK/NEUTRAL POSITION SWITCH ASSY
    1. Install the park/neutral position switch.
    2. Temporarily install the bolt.

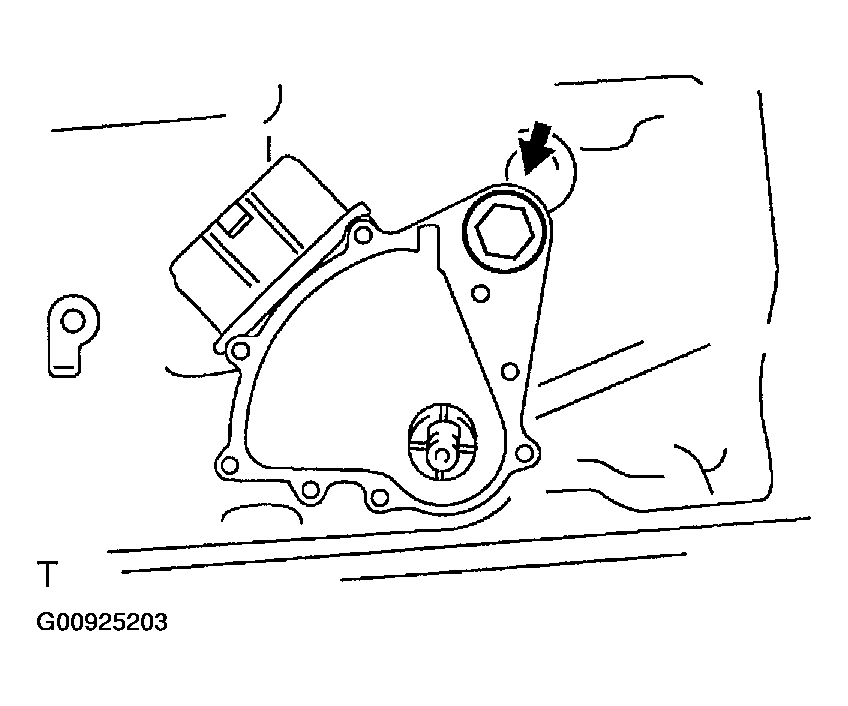

      Fig 4: Installing Bolt On Park/Neutral Position Switch
      G00925203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Place a new lock plate and tighten the nut.

      Torque: 6.9 N.m (70 kgf.cm, 61 in.lbf)

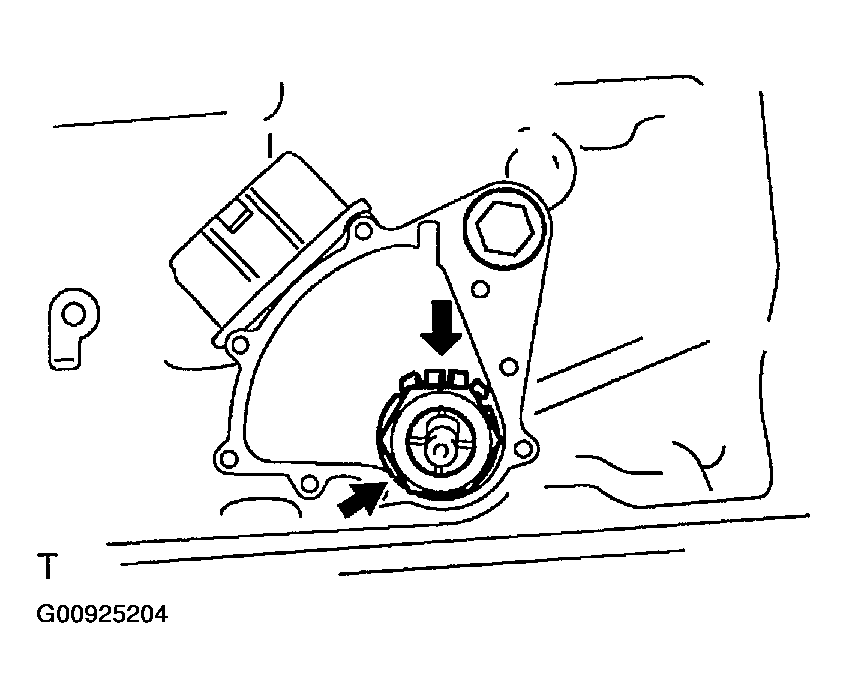

      Fig 5: Installing New Lock Plate
      G00925204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Temporarily install the control shaft lever.
    5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
    6. Remove the control shaft lever.

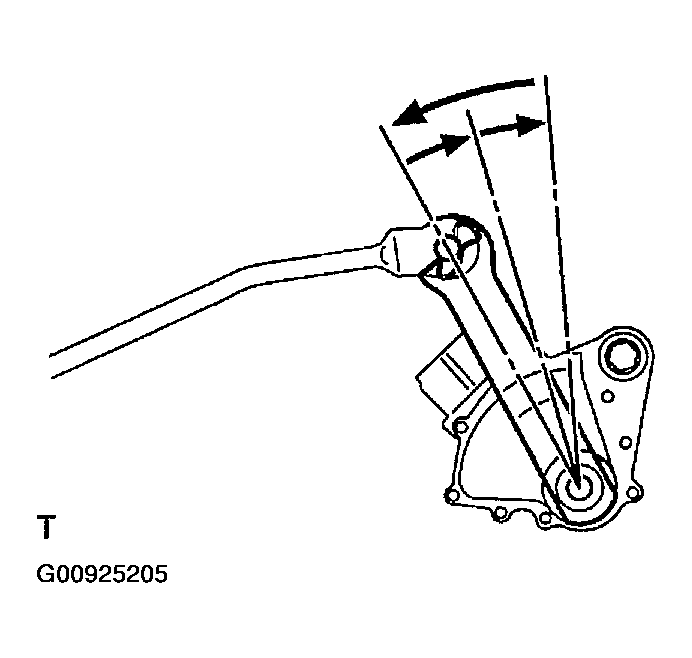

      Fig 6: Turning Control Shaft Lever
      G00925205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Align the groove with neutral basic line.
    8. Hold the switch in position and tighten the bolt.

      Torque: 12.8 N.m (130 kgf.cm, 9 ft.lbf)

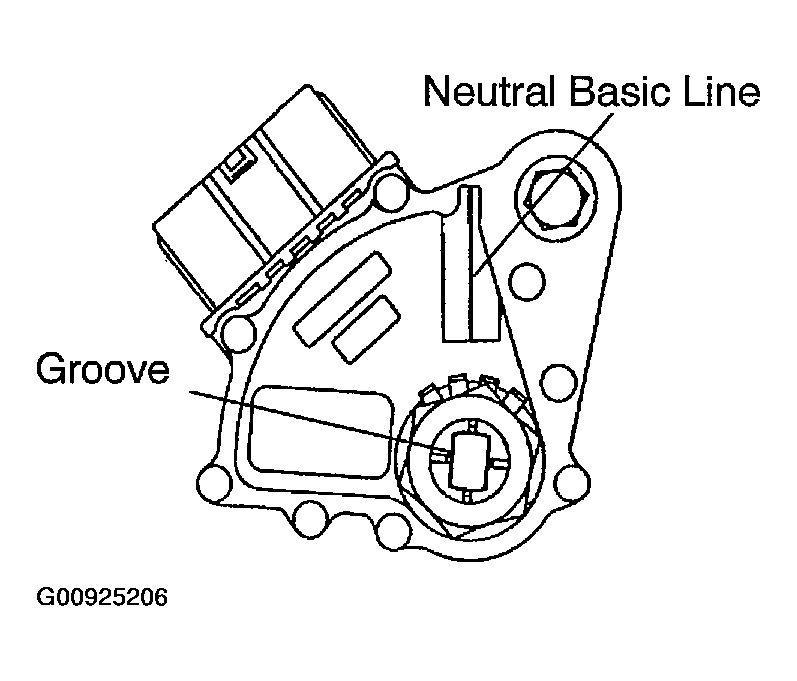

      Fig 7: Aligning Groove With Neutral Basic Line
      G00925206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Using a screwdriver, stake the nut with the lock plate.

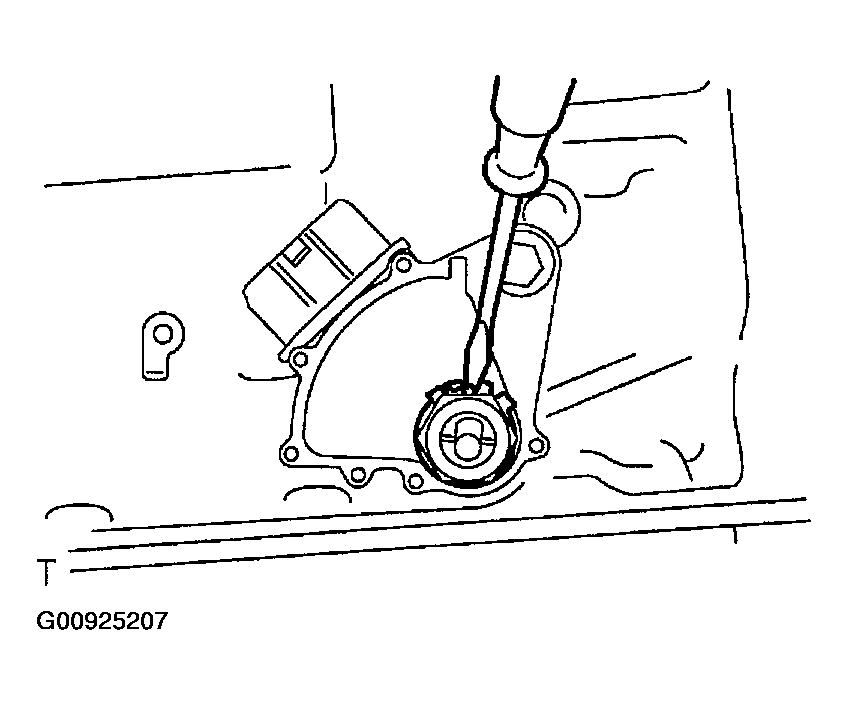

      Fig 8: Staking Nut With Lock Plate
      G00925207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL TRANSMISSION CONTROL SHAFT LEVER RH
    1. Install the nut and control shaft lever with the rod.

      Torque: 15.7 N.m (160 kgf.cm, 12 ft.lbf)

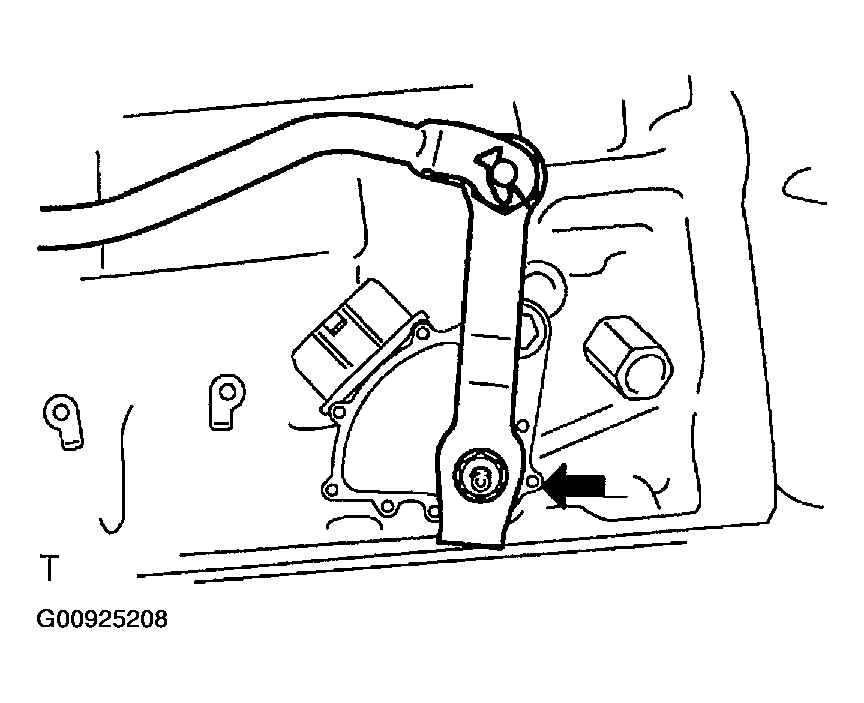

      Fig 9: Installing Control Shaft Lever Nut
      G00925208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSY
    1. Temporarily install the rod to the connecting rod swivel with the nut.

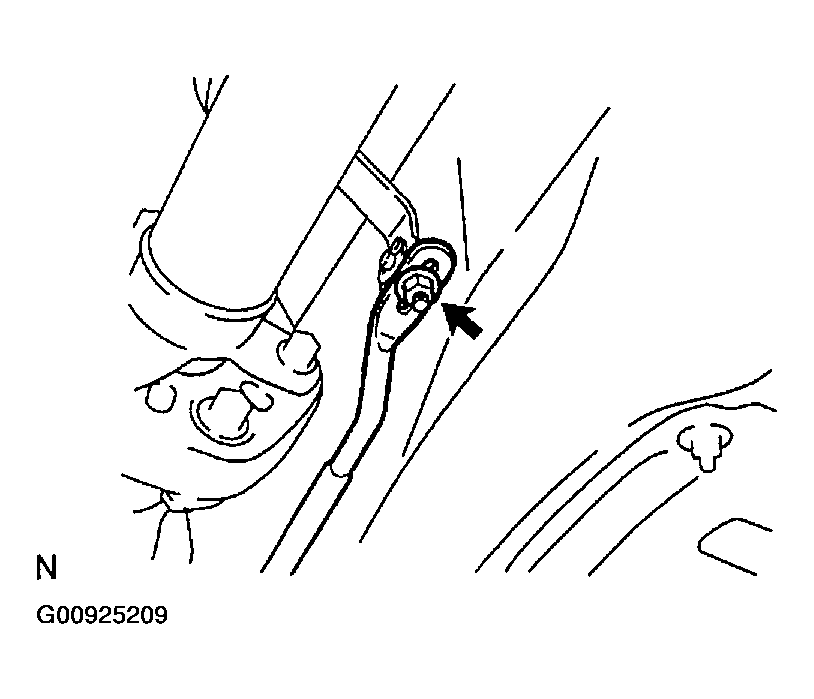

      Fig 10: Installing Rod To Connecting Rod Swivel Nut
      G00925209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT  )
  14. INSTALL FRONT FLOOR HEAT INSULATOR NO. 1 (See  OVERHAUL  )
  15. INSTALL EXHAUST PIPE (See  OVERHAUL  )
  16. INSTALL OXYGEN SENSOR (See  OVERHAUL  )
  17. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER RH (See  OVERHAUL  )
  18. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER LH (See  OVERHAUL  )
  19. INSTALL FRONT FLOOR BRACE CENTER (See  OVERHAUL  )
  20. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT  )
  21. INSPECT PARK/NEUTRAL POSITION SWITCH ASSY (See  ADJUSTMENT  )
  22. CHECK EXHAUST GAS LEAK
