Speed Sensor: Replacement

  1. REMOVE SPEED SENSOR (NC0 SENSOR)
    1. Disconnect the connector.
    2. Remove the bolt and speed sensor.

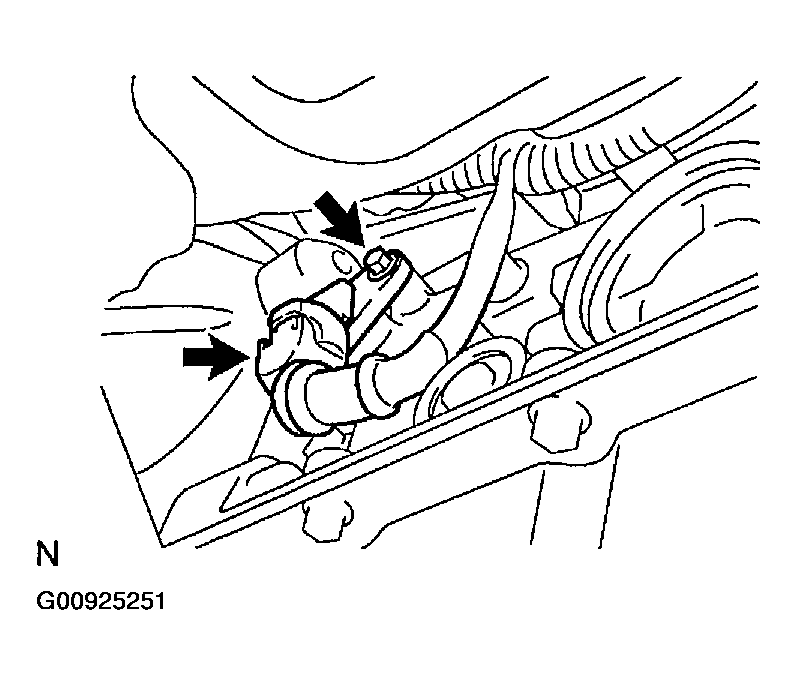

      Fig 1: Removing Speed Sensor (NC0 Sensor) Bolt
      G00925251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SPEED SENSOR (SP2 SENSOR)
    1. Disconnect the connector.
    2. Remove the bolt and speed sensor.

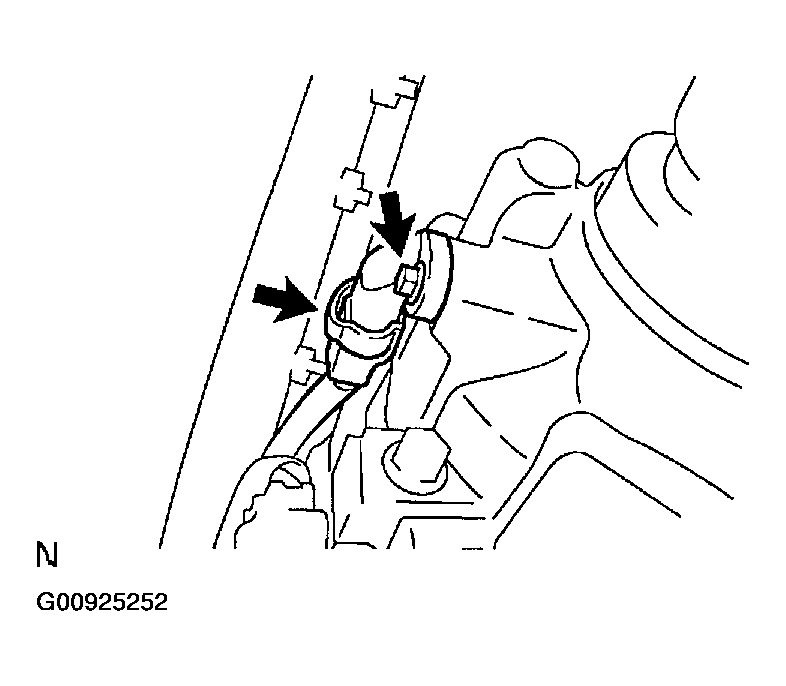

      Fig 2: Removing Speed Sensor (SP2 Sensor) Bolt
      G00925252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SPEED SENSOR (SP2 SENSOR)
    1. Coat O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the connector.
      Fig 3: Installing Speed Sensor (SP2 Sensor)
      G00925253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL SPEED SENSOR (NC0 SENSOR)
    1. Coat O-ring with ATF.
    2. Install the speed sensor with the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the connector.

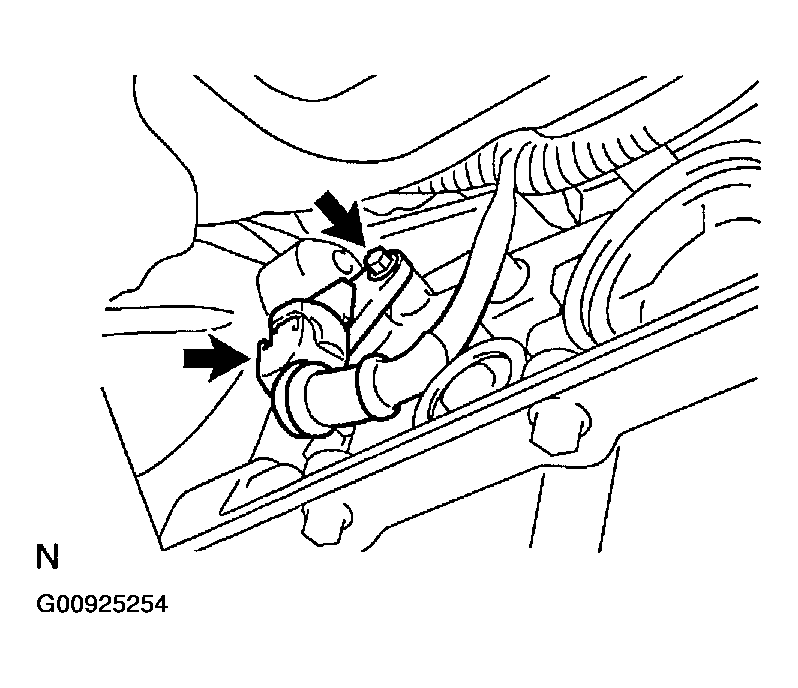

      Fig 4: Installing Speed Sensor (NC0 Sensor)
      G00925254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
