Transmission Wire: Replacement

CAUTION: When working with FIPG material, you must observe the following items:

Using a razor blade and gasket scraper, remove all the old FIPG material from the gasket surfaces.
Thoroughly clean all components to remove all the loose material.
Clean both sealing surfaces with a non-remove solvent.
Apply FIPG in an approx. 1 mm (0.04 in) wide bead along the sealing surface.
Parts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be removed and reapplied.

DRAIN AUTOMATIC TRANSMISSION FLUID
1. Remove the drain plug, gasket and drain ATF.
2. Install a new gasket and drain plug.
  Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY
NOTE: Some fluid will remain in the oil pan.

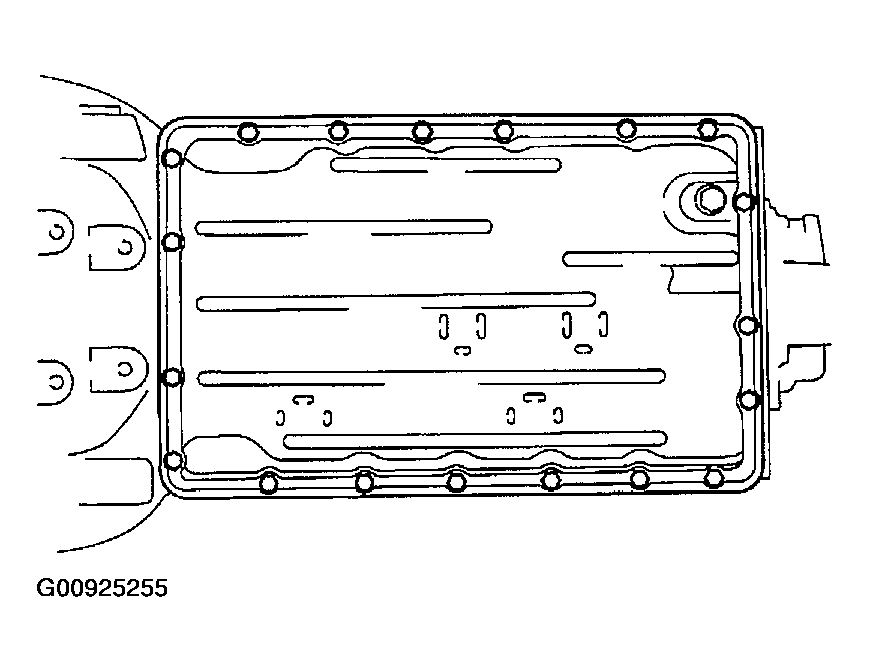

1. Remove the 19 bolts.

  Fig 1: Removing Automatic Transmission Oil Pan Sub-Assy Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the blade of SST between the transmission case on oil pan, cut off applied sealer, and remove the oil pan.
  SST 09032-00100

  NOTE: When removing the oil pan, careful not to damage the oil pan flange.

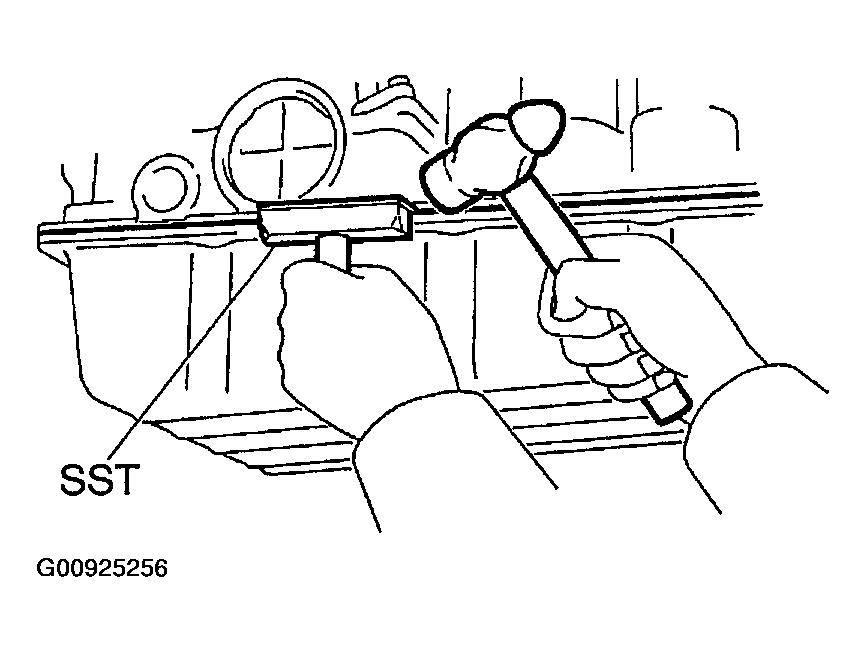

  Fig 2: Installing Blade Of SST Between Transmission Case On Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Examine particles in pan.
  1. Remove the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission.
  Steel (magnetic) ... bearing, gear and clutch plate wear

  Brass (non-magnetic) ... bushing wear

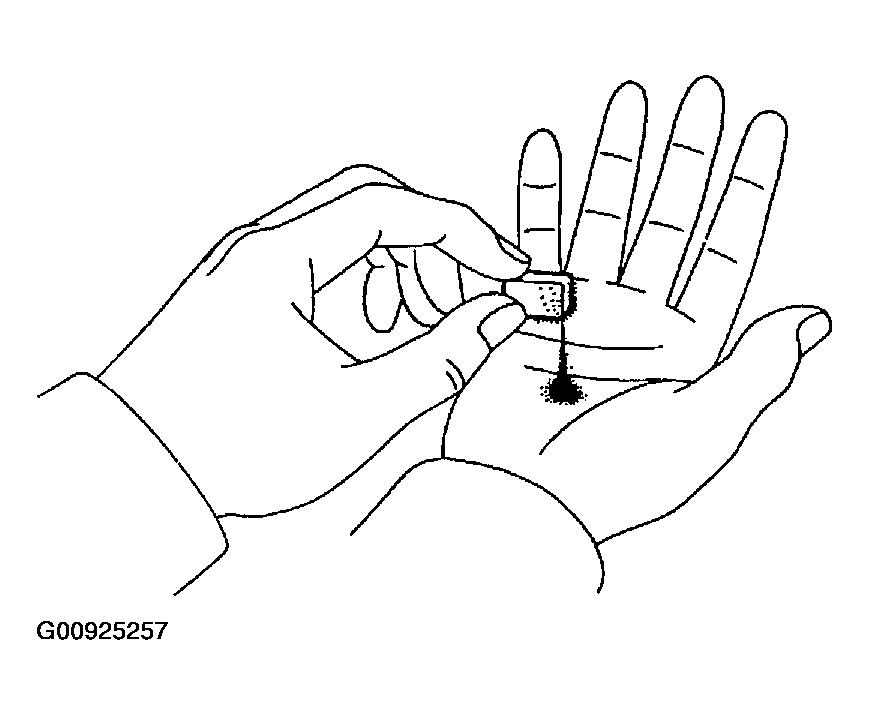

  Fig 3: Examine Particles In Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSY
1. Remove the 4 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out of the oil strainer.

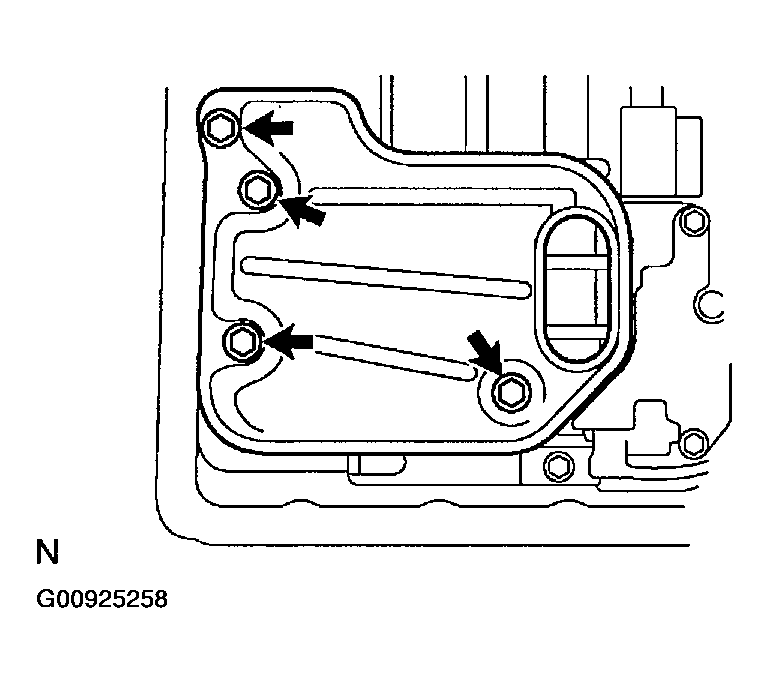

  Fig 4: Removing Bolts & Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 gaskets from the oil strainer.

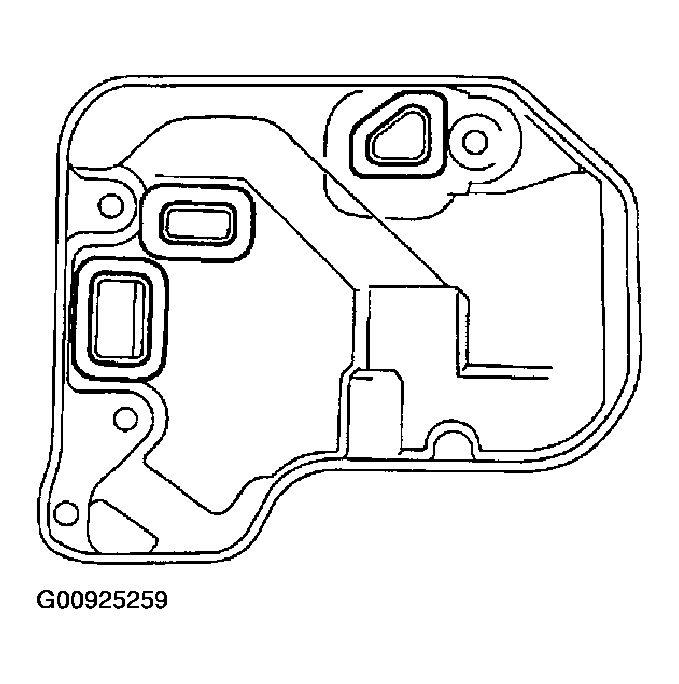

  Fig 5: Removing Gaskets From Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE TRANSMISSION WIRE
1. Disconnect the ATF temperature sensor.

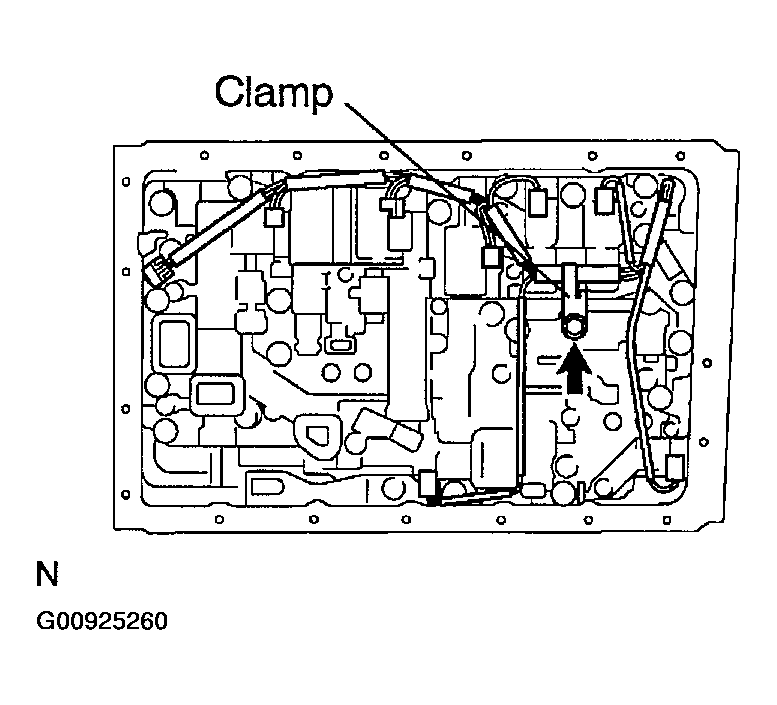

2. Remove the bolt and clamp.
3. Disconnect the 7 connectors from the solenoid valves.

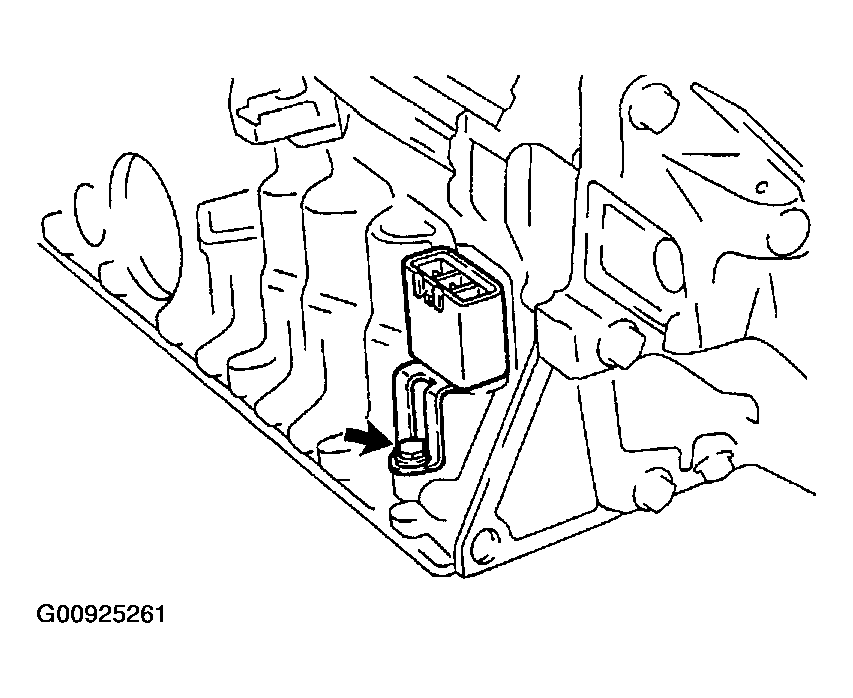

  Fig 6: Removing Bolt & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION WIRE
1. Disconnect the transmission wire connector.

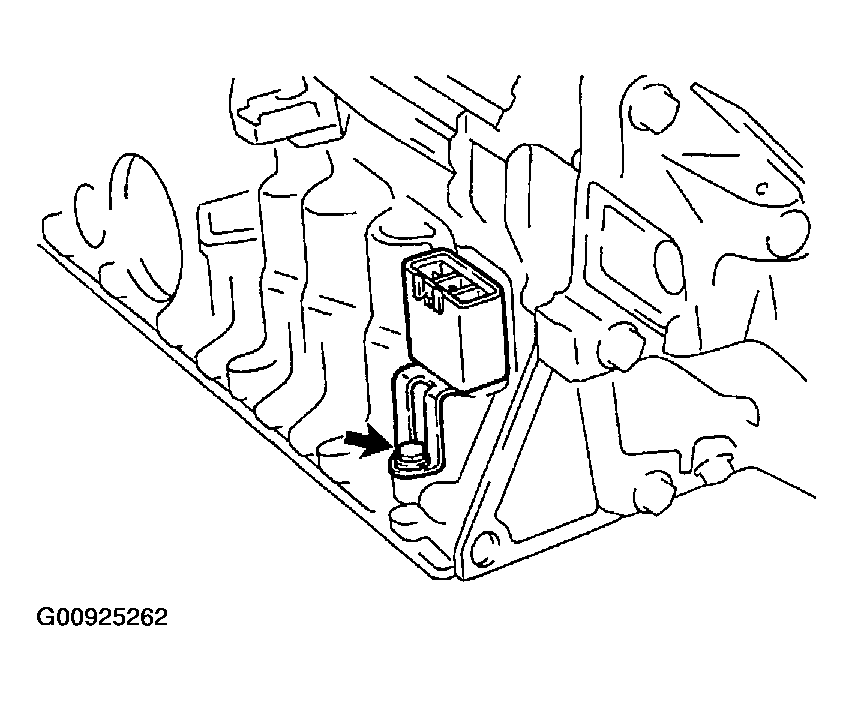

2. Remove the bolt and pull out the transmission wire.

  Fig 7: Removing Transmission Wire Harness Connector Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION WIRE
1. Install the transmission wire with the bolt.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
2. Connect the transmission wire connector.

  Fig 8: Installing Transmission Wire Harness Connector Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION WIRE
1. Connect the 7 connectors to the solenoid valves.

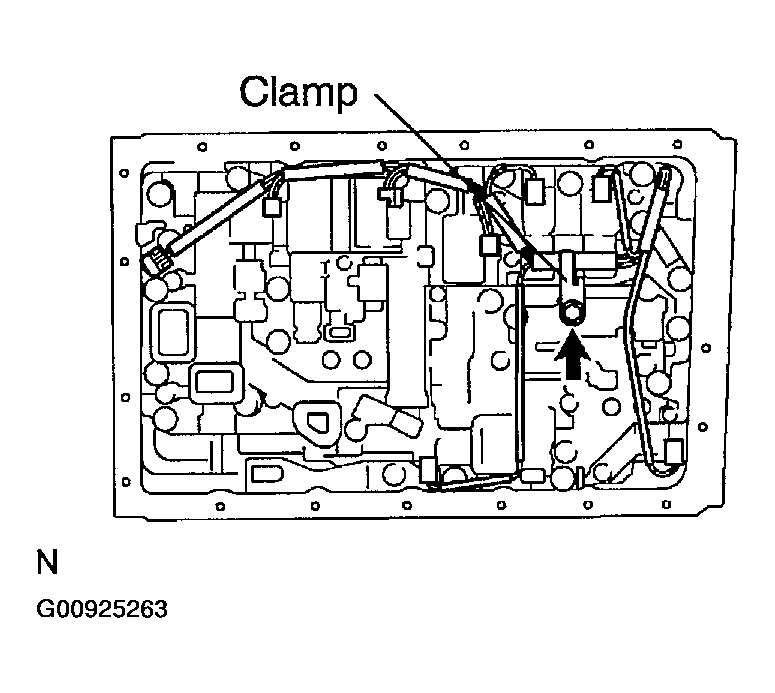

2. Install the clamp with the bolt.
  Torque: 6.4 N.m (65 kgf.cm, 56 in.lbf)

  Fig 9: Installing Clamp With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the ATF temperature sensor.
INSTALL VALVE BODY OIL STRAINER ASSY
1. Install 3 new gaskets.

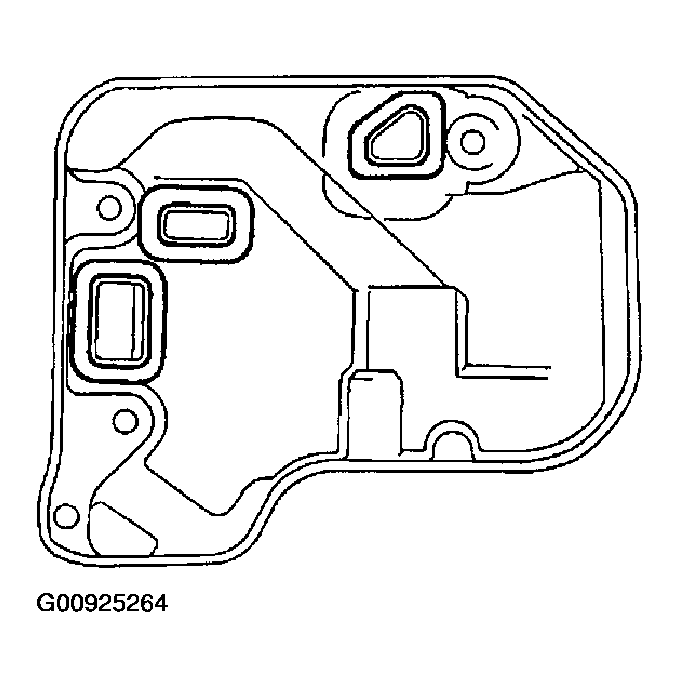

  Fig 10: Installing Gaskets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil strainer with the 4 bolts.
  Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

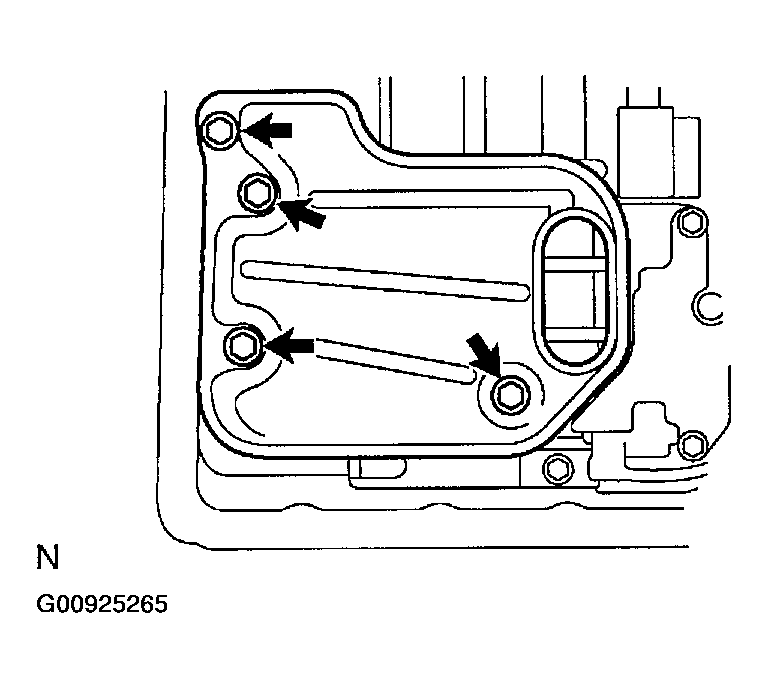

  Fig 11: Installing Oil Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSY

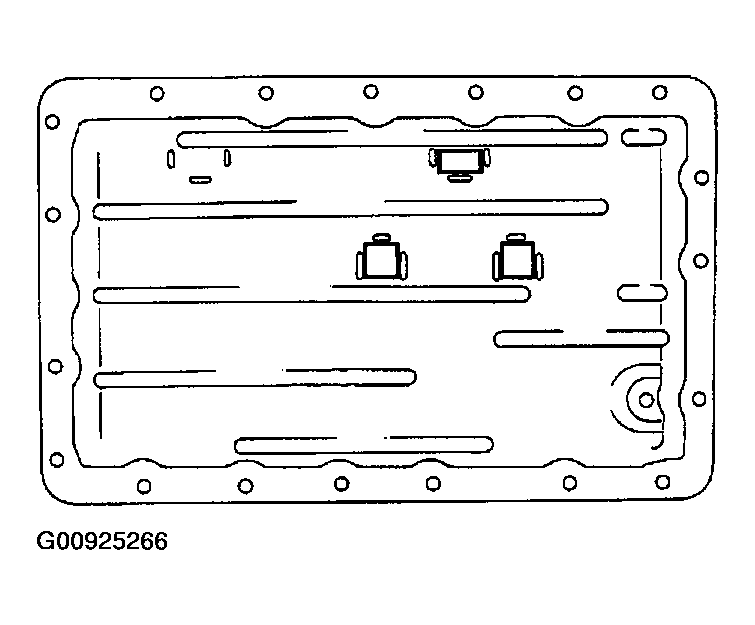

1. Install the 3 magnets in the indications of the oil pan.

  Fig 12: Installing Magnets In Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmission case and oil pan.
3. Apply FIPG to the oil pan.
  FIPG:

  Part No. 08826 - 00090, THREE BOND 1281 or equivalent

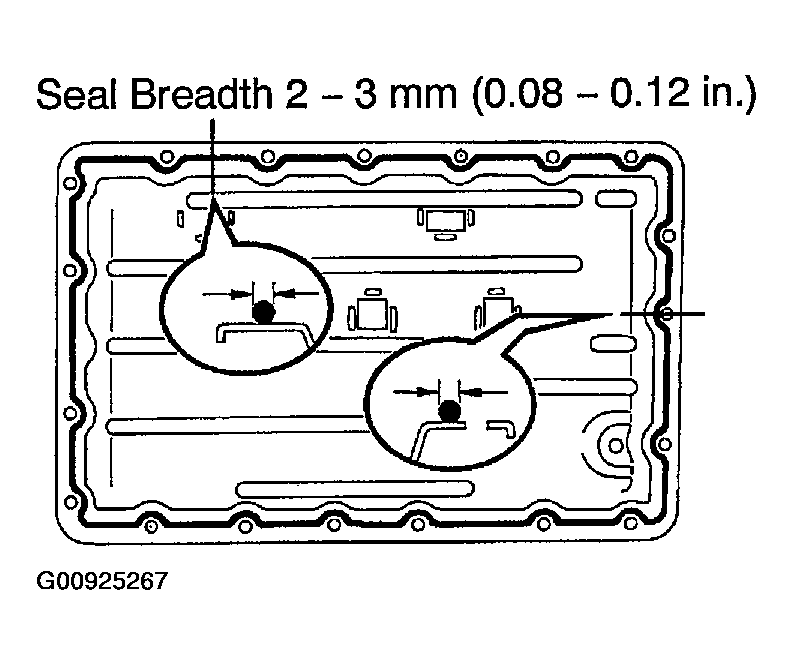

  Fig 13: Applying FIPG To Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

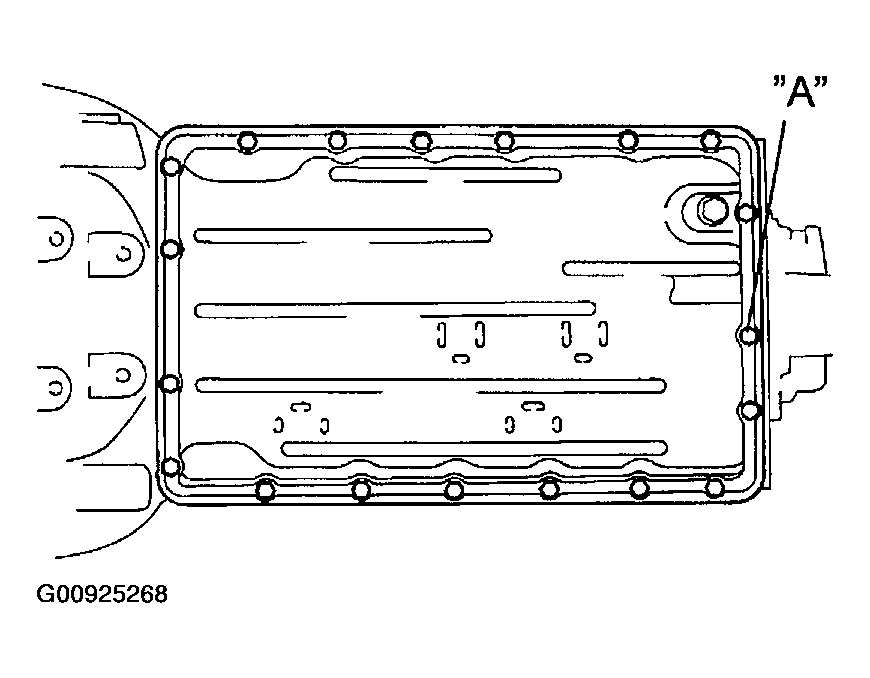

4. Install the oil pan with the 19 bolts.
  Torque: 7.4 N.m (75 kgf.cm, 65 in.lbf)

  HINT:

  Replace the only "A" bolt with a new one.

  Fig 14: Installing Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD AUTOMATIC TRANSMISSION FLUID
INSPECT AUTOMATIC TRANSMISSION FLUID (See AUTOMATIC TRANSMISSION FLUID )
