Problem Symptoms Table

HINT:

If abnormal code is displayed during the DTC check but the trouble still occurs, check the circuits for each symptom in the order given in the charts on the following pages and proceed to the page given for troubleshooting.

The Matrix Chart is divided into 3 chapters.

• If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart for each circuit, proceed to the circuit with the highest number in the table to continue the check.
• If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check and replace the ECM.

  CHAPTER 1: ELECTRONIC CIRCUIT MATRIX CHART

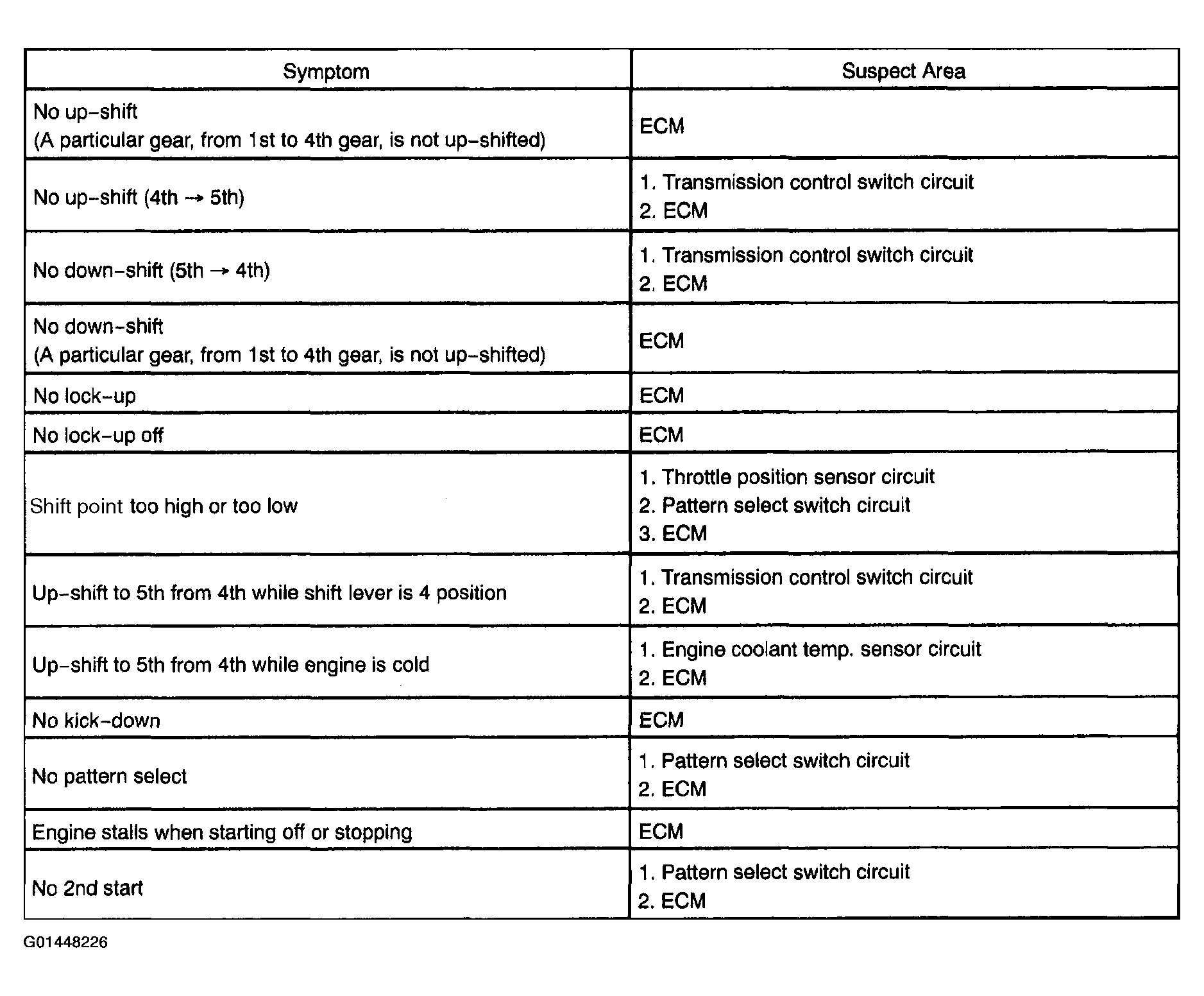

  Fig 1: Problem Symptoms Chart (1 Of 4)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  CHAPTER 2: ON-VEHICLE REPAIR

  See  OVERHAUL - A-650E  article.

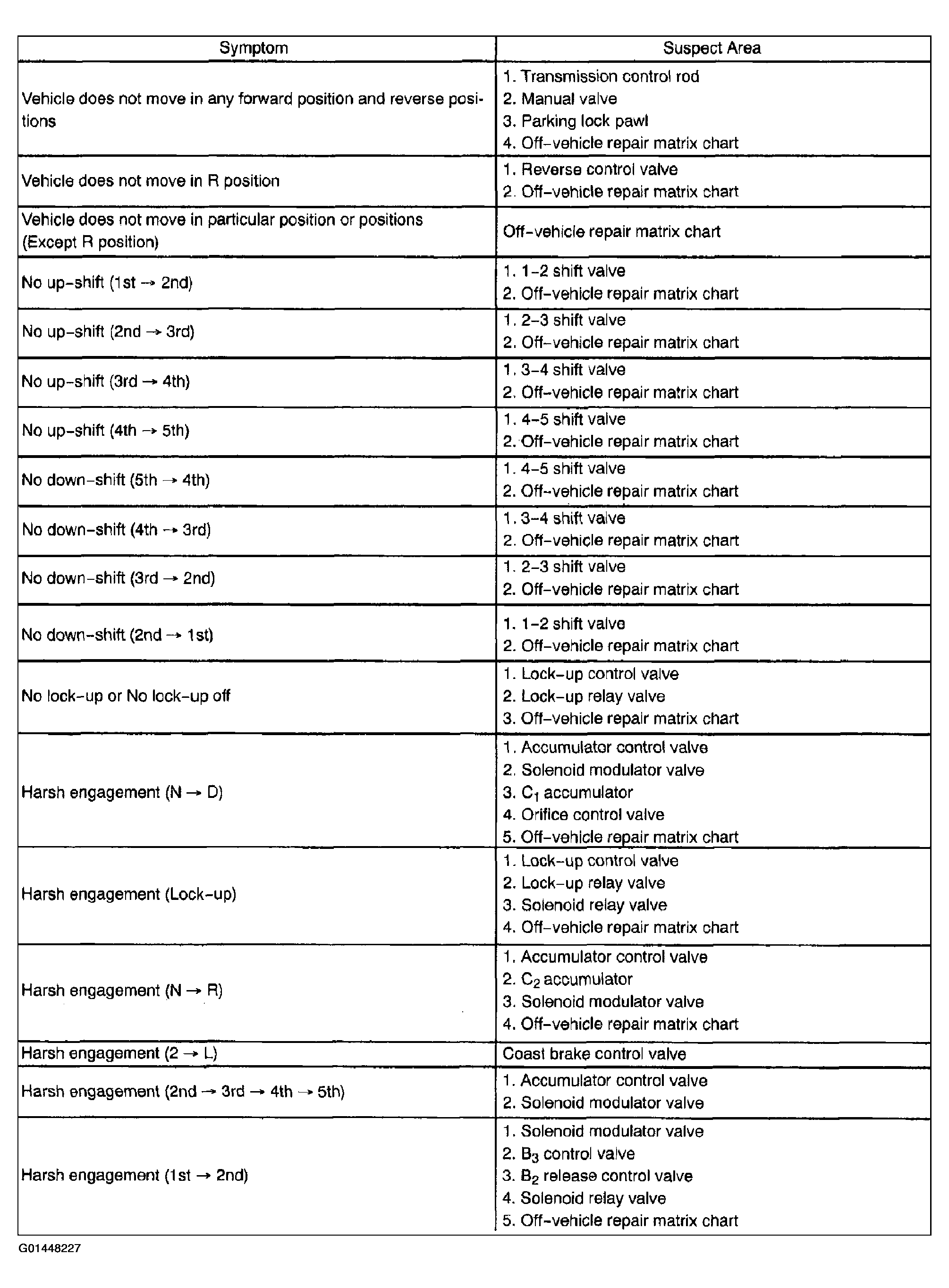

  Fig 2: Problem Symptoms Chart (2 Of 4)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

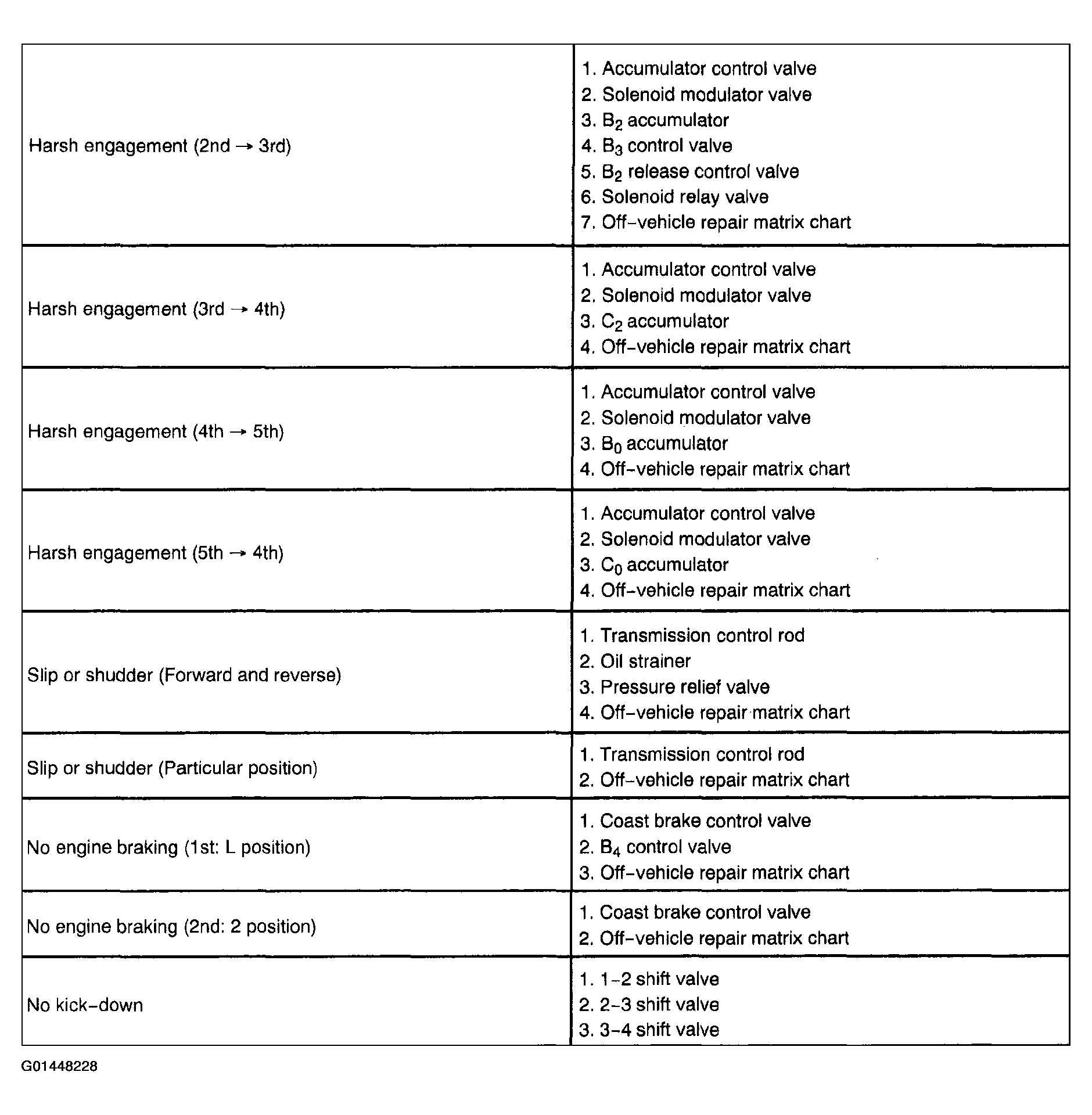

  Fig 3: Problem Symptoms Chart (3 Of 4)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  CHAPTER 3: ON-VEHICLE REPAIR

  See  OVERHAUL - A-650E  article.

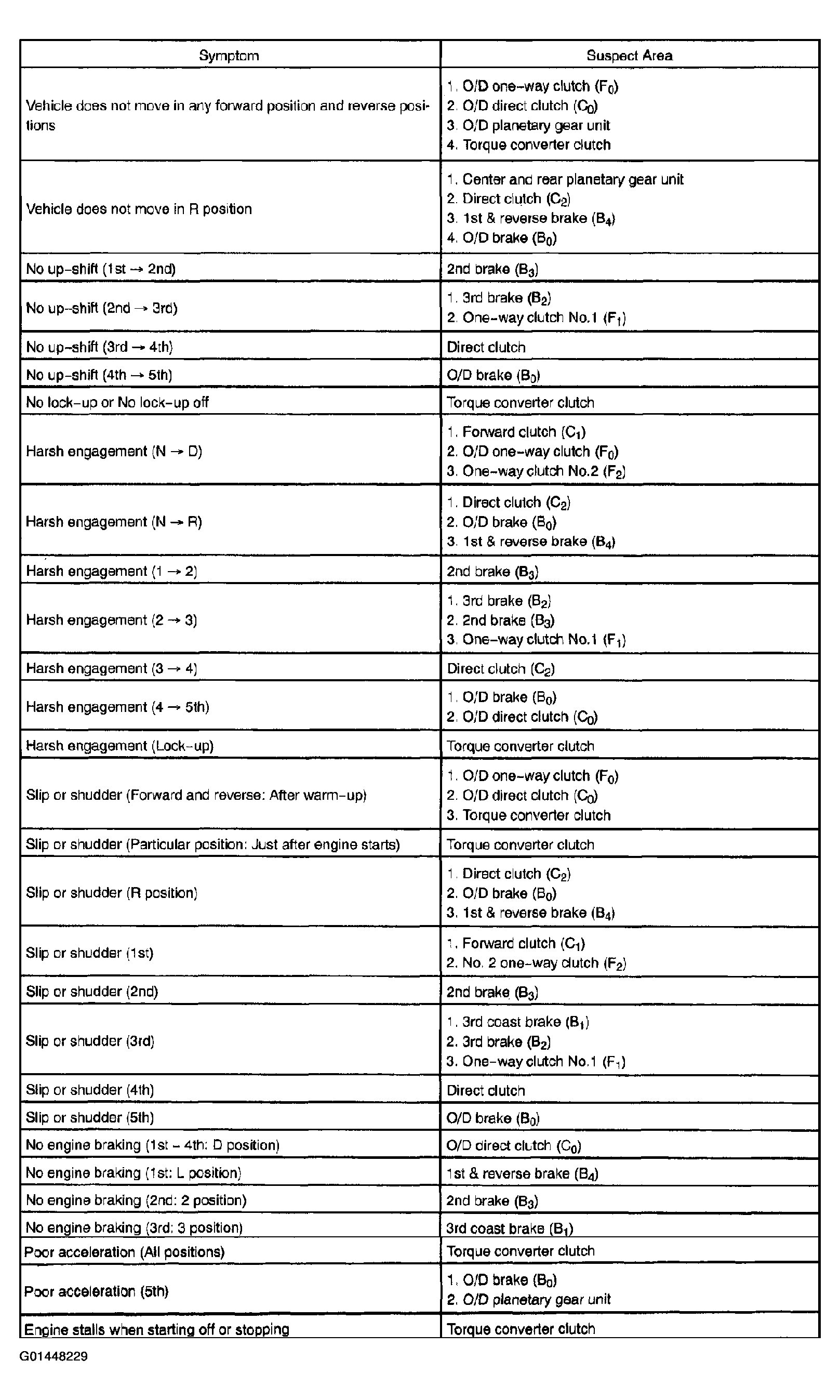

  Fig 4: Problem Symptoms Chart (4 Of 4)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
