Inspection Procedure

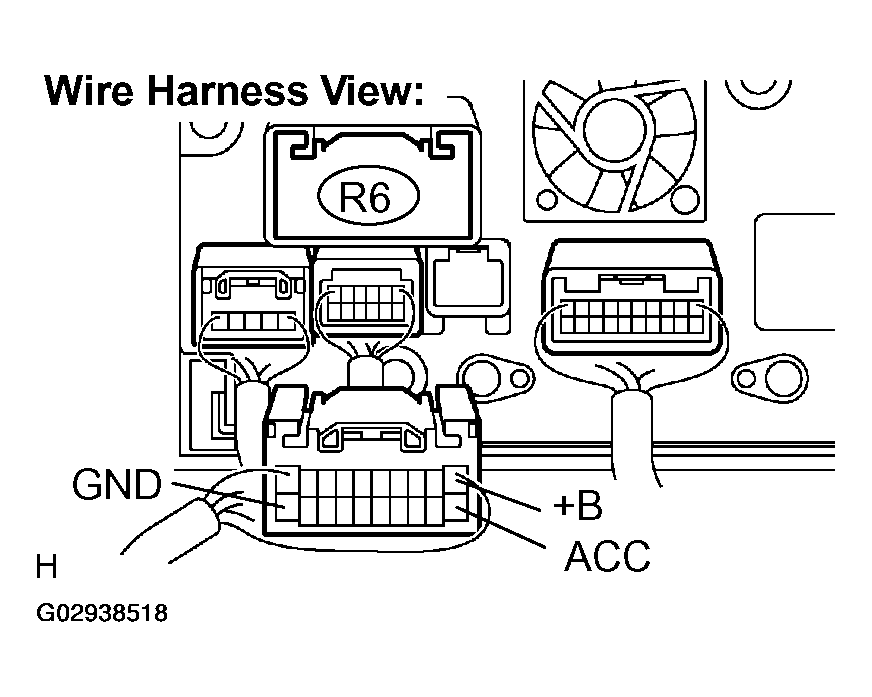

- INSPECT RADIO AND NAVIGATION ASSY (+B, ACC, GND)
- Disconnect the radio and navigation assy connector R6.
- Measure the resistance according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition GND - Body ground Always Below 1 Ω - Measure the voltage according to the value (s) in the table below.
Standard:
SPECIFIED CONDITION
| Tester connection | Condition | Specified condition |
|---|---|---|
| +B - GND | Always | 10 to 14 V |
| ACC - GND | Ignition SW ACC | 10 to 14 V |
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE CHART
