Power Source Circuit (Radio And Navigation ASSY): Wiring Diagram

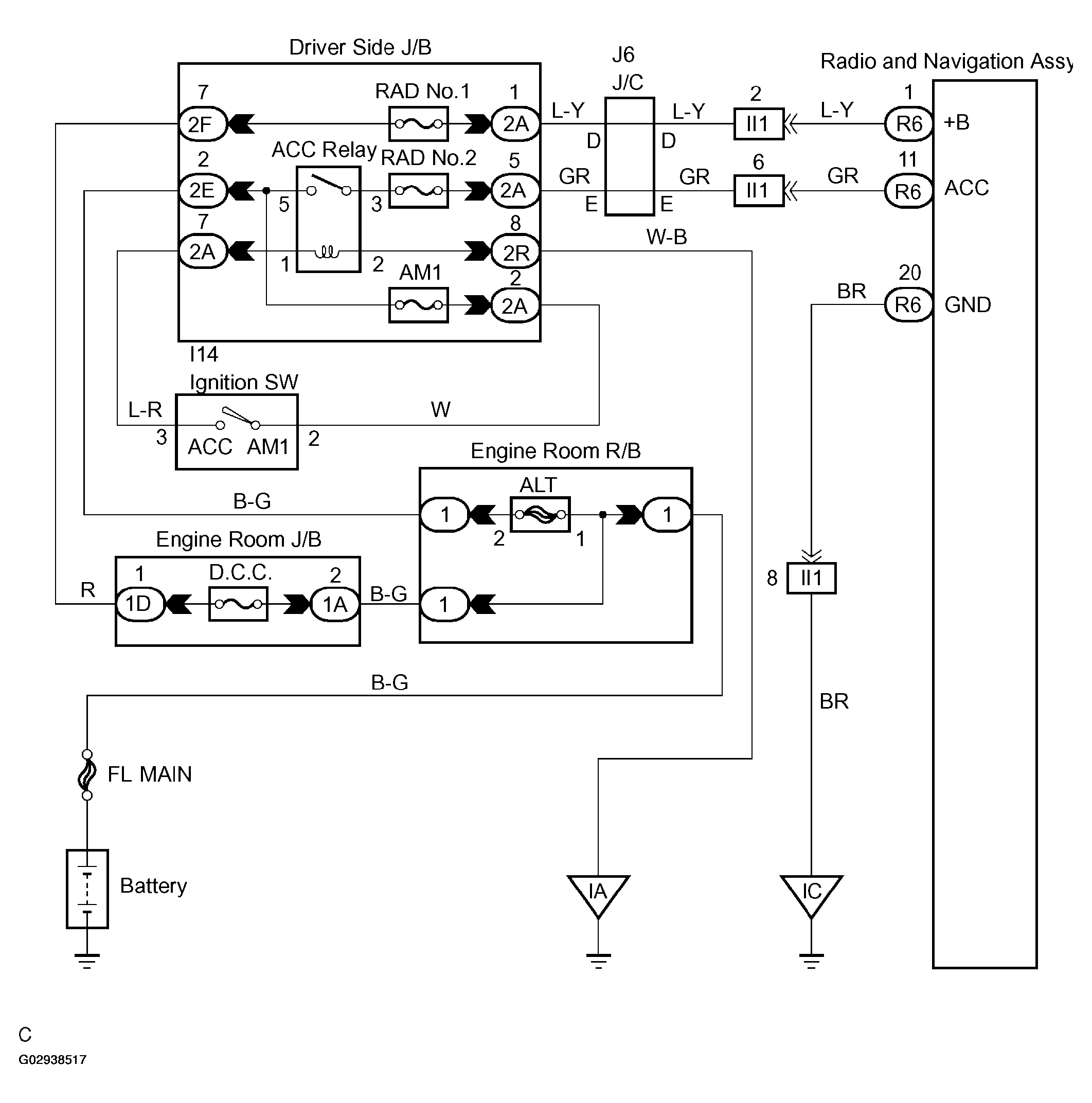

Fig 1: Wiring Diagram - Radio And Navigation Assy
G02938517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
