Front Power Seat Control System (W/Memory) - Diagnostics: Location

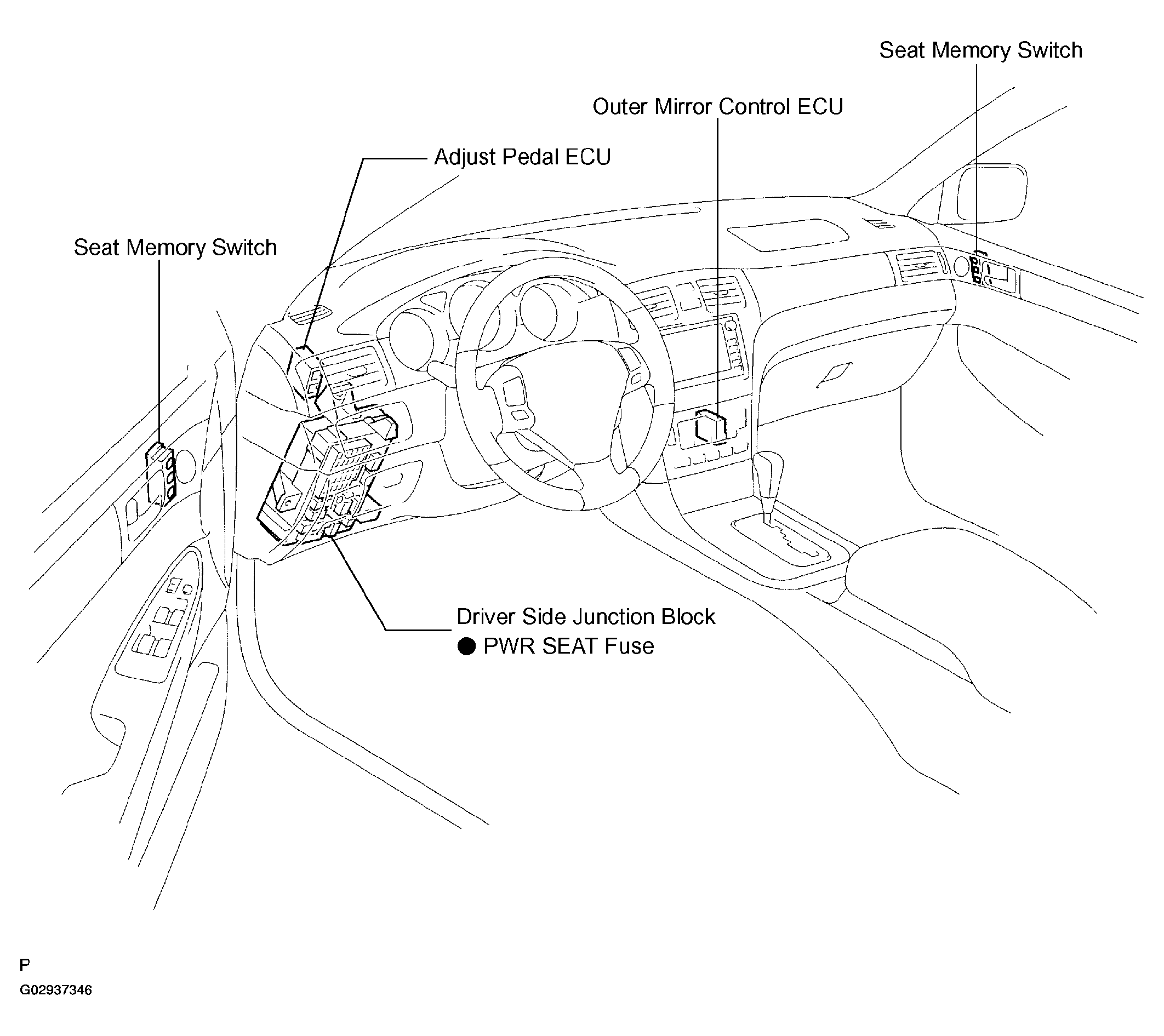

Fig 1: Identifying Front Power Seat Control System Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

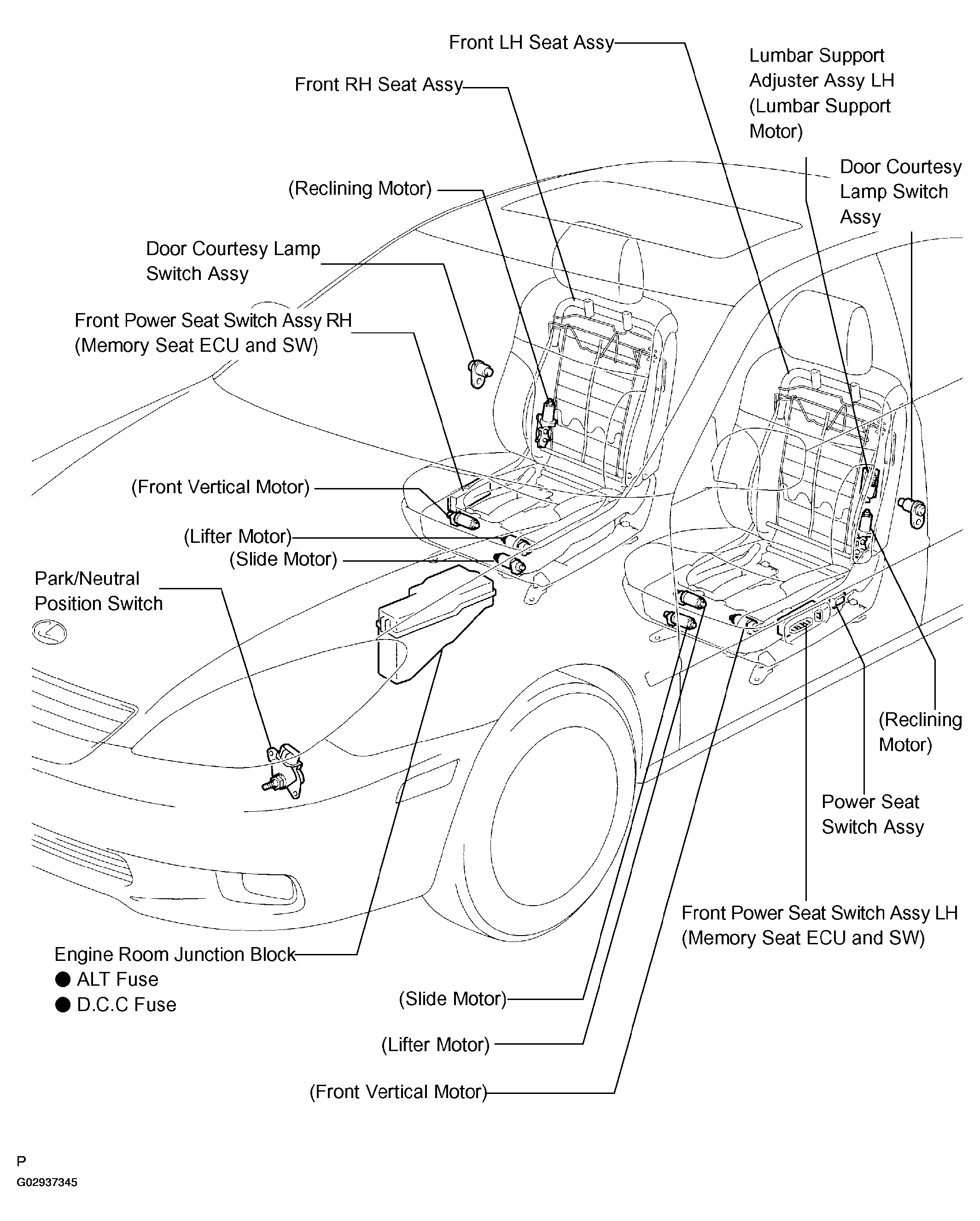

Fig 2: Identifying Front Power Seat Control System Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

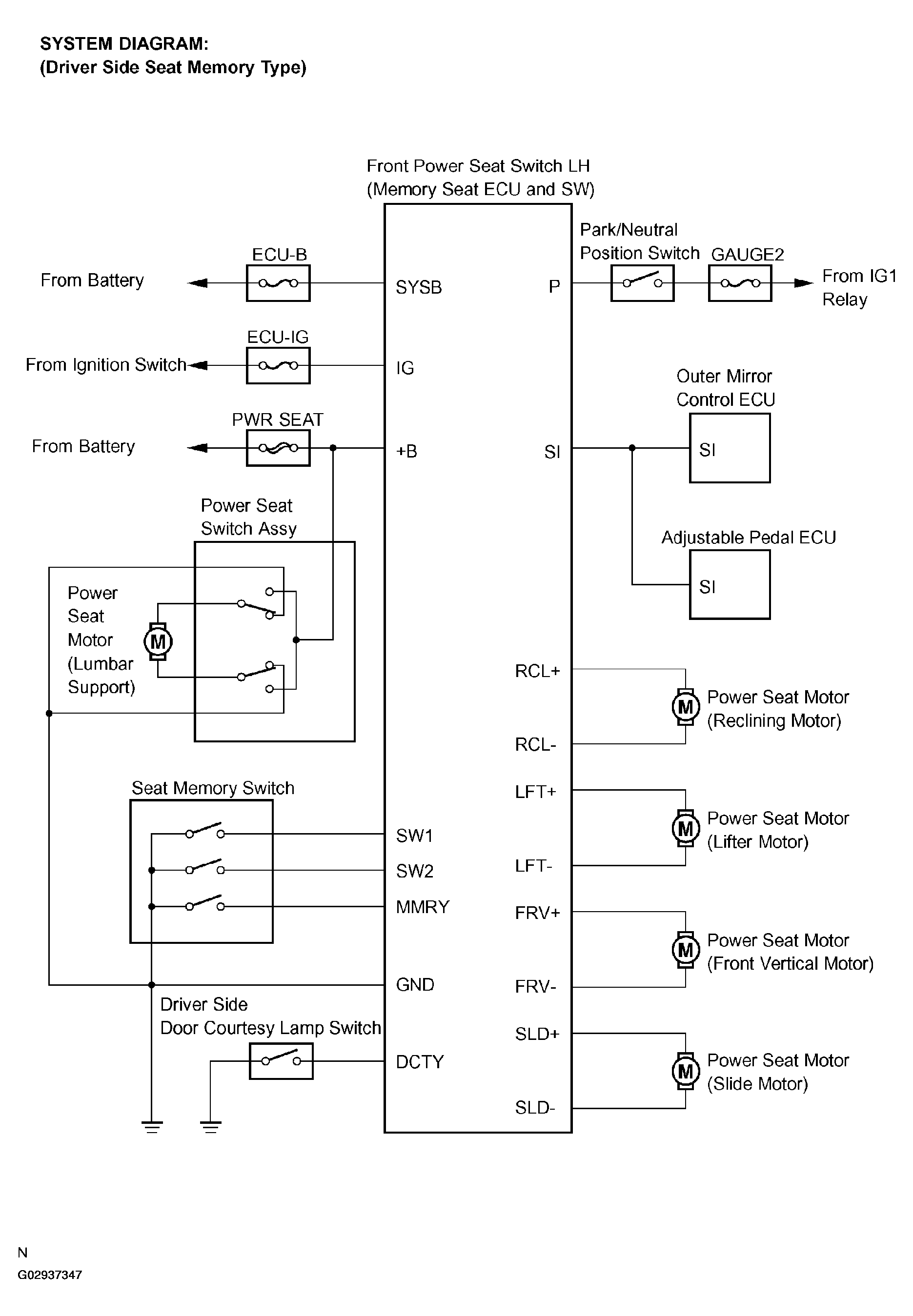

Fig 3: Driver Side Seat Memory Type - System Diagram

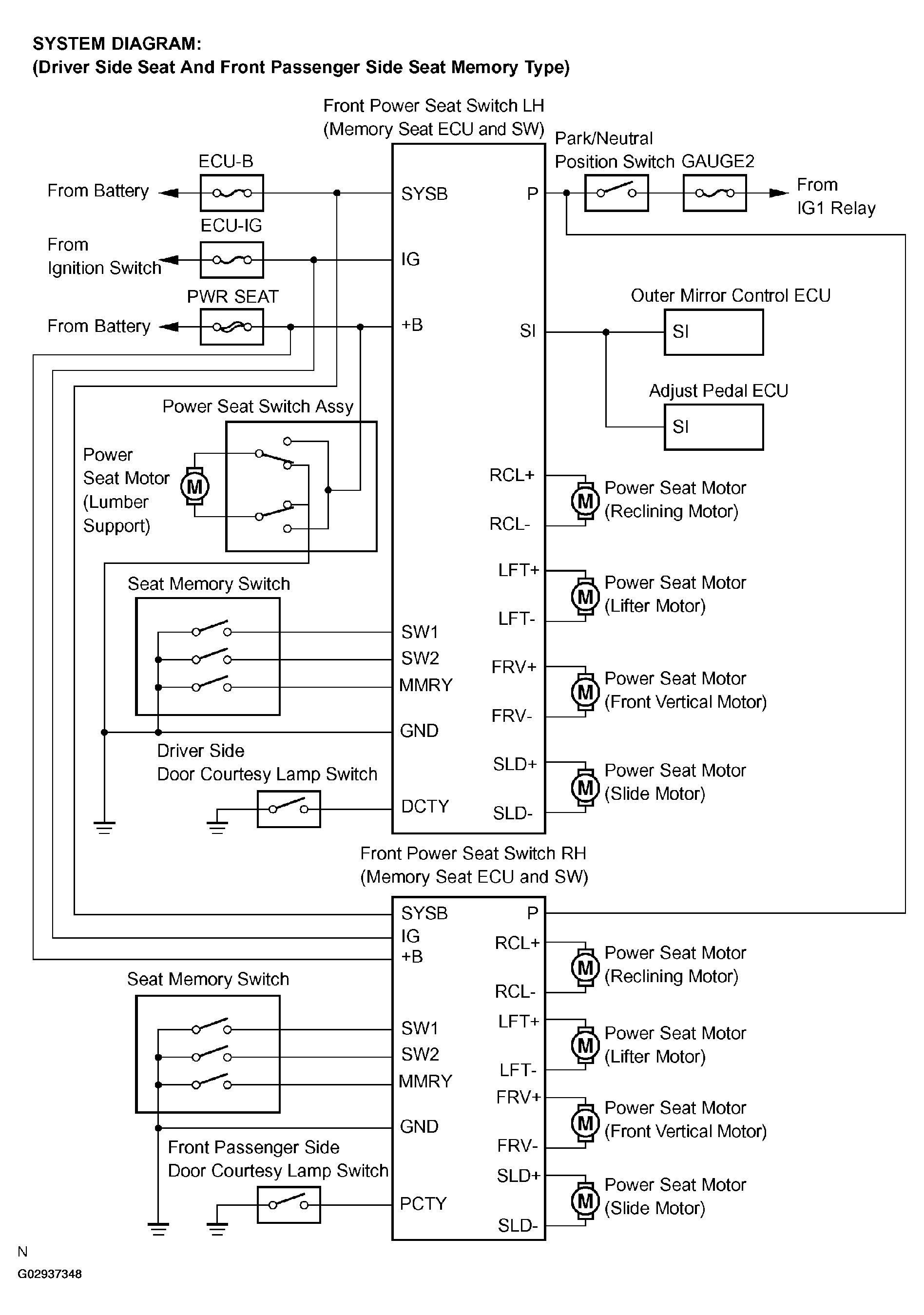

Fig 4: Driver Side Seat And Front Passenger Side Seat Memory Type - System Diagram
