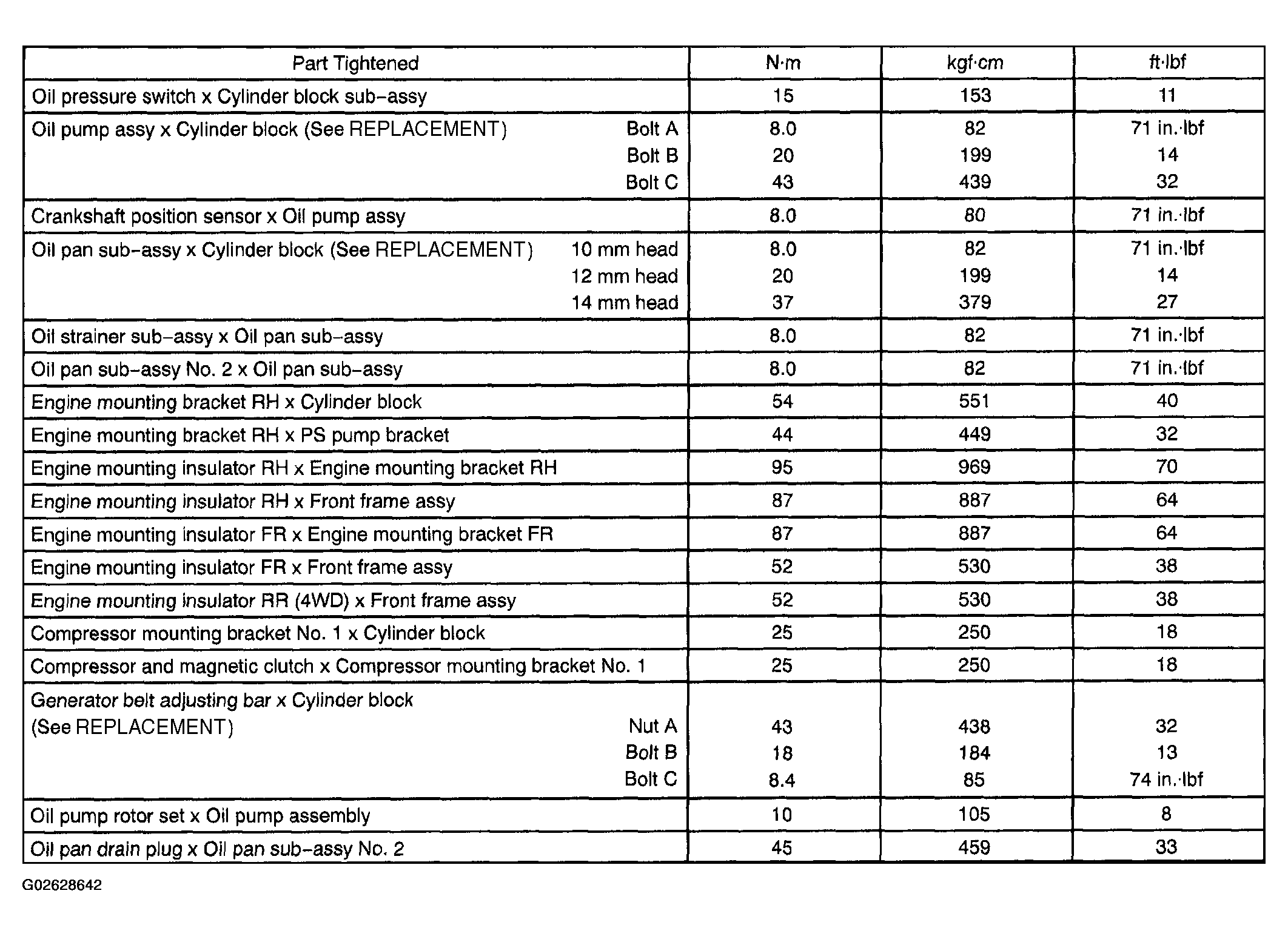

Lubrication Torque Specification
| Part Tightened | N.m | kgf.cm | ft.lbf | |
|---|---|---|---|---|
| Oil pressure switch x Cylinder block sub-assy | 15 | 153 | 11 | |
| Oil pump assy x Cylinder block (See REPLACEMENT) | Bolt A | 8.0 | 82 | 71 in.lbf |
| Bolt B | 20 | 199 | 14 | |
| Bolt C | 43 | 439 | 32 | |
| Crankshaft position sensor x Oil pump assy | 8.0 | 80 | 71 in..lbf | |
| Oil pan sub-assy x Cylinder block (See REPLACEMENT) | 10 mm head | 8.0 | 82 | 71 in..lbf |
| 12 mm head | 20 | 199 | 14 | |
| 14 mm head | 37 | 379 | 27 | |
| Oil strainer sub-assy x Oil pan sub-assy | 8.0 | 82 | 71 in..lbf | |
| Oil pan sub-assy No. 2 x Oil pan sub-assy | 8.0 | 82 | 71 in..lbf | |
| Engine mounting bracket RH x Cylinder block | 54 | 551 | 40 | |
| Engine mounting bracket RH x PS pump bracket | 44 | 449 | 32 | |
| Engine mounting insulator RH x Engine mounting bracket RH | 95 | 969 | 70 | |
| Engine mounting insulator RH x Front frame assy | 87 | 887 | 64 | |
| Engine mounting insulator FR x Engine mounting bracket FR | 87 | 887 | 64 | |
| Engine mounting insulator FR x Front frame assy | 52 | 530 | 38 | |
| Engine mounting insulator RR (4WD) x Front frame assy | 52 | 530 | 38 | |
| Compressor mounting bracket No. 1 x Cylinder block | 25 | 250 | 18 | |
| Compressor and magnetic clutch x Compressor mounting bracket No. 1 | 25 | 250 | 18 | |
| Generator belt adjusting bar x Cylinder block | ||||
| (See REPLACEMENT) | Nut A | 43 | 438 | 32 |
| Bolt B | 18 | 184 | 13 | |
| Bolt C | 8.4 | 85 | 74 in.lbf | |
| Oil pump rotor set x Oil pump assembly | 10 | 105 | 8 | |
| Oil pan drain plug x Oil pan sub-assy No. 2 | 45 | 459 | 33 | |
