Inspection Procedure
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

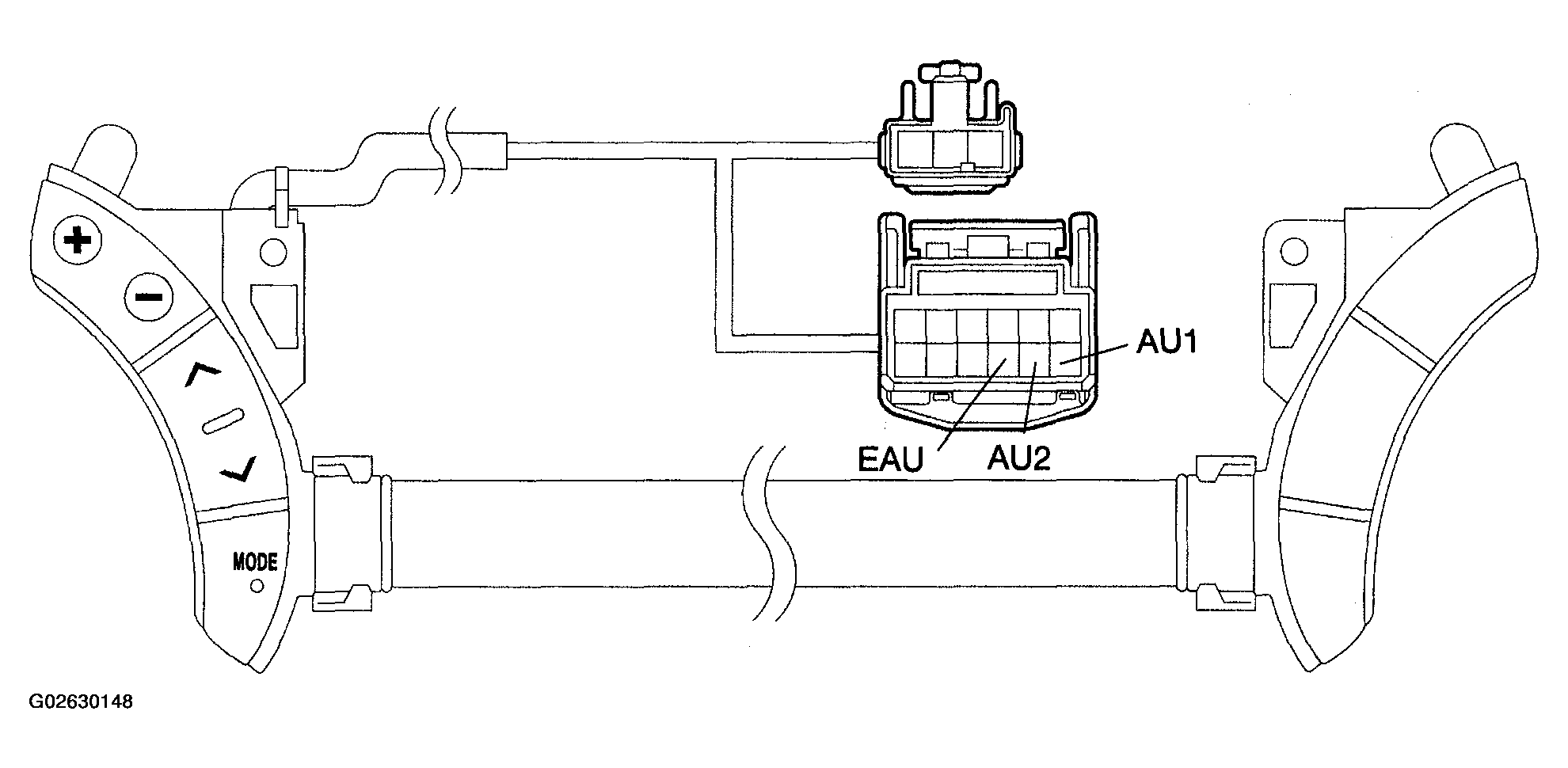

- INSPECT STEERING PAD SWITCH ASSY (AU1, AU2, EAU)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove the steering pad switch assy.
- Check continuity between terminals at each condition, as shown in TERMINALS CONTINUITY
.
Standard:
STEERING PAD SWITCH ASSY (AU1, AU2, EAU) CONTINUITYTester connection Condition Specified condition AU1 - EAU Do not switch position Approx. 100 kΩ AU1 - EAU SEEK+ switch: push 0 Ω AU1 - EAU SEEK- switch: push Approx. 0.3 kΩ AU1 - EAU VOL+ switch: push Approx. 1 kΩ AU1 - EAU VOL- switch: push Approx. 3.2 kΩ AU1 - EAU Do not switch position Approx. 100 kΩ AU1 - EAU MODE switch: push 0 Ω - NG: REPLACE STEERING PAD SWITCH ASSY
- OK: GO TO NEXT STEP

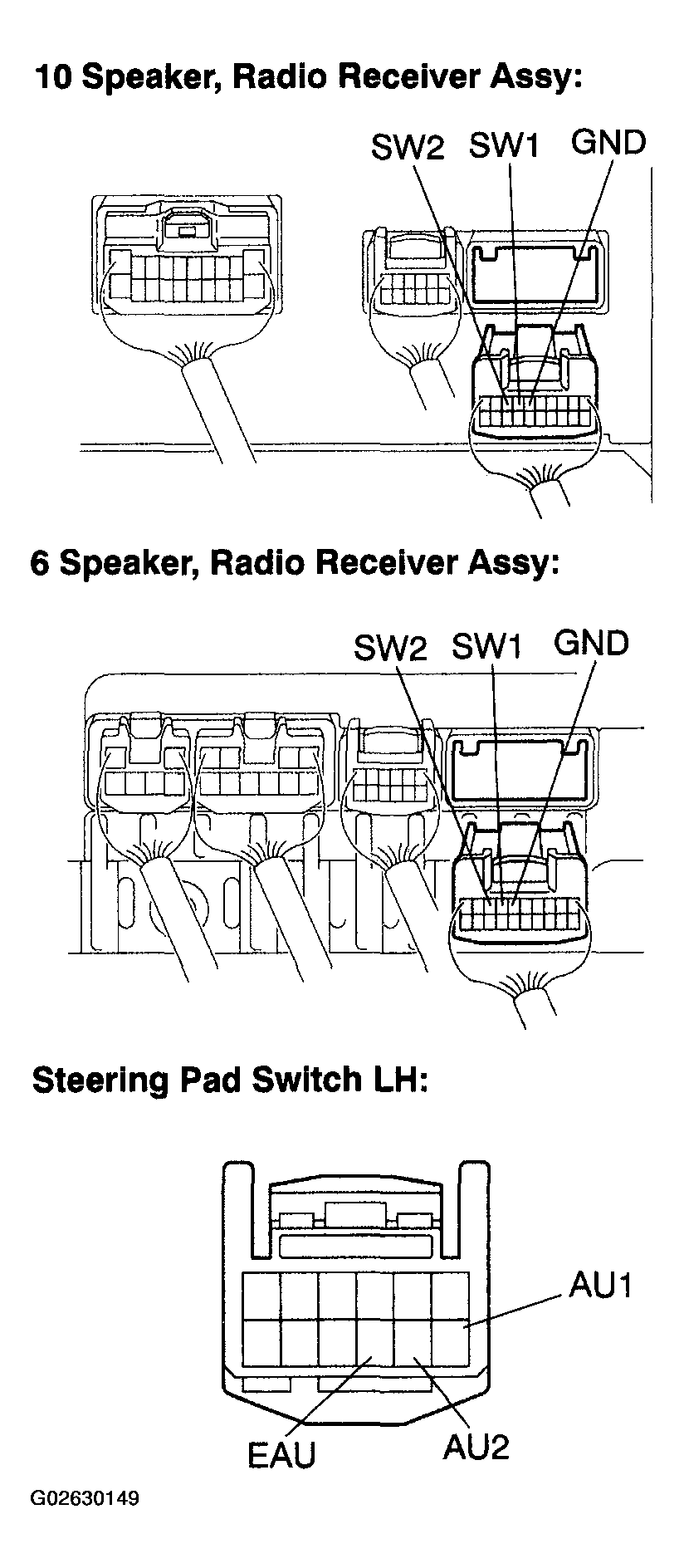

- CHECK HARNESS AND CONNECTOR (STEERING PAD SWITCH LH - RADIO RECEIVER ASSY)
- Disconnect the connectors from the steering pad switch LH and radio receiver assy.
- Check continuity between terminals at each condition, as shown in STEERING PAD SWITCH LH - RADIO RECEIVER ASSY CONTINUITY
.
Standard:
STEERING PAD SWITCH LH - RADIO RECEIVER ASSY CONTINUITYTester connection Specified condition SW1--AU1 Continuity SW2-AU2 Continuity GND - EAU Continuity - Check for a short between terminals at each condition, as shown in STEERING PAD SWITCH LH - RADIO RECEIVER ASSY SHORT
.
Standard:
STEERING PAD SWITCH LH - RADIO RECEIVER ASSY SHORTTester connection Specified condition SW1-Body ground No continuity SW2-Body ground No continuity GND-Body ground No continuity - Check continuity between terminals at each condition, as shown in STEERING PAD SWITCH LH - RADIO RECEIVER ASSY CONTINUITY
.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
- OK: REPLACE RADIO RECEIVER ASSY
- Disconnect the connectors from the steering pad switch LH and radio receiver assy.
