Power Source Circuit (Radio Receiver ASSY): Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

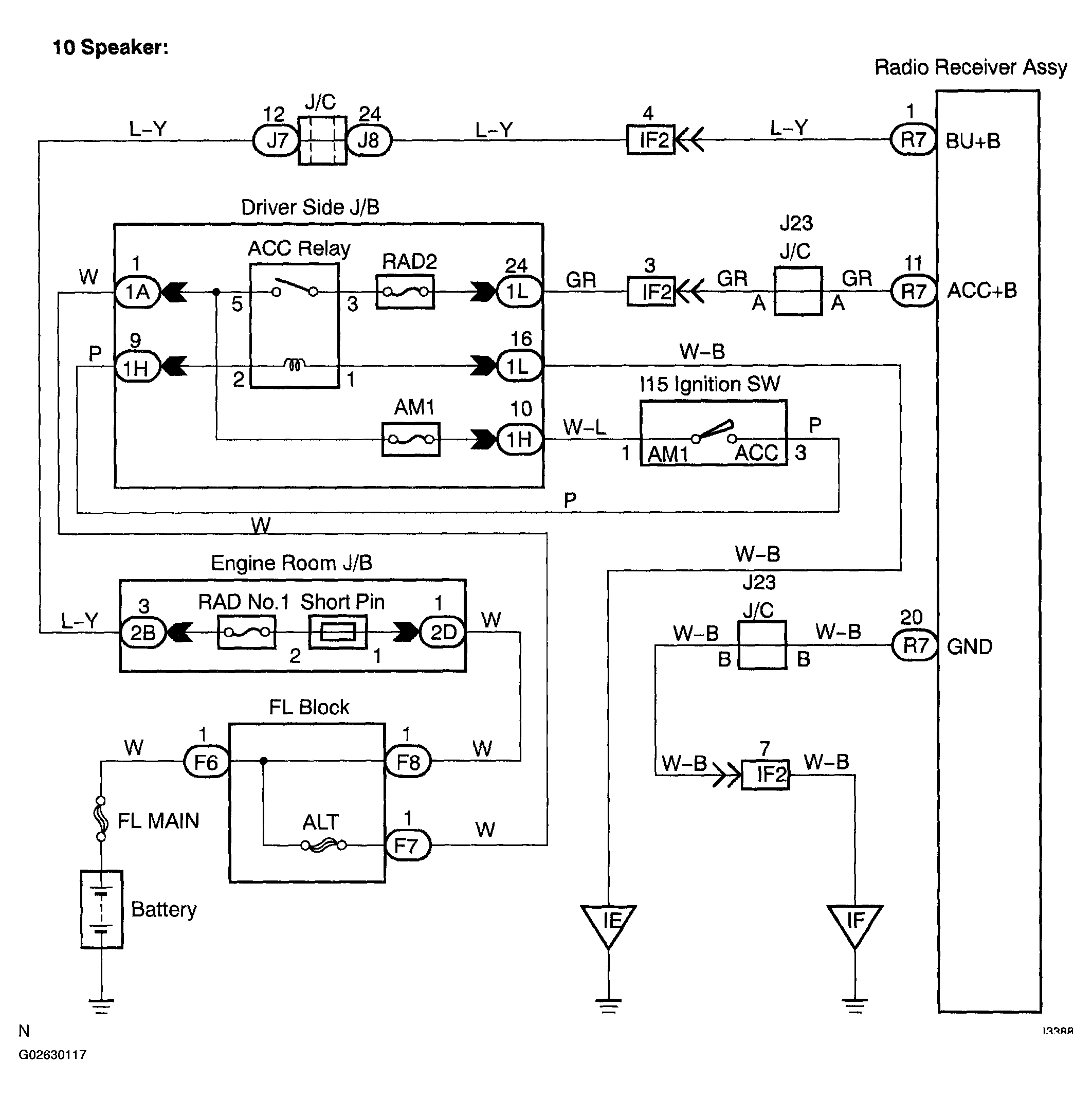

Fig 1: Power Source Circuit (Radio Receiver Assy) (10 Speakers) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

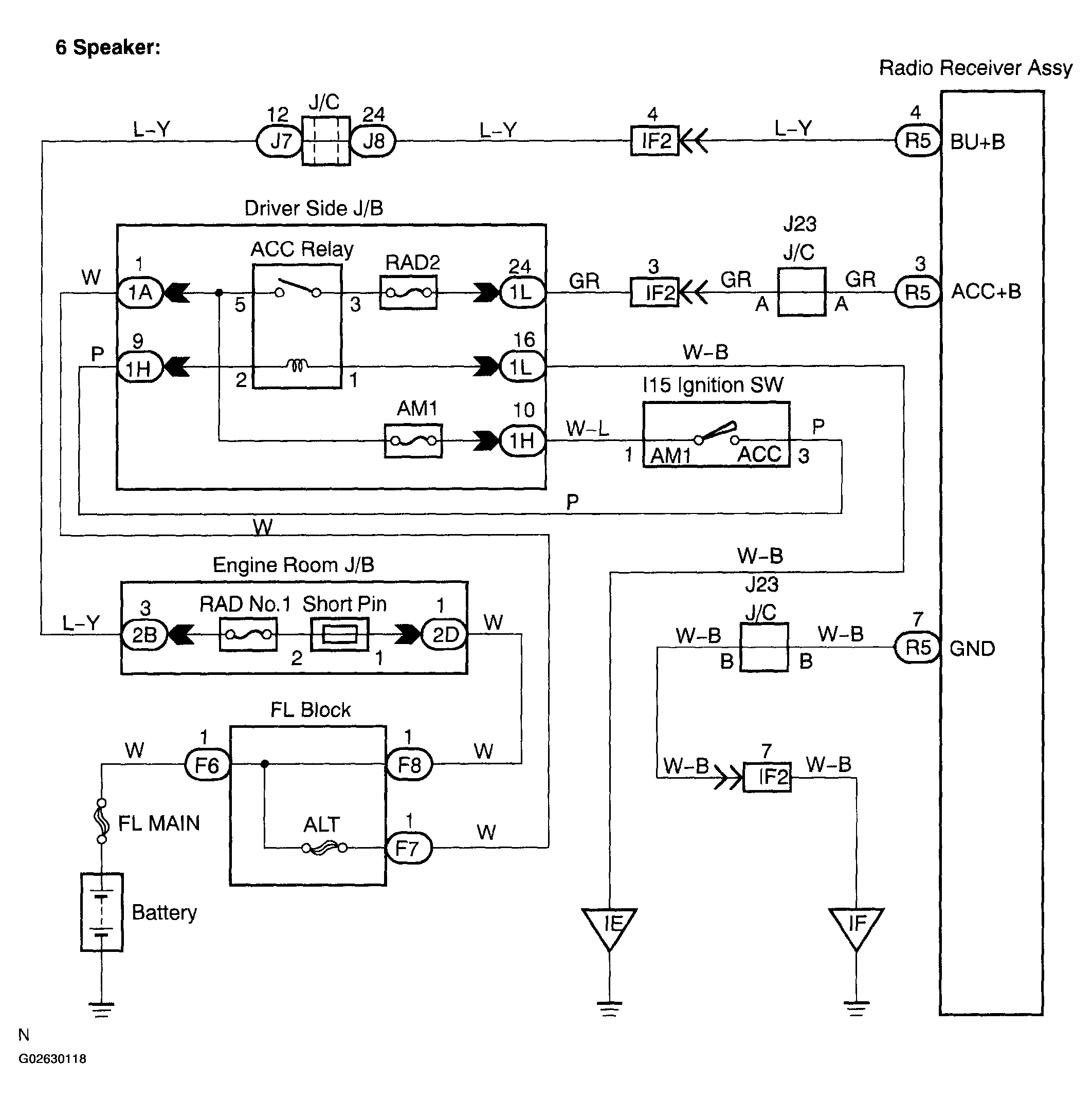

Fig 2: Power Source Circuit (Radio Receiver Assy) (6 Speakers) Wiring Diagram

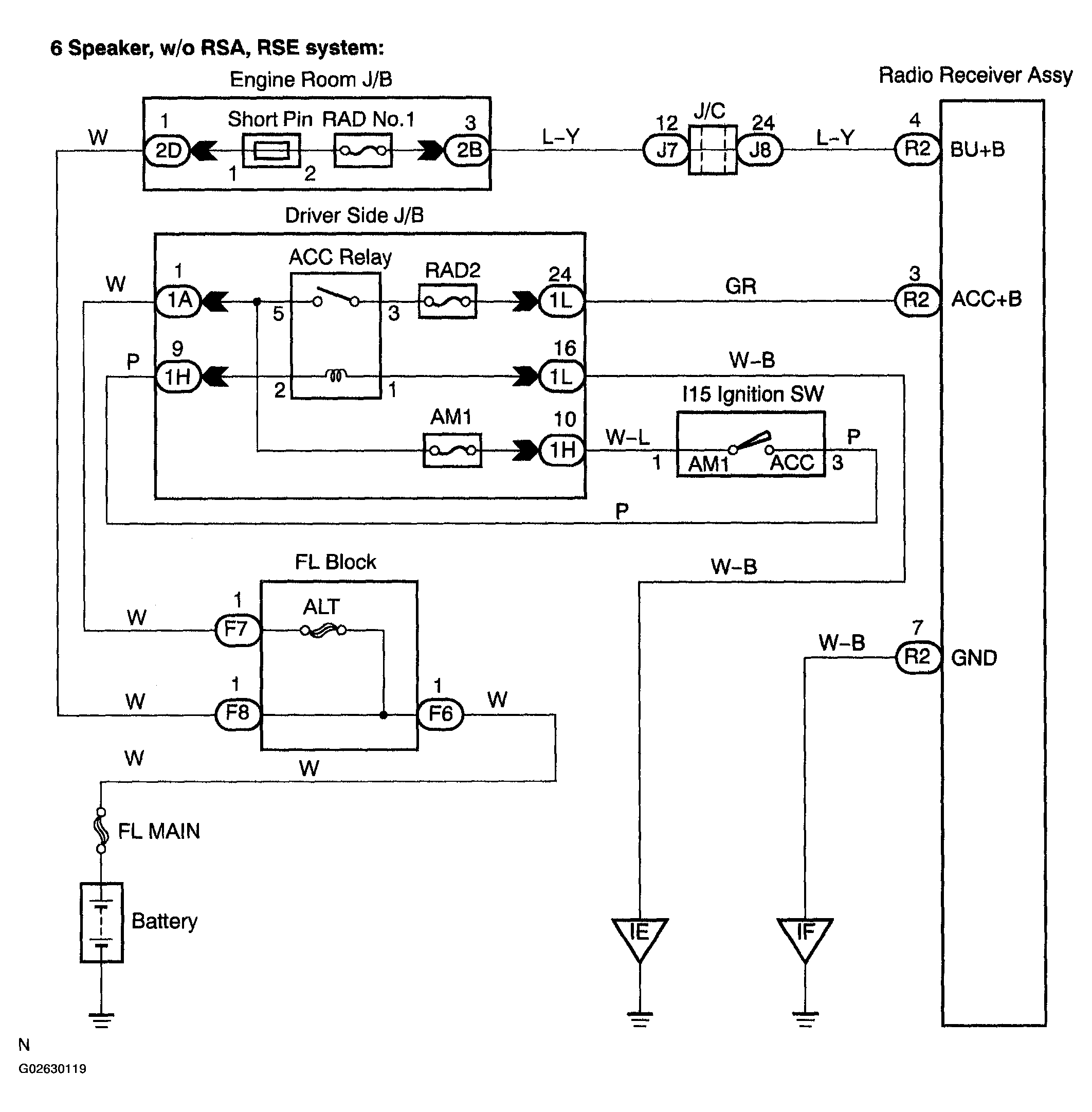

Fig 3: Power Source Circuit (Radio Receiver Assy) (6 Speakers, Without RSA, RSE System) Wiring Diagram
