Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

CHECK RADIO AND NAVIGATION ASSY
1. Check if a map disc is inserted in the map disc slot
  OK: A map disc is inserted.

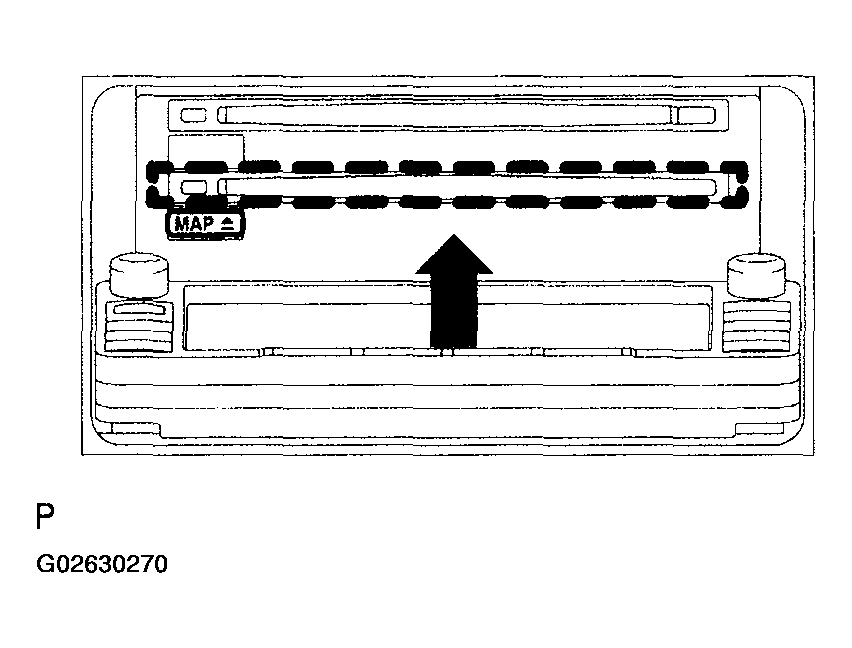

Fig 1: Locating MAP Disc Slot
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: INSERT MAP DISC IN "MAP" SIDE SLOT
2. OK: GO TO NEXT STEP
CHECK MAP DISC
1. Check that the map disc is not deformed or cracked
  OK: No deformations or cracks appear on the map disc.

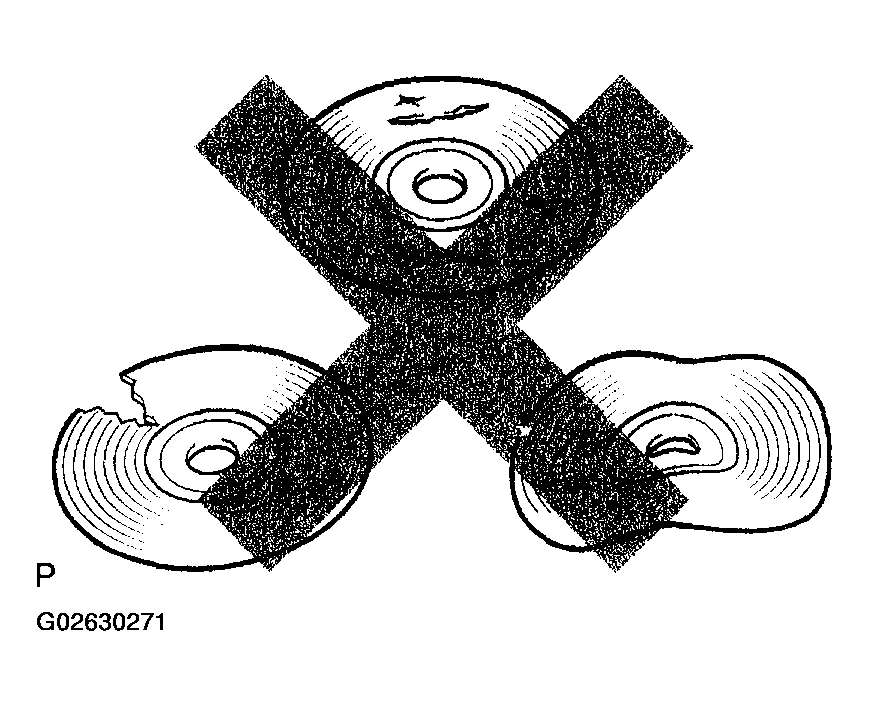

Fig 2: Identifying Cracked Or Deformed Map Discs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MAP DISC
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN PROBLEM SYMPTOMS TABLE
