Navigation Check Mode (Parts Information)

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode displays product information on the radio and navigation assy and discs.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Navigation Check" from the "Diagnosis MENU" screen.

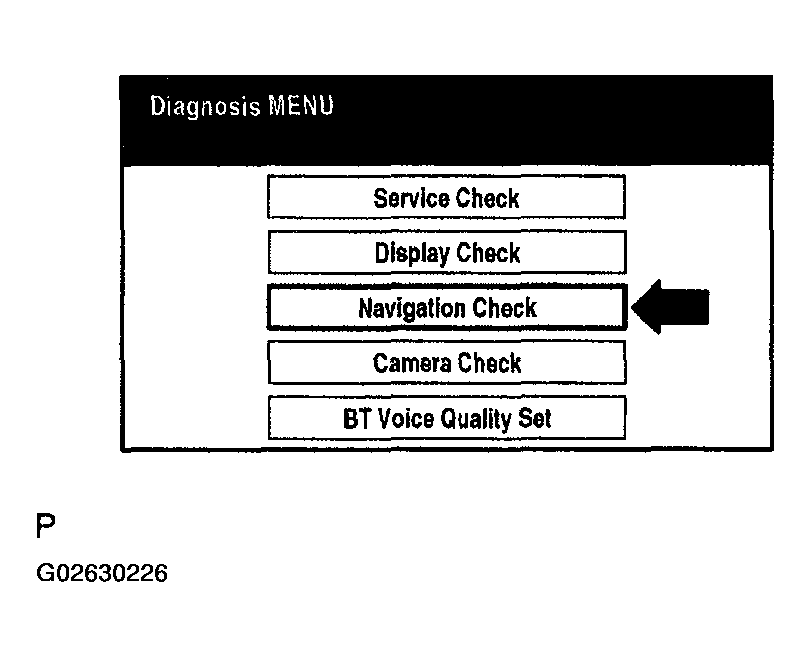

Fig 1: Selecting Navigation Check From Diagnosis Menu Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Parts Information" from the "Navigation Check" screen.

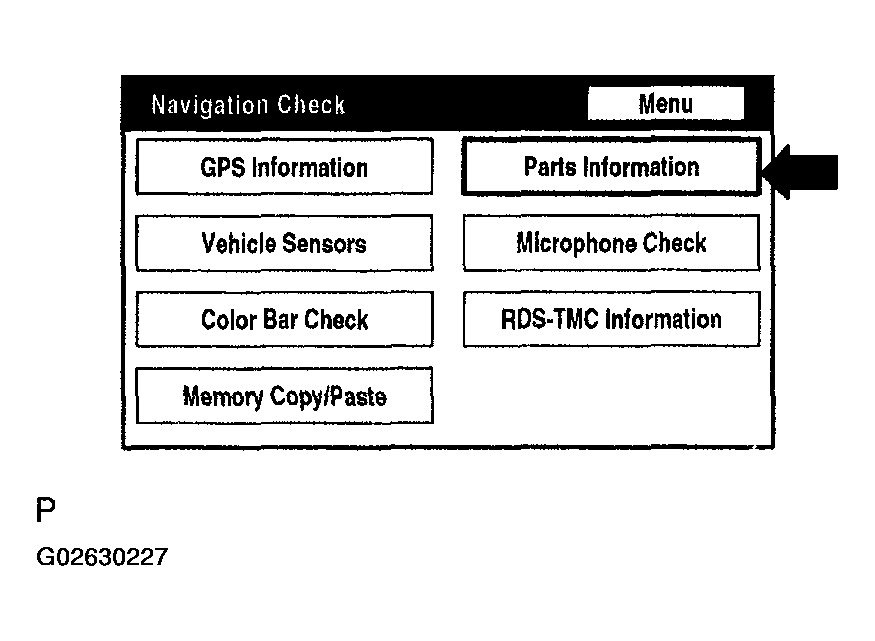

Fig 2: Selecting Parts Information From Navigation Check Screen
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the navigation and disc information when the "Parts Information" screen is displayed.

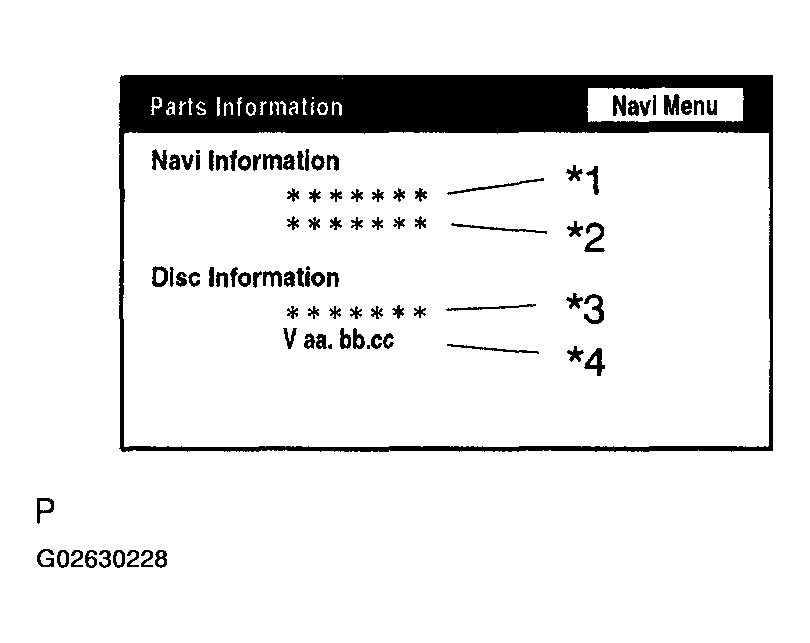

Fig 3: Parts Information Screen

DISPLAY CONTENTS

Display	Contents
Navigation Manufacturer/*1	Radio and navigation assy manufacturer name is displayed.
Navigation Version/*2	Radio and navigation assy version is displayed.
Disc Manufacturer/3	Map disc manufacturer is displayed.
Disc Version/*4	Map disc version is displayed.
