Terminals Of Ecu

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

RADIO AND NAVIGATION ASSY

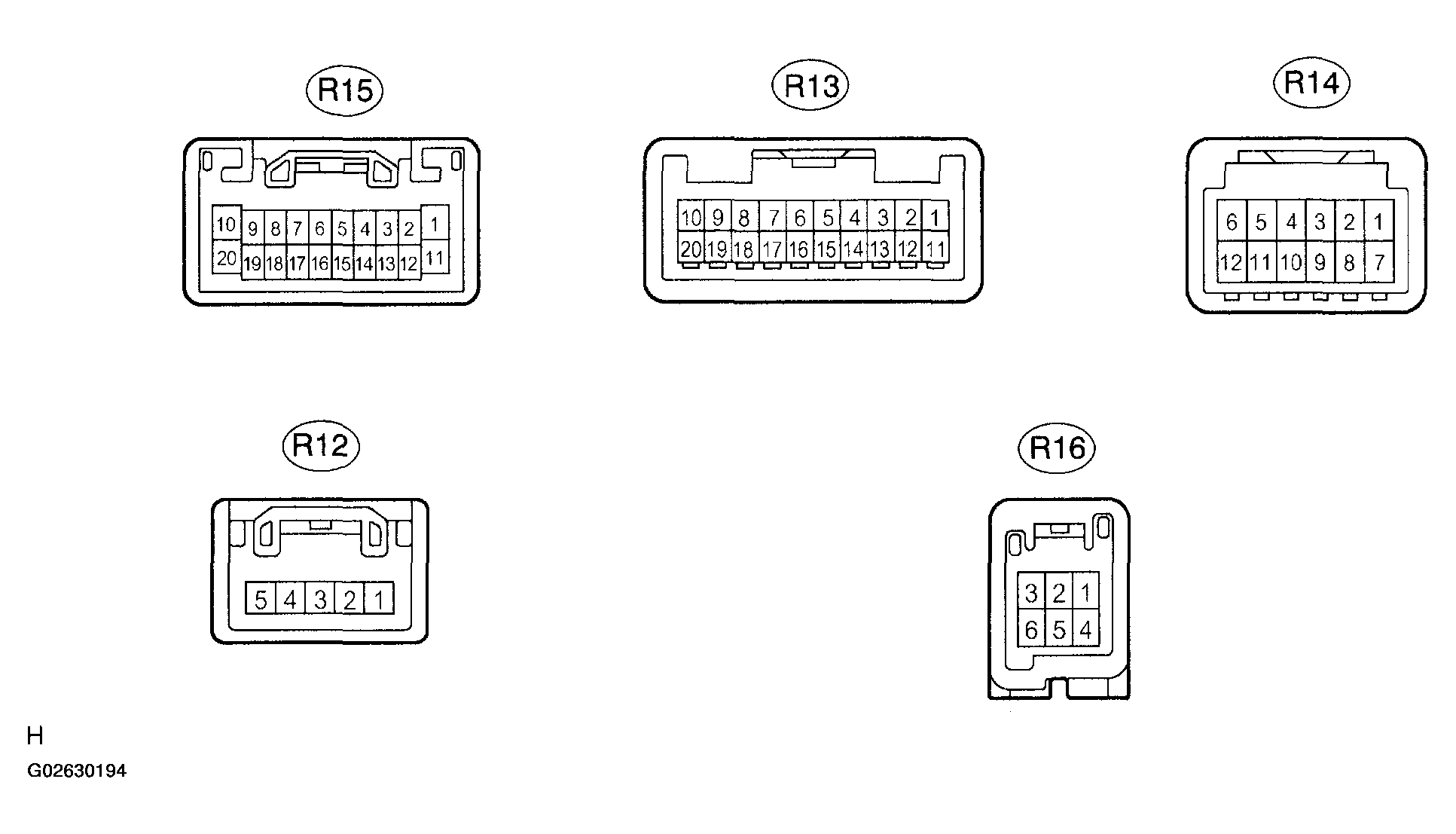

Fig 1: Identifying Radio & Navigation Assy ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

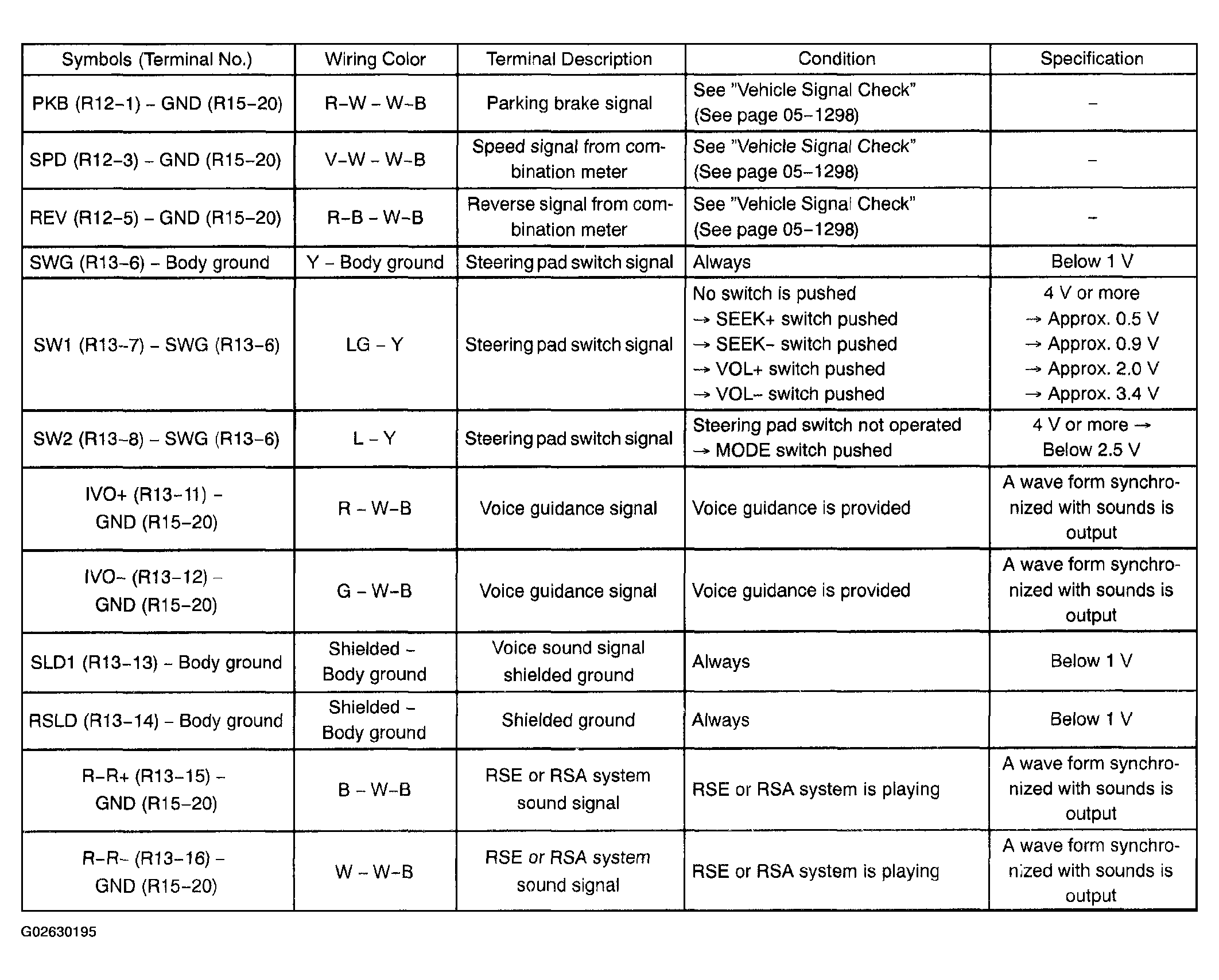

Fig 2: Radio & Navigation Assy ECU Terminals Specifications Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

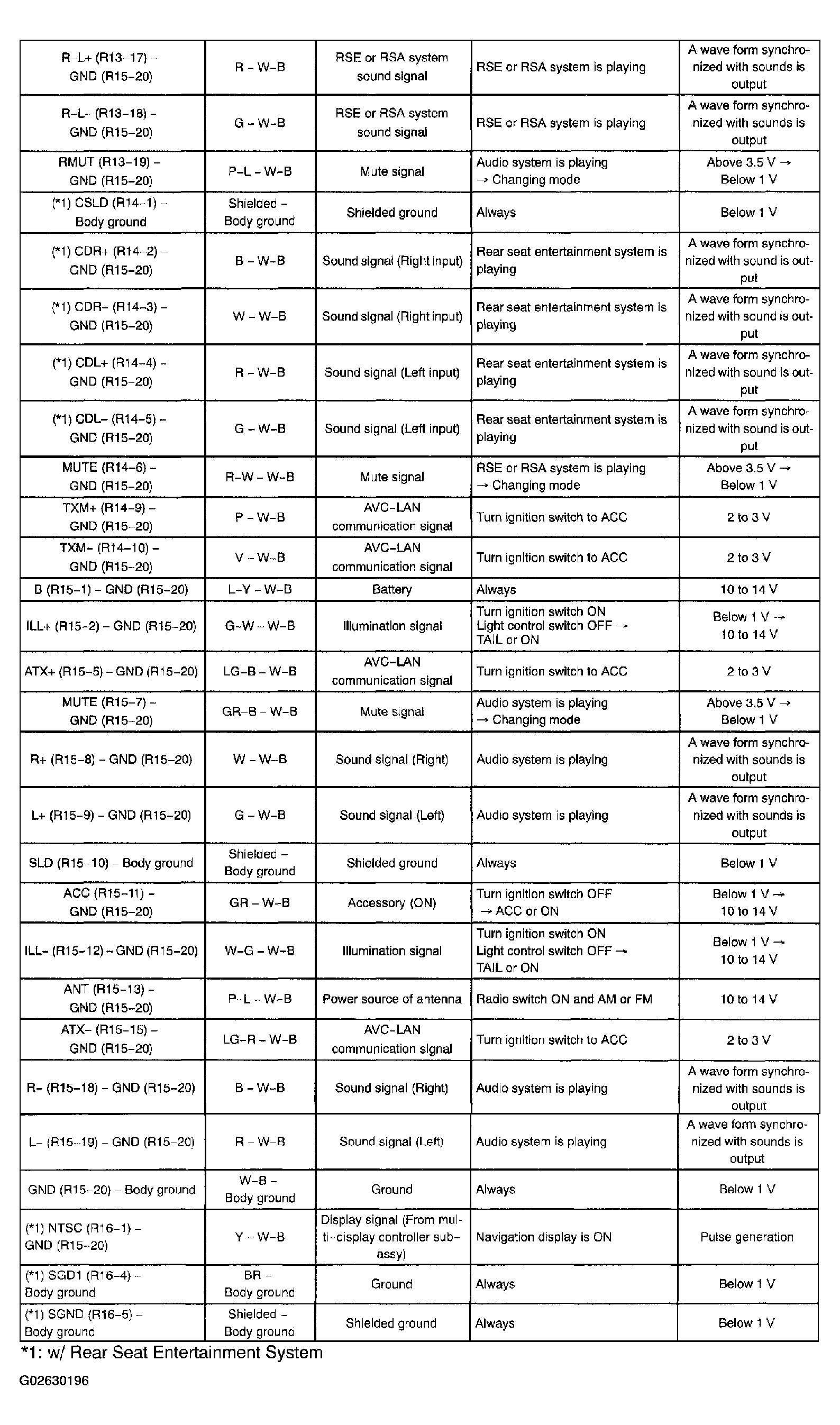

Fig 3: Radio & Navigation Assy ECU Terminals Specifications Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

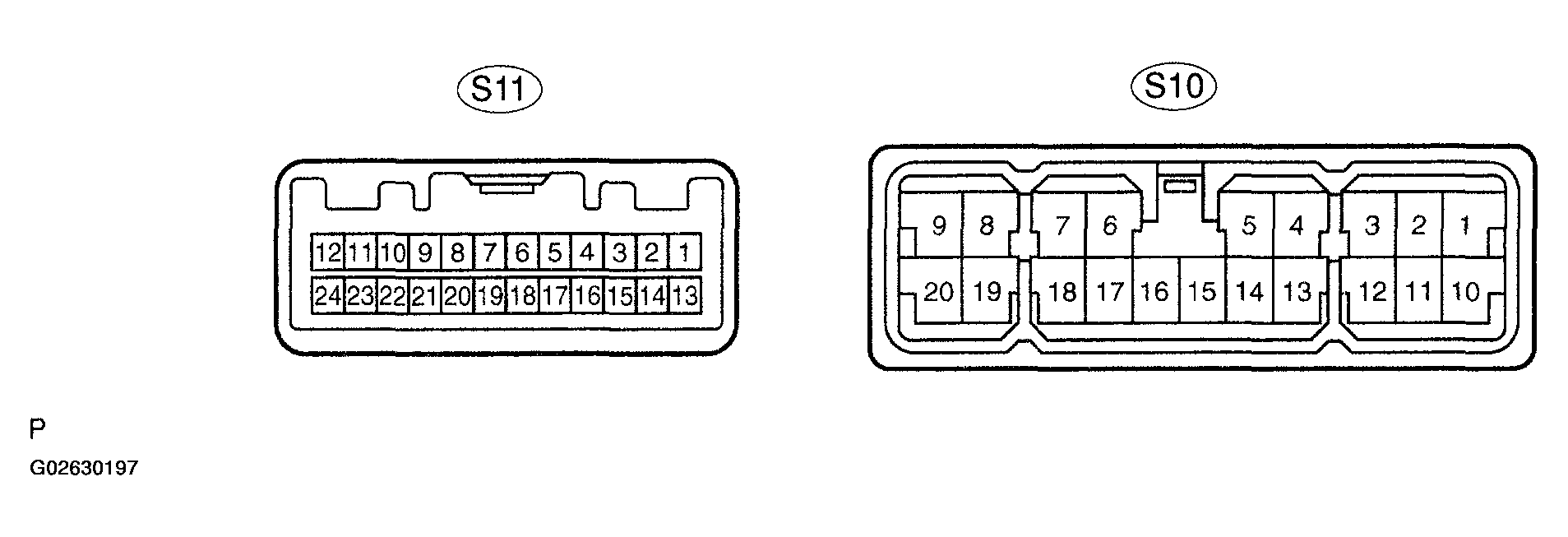

Fig 4: Identifying Stereo Component Amplifier Assy Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

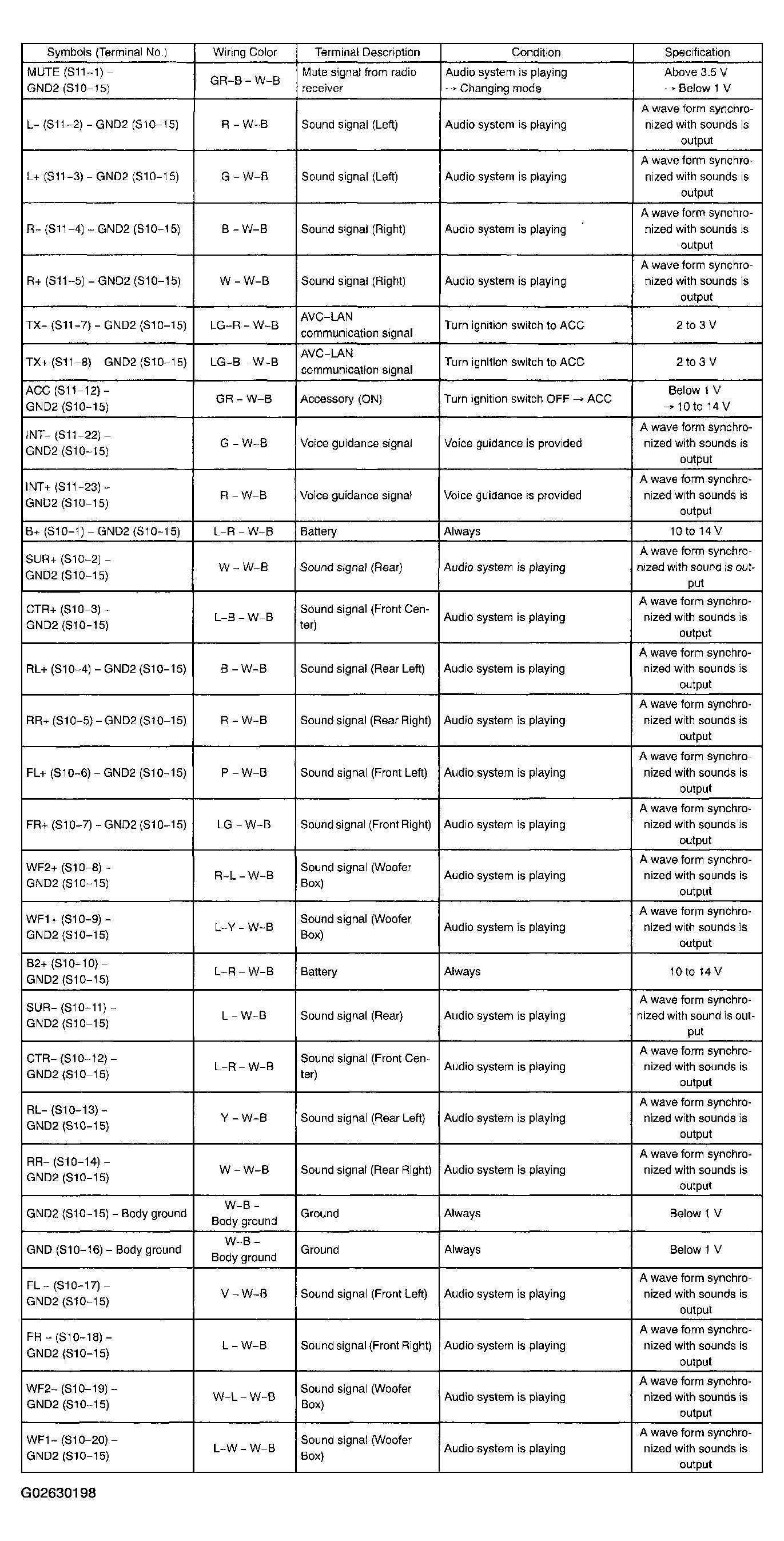

Fig 5: Stereo Component Amplifier Assy Connector Terminals Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
MULTI-DISPLAY CONTROLLER SUB-ASSY (See TERMINALS OF ECU )
STEREO COMPONENT CONTROLLER ASSY (See TERMINALS OF ECU )
