Power Door Lock Control System: Location

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

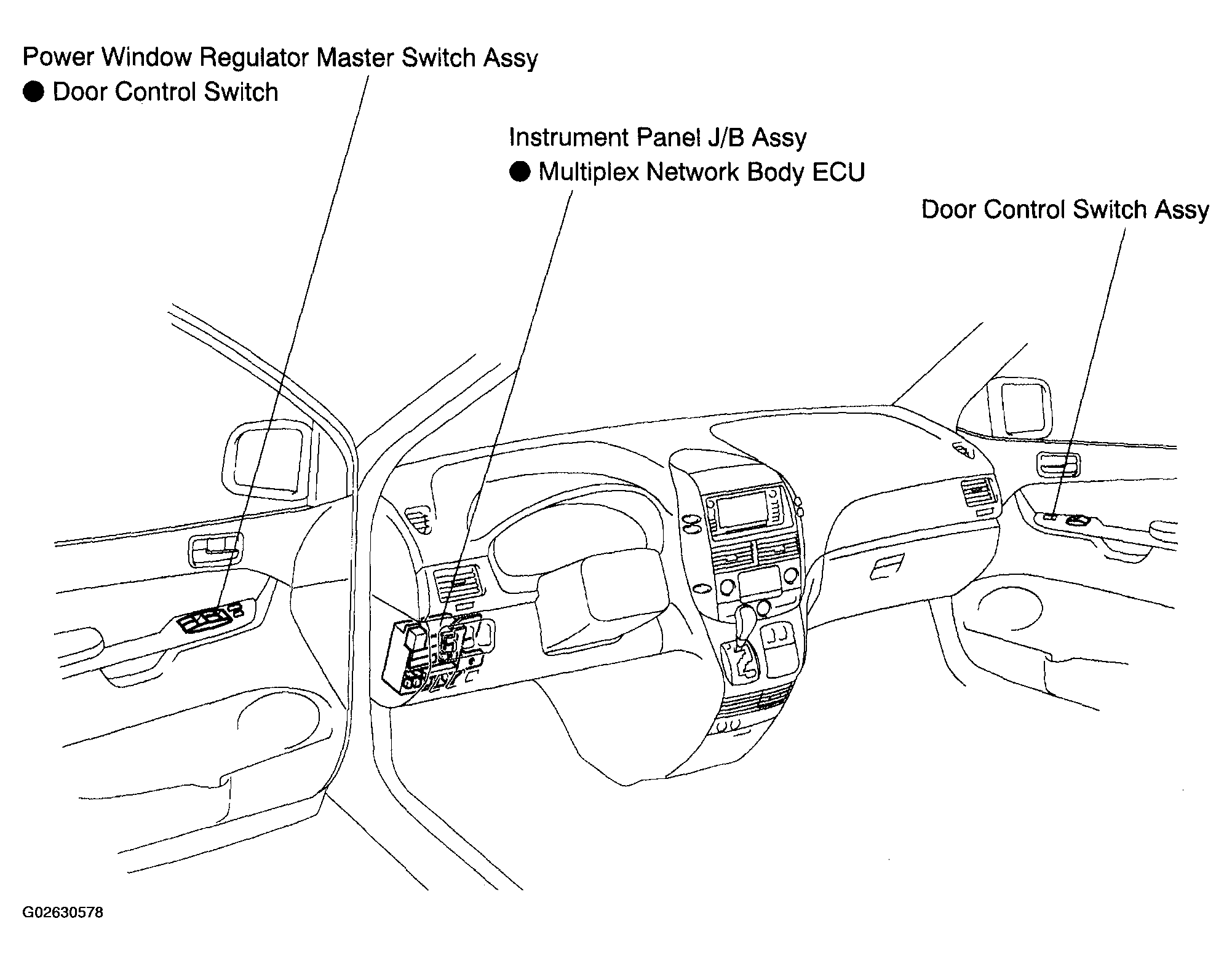

Fig 1: Power Door Lock Control System Component Location (1 Of 2)
G02630578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

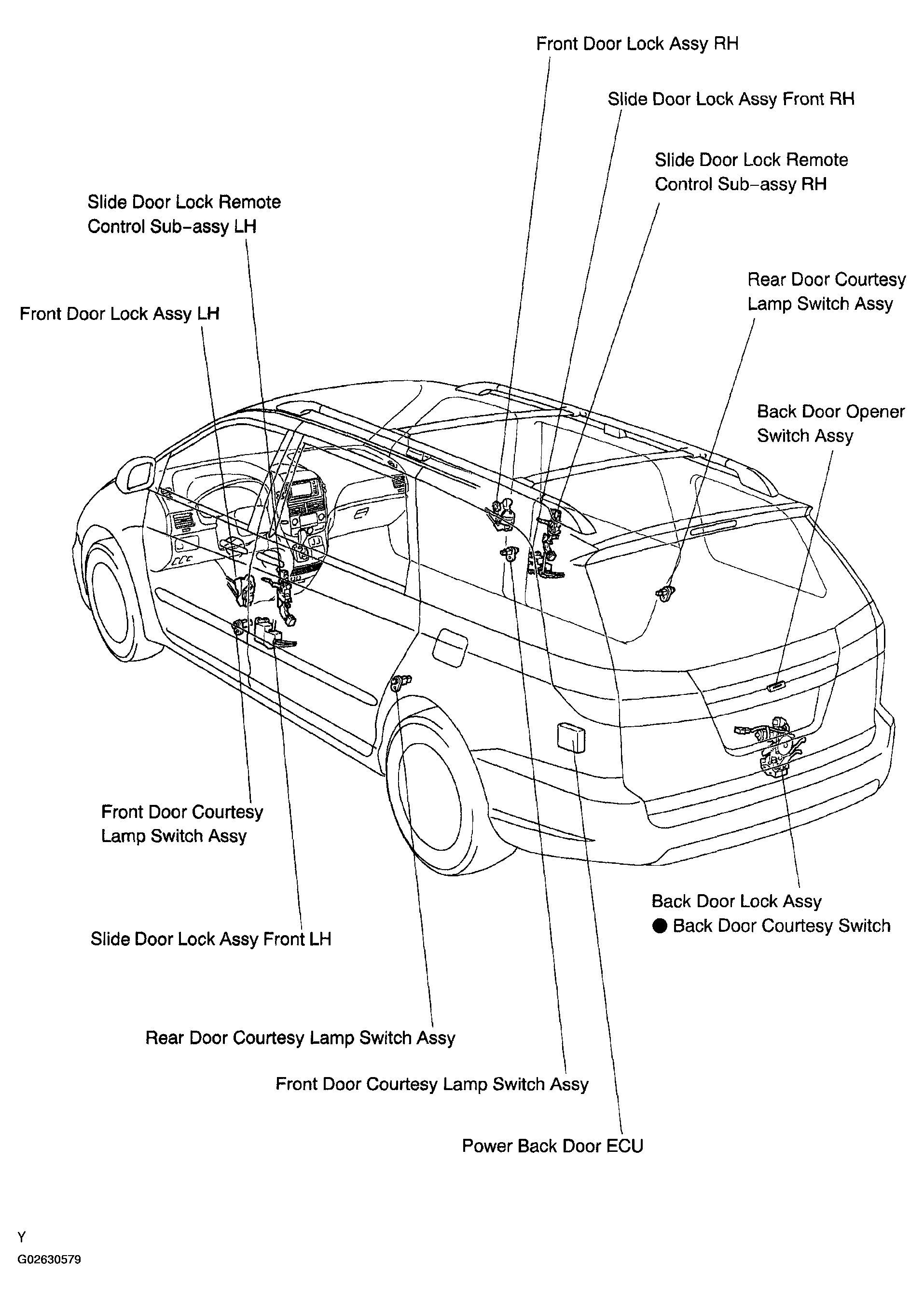

Fig 2: Power Door Lock Control System Component Location (2 Of 2)
G02630579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
