Circuit Description

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1262 is output when communication between the A/C ECU and the body ECU stops for more than 10 seconds.

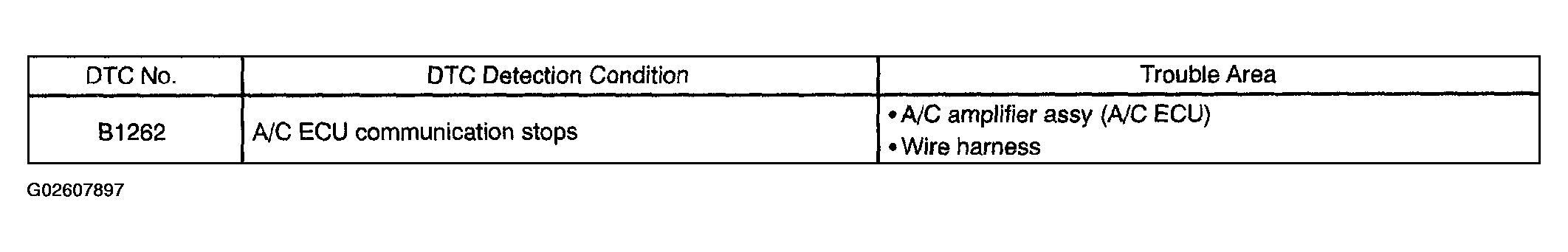

Fig 1: DTC Detection Condition Table
G02607897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
