Circuit Description

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1271 is output when communication between the combination meter and the body ECU stops for more than 10 seconds.

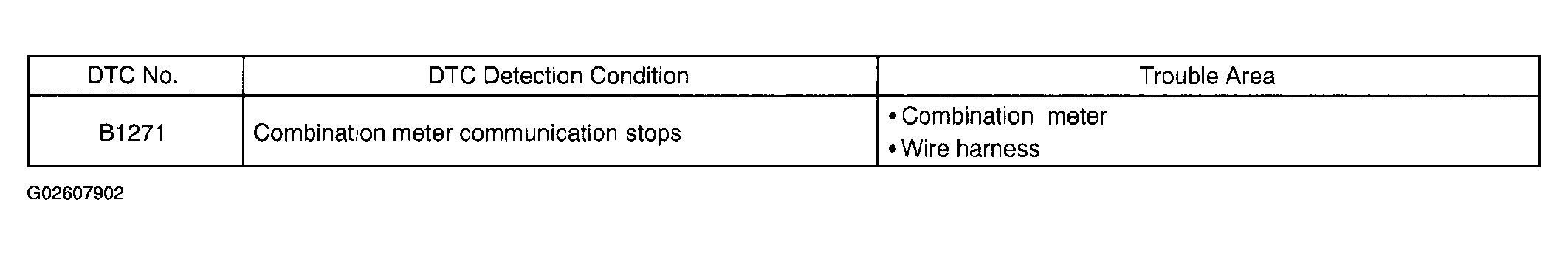

Fig 1: DTC Detection Condition Table
G02607902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
