Diagnostic Trouble Code Table
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC B1214, B1215 | DOOR SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT/GND SHORT) |
| DTC B1216 | RR-DOOR ECU COMMUNICATION STOP |
| DTC B1217 | RL-DOOR ECU COMMUNICATION STOP |
| DTC B1261 | ECM COMMUNICATION STOP |
| DTC B1262 | A/C ECU COMMUNICATION STOP |
| DTC B1271 | COMBINATION METER ECU COMMUNICATION STOP |
| DTC B1281 | AIRBAG ECU COMMUNICATION STOP |
| DTC B1287 | BACK DOOR ECU COMMUNICATION STOP |

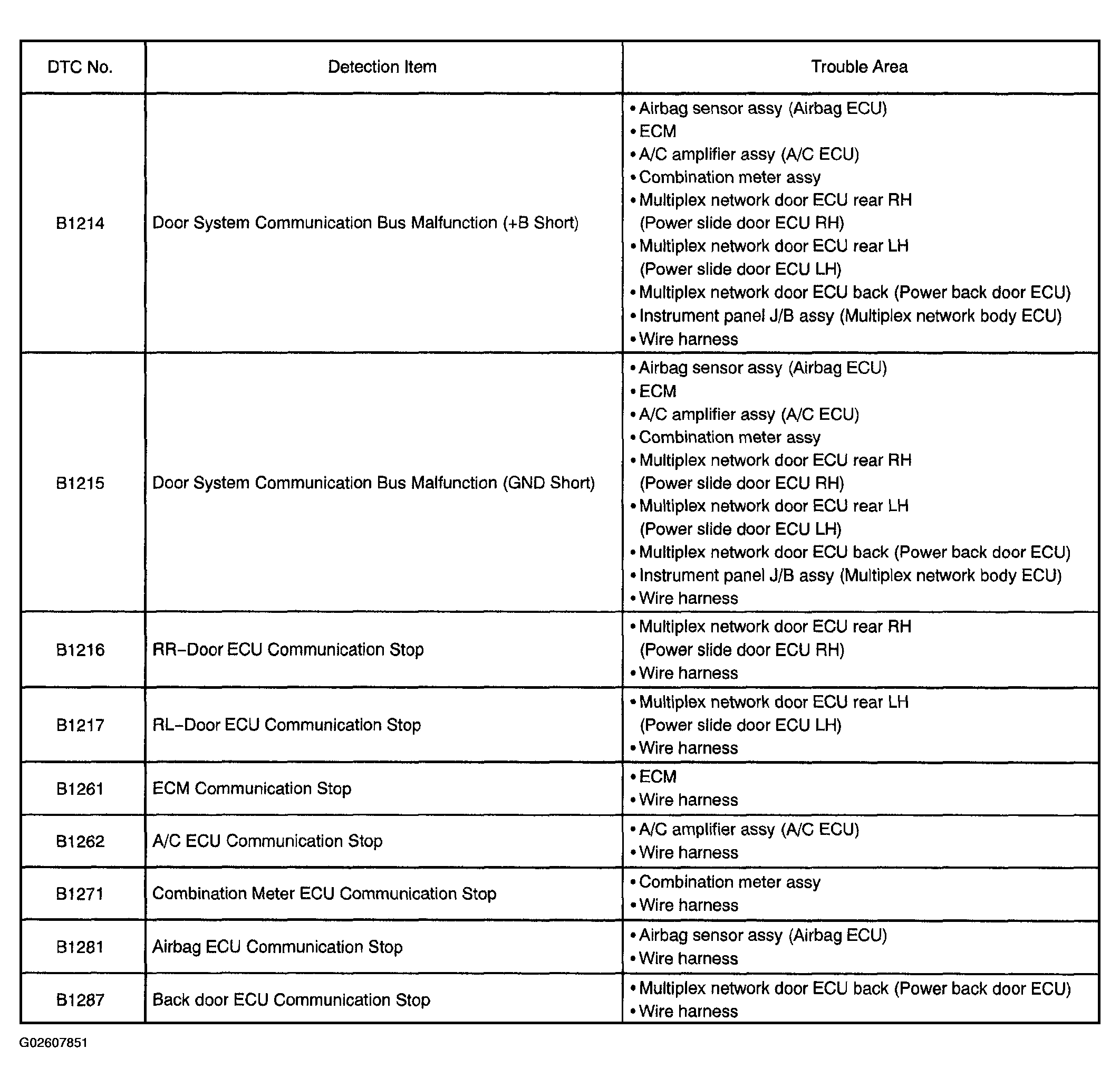

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in Fig 1 (Proceed to the DTC No. given for that circuit).
