System Description
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- CAN (Controller Area Network) is a serial data communication system for real time application. It is a multiplex communication system to be equipped for a vehicle and has a high communication speed (500 kbps) and the function to detect malfunction.
- Pairing the CANH wire harness and CANL wire harness, the CAN performs the communication based on the voltage difference.

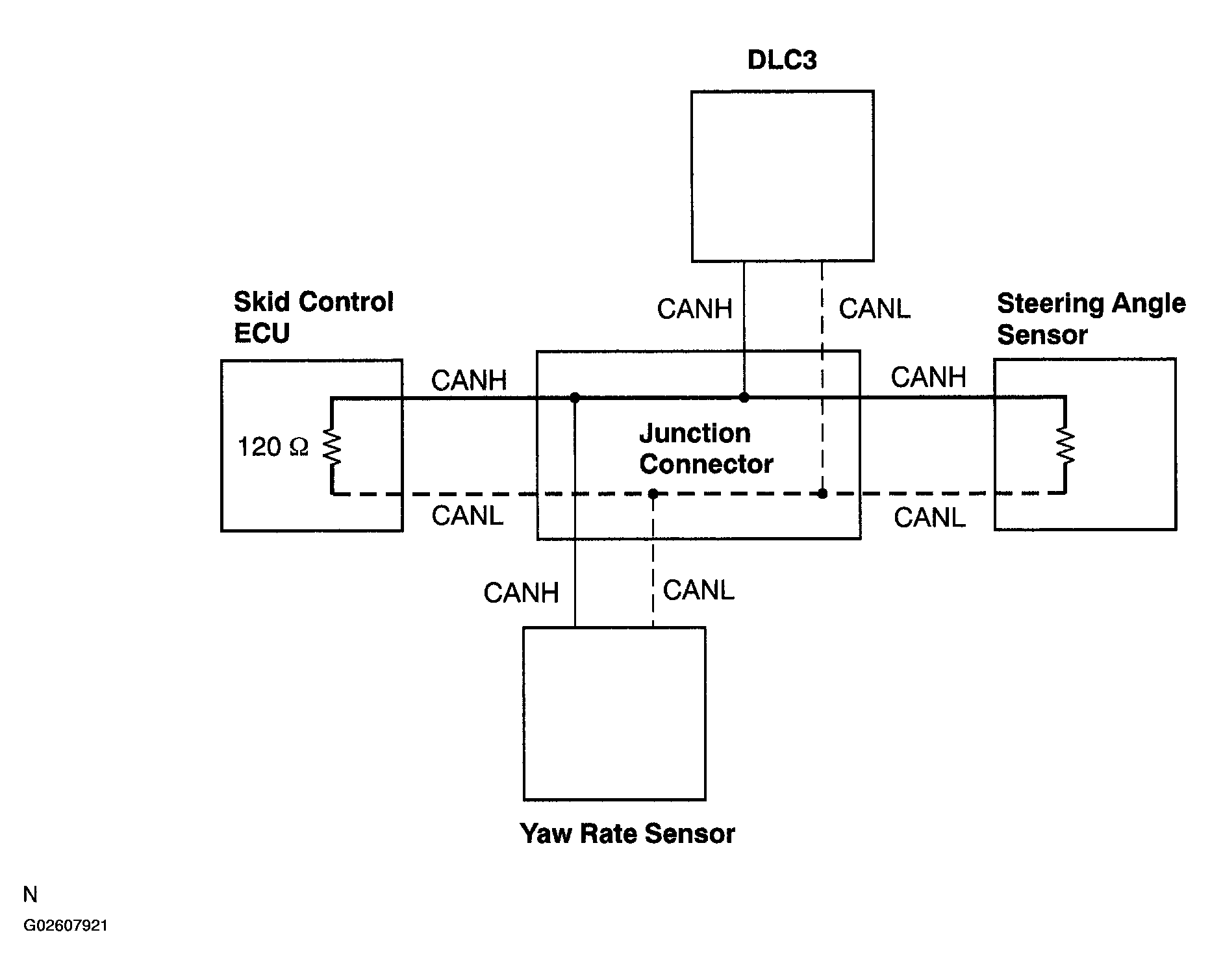

- The SIENNA uses the CAN communication system for the communication between the following ECU and sensors in the ABS with EBD & BA & TARC & VSC system.
- Skid control ECU
- Yaw rate sensor
- Steering angle sensor
- The skid control ECU stores and outputs DTCs in stead of the steering angle sensor and yaw rate sensor because they cannot store or output DTCs.
- In the CAN communication system, 2 terminus circuits* which are necessary to communicate with the mainline are placed.
*: A circuit which consists of a resistor and condenser is placed to convert the communication current of the CAN communication into bus voltage.
