Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Proceed to troubleshooting of each circuit in the table below.
  1. HEADLAMP AND TAIL LAMP SYSTEM

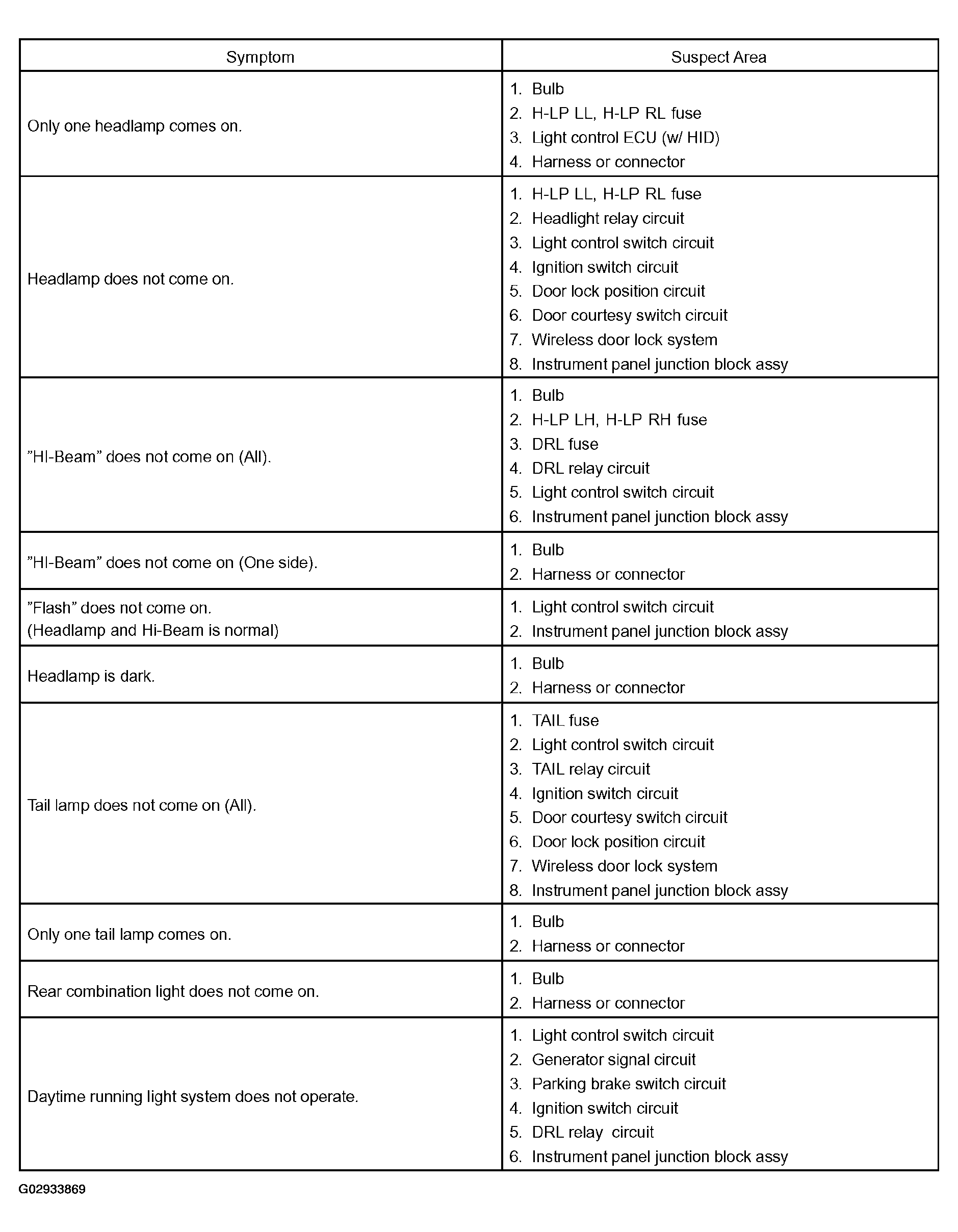

    Fig 1: Headlamp & Tail Lamp System Symptom Suspect Area Reference Table
    G02933869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. AUTOMATIC LIGHT CONTROL SYSTEM

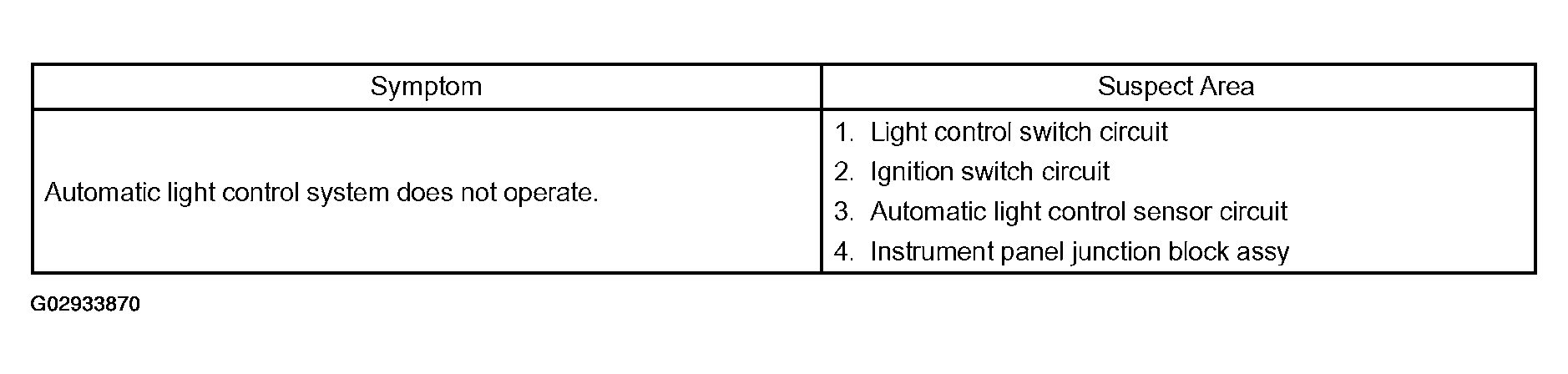

    Fig 2: Automatic Light Control System Symptom Suspect Area Reference Table
    G02933870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. LIGHT AUTO TURN OFF SYSTEM

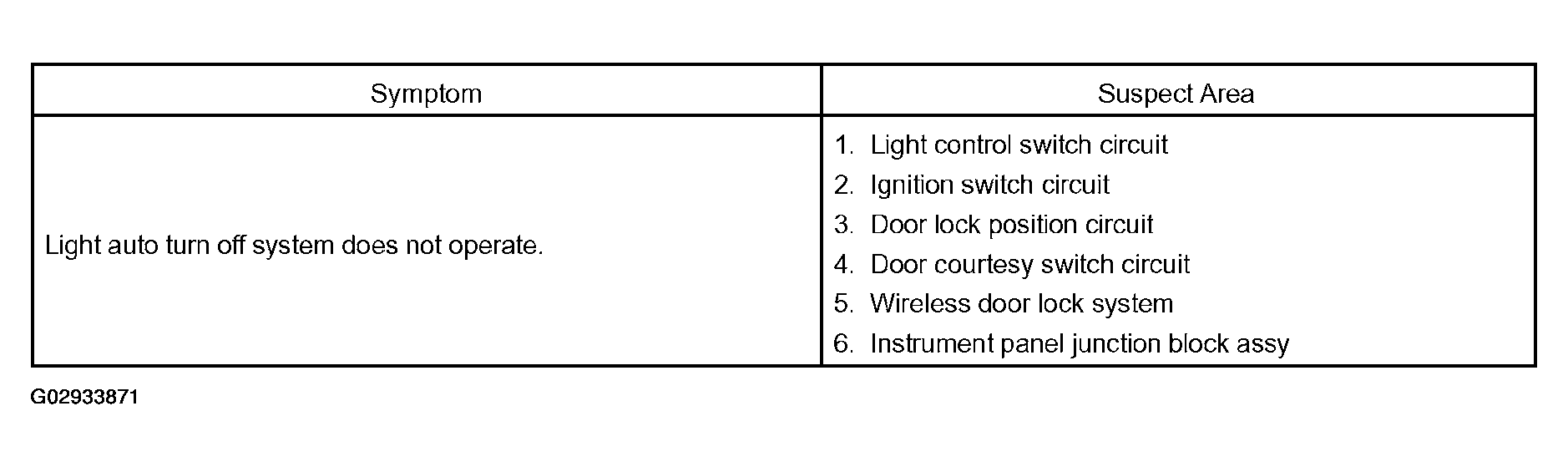

    Fig 3: Light Auto Turn Off System Symptom Suspect Area Reference Table
    G02933871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. FOG LAMP SYSTEM

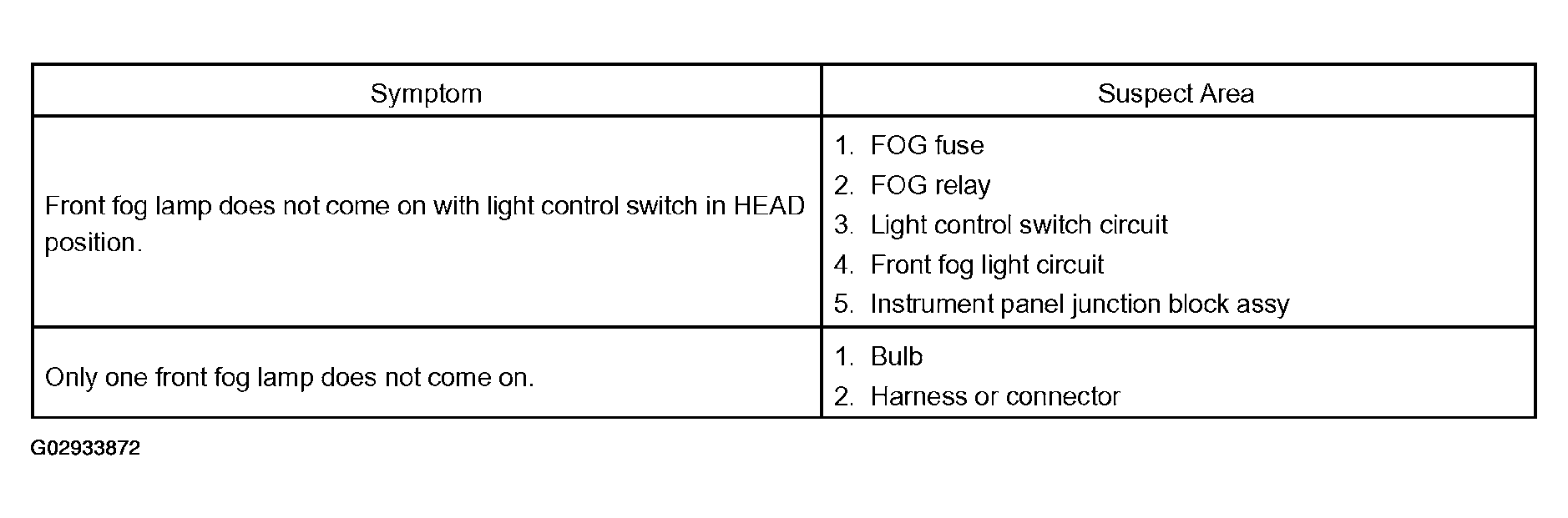

    Fig 4: Fog Lamp System Symptom Suspect Area Reference Table
    G02933872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. TURN SIGNAL AND HAZARD WARNING SYSTEM

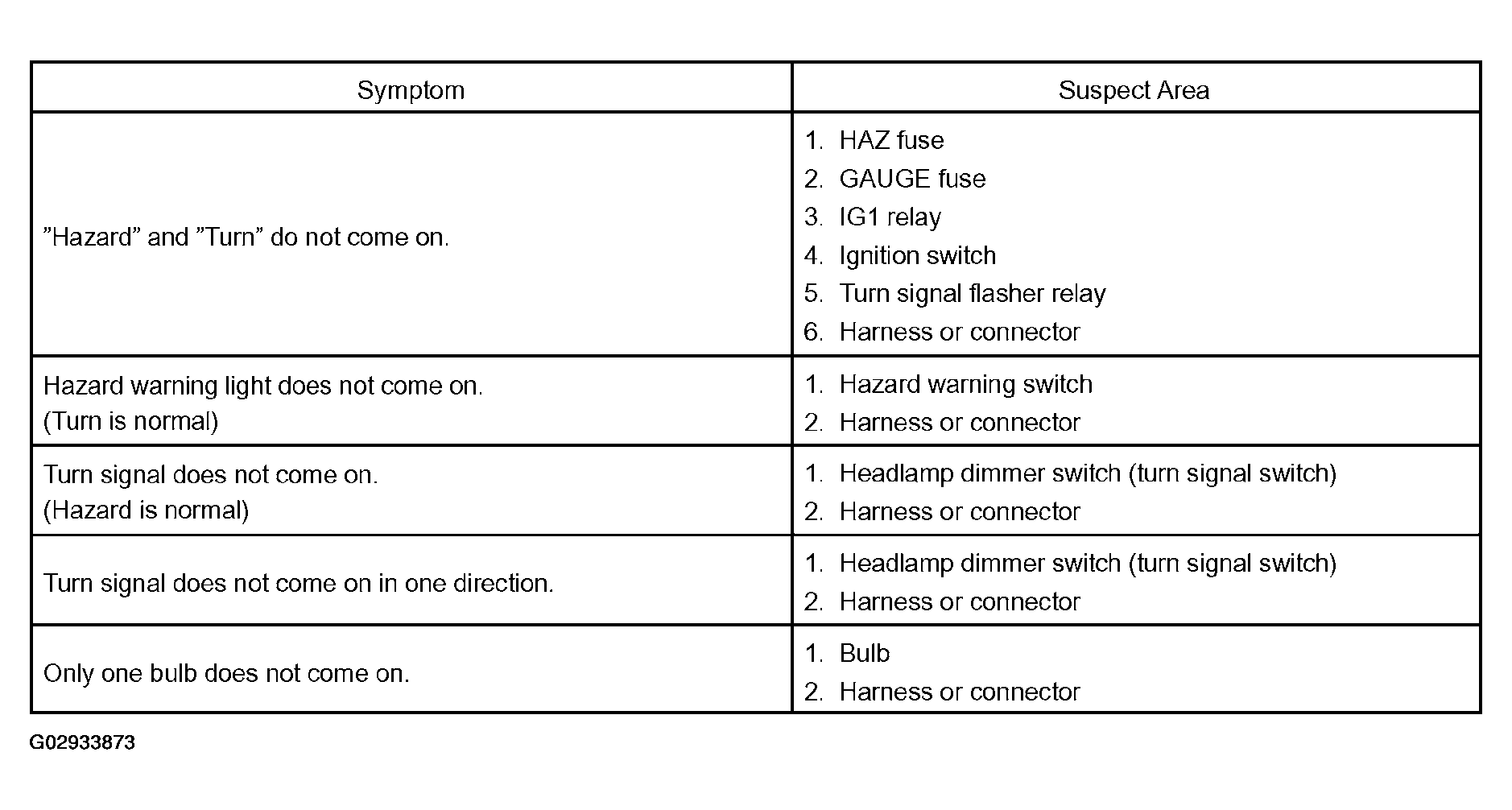

    Fig 5: Turn Signal And Hazard Warning System Symptom Suspect Area Reference Table
    G02933873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. ILLUMINATED ENTRY SYSTEM

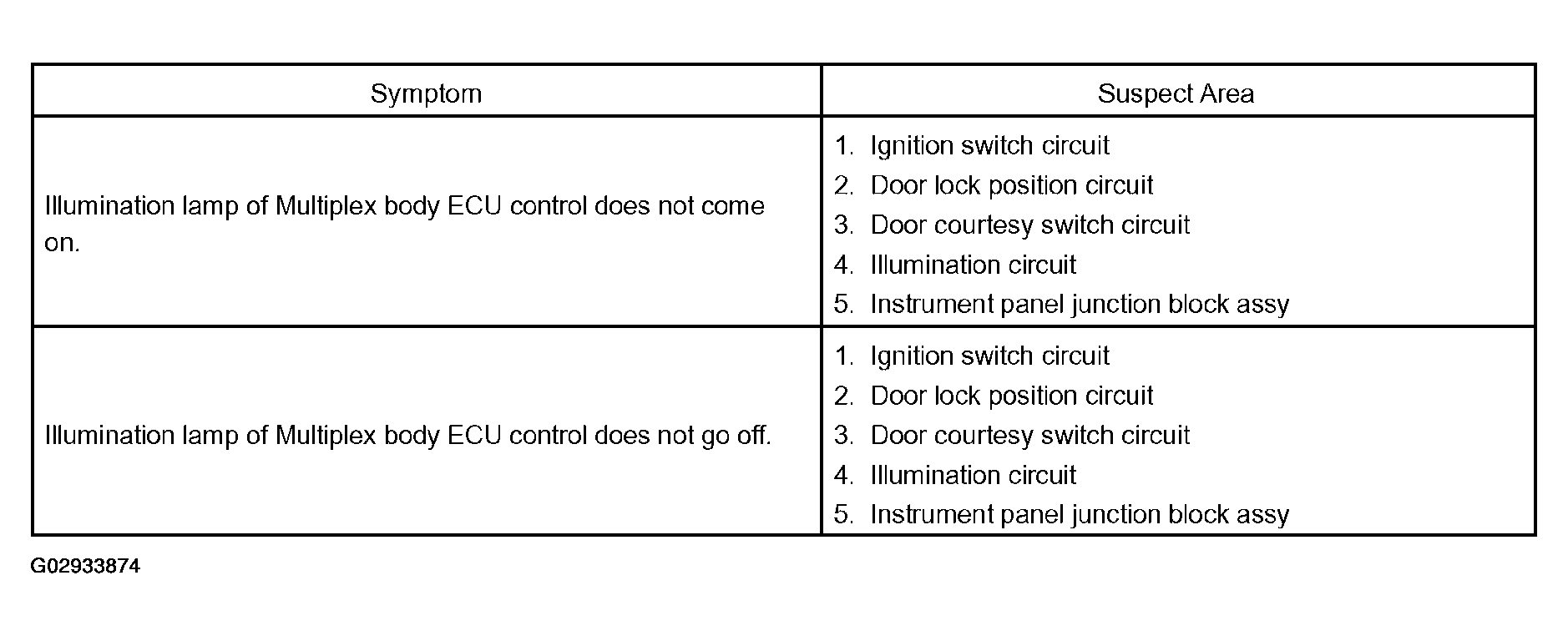

    Fig 6: Illuminated Entry System Symptom Suspect Area Reference Table
    G02933874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. OTHERS

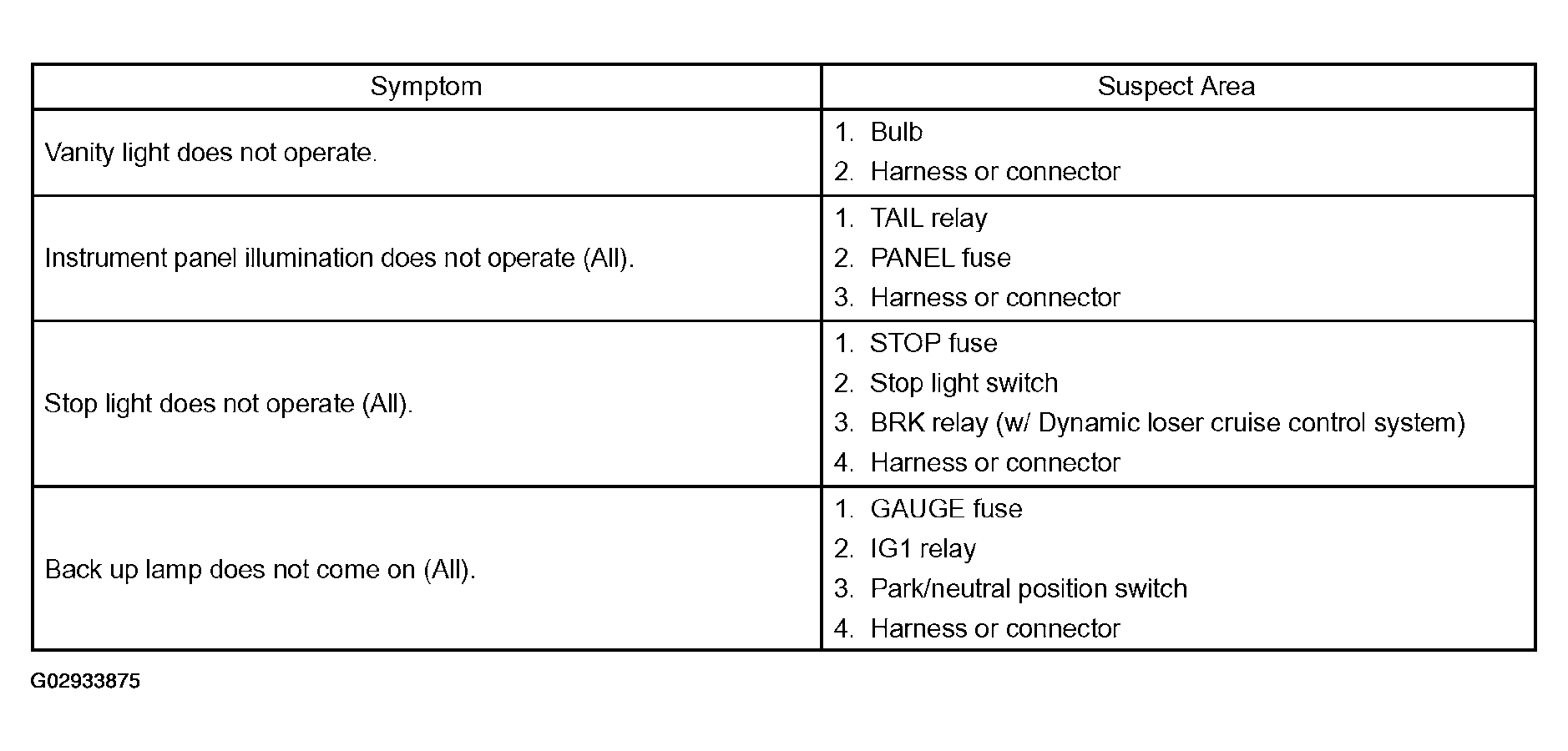

    Fig 7: Symptom Suspect Area Reference Table
    G02933875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
