Ultrasonic Sensor No.1: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE FRONT FENDER LINER LH (See REPLACEMENT )
REMOVE FRONT FENDER LINER RH (See REPLACEMENT )
REMOVE FRONT BUMPER COVER (See REPLACEMENT )
REMOVE REAR BUMPER COVER (See REPLACEMENT )
REMOVE ULTRASONIC SENSOR RETAINER NO.1
1. Remove the ultrasonic sensor retainer No.1 as shown.

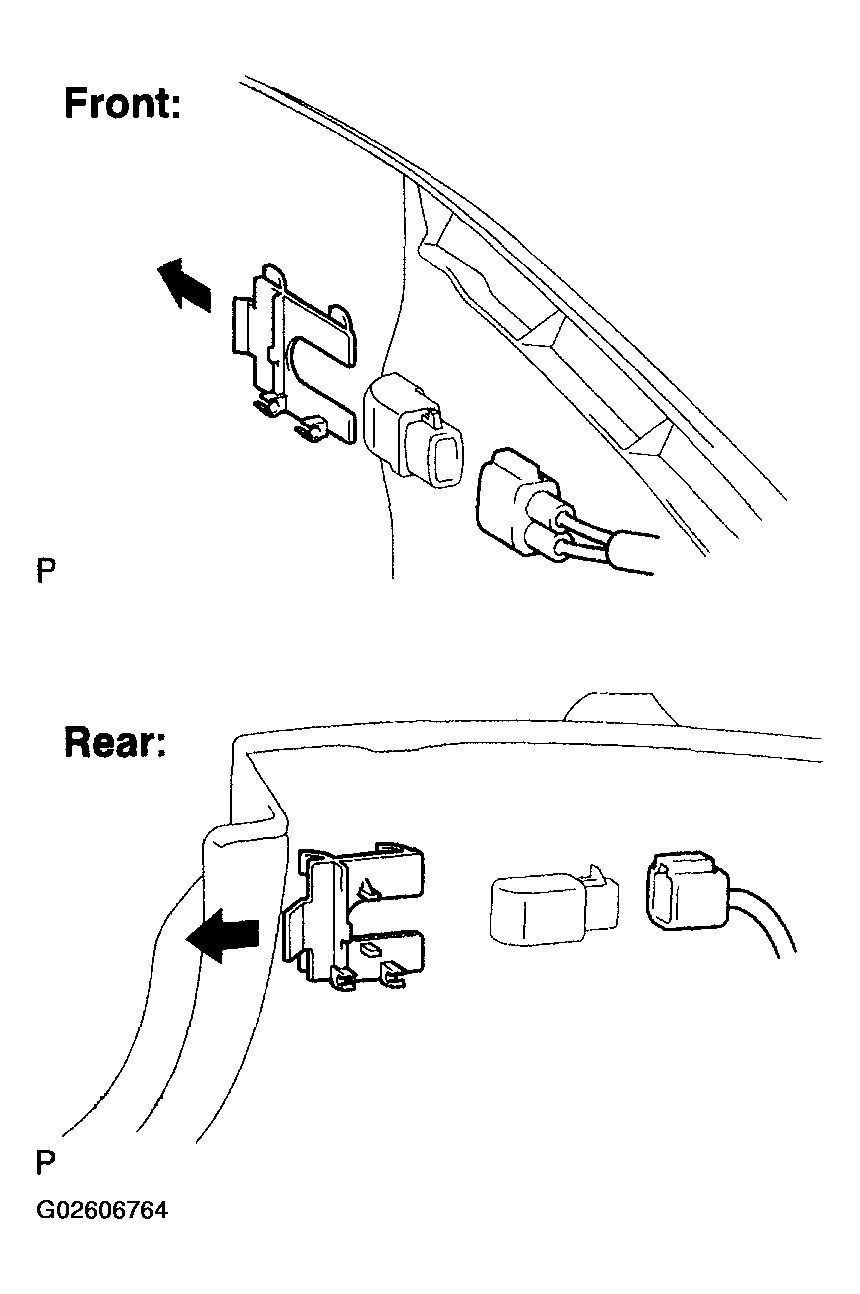

Fig 1: Disconnecting Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ULTRASONIC SENSOR NO.
1. Disconnect the connector and remove the ultrasonic sensor No.1.

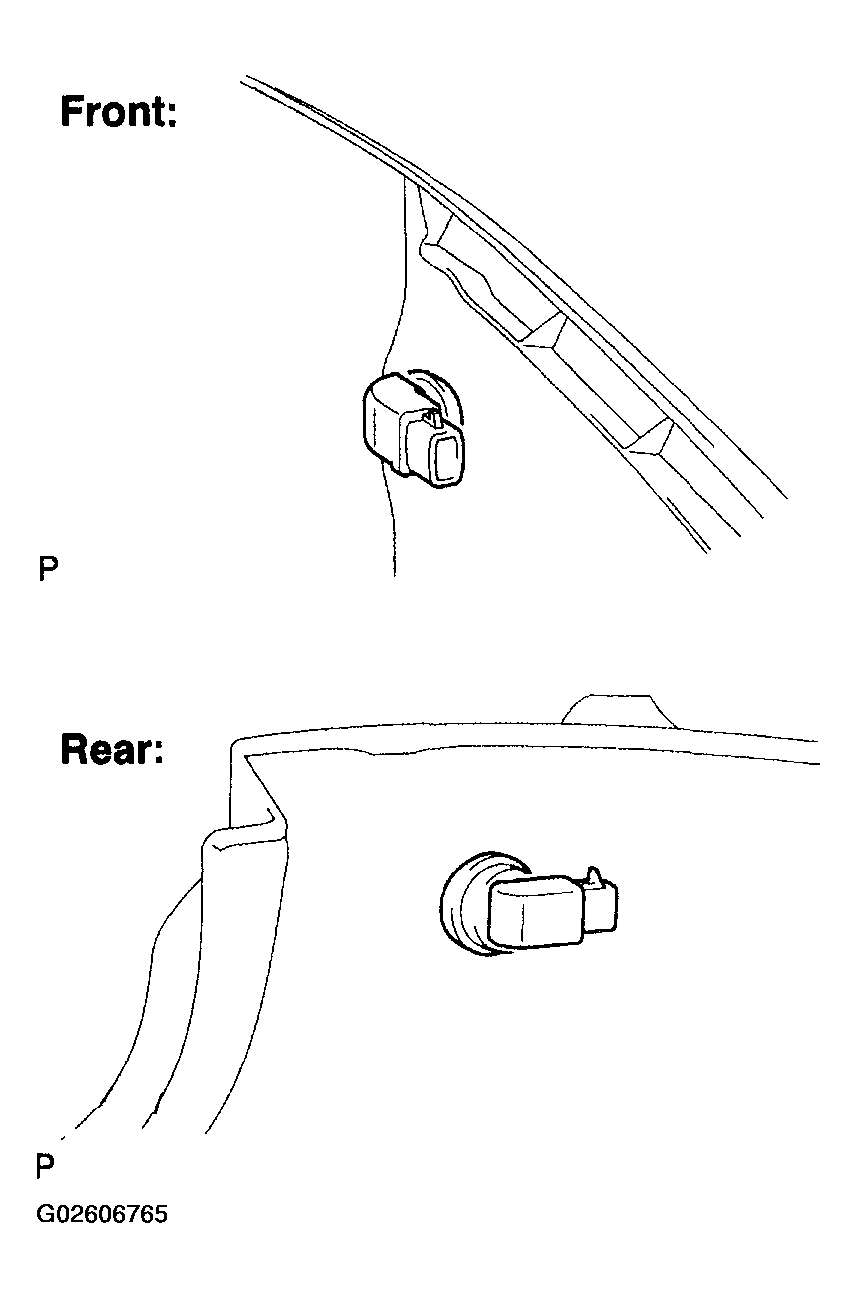

Fig 2: Removing Ultrasonic Sensor No.1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER COVER (See REPLACEMENT )
INSTALL FRONT BUMPER COVER (See REPLACEMENT )
INSTALL FRONT FENDER LINER LH (See REPLACEMENT )
INSTALL FRONT FENDER LINER RH (See REPLACEMENT )
