A Audio System Cannot Be Operated With Steering Pad Switch: Wiring Diagram
WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

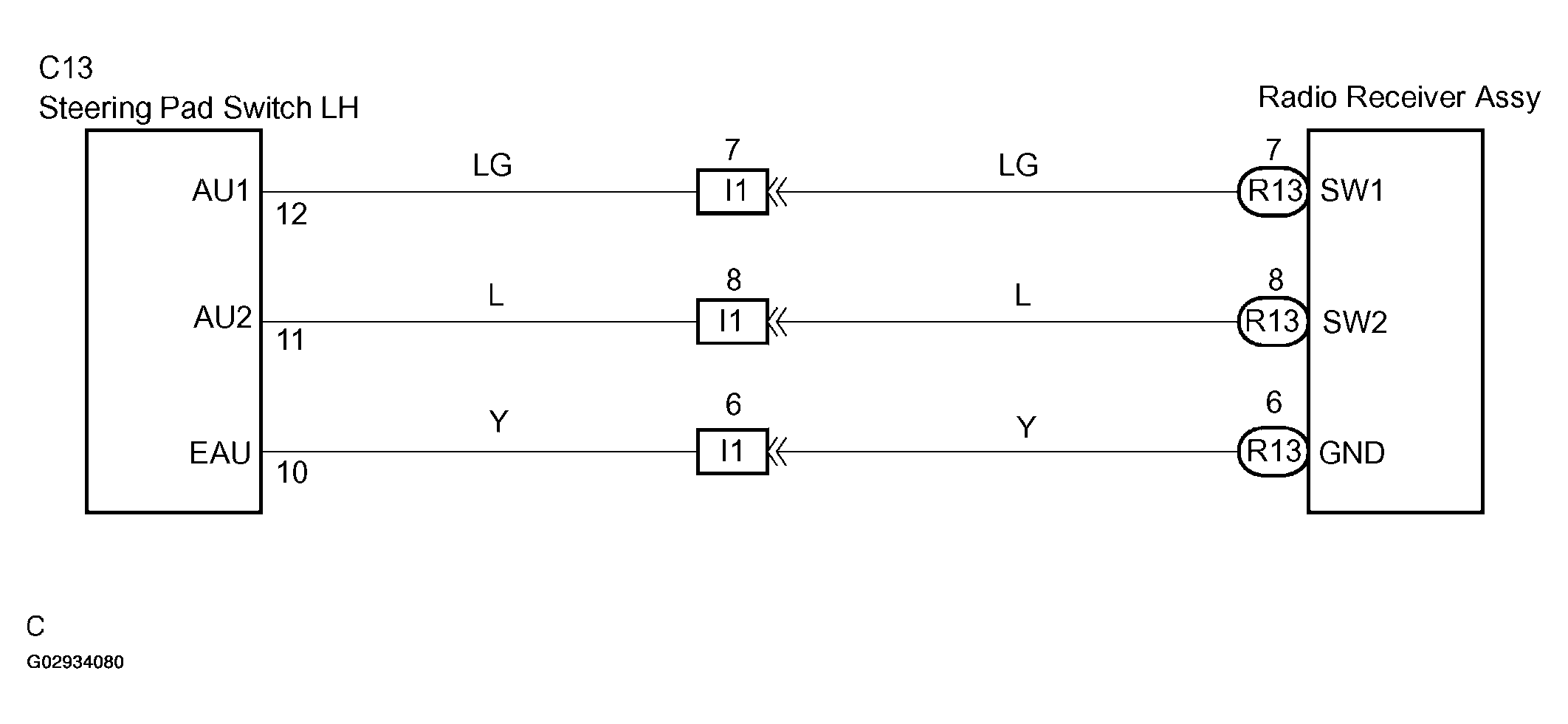

Fig 1: Wiring Diagram - Steering Pad (Audio) Switch
