Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

TERM & MEANING

Terms	Meaning
Physical address	Three-digit code (shown in hexadecimal) which is given to each component comprising the AVC-LAN.
Physical address	Corresponding to the function, individual symbols are specified.
Logical address	Two-digit code (shown in hexadecimal) which is given to each function comprising the inner system of the AVC-LAN.

RADIO RECEIVER ASSY (Physical address: 140)
NOTE:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code is stored in 180 sec. after the power supply connector is pulled out after engine start.
- *3: This code may be stored when the ignition switch is turned again after engine start.
- *4: This code may be stored when the ignition switch is turned again in 1 min. after engine start.
1. Logical address: 01 (Communication control)

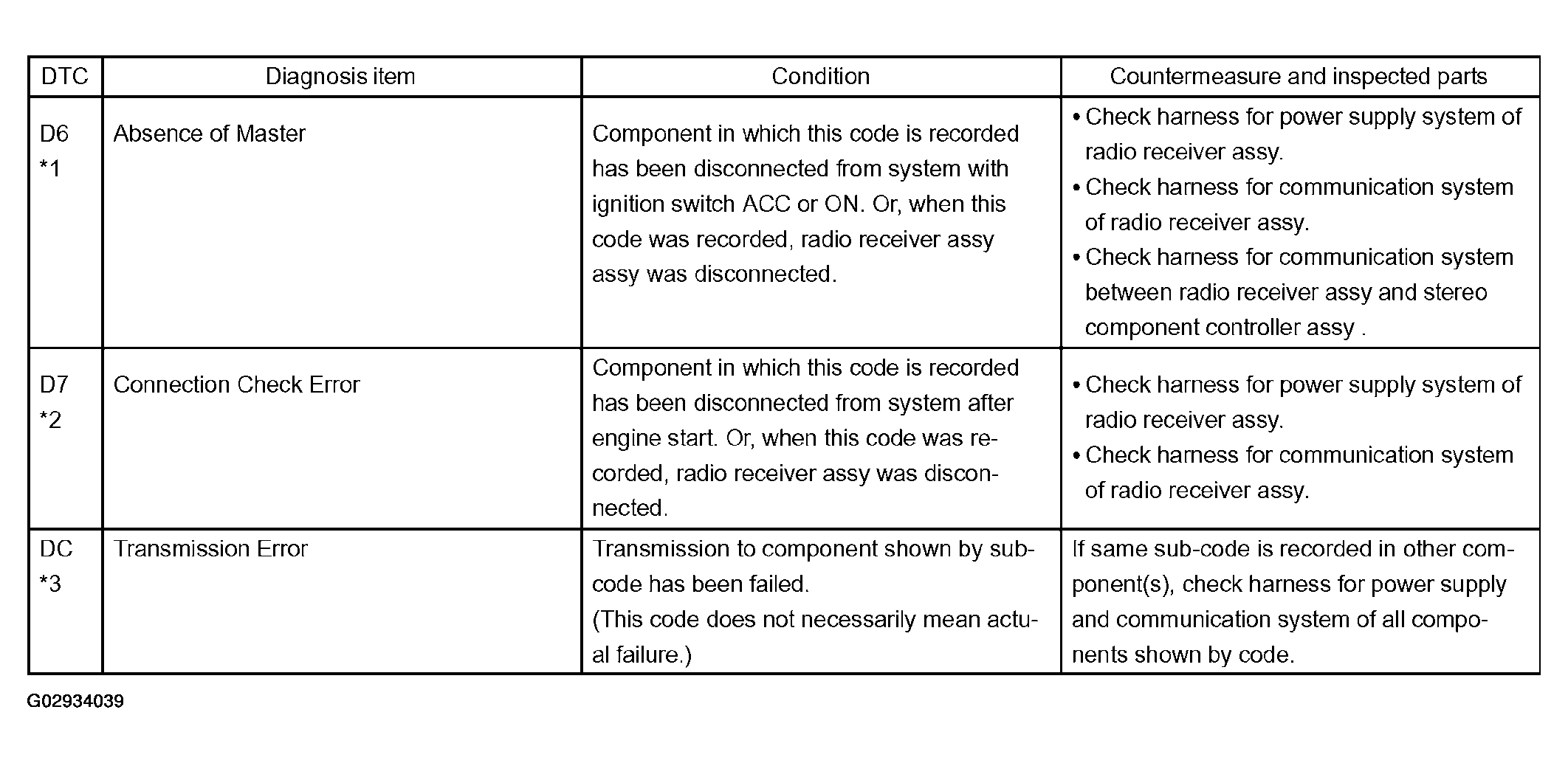

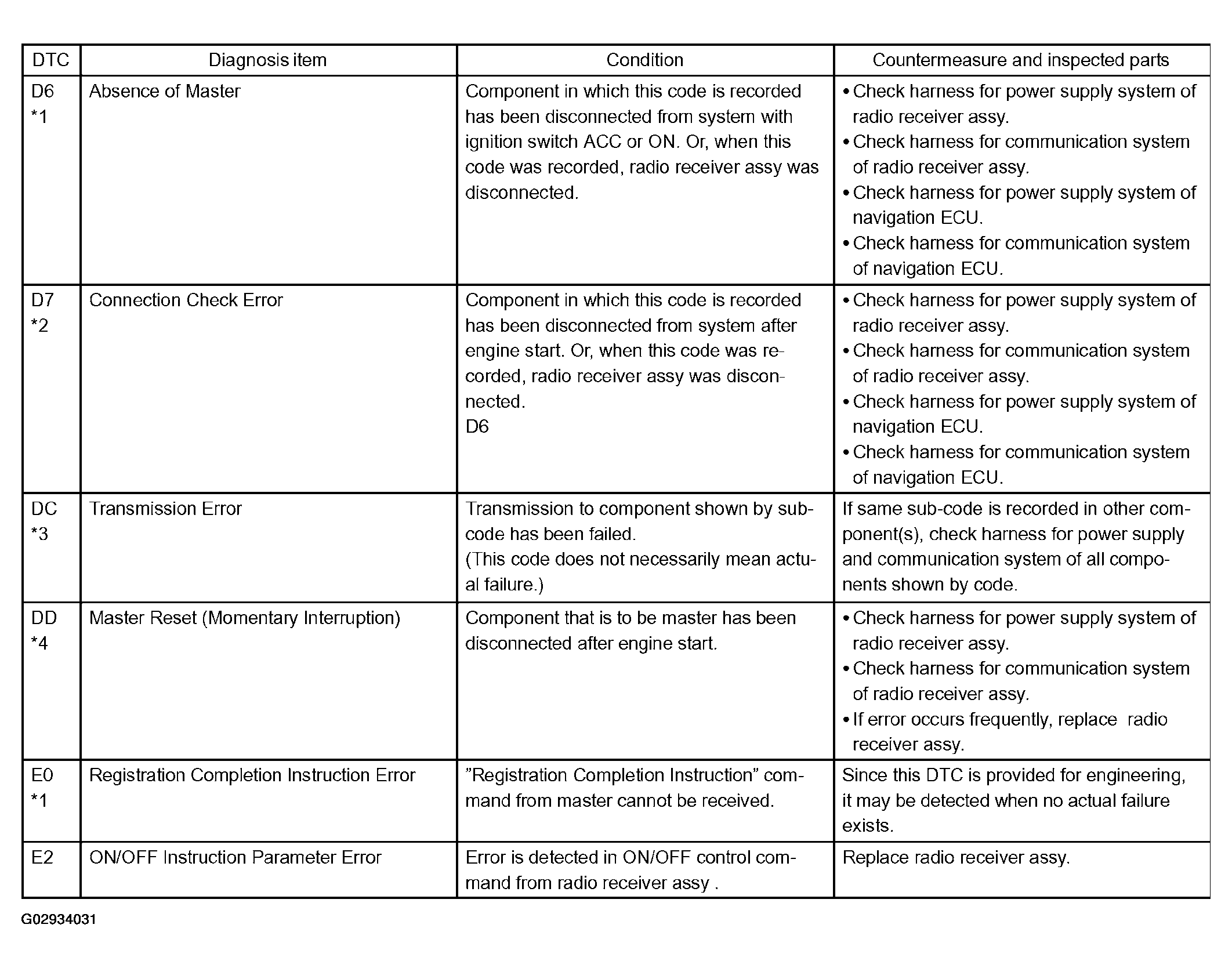

  Fig 1: Logical Address: 01 (Communication Control) / Diagnosis Item & Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Logical address: 21 (Switch)

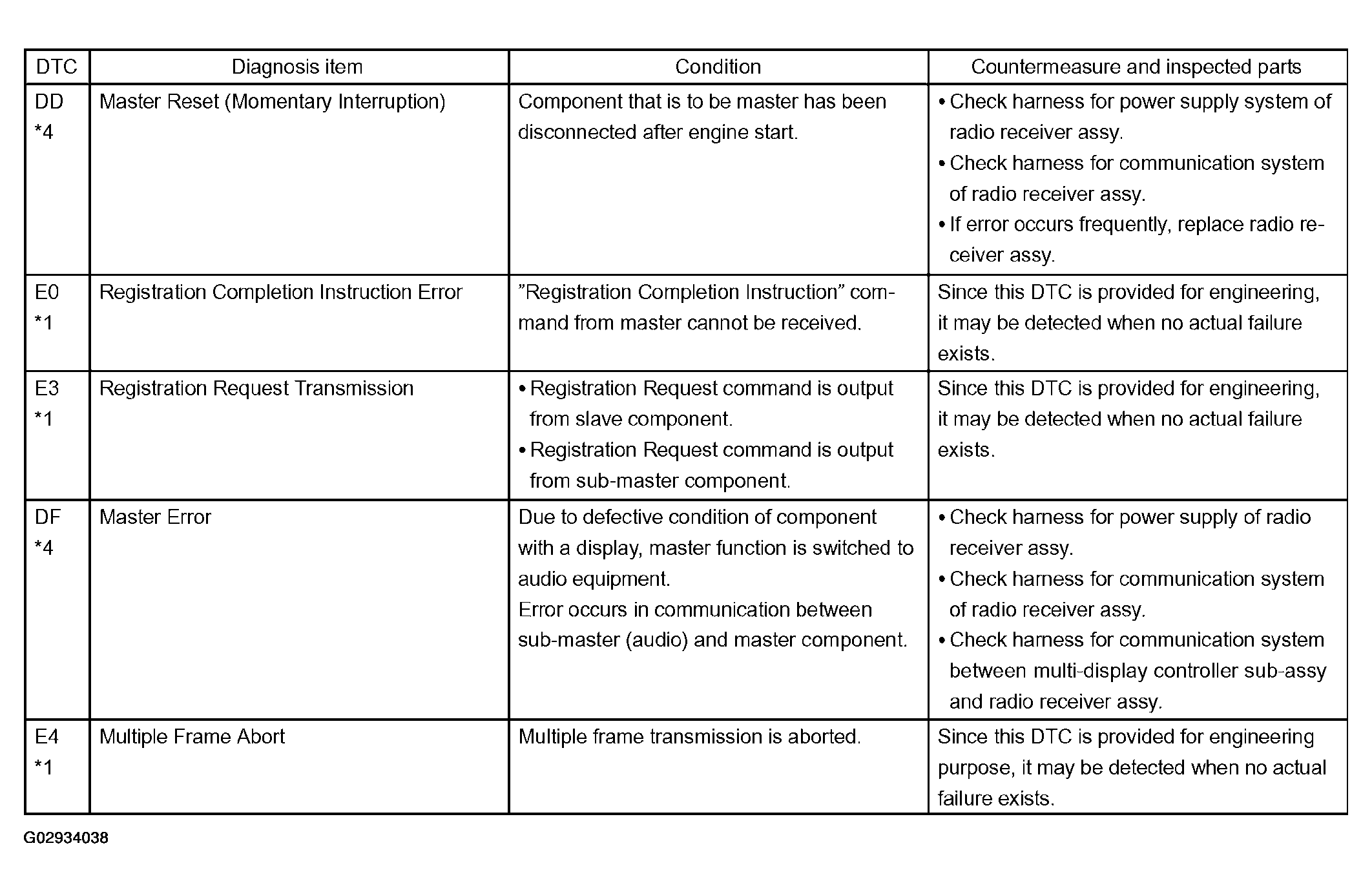

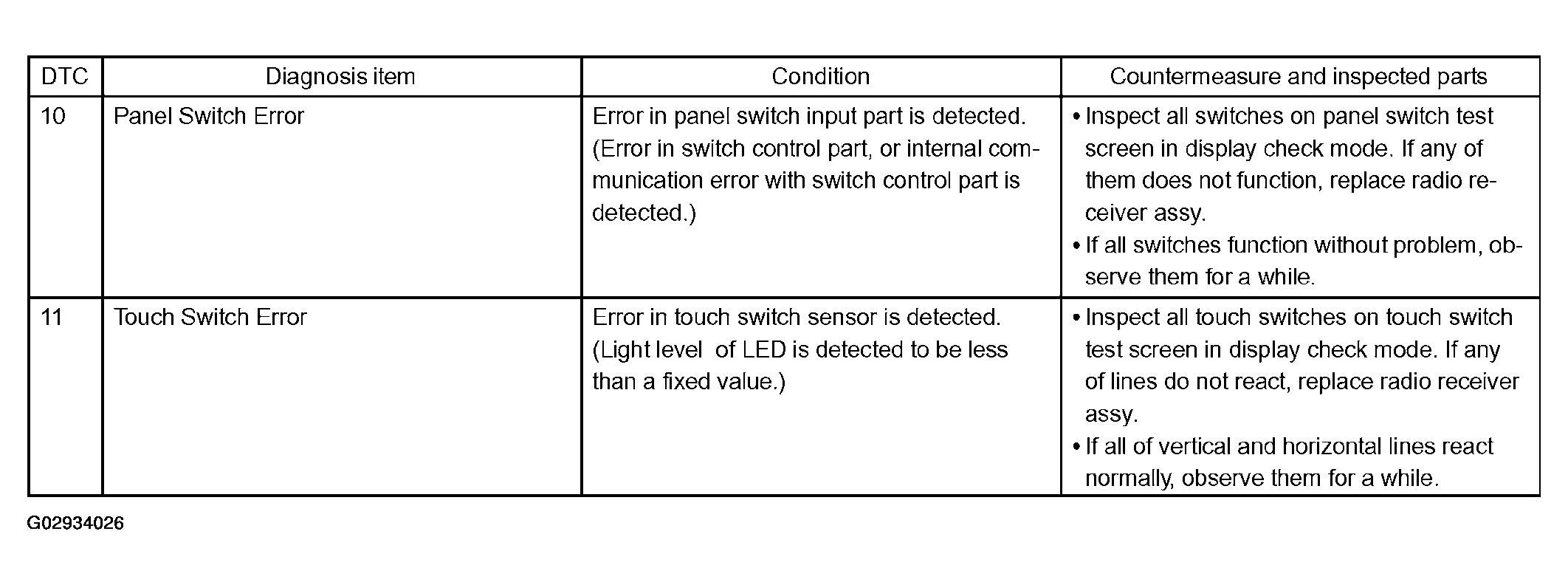

  Fig 2: Logical Address: 21 (Switch) / Diagnosis Item & Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Logical address: 61 (Cassette tape player's switch)

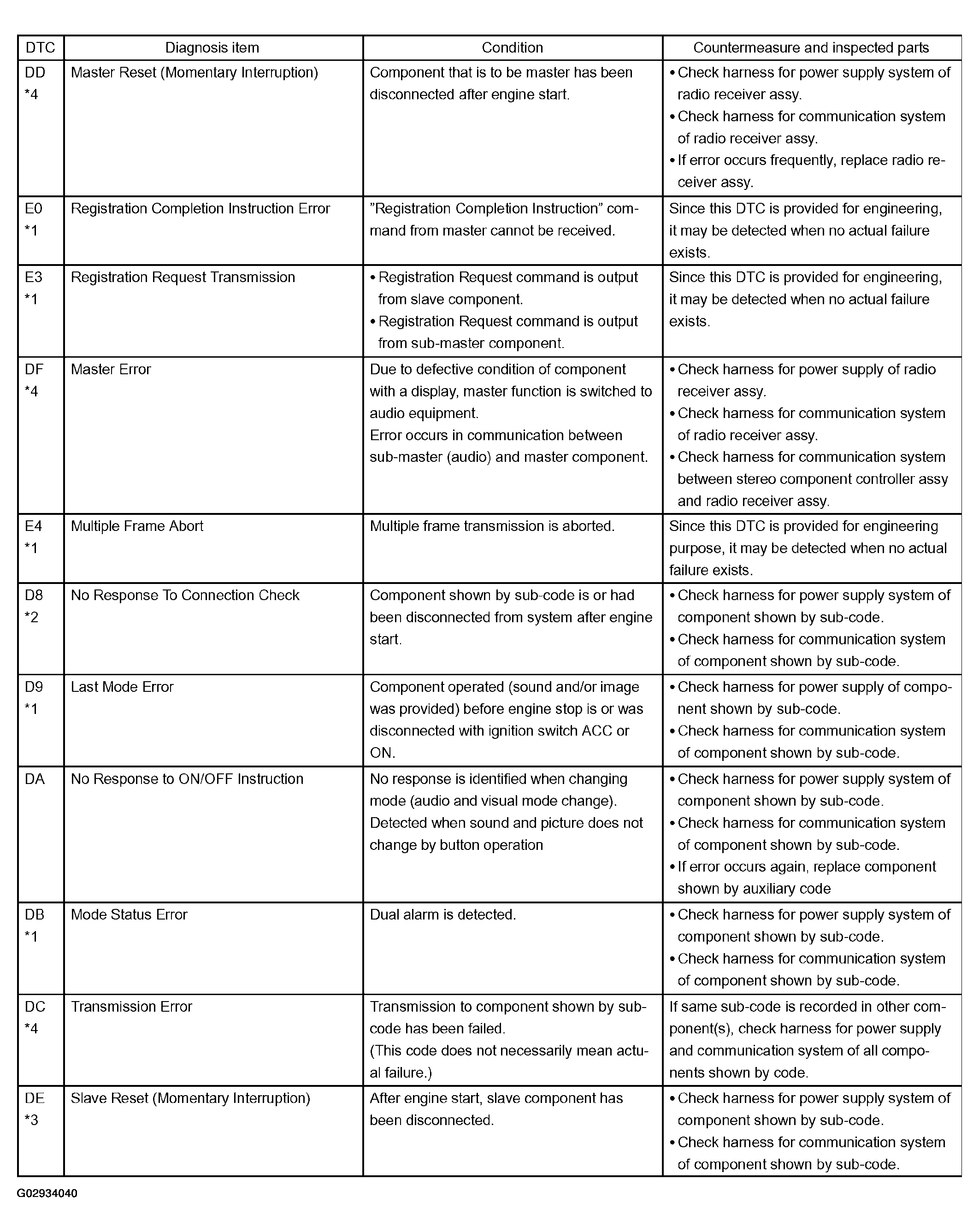

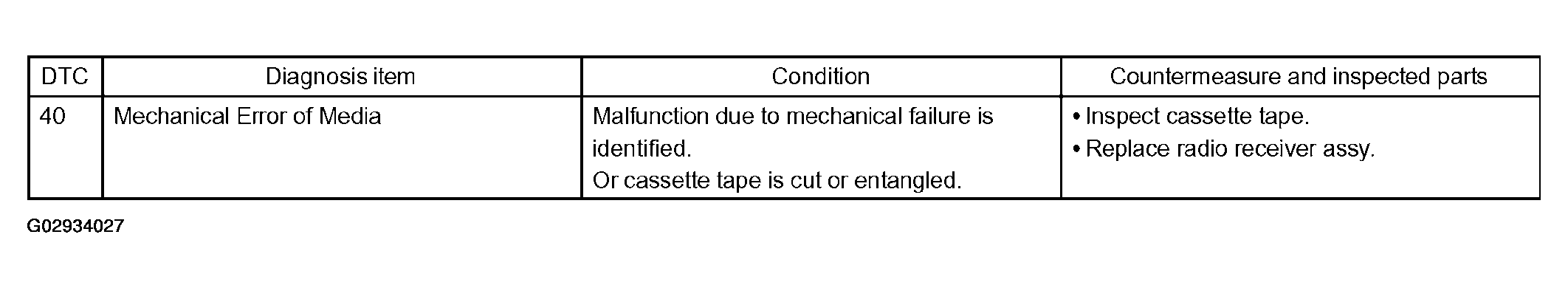

  Fig 3: Logical Address: 61 (Cassette Tape Player's Switch) / Diagnosis Item & Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Logical address: 62 (CD player)

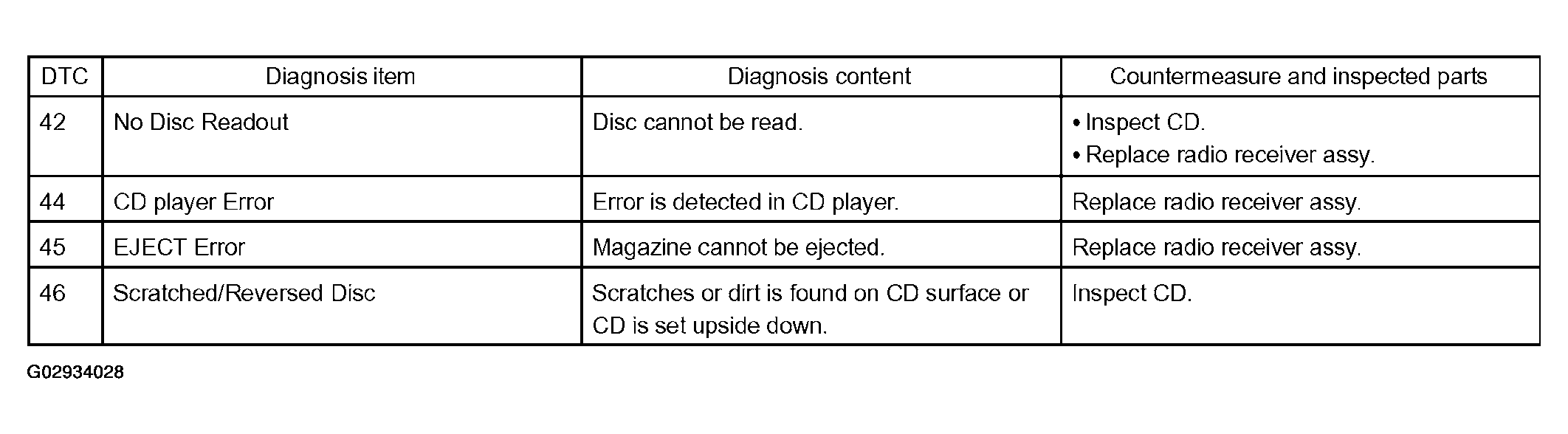

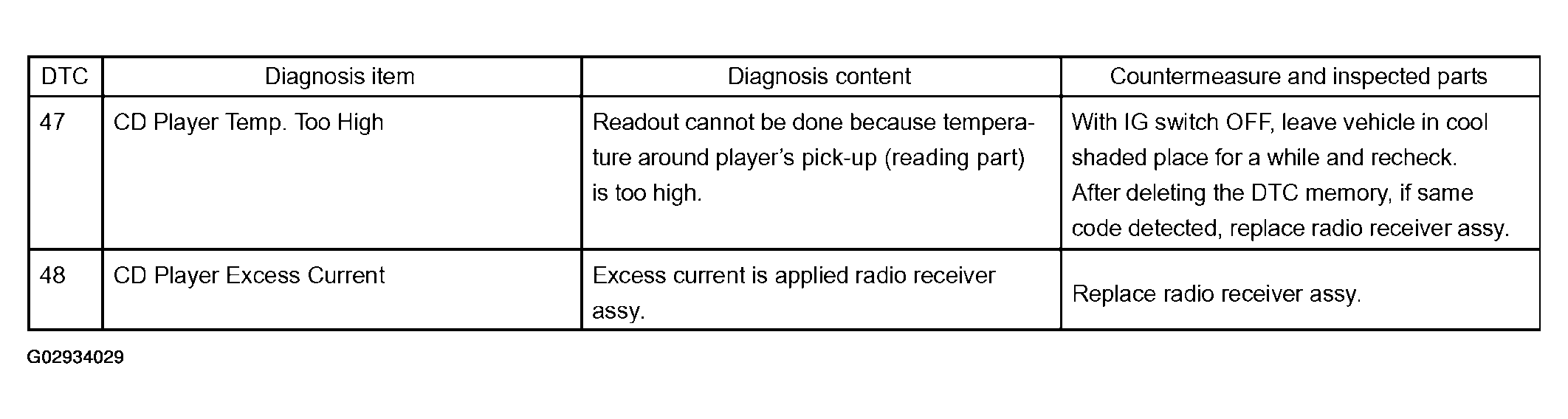

  Fig 4: Logical Address: 62 (CD Player) / Diagnosis Item & Condition Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 5: Logical Address: 62 (CD Player) / Diagnosis Item & Condition Chart (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Logical address: 34 (Front passenger monitor)

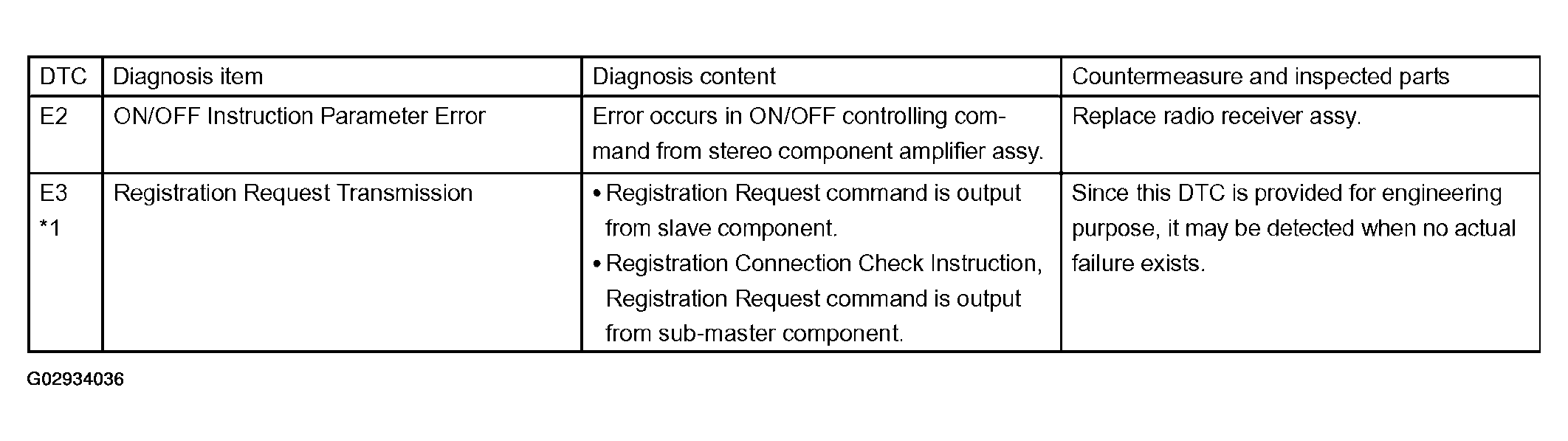

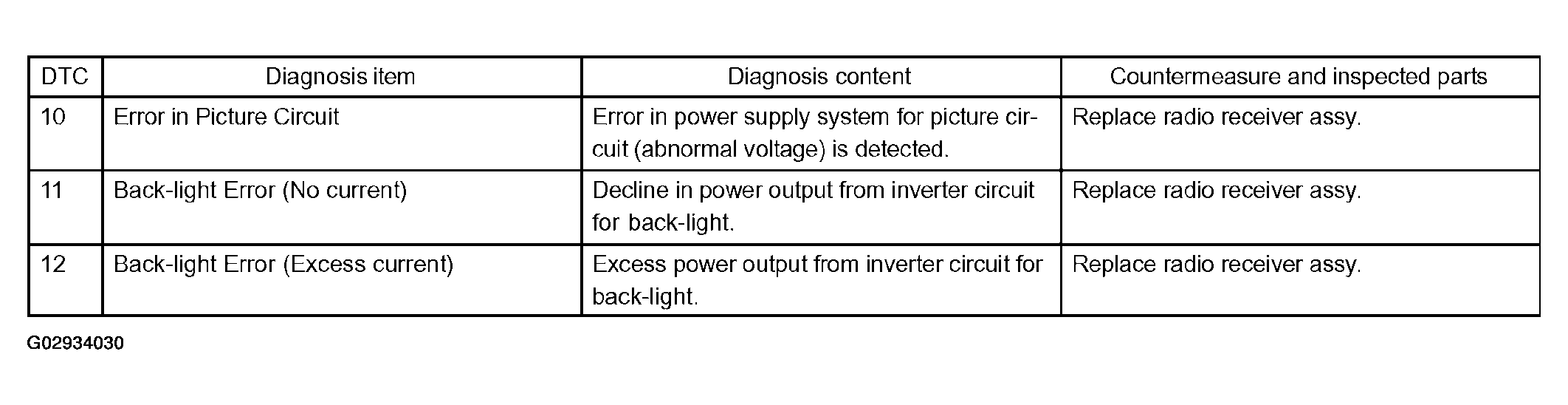

  Fig 6: Logical Address: 34 (Front Passenger Monitor) / Diagnosis Item & Contents Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NAVIGATION ECU (Physical address: 178)
NOTE:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code is stored in 210 seconds after the master component is turned off with the ignition switch ACC or ON.
- *3: This code may be stored when the ignition switch is turned ON in 1 min. again after the engine starts.
- *4: This code may be stored when the ignition switch is turned again after the engine starts.
1. Logical address: 01 (Communication control)

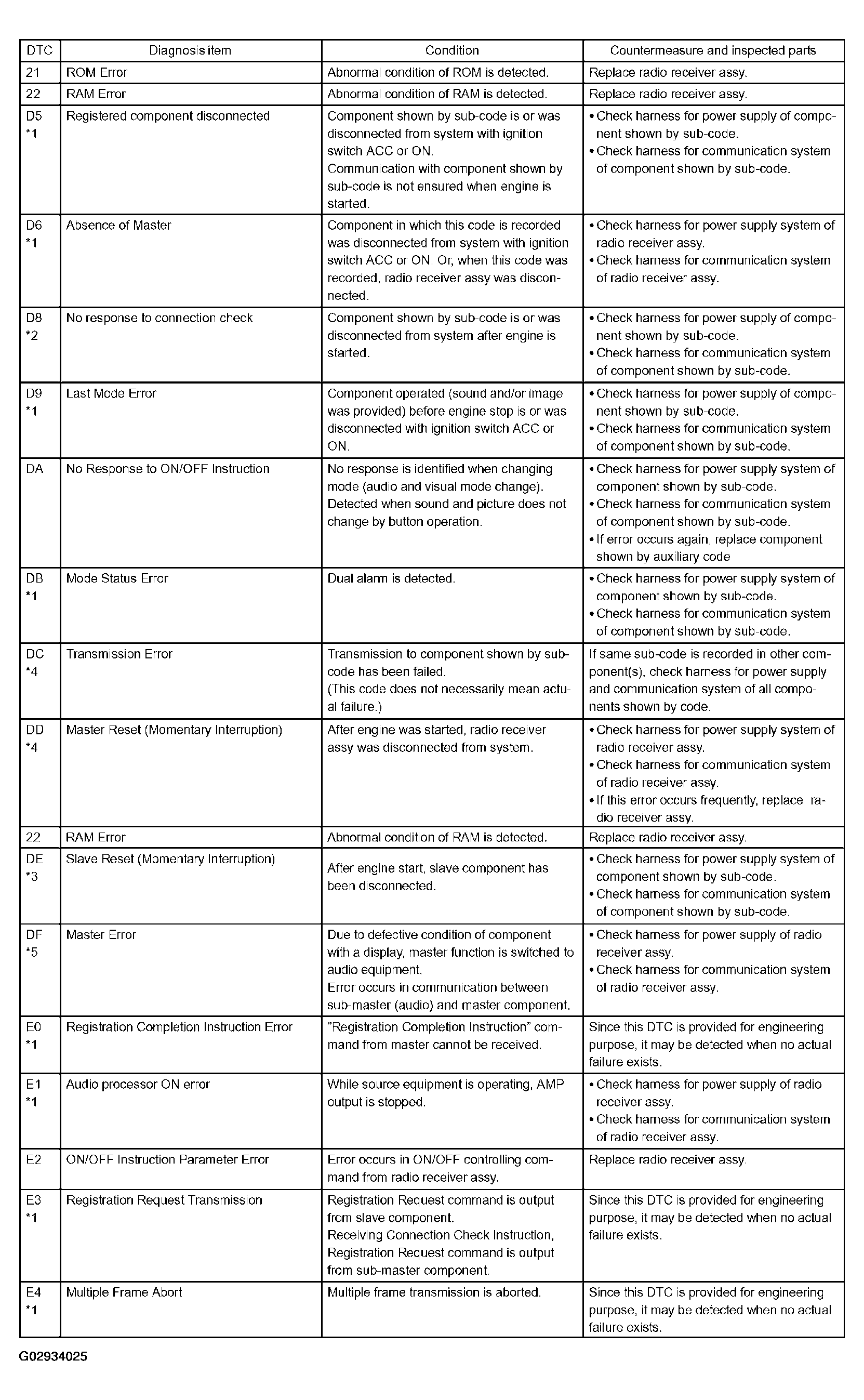

  Fig 7: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

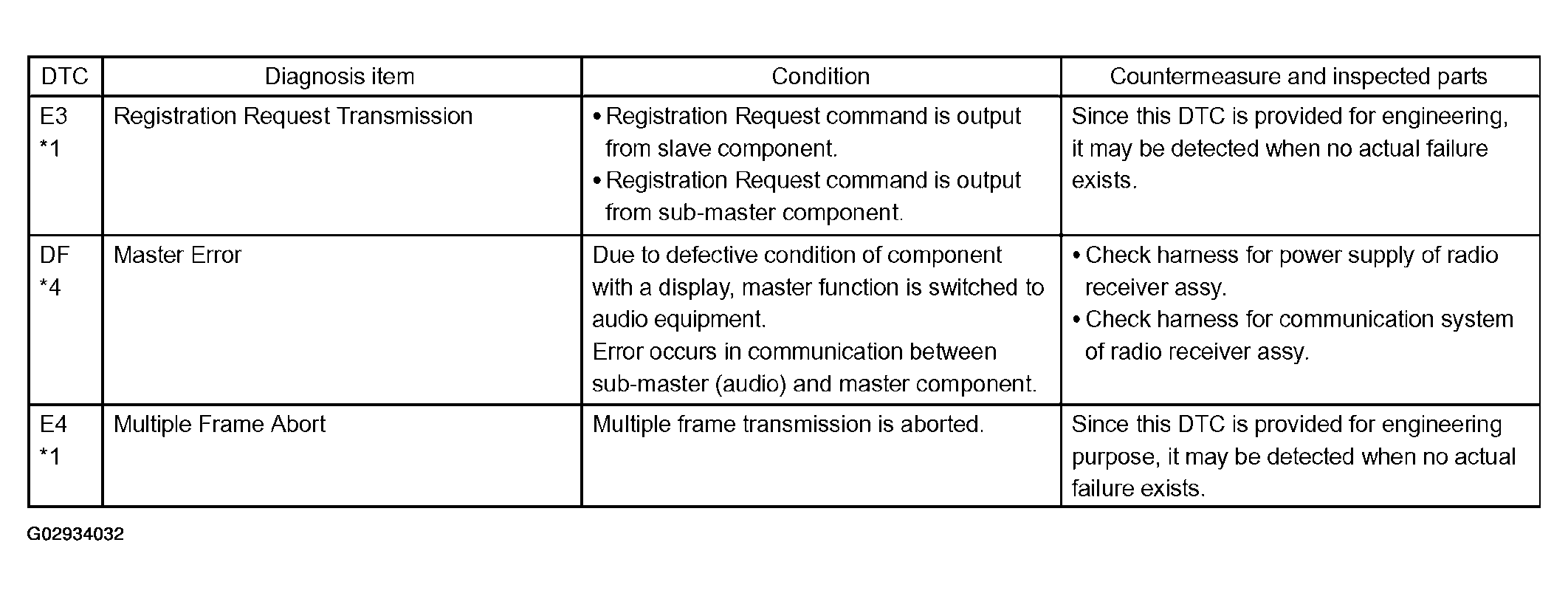

  Fig 8: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Logical address: 58 (Navigation ECU)

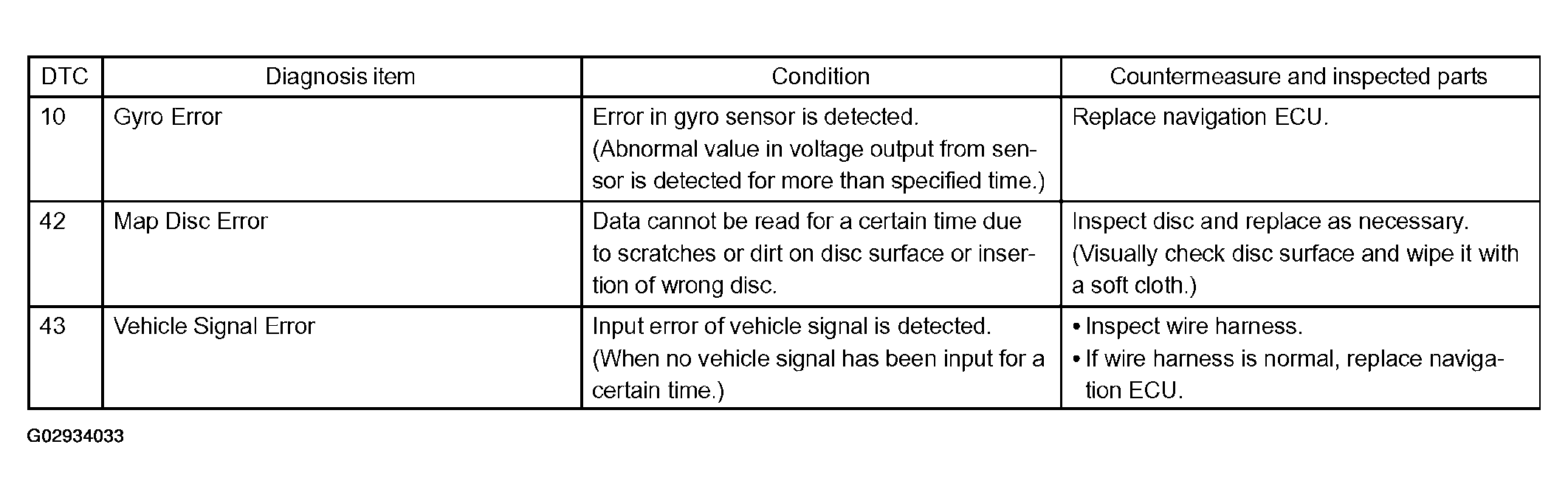

  Fig 9: Logical Address: 58 (Navigation ECU) / Diagnostic Item & Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Logical address: 80 (GPS receiver)

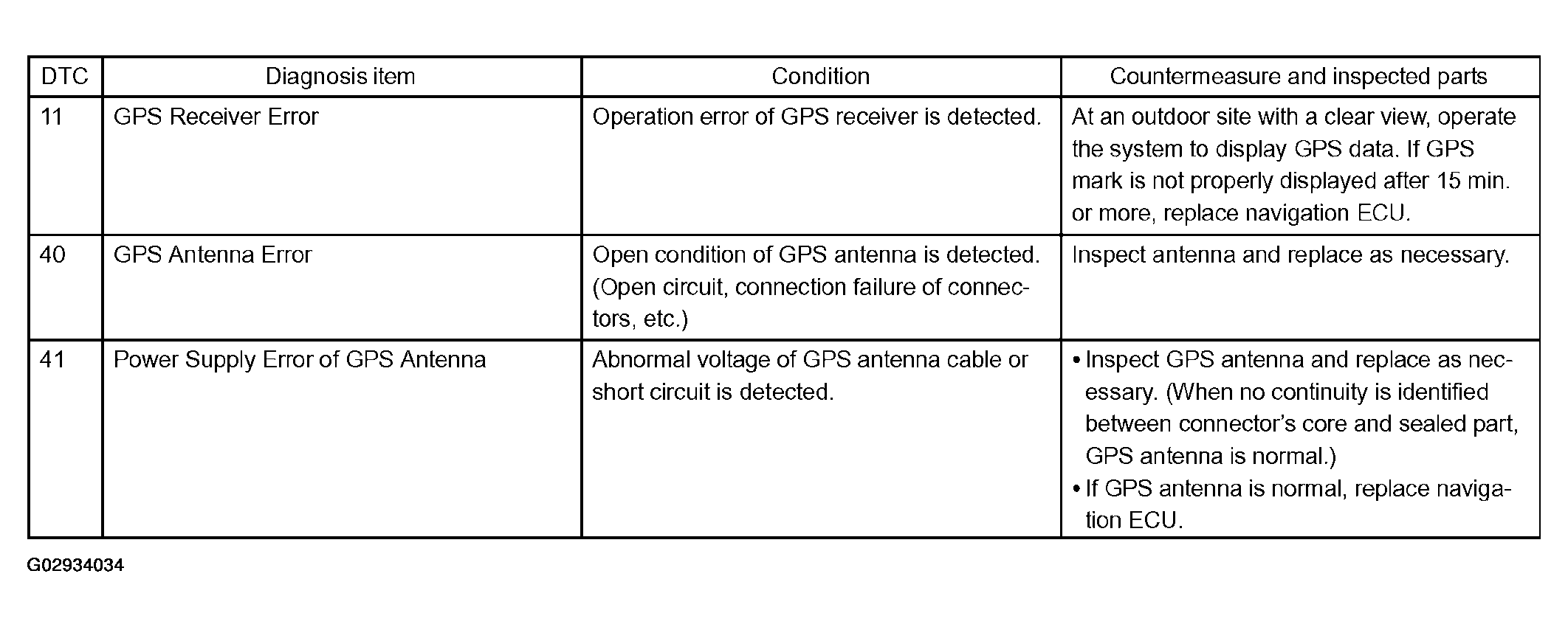

  Fig 10: Logical Address: 80 (GPS Receiver) / Diagnostic Item & Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)
NOTE:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the ignition switch is turned in 1 min. again after the engine starts.
- *3: It may be stored when the ignition switch is turned again after the engine starts.
- *4: This code is stored in 210 sec. after the master component is turned off with the ignition switch ACC or ON.
Logical address: 01 (Communication control)

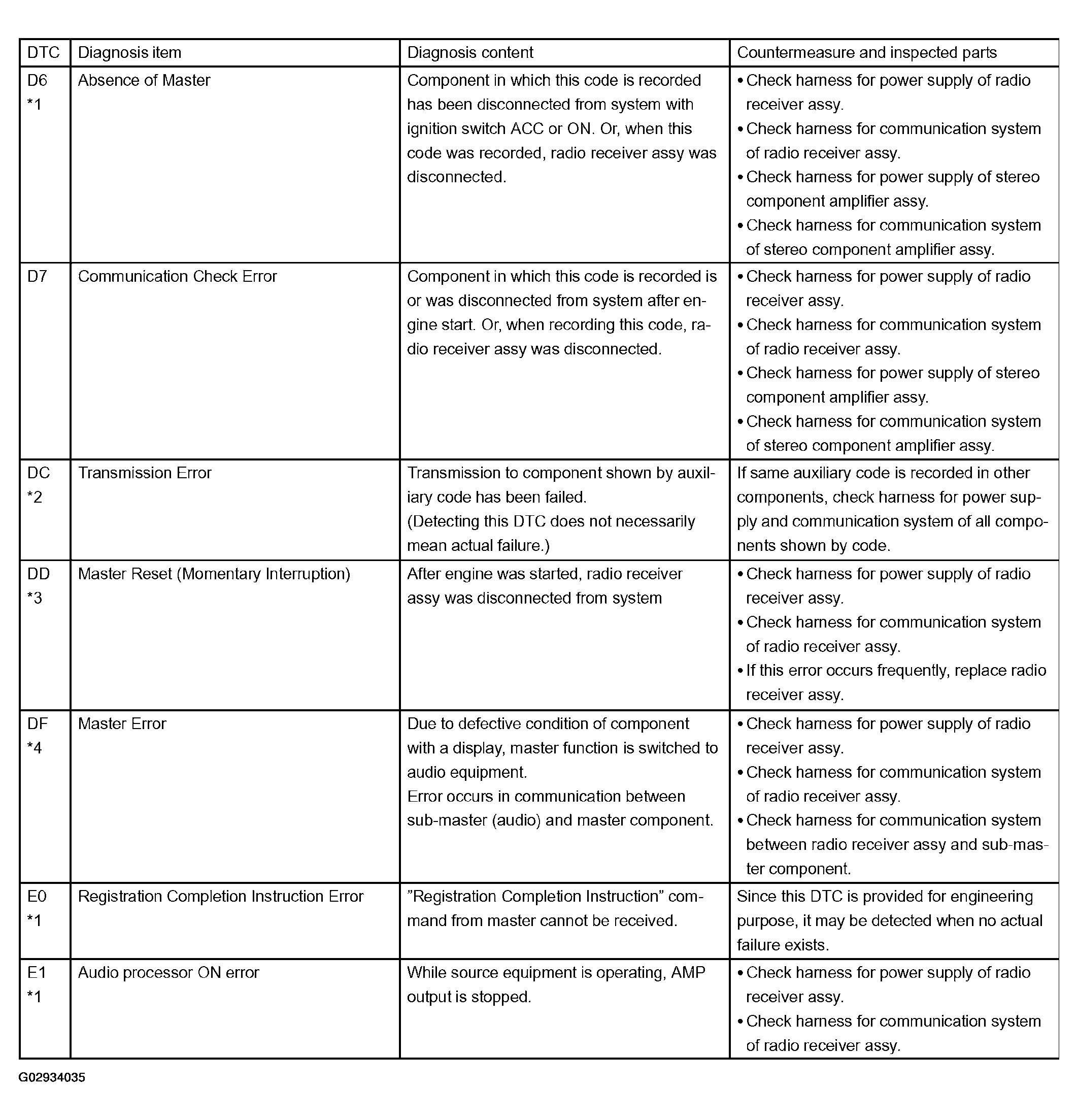

Fig 11: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
MULTI-DISPLAY CONTROLLER SUB-ASSY (Physical address: 1F6, 16C)
NOTE:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code is stored in 180 sec. after the power supply connector is pulled out after the engine starts.
1. Main (1F6)
  Logical address: 01 (Communication control)

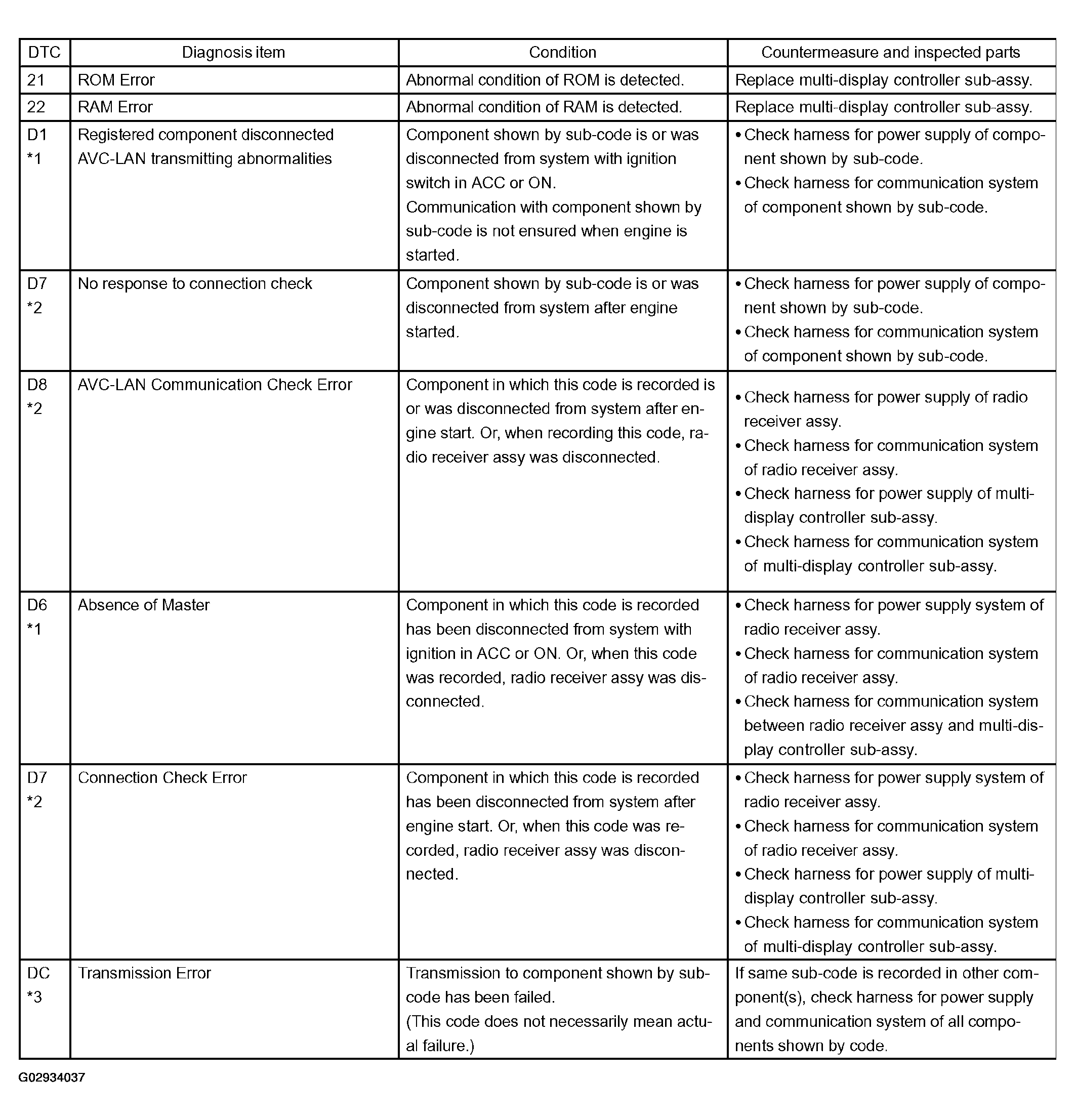

  Fig 13: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 14: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT CONTROLLER ASSY (Physical address: 1F4)
NOTE:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code is stored in 210 sec. after the master component is turned off with ignition switch ACC or ON.
- *3: This code may be stored when the ignition switch is turned 1 min. again after the engine starts.
- *4: This code may be stored when the ignition switch is turned again after engine the starts.
1. Logical address: 01 (Communication control)

  Fig 15: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 16: Logical Address: 01 (Communication Control) / Diagnostic Item & Condition Chart (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
