Service Data

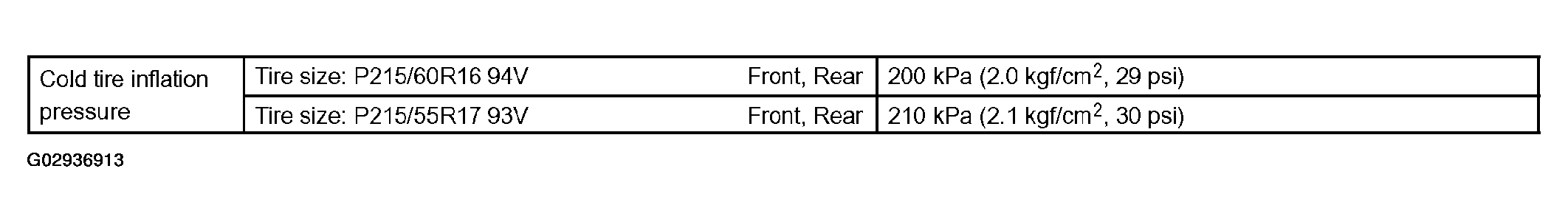

Fig 1: Tire Inflation Pressure Specifications (Cold) Table
G02936913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TIRE & WHEEL SERVICE DATA

Tire runout 1.0 mm (0.039 in.) or less
Imbalance after adjustment 8.0 g (0.018 lb) or less
