Combination Meter: Location

The vehicle shown in Fig 1 & Fig 2 are "GS430".
All components of "GS300" other than the ones used for engine are same as "GS430".

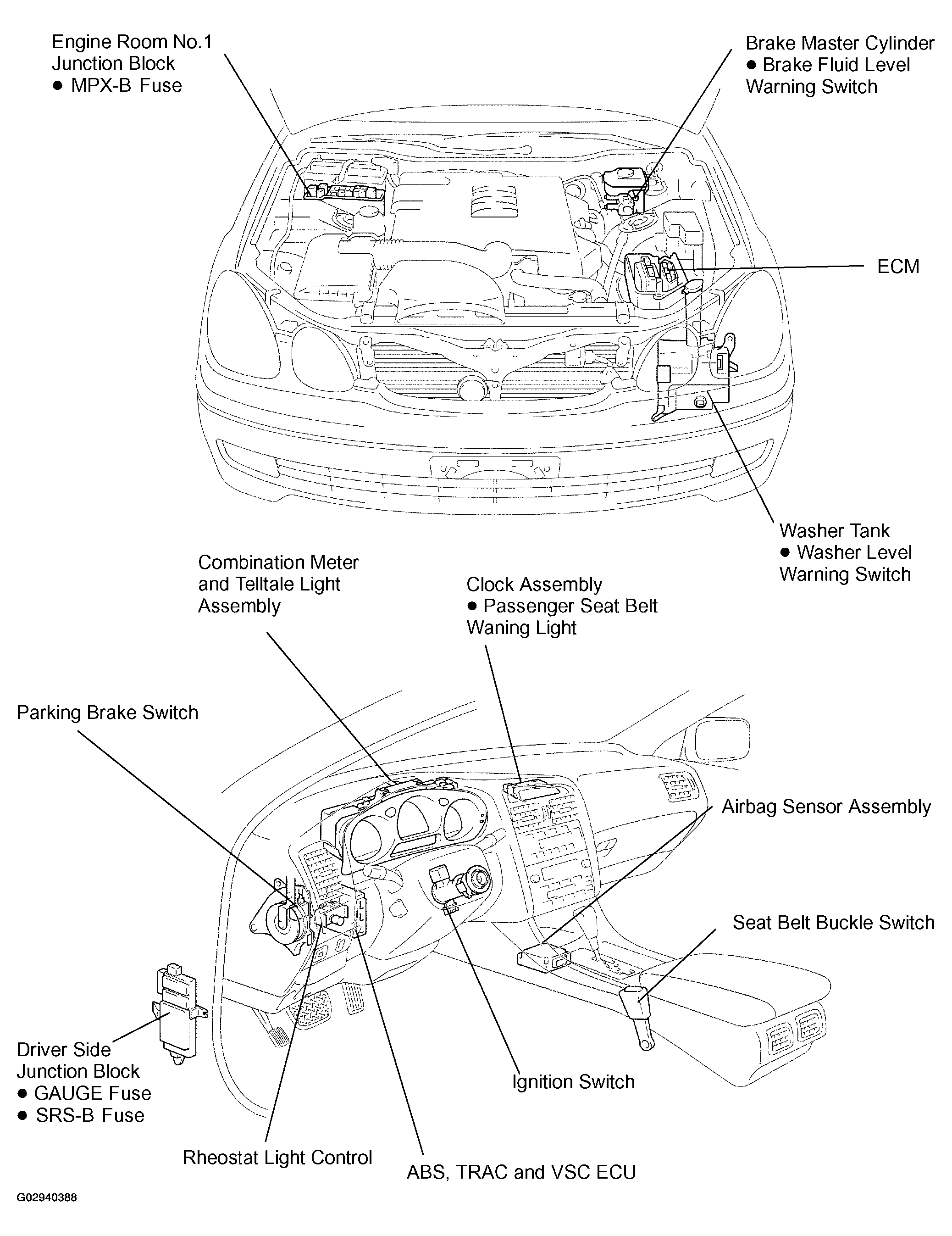

Fig 1: Identifying Combination Meter Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

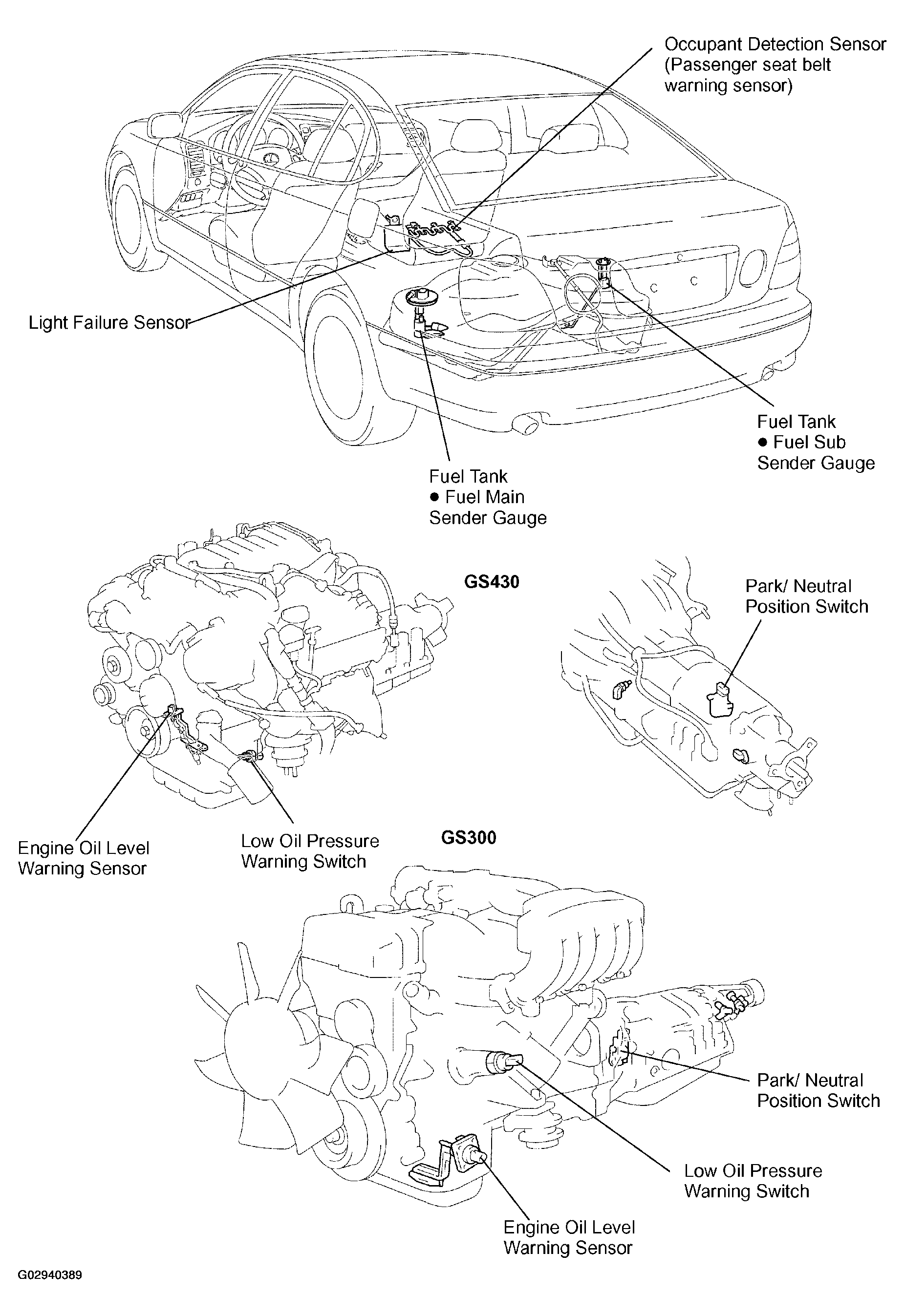

Fig 2: Identifying Combination Meter Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
