Service Data

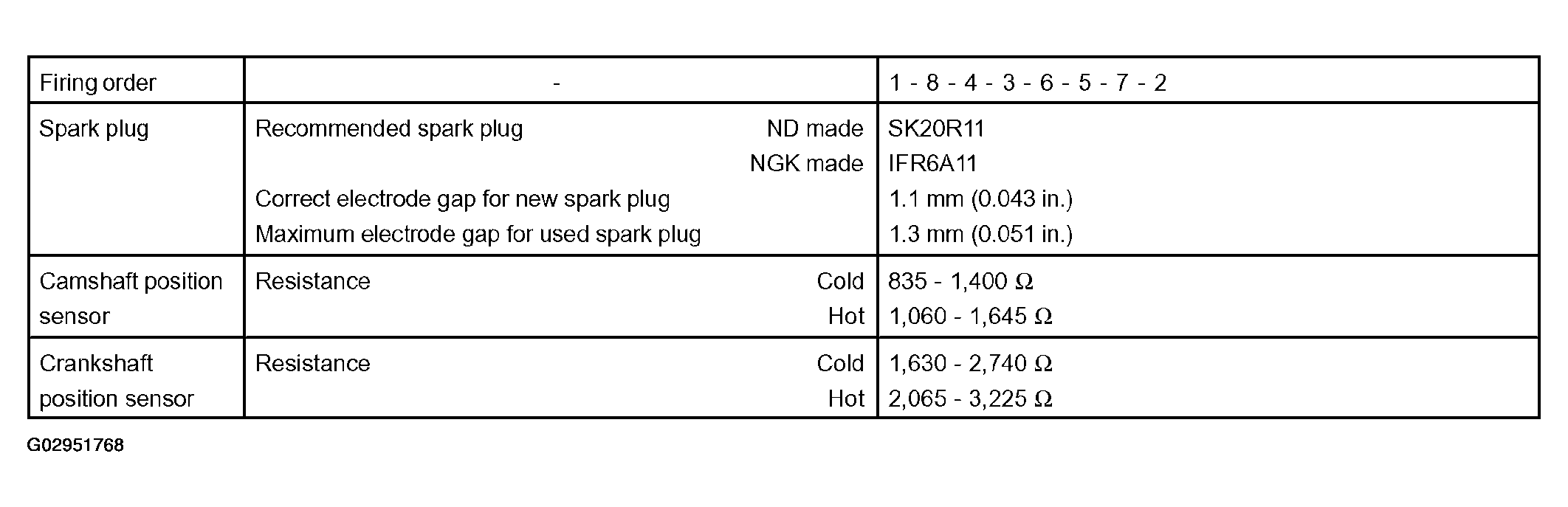

Fig 1: Ignition System Service Specification Chart (3UZ-FE)
G02951768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
