Front Lower Ball Joint: Components

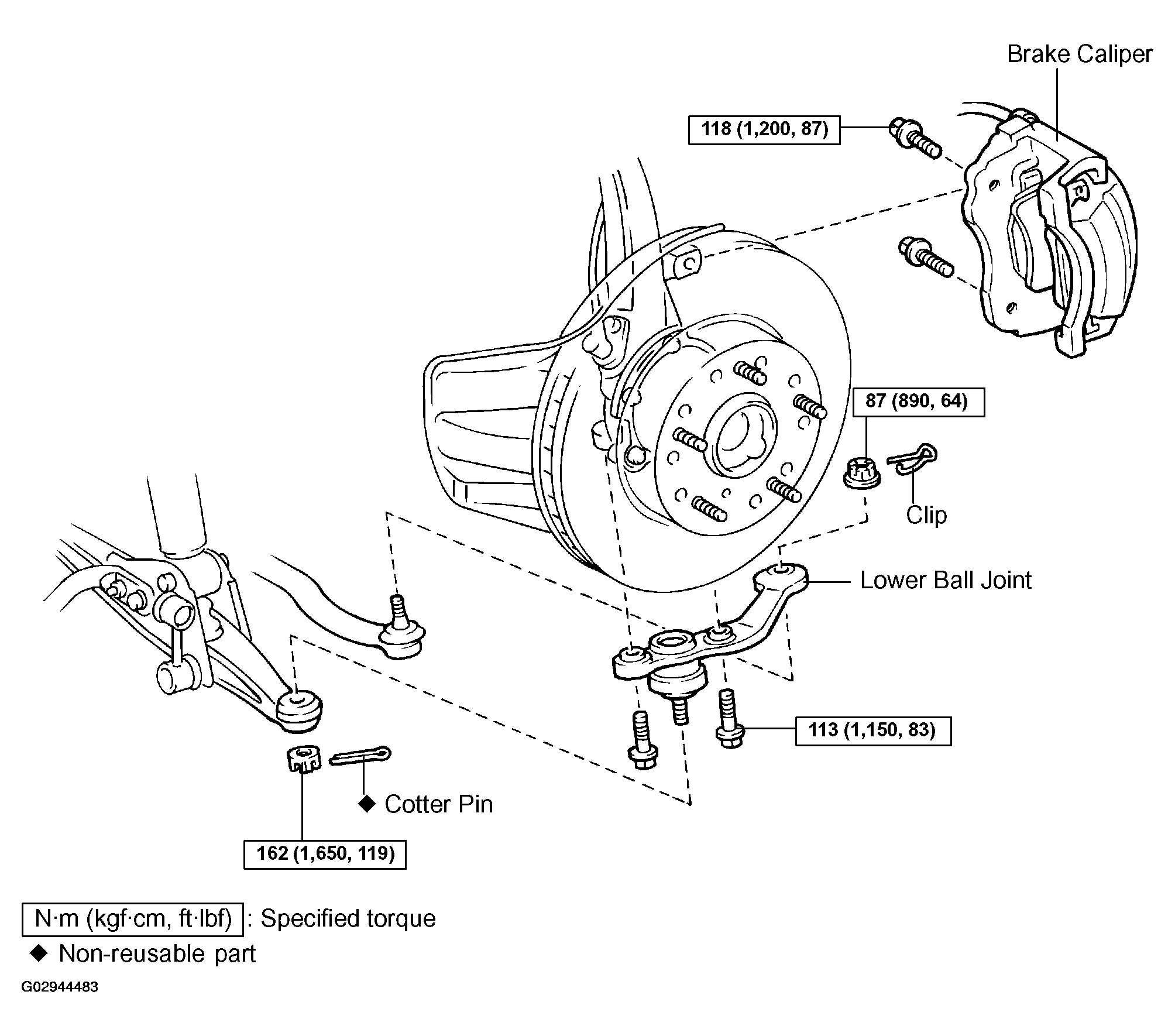

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications
G02944483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
