Front Shock Absorber: Components

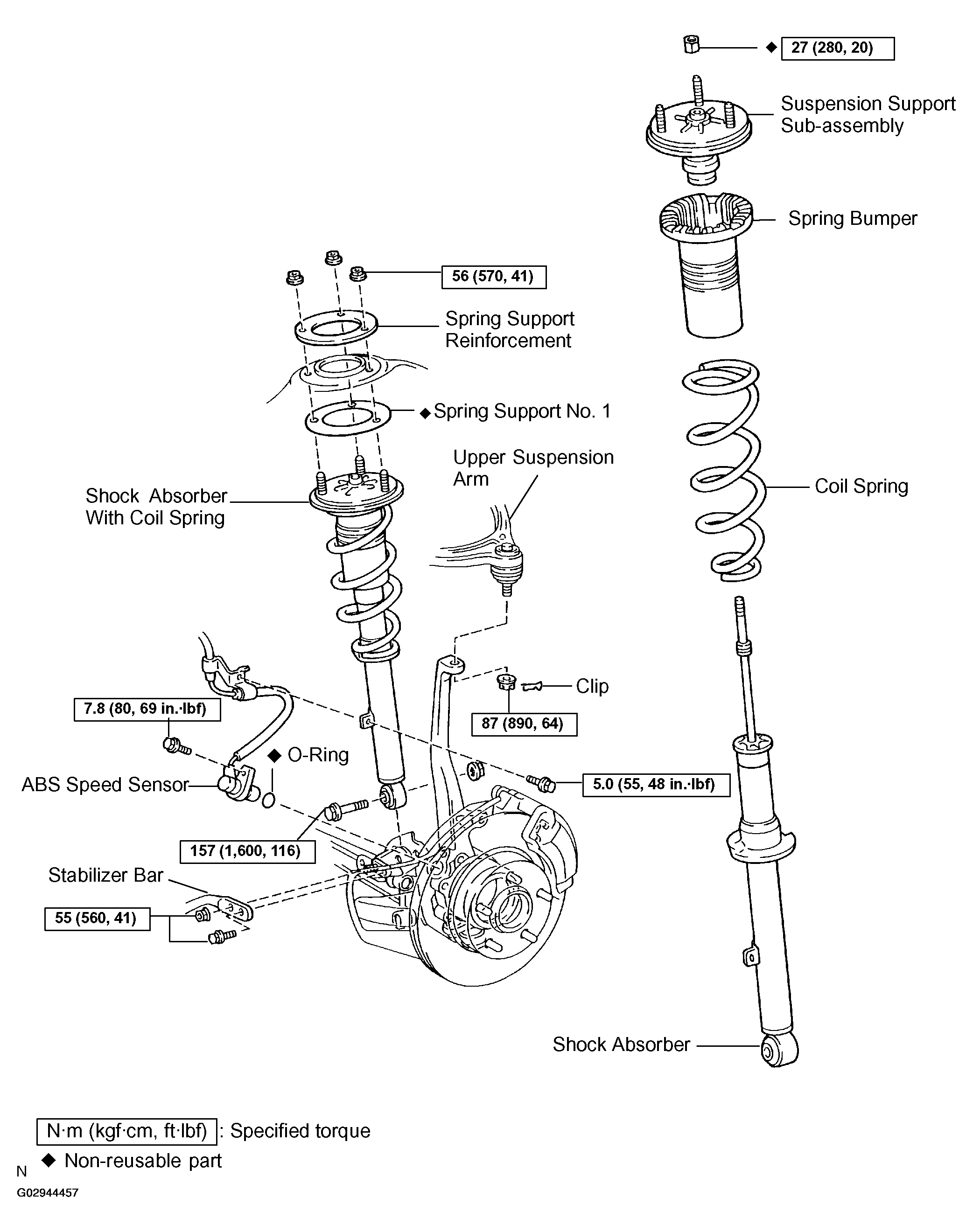

Fig 1: Shock Absorber Replacement Components With Torque Specifications
G02944457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
