Problem Symptoms Table

Use the below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

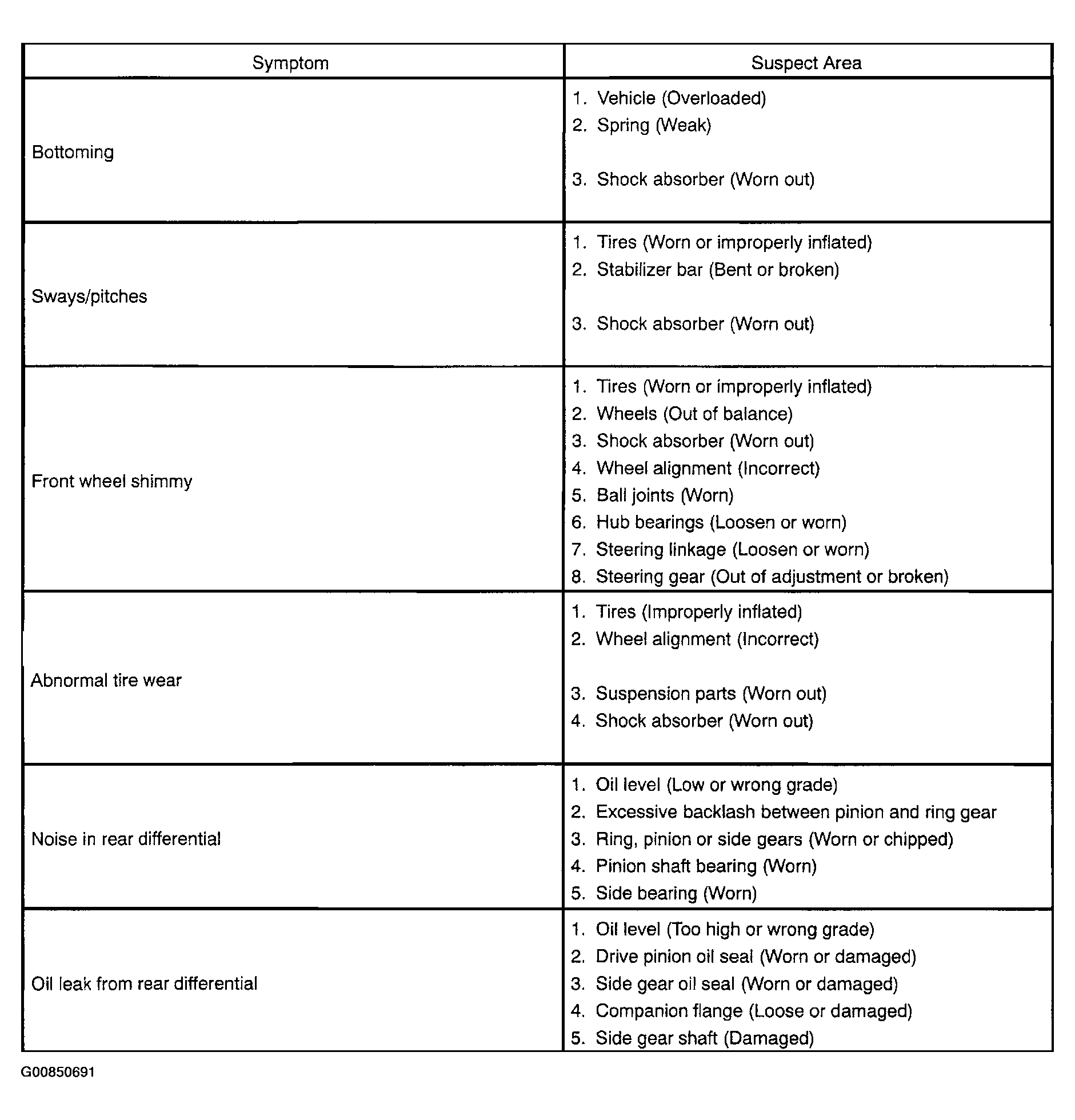

Fig 1: Problem Symptom Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
