Floor Shift Assembly: Components

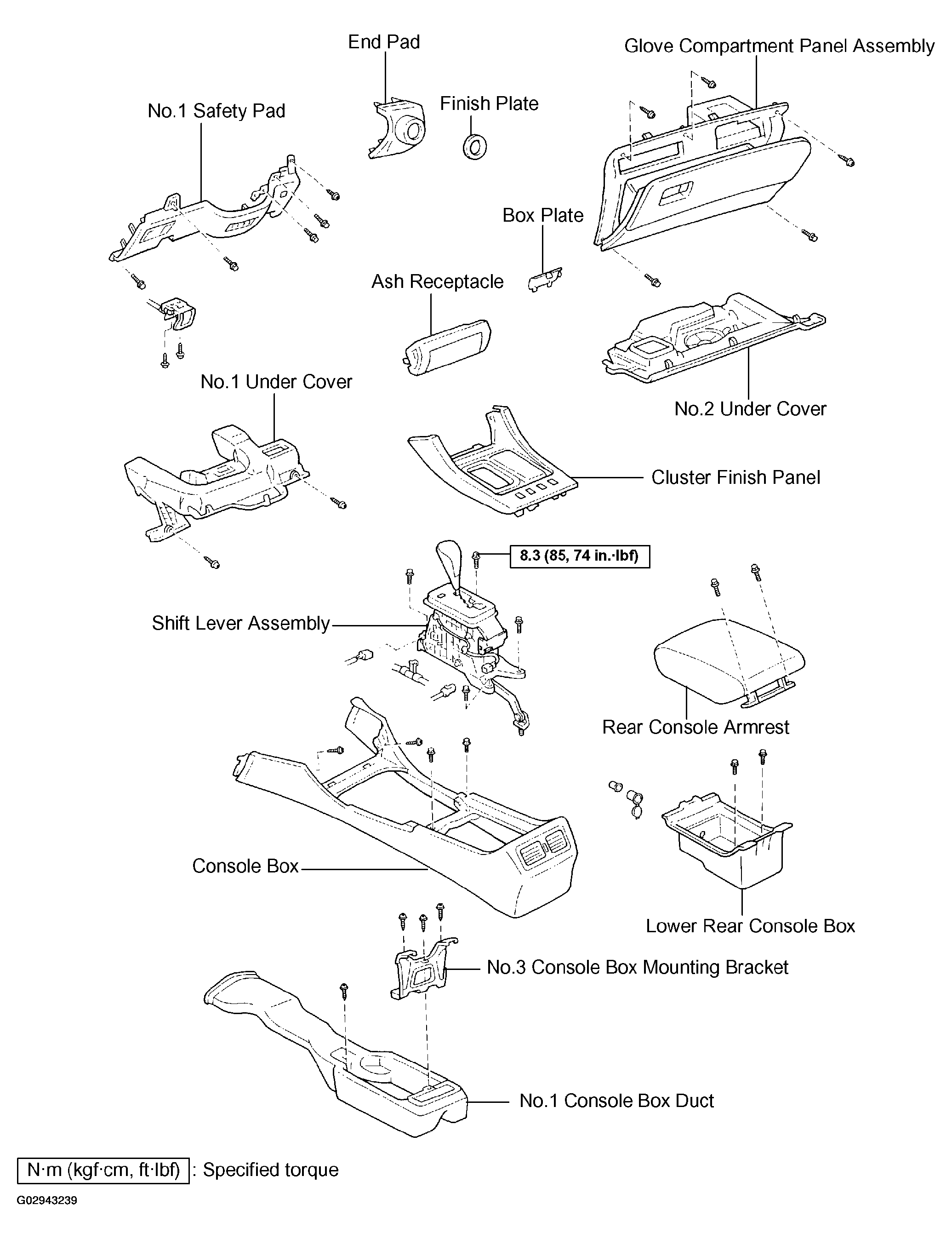

Fig 1: Floor Shift Assembly Replacement Components & Torque Specifications Table (1 Of 3)
G02943239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Floor Shift Assembly Replacement Components & Torque Specifications Table (2 Of 3)
G02943240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

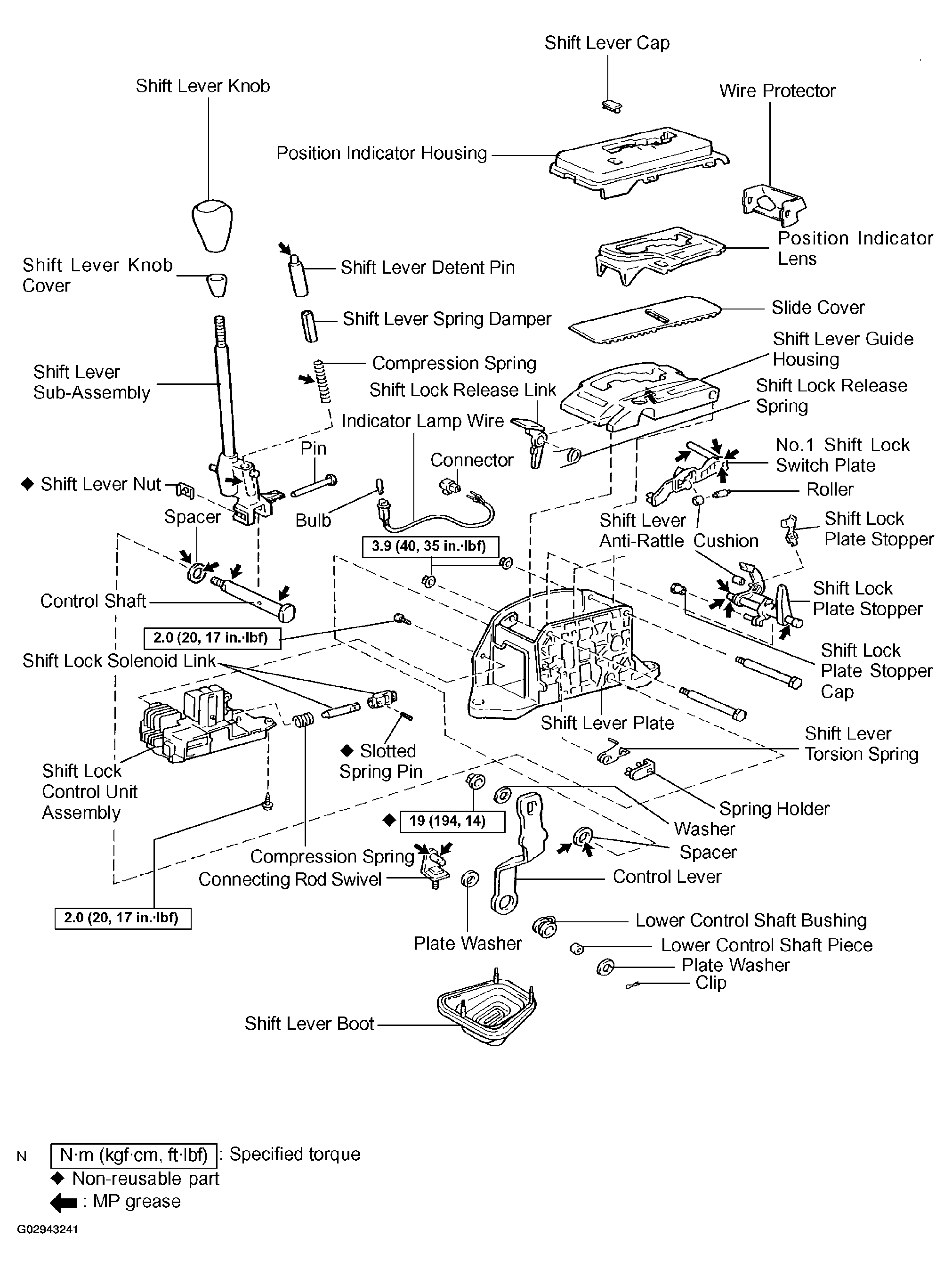

Fig 3: Floor Shift Assembly Replacement Components & Torque Specifications Table (3 Of 3)
G02943241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
