Shift Lock System: Inspection

INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.

HINT:

Do not disconnect the ECU connector.

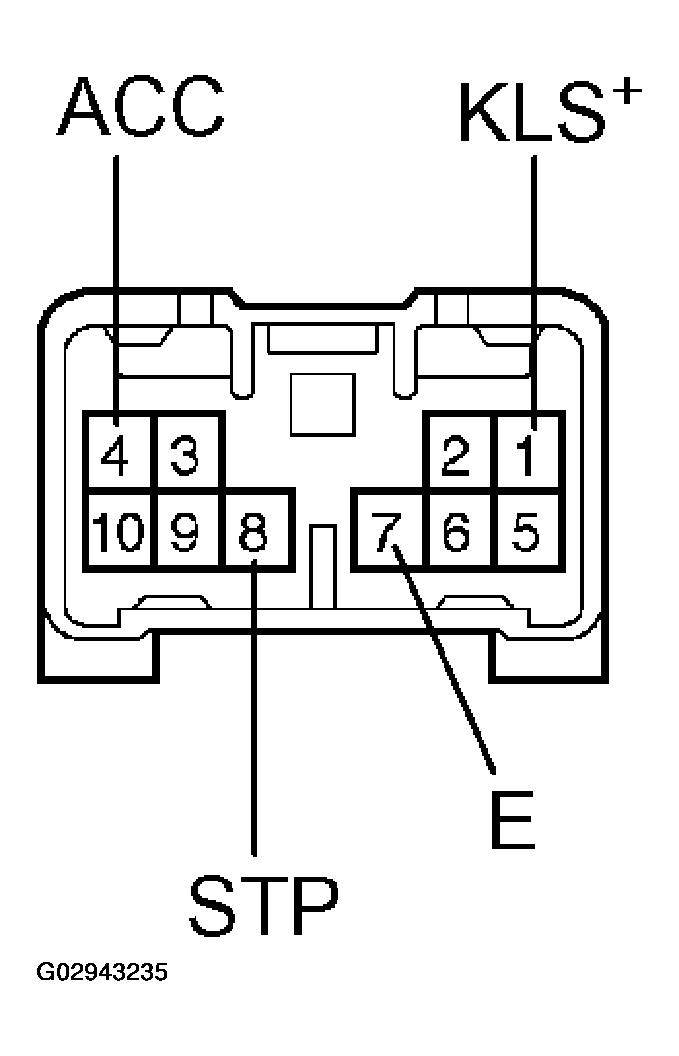

Fig 1: Identifying Shift Lock Control ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

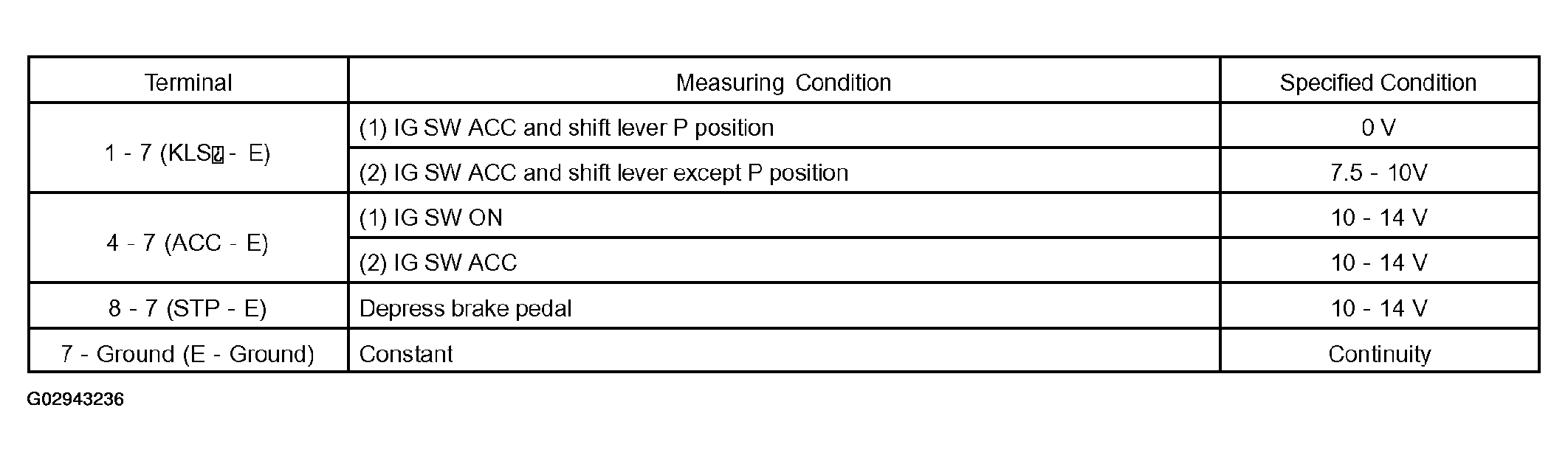

Fig 2: Terminal And Specified Condition Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT KEY INTERLOCK SOLENOID
1. Disconnect the solenoid connector.
2. Using an ohmmeter, measure the resistance between terminals 3 and 4.
  Standard resistance: 12 - 17 Ω

  If the resistance value is not as specified, replace the solenoid.

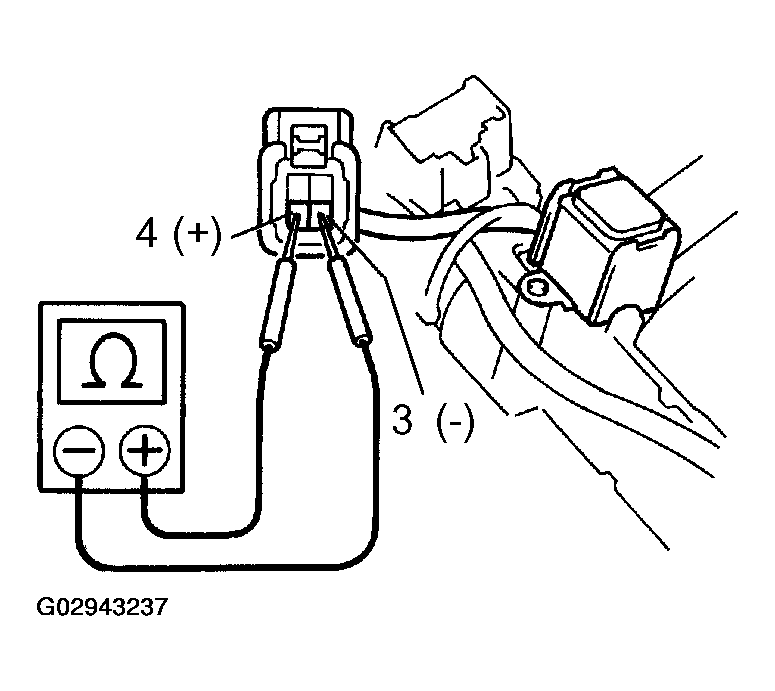

  Fig 3: Measuring Resistance B/W Terminals 3 And 4 Using Ohmmeter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Touch the solenoid with your finger and check that the solenoid operation can be felt when battery voltage is applied intermittently to terminals 3 and 4.
  If the operation is not as specified, replace the solenoid.

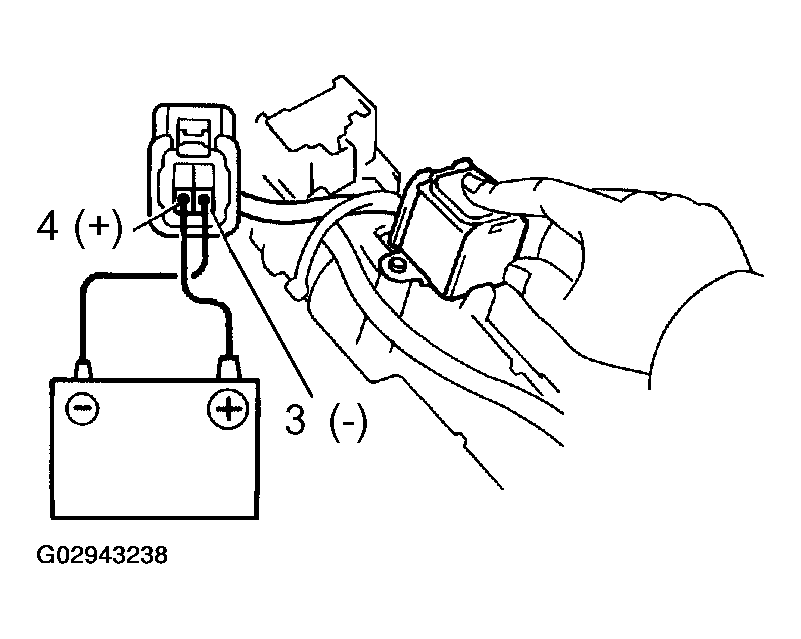

  Fig 4: Checking Solenoid Operation By Feel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
