Power Window Control System - Diagnostics
>>
Diagnostic Trouble Code Table
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Trouble Code Table

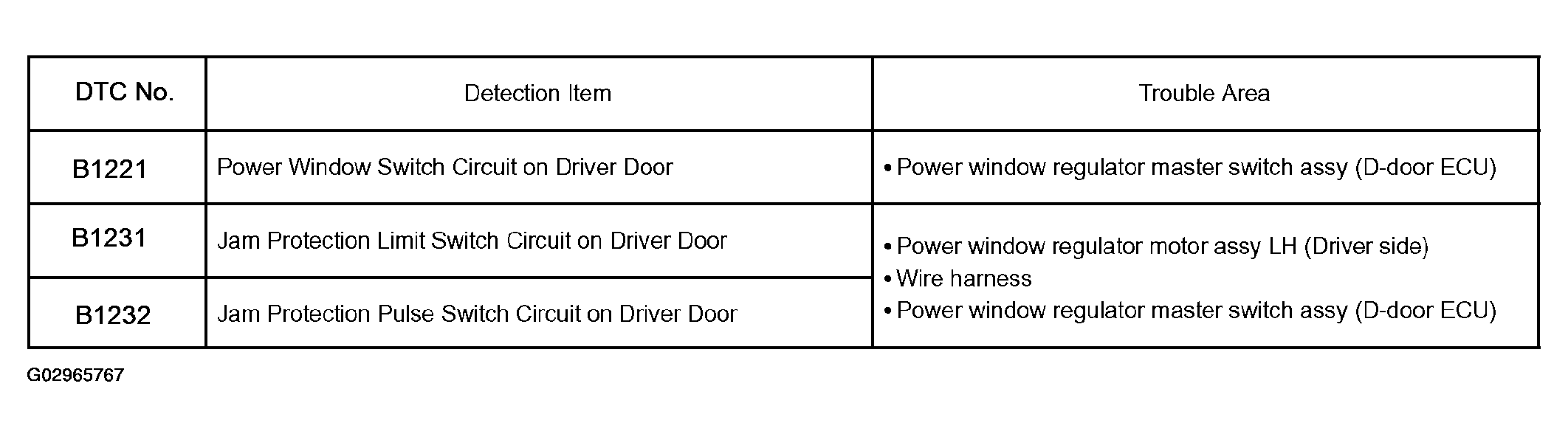

Fig 1: Diagnostic Trouble Code Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
