Problem Symptoms Table

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

LIGHTING SYSTEM:

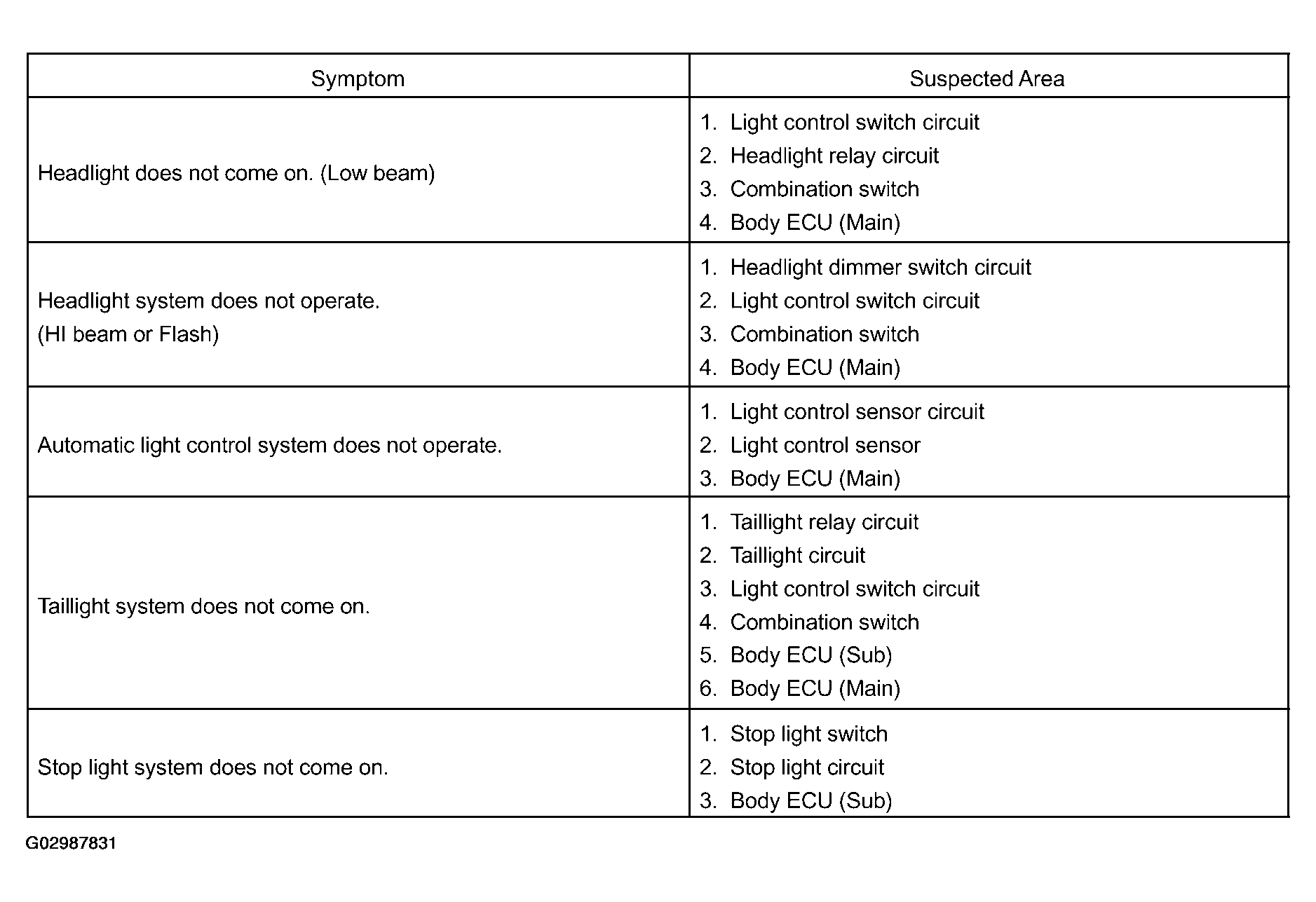

Fig 1: Lighting System - Problem Symptoms Chart

G02987831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HAZARD WARNING SYSTEM:

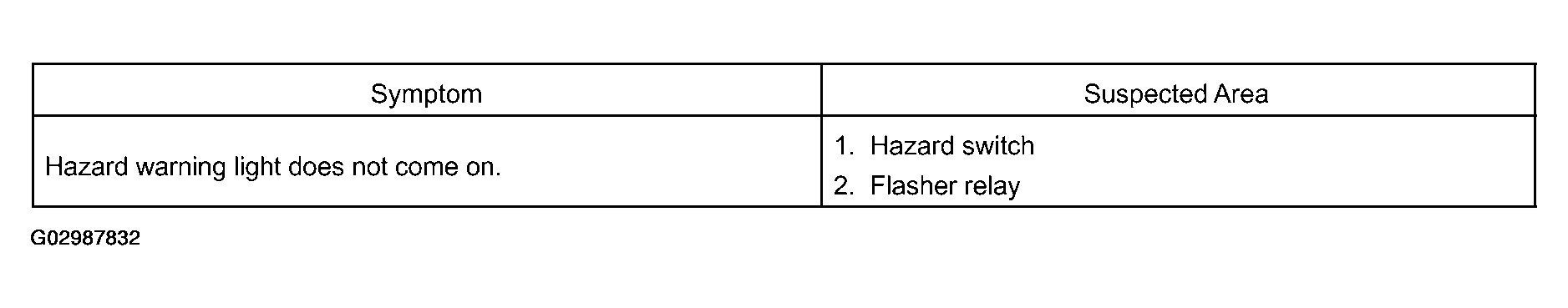

Fig 2: Hazard Warning System - Problem Symptoms Chart

G02987832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ILLUMINATION LIGHT SYSTEM:

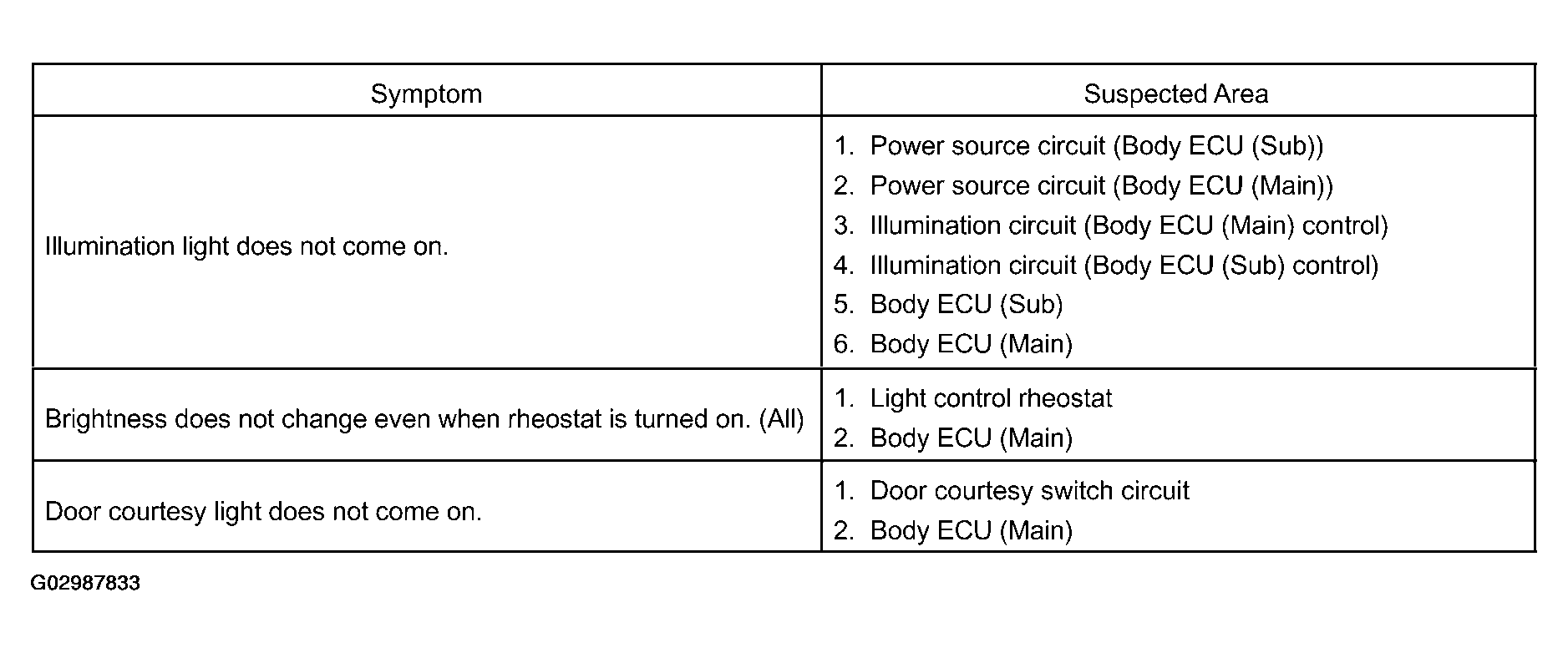

Fig 3: Illumination Light System - Problem Symptoms Chart

G02987833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SEAT BELT SYSTEM:

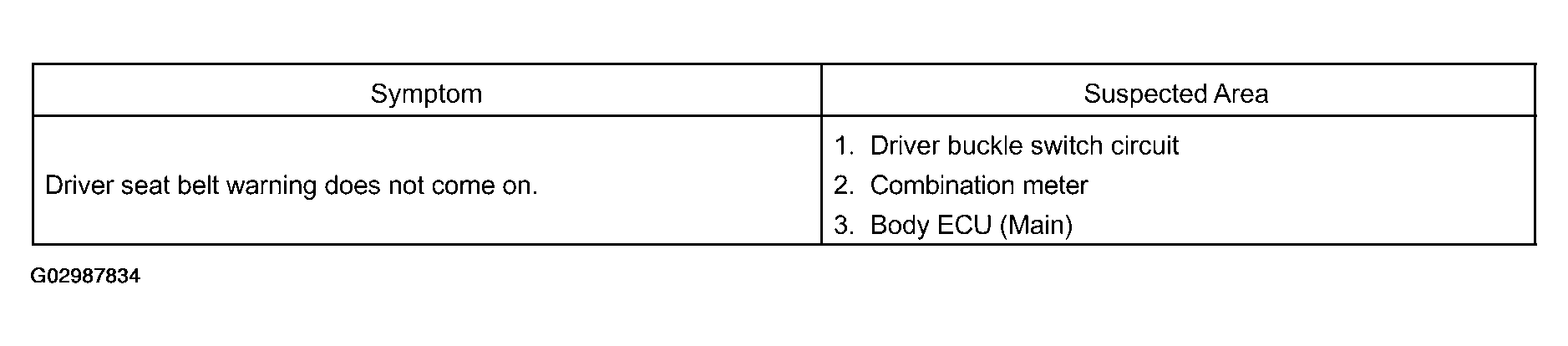

Fig 4: Driver Seat Belt System - Problem Symptoms Chart

G02987834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER DOOR LOCK CONTROL SYSTEM:

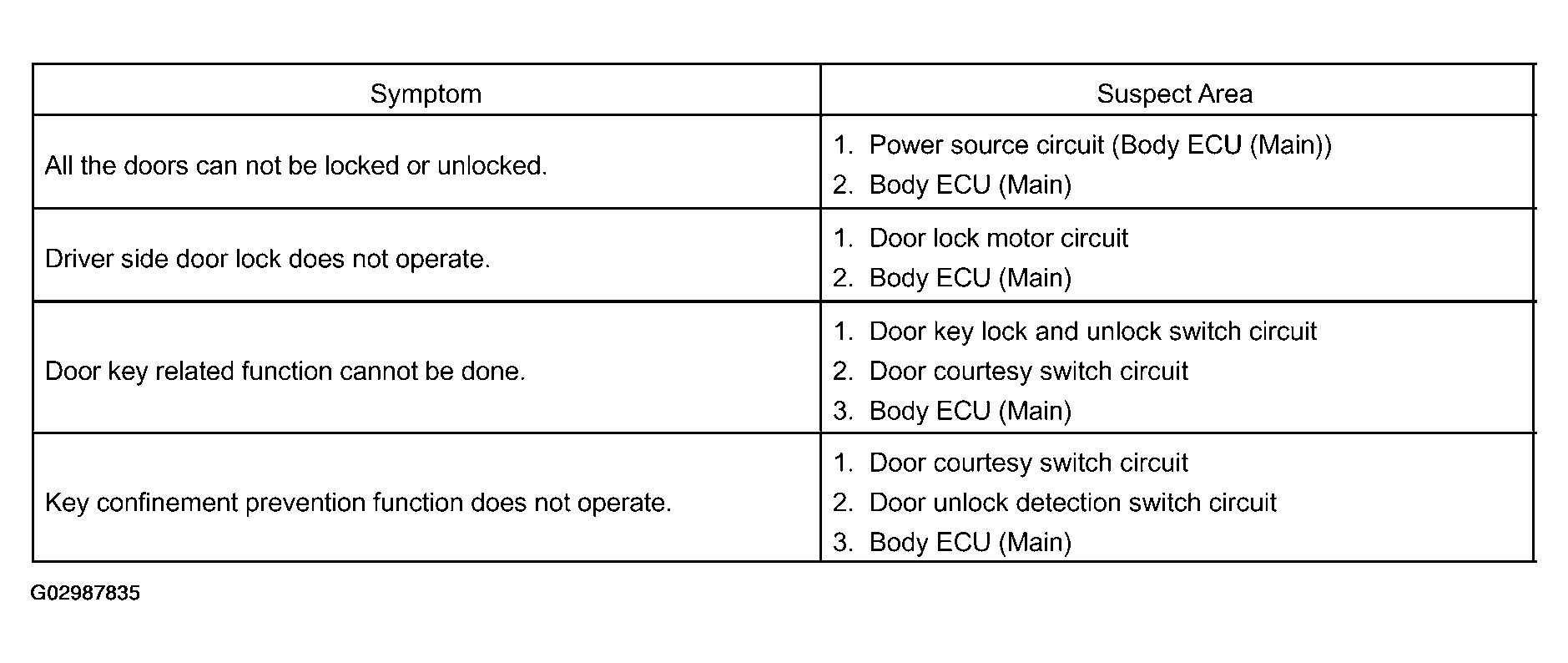

Fig 5: Power Door Lock Control System - Problem Symptoms Chart

G02987835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER SEAT CONTROL SYSTEM:

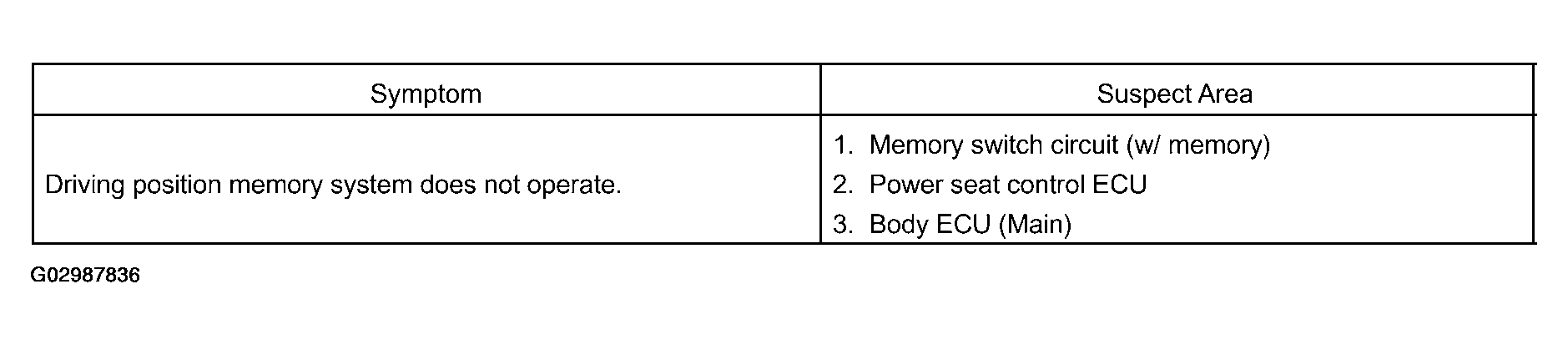

Fig 6: Power Seat Control System - Problem Symptoms Chart

G02987836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRELESS DOOR LOCK CONTROL SYSTEM:

Fig 7: Wireless Door Lock Control System - Problem Symptoms Chart

G02987837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR WIPER SYSTEM:

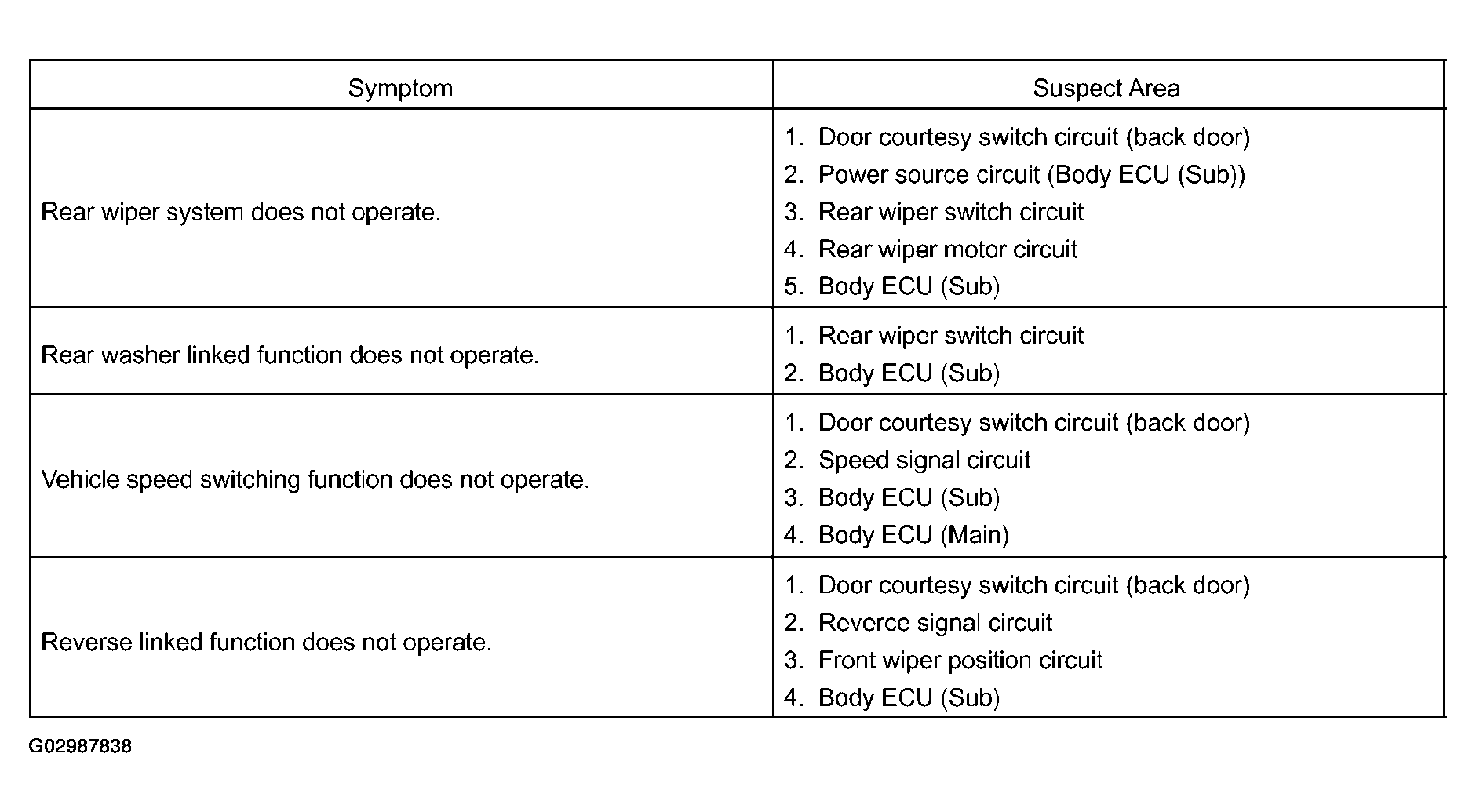

Fig 8: Rear Wiper System - Problem Symptoms Chart

G02987838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OTHERS:

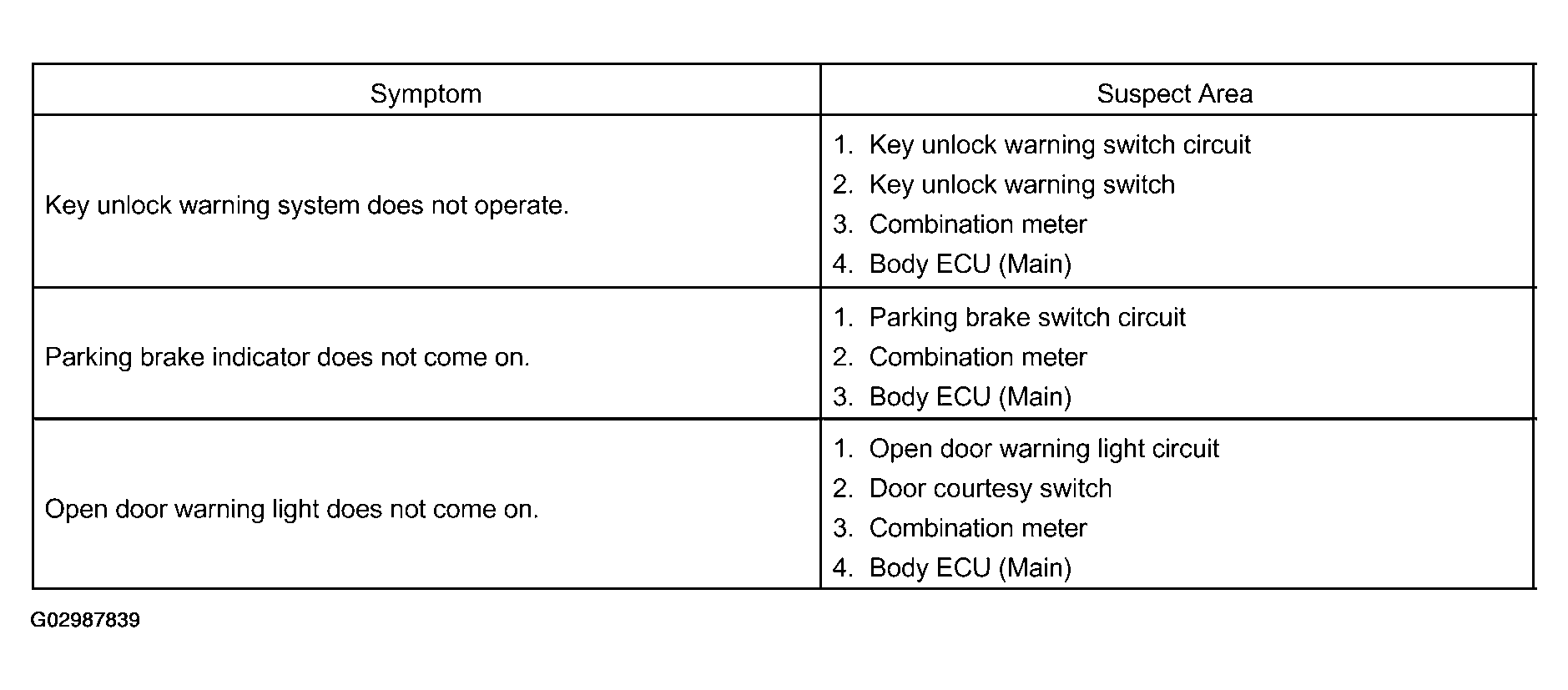

Fig 9: Others - Problem Symptoms Chart

G02987839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
