Problem Symptoms Table

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

POWER DOOR LOCK CONTROL SYSTEM:

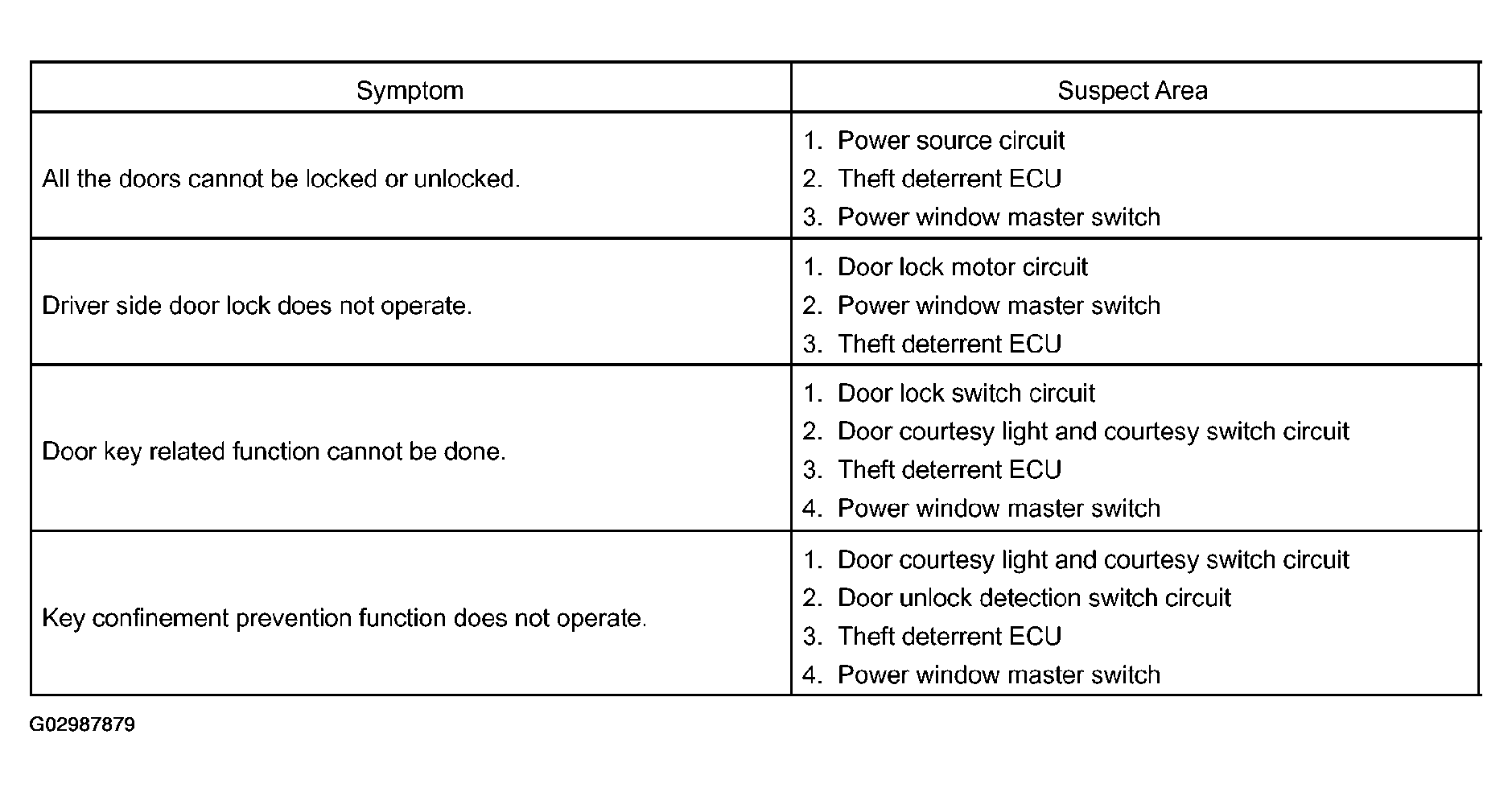

Fig 1: Power Door Lock Control System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER WINDOW CONTROL SYSTEM:

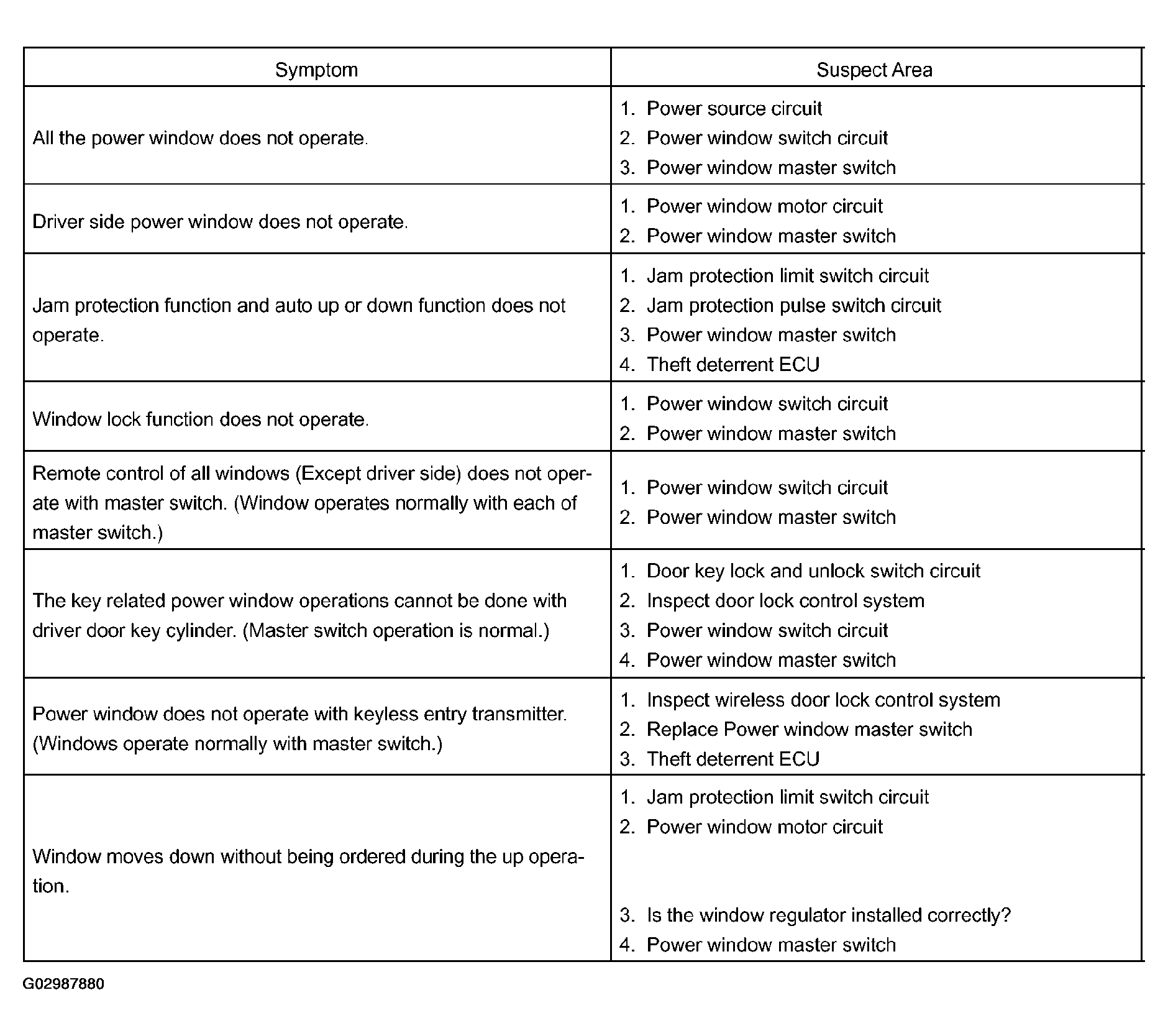

Fig 2: Power Window Control System - Problem Symptoms Chart
