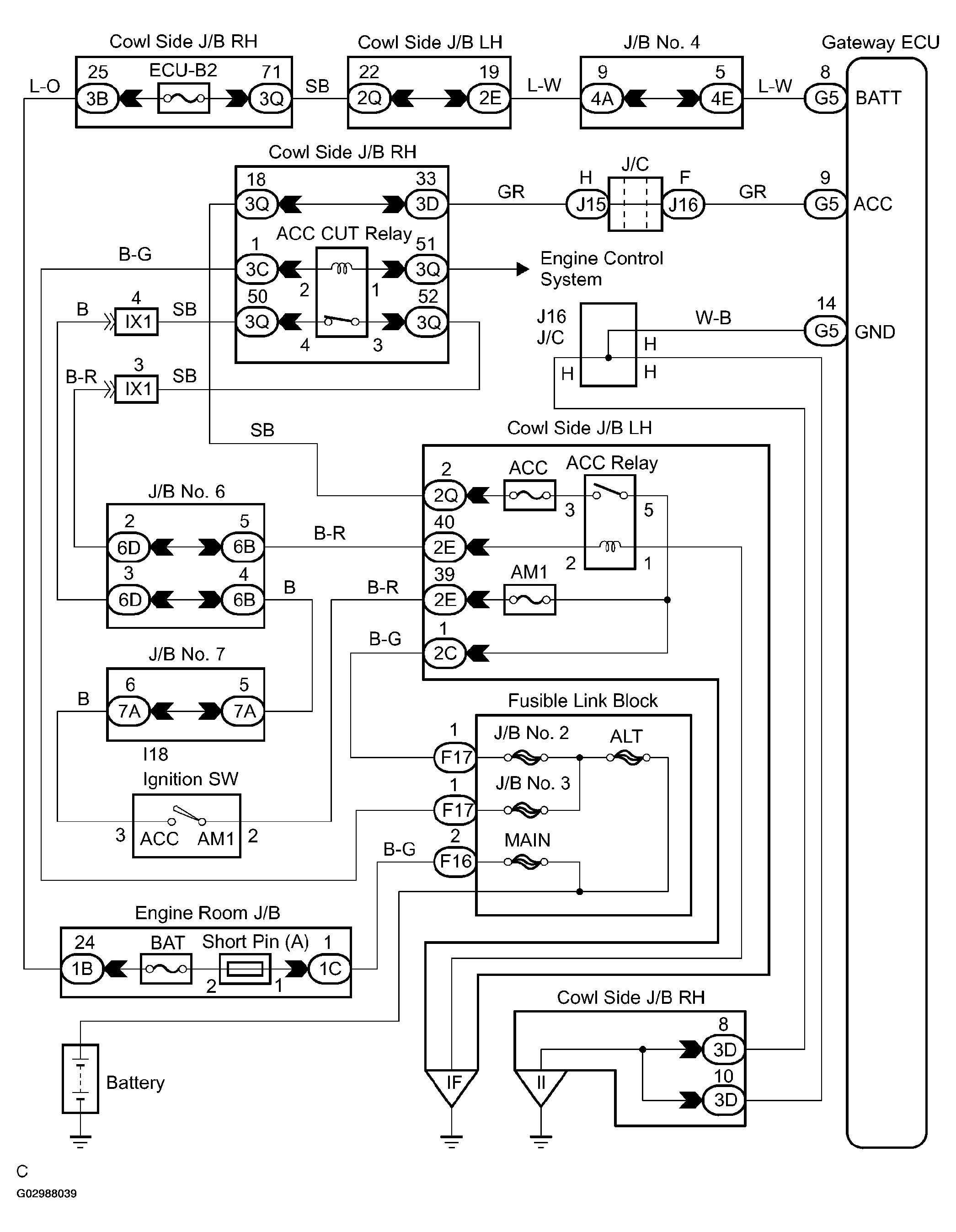

Power Source Circuit (Network Gateway ECU): Wiring Diagram

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
