Typical Malfunction Thresholds

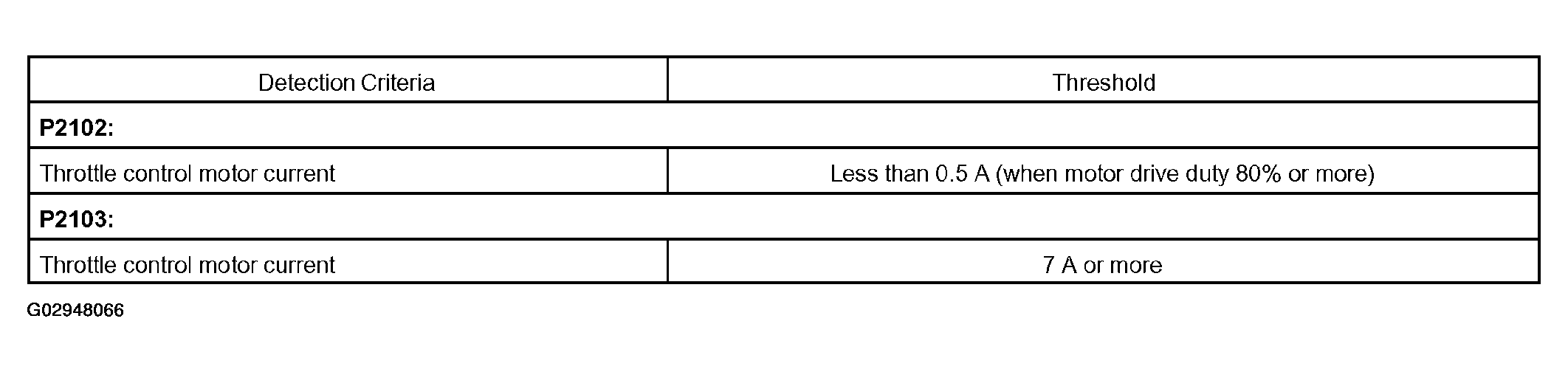

Fig 1: DTC P2102, P2103 Typical Malfunction Thresholds
G02948066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
